TV Logic LUM-550W Operation Manual

Multi format 4k lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format
4K LCD Monitor
LUM-550W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-550W and is the answer not in the manual?

Questions and answers

Related Manuals for TV Logic LUM-550W

Summary of Contents for TV Logic LUM-550W

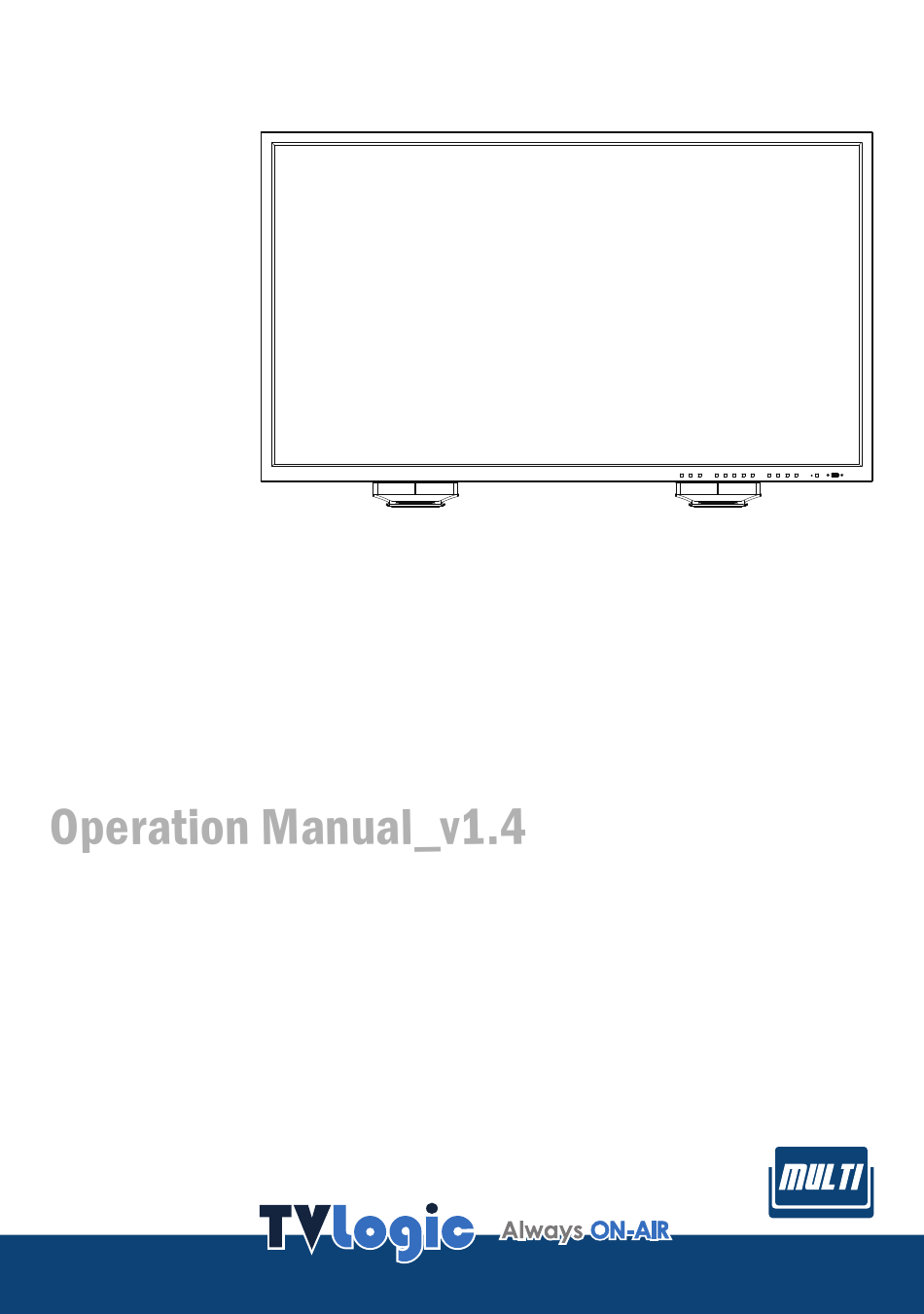

  • Page 1 Multi Format 4K LCD Monitor LUM-550W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] DISPLAY [5] GPI [6] MARKER [7] INFORM. [8] AUDIO [9] SYSTEM 6. Button Functions 7. VIDEO Support Resolution 8.

  • Page 4: Caution

    1. Caution Always use set voltage. • If any of the following conditions occurs, unplug ● the power cord from the DC outlet, and request AC 100 ~ 240V ● a qualified service person to perform repairs. DC 24V ● a.
  • Page 5 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Main Features

    2. Main Features LUM-550W Monitor contains the following features : Compatible with various SDI signal Ethernet & USB support ● ● formats - Supports Ethernet and USB connection for program download and monitor control. - This product is compatible with various SDI signals - 480P, 576P, 1080p, 1080psf HDMI(1.4)/Display Port(1.1) Support...

  • Page 7: Controls & Functions

    3. Controls & Functions LUM-550W : FRONT F1/MODE F2/SCAN F3/ASPECT F4/MARKER F5/BLUE ONLY F1/MODE MENU F2/SCAN DOWN F3/ASPECT F4/MARKER ENTER F5/BLUE ONLY POWER MENU DOWN ENTER POWER HDMI LUM-550W : REAR HDMI HDMI-A HDMI-B RS422 IN/OUT HDMI-C REMOTE HDMI-D HDMI-A...
  • Page 8 3. Controls & Functions FRONT [HDMI] Button/Lamp [F2 ~ F5] Button/Lamp ● ● - Used to select HDMI input. Previously - Shortcut key for KEY MAPPING feature in the selected HDMI input selection displays. OSD MENU. - Press the button to move through the - Selectable options are as follows : modes: UD MODE(4CH), UD MODE(HDMI-A 1CH), UD MODE(HDMI-B 1CH).
  • Page 9 3. Controls & Functions FRONT [MENU] Button 5). H/V DELAY ● - Used to check horizontal and vertical - Used to activate the OSD menu. sync simultaneously by moving the screen up/down/left/right. [DOWN/BRIGHT] Button ● - In this mode, the brightness of image - Used to move up through the menus during automatically increase for easy verification the OSD menu activation and also to decrease...
  • Page 10 3. Controls & Functions REAR [REMOTE] (RJ-45) [Audio out] (PHONE JACK) ● ● - Provides connection to control equipment - Select the left/right Audio disembedded for external monitor control. signal output. - Features can be changed in the GPI section of OSD menu.

  • Page 11: Menu Tree & Adjustment

    MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor. SDI A LUM-550W 1080/60i BRIGHT CONTRAST CHROMA APERTURE A. Current input signal (Indicates as UD XXX in UD mode) B. Model name(LUM-550W). C. Current input signal resolution. 4K LCD Monitor 11...

  • Page 12: Menu Operations

    5. Menu Operations [1] PICTURE [2] VIDEO SDI A LUM-550W SDI A LUM-550W 1080/60i 1080/60i DITHERING BRIGHT FILM MODE DETECTION CONTRAST FORCE psf CHROMA VIDEO RANGE SELECT APERTURE LIMITED(EX 3G FORMAT NORMAL MODE BRIGHT DITHERING ● ● - Used to set the brightness(=offset) level from -Used to activate/deactivate the 10bit -100 to 100.

  • Page 13: Color

    5. Menu Operations [3] COLOR SDI A LUM-550W BIAS RED 1080/60i ● - Used to set Red Bias(or Offset, mainly affects PAGE I >> PAGE II COLOR TEMP 6500K on Black level) from -100 to 100. GAIN RED - Adjusts the red color of dark section.

  • Page 14: Display

    5. Menu Operations [3] COLOR [4] DISPLAY SDI A LUM-550W 1080/60i SDI A LUM-550W 1080/60i HD DISPLAY MODE 16:9 PAGE II >> PAGE I BACK LIGHT FOCUS ASSIST COLOR FOCUS ASSIST LEVEL COLOR SPACE NATIVE COLOR GAMMA CURVE 2.20 BACK LIGHT HD DISPLAY MODE ●...

  • Page 15: Gpi

    5. Menu Operations [5] GPI SDI A LUM-550W 1080/60i Menu PAGE I >> PAGE II GPI 1 Classifi- Settable Values GPI 2 HDMI cation GPI 3 DISPLAY PORT GPI 4 F.A. MONO GPI 5 F.A. COLOR NONE, GPI 6 UNDER SCAN...
  • Page 16 5. Menu Operations [5] GPI <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off)
  • Page 17 5. Menu Operations [5] GPI Tally Type - Default ● - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1...
  • Page 18 5. Menu Operations [5] GPI IP ADDRESS SDI A LUM-550W 1080/60i ● - Used to set the IP Address connected to a PAGE II >> PAGE I GROUP ID Monitor. MONITOR ID DHCP SUBNET MASK IP ADDRESS 192.168.123. ● SUBNET MASK 255.255.128.

  • Page 19: Marker

    5. Menu Operations [6] MARKER FIT MARKER SDI A LUM-550W 1080/60i ● - Used to activate or inactivate the Fit Marker PAGE I >> PAGE II MARKER function. CENTER MARKER - When the Marker type is selected in the SAFETY AREA...
  • Page 20 5. Menu Operations [6] MARKER SDI A LUM-550W 1080/60i PAGE II >> PAGE I USER MARKER H1 USER MARKER H2 USER MARKER V1 USER MARKER V1 USER MARKER H1 ● - Used to set the position of the first horizontal marker line.

  • Page 21: Inform

    5. Menu Operations [7] INFORM. F4 KEY MAPPING SDI A LUM-550W 1080/60i ● KEY LED - User can select the function for the F4 button. F1 KEY SETTING MODE - Selectable functions: UNDER SCAN, ASPECT, F2 KEY SETTING UNDER SCAN...

  • Page 22: Audio

    5. Menu Operations [8] AUDIO INPUT SELECT SDI A LUM-550W 1080/60i ● LEVEL METER SELECT - Used to select the input signal of the Audio LEVEL METER DISPLAY PAIR Level Meters. LEVEL METER REFERENCE -18dB - When the input signal is SDI, available mode LEVEL METER DECAY TIME is only SDI-A.

  • Page 23: System

    5. Menu Operations [9] SYSTEM INTERNAL PATTERN SDI A LUM-550W 1080/60i ● - Generates White Pattern internally. PAGE I >> PAGE II USER CONFIG SET USER 1 - Selectable range is from 0% to 100% with 5% LOCK NUMBER yyyyyyyy increment.
  • Page 24 5. Menu Operations [9] SYSTEM SDI A LUM-550W 1080/60i SDI A LUM-550W 1080/60i PAGE II >> PAGE I PAGE II >> PAGE I S/W UPGRADE BOARD VERSION 0001 0101 0.01 5 S/W UPGRADE START MAIN : UD MODE FAN CONTROL BRIG.

  • Page 25: Button Functions

    6. Button Functions [1] F1(MODE) Button F1(MODE) settings are as followed. 2) UD MODE(1CH) : This mode displays 1 ● input signals (A or B(HDMI)) to 4K(4096 X 2160 or 3840 X 2160) image. 1. Press the F1/MODE button on the front of the monitor to change the MODE.
  • Page 26 6. Button Functions [2] SCAN Button [3] ASPECT SCAN Button (APPLY AFTER F2~F5 KEY 1.Two different aspect modes are available. ● MAPPING) * Aspect on This product supports various scan modes. ● - Fit to 4096x2160 display when input signal Press the [SCAN] button on the front of the ●...

  • Page 27: Video Support Resolution

    7. VIDEO Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160 (23.98/24/25/29.97/30p/Psf) HD-SDI YCbCr 4:2:2 10bit Quad link (4K) 4096x2160 (23.98/24/25/29.97/30p/Psf) Input Signal Interfaces Signal Format (HD-SDI / 3G SDI) 3840x2160(50/59.94/60p) YCbCr 4:2:2 10bit 3840x2160 YCbCr 4:4:4 10/12bit (23.98/24/25/29.97/30/p/Psf)
  • Page 28 7. VIDEO Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) RGB 4:4:4 8/10/12bit 3840x2160 YCbCr 4:4:4 8/10/12bit (23.98/24/25/29.97/30/50/59.94/60p) YCbCr 4:2:2 12bit 720x480(60p) RGB 4:4:4 8/10/12bit 720x576(50p) YCbCr 4:4:4 8/10/12bit 1280x720(60p) YCbCr 4:2:2 12bit 1920x1080(50/59.94/60p) 800x600@60Hz HDMI 1024x768@60Hz Quad link(4K) VESA 1280x1024@60Hz...

  • Page 29: Product Specifications

    8. Product Specifications LUM-550W Size 31” Resolution 4096 x 2160 (17:9, 1024x2160 x4ch) Pixel Pitch 0.1704(H) x 0.1704(W) mm Color Depth 1.07B colors (true 10bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 850 cd/ m...
  • Page 30 Memo 30 4K LCD Monitor...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 08590 KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층 Mobile.
