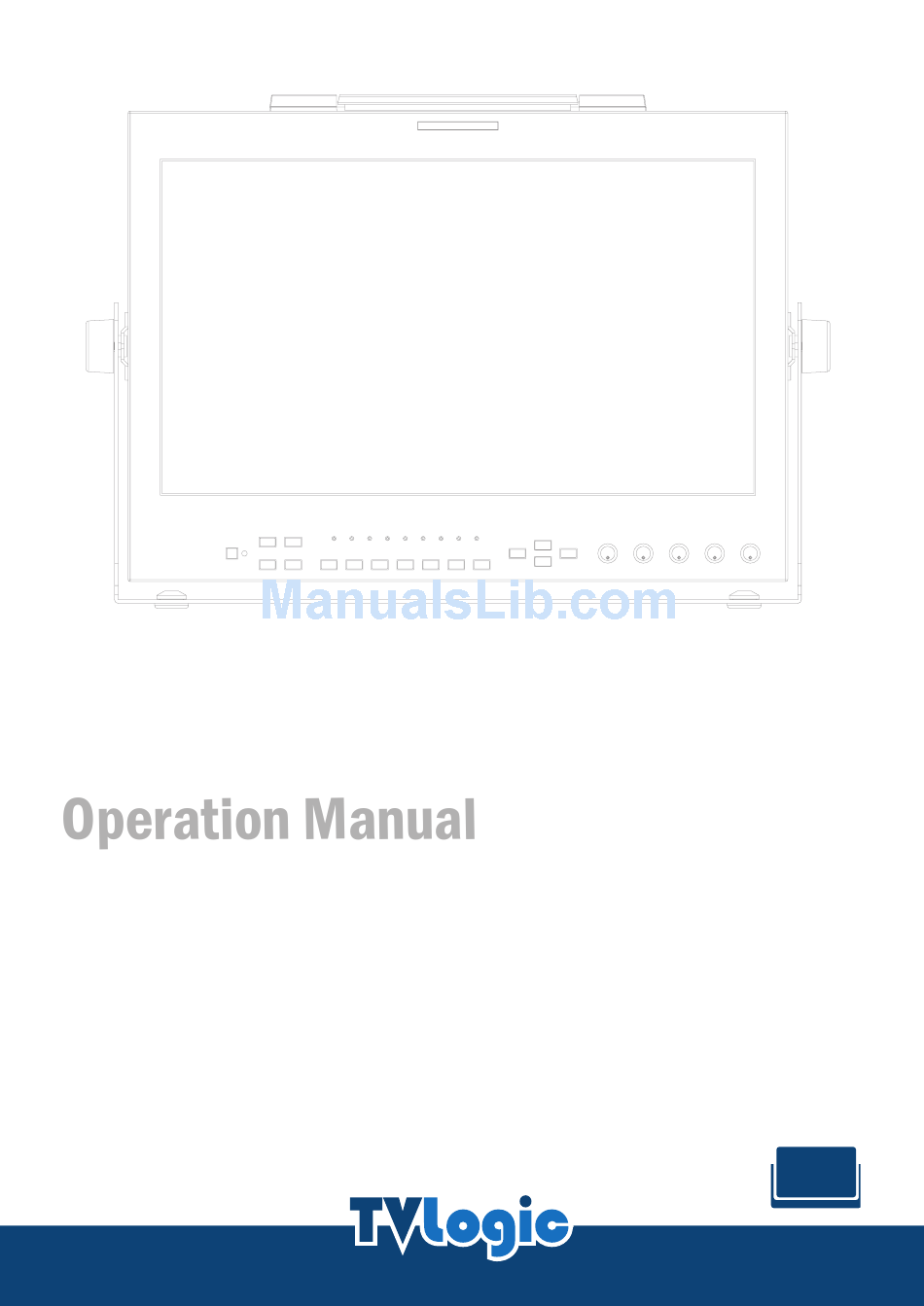

  • Page 1 Multi Format AMOLED Monitors LEM Series LEM-150 multi...

  • Page 3: Table Of Contents

    Contents Caution Features Controls, Indicators and Connections Menu Organization & Adjustment Menu Contents Other Functions DVI ANALOG/DVI DIGITAL / HDMI Support Resolution Product Specifications Product Lineup Optional Accessories...

  • Page 4: Caution

    Caution Power Requirements ◦ - AC 100 ~ 240V - DC 12V/24V ◦ All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference. ◦...
  • Page 5 Caution In case the product needs service, consult an authorized TVLogic Reseller. ◦ Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean ◦ the product. Do not use liquid cleaners or aerosol cleaners. Keep the product away from direct Sun light.
  • Page 6 Caution WARNING!! Warning for the image sticking!! Persistent image sticking can result from the exposure of the screen to certain types of static element ◦ within the displayed picture and it can be permanent or temporary. Image sticking of the screen caused by below will not be covered by the warranty. Please avoid watching the static image (30 minutes) or image with fixed logos.

  • Page 7: Features

    Compatible with varied analog signals ◦ - The product is compatible with varied analog signals – Composite, S-Video, Component, RGB and etc. (LEM-150 supports NTSC, NTSC-J, PAL, PAL-M, SECAM broadcast standards) All-in-one type system ◦ - Slim and all-in-one type monitor that requires no other accessories and optimized for space utilization.
  • Page 8 Features Dual link support ◦ - Supports Dual link YCbCr/RGB 4:4:4 and YCbCr 4:2:2 formats. 3G support ◦ - Supports 3G A/B formats. Additional features ◦ - Loop-through out (SDI), VESA Mounting, user interface and rack-mountable. Active Format Description (AFD) ◦...

  • Page 9: Controls, Indicators And Connections

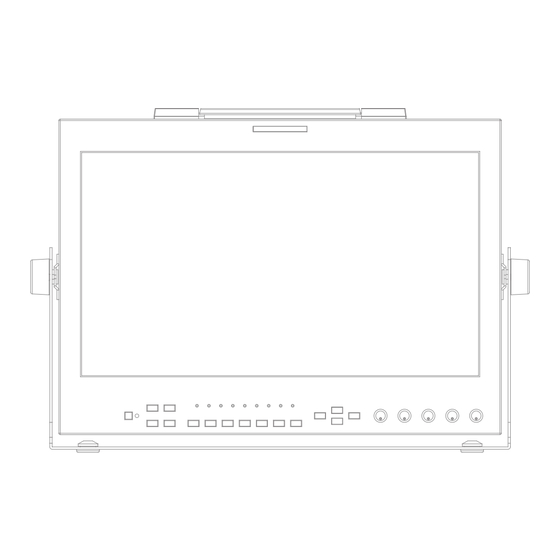

    Controls, Indicators and Connections LEM-150 : FRONT APERTURE BRIGHT CHROMA CONTRAST VOLUME INPUT STATUS ENTER POWER DOWN/UP ANALOG SDI-A MENU SDI-B BLUE ONLY/MONO H/V DELAY MARKER SCAN LEM-150 : REAR HDMI RS232 CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R/S-C DVI-I SDI IN-A SDI OUT-A...
  • Page 10 Controls, Indicators and Connections FRONT [ANALOG] Button/Lamp ◦ - Used to select the desired Analog input. Press the button to activate the analog input menu- selection, then use UP and DOWN button to select desired input. * See section “Other Functions [1]ANALOG Button” for more information (pg 39). [PBP] Button/Lamp ◦...
  • Page 11 Controls, Indicators and Connections [MARKER] Button/Lamp ◦ - Used to activate/deactivate the marker. - The type of marker at work may be selected on the main menu. - If AFD is selected on the main menu, marker automatically activates when input signal contains the embedded AFD data.
  • Page 12 Controls, Indicators and Connections [BRIGHT] knob ◦ - Used to adjust the degree of brightness. - Control value range : -100 ~ 100 [CHROMA] knob ◦ - Used to adjust the saturation of the image. - Control value range : -50 ~ 50 - Unavailable in RGB, DVI ANALOG, DVI DIGITAL and HDMI modes.
  • Page 13 Controls, Indicators and Connections REAR [REMOTE] (RJ-45) ◦ - Provides connection to control equipment for external monitor control. - Features can be changed in the REMOTE(1/2) section of OSD menu. [RS422 IN/OUT] (RJ-45) ◦ - Used to control the monitor with protocol provided by TVLogic, Image Video and TSL. [RS232] ◦...
  • Page 14 Controls, Indicators and Connections [Ethernet & USB] ◦ - Ethernet and USB port for easy firmware updates. ~ AC IN ◦ - 100 ~ 240V AC 50/60Hz DC 12V/24V IN ◦ - 12V/24V DC. DC IN socket 1,2 : GND 3,4 : +12V/+24V <Video input>...

  • Page 15: Menu Organization & Adjustment

    7. To view next page in the sub menu, press ENTER button at PAGE I >> PAGE II. 4) Main Menu Window Information ① Menu item and page info. ② Model name(LEM-150). ③ Current input signal. ④ Current input signal resolution.

  • Page 16: Menu Contents

    Menu Contents [1] PICTURE Below is the description for each function of the PICTURE menu. SDI A LEM-150 1080/60i PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE NTSC SETUP 7.5IRE VGA H POSITION VGA V POSITION SDI A...
  • Page 17 Menu Contents NTSC SETUP ◦ - This item sets the IRE value under NTSC mode between 0 IRE and 7.5 IRE. - Only available in COMPOSITE 1/2/3 and S-VIDEO modes containing a NTSC signal. VGA H POSITION ◦ - This item controls horizontal position of DVI analog image between MIN (-15) and MAX (15). VGA V POSITION ◦...
  • Page 18 Menu Contents [2] VIDEO Below is the description for each function of the VIDEO menu. SDI A LEM-150 1080/60i DITHERING FILTER FAST MODE FORCE psf FILM MODE DETECTION ENABLE SDI FORMAT SINGLE SDI SAMPLING YCbCr 444 3G FORMAT NORMAL MODE...
  • Page 19 Menu Contents 3G FORMAT ◦ - Selects input format for SDI 3G A/B support (NORMAL MODE, A 444 10BIT_YCbCr, A 444, 10BIT_RGB, A 444 12BIT_YCbCr, A 444 12BIT_RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B 444 10/12BIT_ RGB, B 422 12BIT_YCbCr, B 422 10BIT_YCbCr, 60P). - Automatically detects when Payload signal appears in normal mode.
  • Page 20 Menu Contents [3] COLOR Below is the description for each function of the COLOR menu. SDI A LEM-150 1080/60i PAGE I >> PAGE II COLOR TEMP 6500K GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE COLOR COPY...
  • Page 21 Menu Contents BIAS RED ◦ - This item adjusts black level to control red color. The value is selectable between MIN (-100) and MAX (100). - Adjusts red color of dark section. - Only available in CUSTOM 1/2/3 mode. BIAS GREEN ◦...
  • Page 22 Menu Contents [4] DISPLAY Below is the description for each function of the DISPLAY menu. SDI A LEM-150 1080/60i HD DISPLAY MODE 16:9 TIME CODE ENABLE VITC SCREEN SELECT ALL SCREEN BORDER COLOR WHITE BORDER THICKNESS CLOSED CAPTION 608 CAPTION SELECT...
  • Page 23 Menu Contents 708 SERVICE SELECT ◦ - Selects Closed Caption 708 service. - SERVICE 1 ~ SERVICE 6 supported.
  • Page 24 Menu Contents [5] GPI Below is the description for each function of the GPI menu. SDI A LEM-150 1080/60i SDI A LEM-150 1080/60i PAGE I >> PAGE II PAGE II >> PAGE III GPI 1 ANALOG CHANNEL MONITOR ID GPI 2...
  • Page 25 Menu Contents The pin positions are as follows : ◦ REMOTE (RJ-45) 1: Pin1 2: Pin2 3: Pin3 4: Pin4 5: Pin5 6: Pin6 7: Pin7 8: GND The selectable functions are as follows : ◦ Menu Settable Values Classification NONE, ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL, PBP CHANNEL, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN, ASPECT, H/V DELAY, BLUE ONLY, MONO, 16:9 MARKER, 4:3 MARKER, 4:3 ON AIR MARKER,...
  • Page 26 Menu Contents MONITOR ID ◦ - Sets the ID of each monitor for the TV Logic control protocol or DYNAMIC UMD using RS-422/485 communication. - Available values are between 0,2,4 ~ 98. - Right screen in PBP mode is automatically set to +1 of the monitor ID.
  • Page 27 Menu Contents <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL BYTE DISPLAY DATA (1 BYTE) (1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off) bit 3 : Tally 4 (1=on, 0=off)
  • Page 28 Menu Contents * Tally Type – Default - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 0 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 3 Bit 2 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1...
  • Page 29 Menu Contents * D-UMD TALLY TPYE – USER COLOR - Color selections between TALLY1 ~ TALLY4. The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE and TALLY1 ~ TALLY4 COLOR. D-UMD TALLY TYPE USER COLOR TALLY1 COLOR TALLY2 COLOR GREEN TALLY3 COLOR...
  • Page 30 Menu Contents [6] MARKER Below is the description for each function of the MARKER menu. SDI A LEM-150 1080/60i SDI A LEM-150 1080/60i PAGE I >> PAGE II PAGE II >> PAGE I MARKER USER MARKER H1 CENTER MARKER USER MARKER H2...
  • Page 31 Menu Contents MARKER MAT ◦ - This item darkens the area of the outside of MARKER. - The degree of darkness is between OFF(0) and 7. MARKER COLOR ◦ - This item controls the color of the MARKER lines. - Available colors are white, gray, black, red, green and blue. MARKER THICKNESS ◦...
  • Page 32 Menu Contents [7] WAVEFORM Below is the description for each function of the WAVEFORM menu. SDI A LEM-150 1080/60i SDI A LEM-150 1080/60i PAGE I >> PAGE II PAGE I >> PAGE II WAVEFORM/VECTOR RANGE ERROR WAVEFORM INTENSITY Y MAX...
  • Page 33 Menu Contents WAVE WAVEFORM FORM <MODE 1> <MODE 2> <WIDE> WAVEFORM INTENSITY ◦ - Controls the brightness of the WAVEFORM/VECTOR display. - Available values are between 0 ~ 30. The higher the number the brighter the waveform will be. WAVEFORM TRANS ◦...
  • Page 34 Menu Contents RANGE ERROR ◦ - Used to display the values of Y MAX, Y MIN, C MAX, C MIN, Y PICTURE BLINK and C PICTURE BLINK on the screen. - Selected values in Y MAX, Y MIN, C MAX, C MIN are indicated in WAVEFORM/VECTOR or Y/Cb/Cr. - If Y PICTURE BLINK or C PICTURE BLINK is enabled, the section of image that exceeds the selected values of Y MAX, Y MIN, C MAX and C MIN blinks.
  • Page 35 Menu Contents [8] AUDIO Below is the description for each function of the AUDIO menu. SDI A LEM-150 1080/60i LEVEL METER SELECT LEVEL METER DISPLAY PAIR LEVEL METER REFERENCE -20dB LEVEL METER DECAY TIME LEVEL METER SIZE SMALL LEVEL METER POSITION HOR.
  • Page 36 Menu Contents VOLUME ◦ - Controls the embedded audio output volume for the internal speakers of the monitor. - Available values are between 0 ~ 30. Em. AUDIO RIGHT ◦ - Controls embedded audio channel for right audio out internal speaker of the monitor. - In HDMI mode, HDMI audio output.
  • Page 37 Menu Contents [9] SYSTEM Below is the description for each function of the SYSTEM menu. SDI A LEM-150 1080/60i SDI A LEM-150 1080/60i PAGE I >> PAGE II PAGE II >> PAGE III USER CONFIG SET USER1 KEY LED LOCK NUMBER...
  • Page 38 Menu Contents F1 MAPPING ◦ - User can select the function for F1 button. - Selectable Items : ASPECT, FREEZE, SCREEN SEL, WAVEFORM, TIMECODE, CC SEL, ALM SEL, OUTPUT MODE, FAST MODE, DITHERING, FILTER,FORCE Psf, UMD and COLOR TEMP. F2 MAPPING ◦...

  • Page 39: Other Functions

    Other Functions [1] ANALOG BUTTON This product is capable of processing all input signals usable in ANALOG mode. ◦ The Analog input settings are as follows: ◦ 1. Press the ANALOG button on the front of the product and activate the menu below. COMPOSITE 1 COMPOSITE 2 COMPOSITE 3...
  • Page 40 Other Functions [2] SCAN BUTTON This product supports various scan modes. ◦ Press [SCAN] button on the front of the monitor to activate different scan modes. ◦ 1. Press [SCAN] button continuously to activate various scan modes: OVER SCAN -> ZERO SCAN -> UNDER SCAN -> 2:1 SCAN -> 1:1 SCAN -> FIT WIDTH 2.
  • Page 41 Other Functions <MID CENTER> <MID LEFT> <TOP LEFT> <TOP MID> <TOP RIGHT> <MID RIGHT> <BOT RIGHT> <BOT MID> <BOT LEFT> <Position change in 1:1 SCAN>...
  • Page 42 Other Functions [3] ASPECT BUTTON 1. Four different aspect modes are available. When input signal is SDI -A/B, Composite 1/2/3 and Input Signal Format is SD : 1) 4:3 mode : Cuts left and right of the original image to fit to 4:3 aspect ratio. 2) 16:9 mode : Stretches the image in “1) 4:3 mode”...

  • Page 43: Dvi Analog/Dvi Digital/Hdmi Support Resolution

    DVI ANALOG/DVI DIGITAL/HDMI Support Resolution DVI ANALOG / DVI DIGITAL / HDMI SUPPORT RESOLUTION DVI-ANALOG mode supports the following modes : ◦ Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz...

  • Page 44: Product Specifications

    Product Specifications LEM-150 1 X DVI-I DVI-I(RGB) IN 3 X BNC Analog Input Input 2 X BNC SDI A/B Channel Input 1 X HDMI HDMI 3 X BNC Analog Output Output 2 X BNC SDI A/B Channel (Loop Through Out)

  • Page 45: Product Lineup

    Product Lineup LVM-071W ◦ 1. LCD Resolution : 800 x 480 (15:9) 2. Color : 16.7M (true 24bit) 3. Contrast - 700 :1 4. Viewing Angle : 130 (H) / 110 (V) 5. Weight : 1.35Kg (2.98 lbs) LVM-084 ◦ 1.
  • Page 46 Product Lineup LVM-323W-3G ◦ 1. LCD Resolution : 1920 x 1080 (16:9) 2. Color : 1.06 Billion (10bit, Dither) 3. Contrast - 1300 :1 4. Viewing Angle : 178 (H) / 178 (V) 5. Weight : 21.45Kg (47.29 lbs) LVM-403W-3G ◦...

  • Page 47: Optional Accessories

    Optional Accessories ND Filter External Filter Rack Mountable Kit Tripod Head V-Mount Hood Carrying Case RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inch 7 inch 15 inch 17 inch 24 inch...
  • Page 48 Memo...
  • Page 49 Memo...
  • Page 50 Memo...
  • Page 52 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr Developed by #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA 153-782, KOREA Tel : +82-2-2026-1333, Fax : 82-2-2026-1339, Email : support@tvlogic.co.kr Tel : +82-2-2026-1333, Fax : +82-2-2026-1339, Email: support@tvlogic.co.kr...
