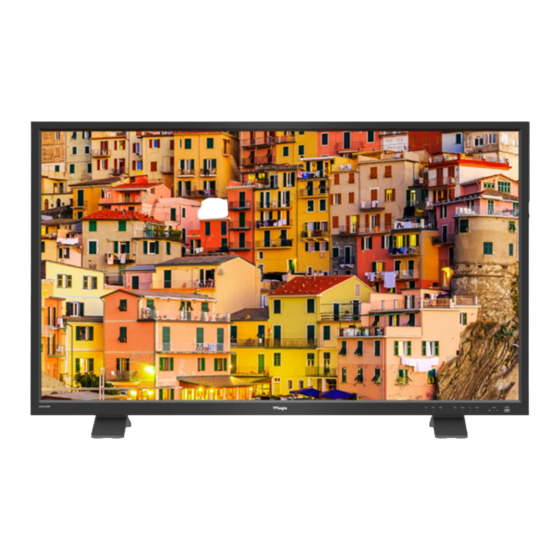

TV Logic LUM-550M3 Operation Manual

Multi format 4k/uhd lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LUM-550M3
LUM-550M2
LUM-430M3
LUM-430M2
MULTI FORMAT
4K/UHD LCD MONITOR
Operation Manual_V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUM-550M3 and is the answer not in the manual?

Questions and answers

Related Manuals for TV Logic LUM-550M3

Summary of Contents for TV Logic LUM-550M3

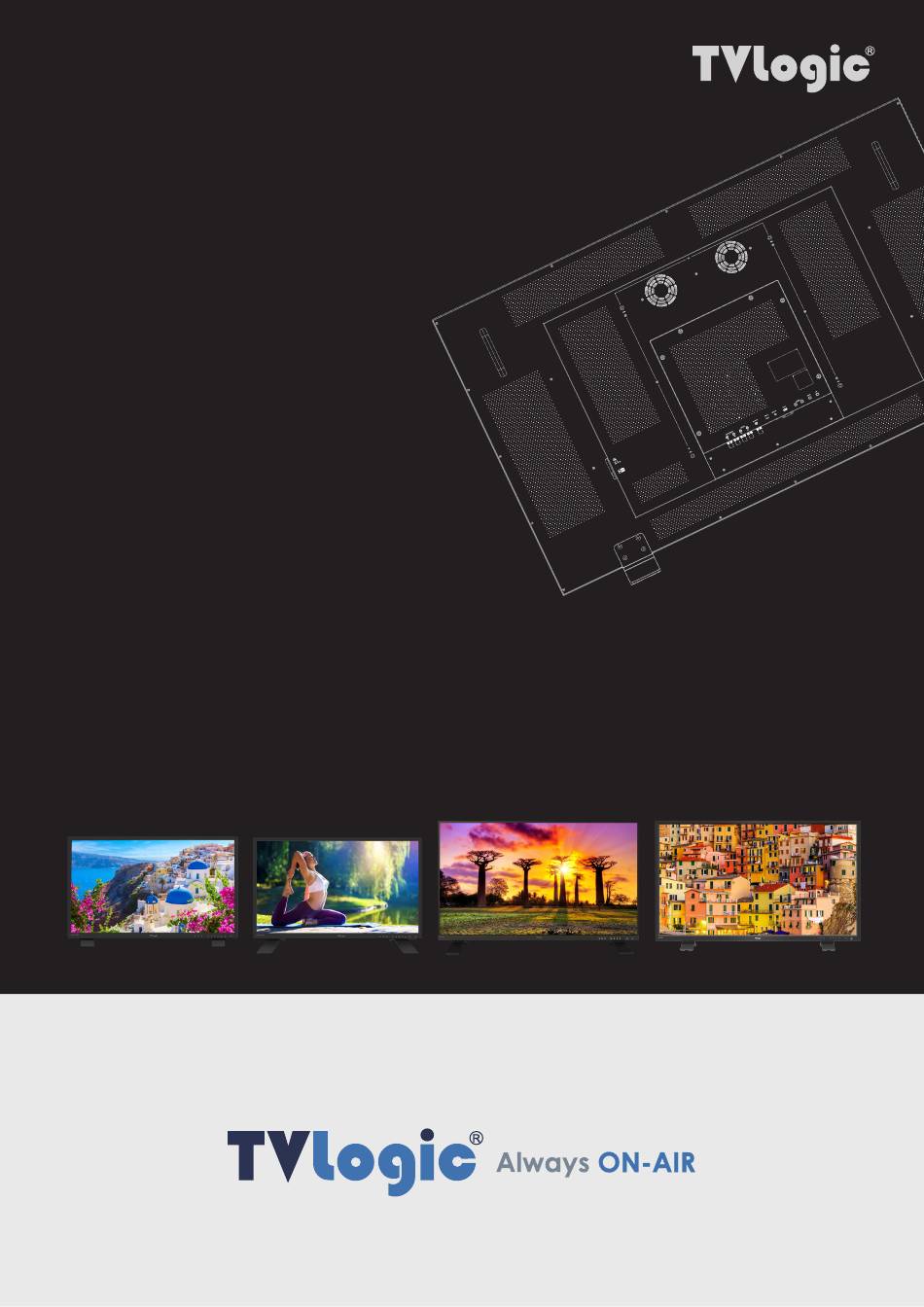

  • Page 1 LUM-550M3 LUM-550M2 LUM-430M3 LUM-430M2 MULTI FORMAT 4K/UHD LCD MONITOR Operation Manual_V1.2...
  • Page 2 FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Contents Caution Main Features Controls & Functions Menu Tree & Adjustment Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] MARKER [5] WAVEFORM [6] GPI [7] NETWORK [8] AUDIO [9] SYSTEM Firmware Upgrade Video Support Resolution Product Specifications...

  • Page 4: Caution

    01 CAUTION MULTI FORMAT 4K/UHD LCD MONITOR Always use set voltage. • If any of the following conditions occurs, unplug ● - AC 100 ~ 240V the power cord from the DC outlet, and request a qualified service person to perform repairs. •...
  • Page 5 01 CAUTION MULTI FORMAT 4K/UHD LCD MONITOR • Unplug the power cord from the DC outlet • Sudden stops, excessive force and uneven before cleaning the product. Use a damp cloth floor surface can cause the product to fall from to clean the product.

  • Page 6: Main Features

    MULTI FORMAT 4K/UHD LCD MONITOR 02 MAIN FEATURES LUM-550M3/550M2/430M3/430M2 models contain the following features Compatible with various SDI signal HDR Emulation ● ● formats - Supports various HDR EOTFs including PQ - This product is compatible with various and HLG, which allow the monitor to display SDI signals - 480i, 576i, 1080i, 1080p, HDR content.

  • Page 7: Controls & Functions

    MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS LUM-550M3 ALL PART (FRONT / REAR) MODE HDMI MENU DOWN ENTER POWER 12G/6G/3G 12G/6G/3G SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE SDI IN SDI IN SDI IN...
  • Page 8 MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS LUM-550M2 ALL PART (FRONT / REAR) MODE HDMI MENU DOWN ENTER POWER LUM-550M_REAR PLATE_V2.1 (2016/07/27) 12G/6G/3G 12G/6G/3G SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE SDI IN SDI IN SDI IN SDI IN...
  • Page 9 MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS LUM-430M3 ALL PART (FRONT / REAR) MODE HDMI MENU DOWN ENTER POWER MODE HDMI MENU DOWN ENTER POWER 12G/6G/3G 12G/6G/3G SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE SDI IN SDI IN...
  • Page 10 MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS LUM-430M2 ALL PART (FRONT / REAR) MODE HDMI MENU DOWN ENTER POWER MODE HDMI MENU DOWN ENTER POWER 12G/6G/3G 12G/6G/3G SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE SDI IN SDI IN...
  • Page 11 MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS FRONT [SDI] Button / Lamp [MENU] Button ● ● - Used to select SDI A/B input signal. - Used to activate the OSD menu. [DOWN] Button [MODE] Button / Lamp ● ●...
  • Page 12 MULTI FORMAT 4K/UHD LCD MONITOR 03 CONTROLS & FUNCTIONS REAR [12G/6G/3G-SDI INPUT x 4] (BNC) ~ AC IN ● ● - Signal input terminal for HD/SD SDI signal. - 100 ~ 240V AC 50/60Hz - The first and second SDI INPUT terminal supports up to 12G input.

  • Page 13: Menu Tree & Adjustment

    MULTI FORMAT 4K/UHD LCD MONITOR 04 MENU TREE & ADJUSTMENT MENU ORGANIZATION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [1] Menu Organization [3] Menu Control Sequence The product may be controlled and set Menu Control sequence follows the order ●...
  • Page 14 MULTI FORMAT 4K/UHD LCD MONITOR 04 MENU TREE & ADJUSTMENT MENU ORGANIZATION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [4] Menu Tree TEMP BRIGHT CONTRAST GAIN R BACK LIGHT GAIN G SHARPNESS GAIN B COLOR TIMECODE BIAS R PICTURE CCAPTION BIAS G...
  • Page 15 MULTI FORMAT 4K/UHD LCD MONITOR 04 MENU TREE & ADJUSTMENT MENU ORGANIZATION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [4] Menu Tree ENABLE VOLUME TYPE AUD CH AUDIO WAVEFORM INTENSITY LVM TYPE LINE WAVEFORM LVM SIZE LINE SEL POS DEFAULT GPI 1 ~ GPI 8 USER CONFIG...

  • Page 16: Menu Operations

    MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [1] PICTURE CCAPTION (Closed Caption) PICTURE BRIGHT ● - Used to control the Closed Caption. VIDEO CONTRAST COLOR BACK LIGHT - Available modes are OFF, ANC (608/708) MARKER SHARPNESS and LINE21(608). WAVEFORM TIME CODE CCAPTION CC INFO (Closed Caption Information)
  • Page 17 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [2] VIDEO BLACK LEVEL PICTURE STANDARD USER 1 ● - The minimum black level of the video VIDEO VIDEO RANGE LIMITED COLOR PEAK LUM signal can be set differently depending on MARKER BLACK LEVEL 0.000 the performance of the monitor or the...
  • Page 18 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [2] VIDEO HLG SG (HLG System Gamma) PICTURE STANDARD USER 1 ● - Used to set the System Gamma of HLG mode. VIDEO VIDEO RANGE LIMITED COLOR PEAK LUM - In the Auto mode, the value of the System MARKER BLACK LEVEL 0.000...
  • Page 19 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [3] COLOR BIAS R PICTURE 6500K TEMP ● - Used to set Red Bias(or Offset, mainly VIDEO GAIN R COLOR GAIN G affects on Black level) from -128 to 127. MARKER GAIN B - Adjusts the red color of dark section.
  • Page 20 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [4] MARKER PICTURE MARKER VIDEO CENTER MARKER COLOR SAFETY AREA MARKER FIT MARKER WAVEFORM MARKER MAT MARKER : 4:3 MARKER : 4:3 MARKER COLOR WHITE ● ● NETWORK THICKNESS SAFETY AREA : 90% SAFETY AREA : 90% ●...
  • Page 21 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [5] WAVEFORM PICTURE ENABLE VIDEO TYPE COLOR INTENSITY MARKER LINE WAVEFORM WAVEFORM LINE SEL POS NETWORK AUDIO SYSTEM ENABLE ● - Used to activate / deactivate the Waveform function. Available modes are OFF and ON. TYPE ●...
  • Page 22 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [6] GPI The selectable functions for PIN 1~ PIN 6 PICTURE NONE PIN 1 ● are as follows: VIDEO PIN 2 SDI A COLOR PIN 3 SDI B MARKER PIN 4 16:9 MAR Menu WAVEFORM PIN 5...
  • Page 23 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [7] NETWORK PICTURE DHCP DHCP VIDEO IP (D) 192.168.101.156 COLOR SUBNET 255.255.255.000 MARKER GATWAY 192.168.101.001 WAVEFORM PORT 10262 IP APPLY NETWORK MAC ADDR XX:XX:XX AUDIO SYSTEM DHCP ● - Used to activate/deactivate the DHCP function.
  • Page 24 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [8] AUDIO PICTURE VOLUME VIDEO AUD CH GR1 CH1+CH2 COLOR LVM TYPE MARKER LVM SIZE WAVEFORM NETWORK AUDIO SYSTEM VOLUME ● - Used to control the audio volume. Control range is from 0 to 30 and the default value is 15.
  • Page 25 MULTI FORMAT 4K/UHD LCD MONITOR 05 MENU OPERATIONS [9] SYSTEM OSD DISPLAY PICTURE DEFAULT ● - Used to set the display time of the OSD menu. VIDEO USER CONFIG USER 1 COLOR KEY LED - Available options are CONTINUE, 3 SEC and MARKER SDI OUT BY PASS...

  • Page 26: Firmware Upgrade

    MULTI FORMAT 4K/UHD LCD MONITOR 06 FIRMWARE UPGRADE [1] FIRMWARE UPGRADE The USB(Thumb drive) which contains the ● F/W file is needed for Firmware Upgrade. Select the SW UPGRADE in the SYSTEM menu. ● 1. Connect the USB to the USB Slot on the front of the monitor.

  • Page 27: Video Support Resolution

    MULTI FORMAT 4K/UHD LCD MONITOR 07 VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (12G SDI) 3840x2160 (50/59.94/60p) YCbCr 4:2:2 10bit 12G-SDI single link(4k) 4096x2160 (50/59.94/60p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (6G SDI) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit 6G-SDI single link(4k) 4096x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit...
  • Page 28 MULTI FORMAT 4K/UHD LCD MONITOR 07 VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD SDI) 1920x1080 (23.98/24/25/29.97/30p) (50/59.94/60I) YCbCr 4:2:2 10bit (23.98/24/25/29.97/30psf) HD SDI single link 1280x720 (50/59.94/60P) YCbCr 4:2:2 10bit 2048X1080 (23.98/24/25/29.97/30psf) YCbCr 4:2:2 10bit (23.98/24/25/29.97/30p) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit HD-SDI Quad link(4k) 4096x2160...
  • Page 29 MULTI FORMAT 4K/UHD LCD MONITOR 07 VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HDMI) 1280x720(50/59.94/60p) RGB 4:4:4 8bit 1920x1080(50/59.94/60p) YCbCr 4:4:4 8bit 1920x1080(23.98/24/25/29.97/30p, YCbCr 4:2:2 8bit 60i/59.94i/50i ) RGB 4:4:4 8bit YCbCr 4:4:4 8bit YCbCr 4:2:2 8bit RGB 4:4:4 10bit 3840x2160 YCbCr 4:4:4 10bit (23.98/24/25/29.97/30p)

  • Page 30: Product Specifications

    MULTI FORMAT 4K/UHD LCD MONITOR 08 PRODUCT SPECIFICATIONS Specifications LUM-550M3 Size 55” Resolution 3840(H) x 2160(V) Pixel Pitch 0.315(H) x 0.315(W) mm Color Depth 1.07B colors Viewing Angle 178°(H) / 178°(V) Luminance of white 700 cd/m² Contrast Ratio 1,100:1 Display Area 1209.6(H) x 680.4(V) mm...
  • Page 31 MULTI FORMAT 4K/UHD LCD MONITOR 08 PRODUCT SPECIFICATIONS Specifications LUM-550M2 Size 55” Resolution 3840(H) x 2160(V) Pixel Pitch 0.315(H) x 0.315(W) mm Color Depth 1.07B colors Viewing Angle 178°(H) / 178°(V) Luminance of white 500 cd/m² Contrast Ratio 1,100:1 Display Area 1209.6(H) x 680.4(V) mm 1 x HDMI HDMI V2.0 Input 1Ch (with HDCP support)
  • Page 32 MULTI FORMAT 4K/UHD LCD MONITOR 08 PRODUCT SPECIFICATIONS Specifications LUM-430M3 Size 42.5” Resolution 3840 x 2160 (16:9) Pixel Pitch 0.2451 mm x 0.2451 mm Color Depth 10bit, 1.06 Billon colors Viewing Angle 178°(H) / 178°(V) Luminance of white 500cd/m² Contrast Ratio 1,000 : 1 Display Area 941.2(H) ×...
  • Page 33 MULTI FORMAT 4K/UHD LCD MONITOR 08 PRODUCT SPECIFICATIONS Specifications LUM-430M2 Size 42.5” Resolution 3840(H) x 2160(V) Pixel Pitch 0.2451 mm x 0.2451 mm Color Depth 10bit(D), 1.06 Billon colors Viewing Angle 178°(H) / 178°(V) Luminance of white 350cd/m² Contrast Ratio 1,000 : 1 Display Area 962(H) ×...
