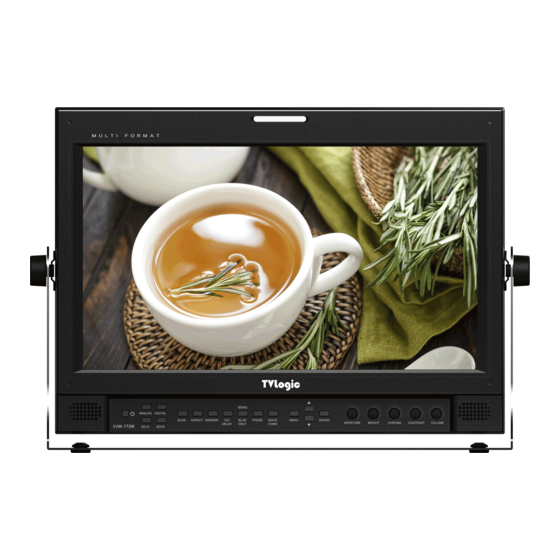

TV Logic LVM-173W-3G Operation Manual

Multi format broadcast lcd monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format Broadcast
Multi Format Broadcast
LCD Monitors
LCD Monitors
Operation Manual
LVM-173 W-3G
LVM-173W
LVM-243W-3G
LVM-243W
LVM-323W-3G
LVM-321W
LVM-403W-3G
LVM-403W
LVM-463W-3G
LVM-463W
LVM-553W-3G
LVM-573W
multi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-173W-3G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV Logic LVM-173W-3G

Summary of Contents for TV Logic LVM-173W-3G

  • Page 1 Multi Format Broadcast Multi Format Broadcast LCD Monitors LCD Monitors Operation Manual LVM-173 W-3G LVM-173W LVM-243W-3G LVM-243W LVM-323W-3G LVM-321W LVM-403W-3G LVM-403W LVM-463W-3G LVM-463W LVM-553W-3G LVM-573W multi...

  • Page 3: Table Of Contents

    Contents Caution Features Controls, Indicators and Connections Menu Organization & Adjustment Menu Contents Other Functions DVI ANALOG/ DVI DIGITAL / HDMI Support Resolution Product Specifications Optional Accessories...

  • Page 4: Caution

    Power Requirements ◦ - AC 100 ~ 240V - DC 12V : Only LVM-173W-3G - DC 24V : Only LVM-173W-3G / LVM-243W-3G All operating instructions must be read and understood before the product is operated. ◦ ◦ These safety and operating instructions must be kept in safe place for future reference.
  • Page 5 Caution In case the product needs service, consult an authorized TVLogic Reseller. ◦ Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean ◦ the product. Do not use liquid cleaners or aerosol cleaners. Keep the product away from direct Sun light.

  • Page 6: Features

    AC/DC Compatible ◦ - This product may be powered by a normal AC source, but is also compatible with 12V DC(LVM- 173W-3G) or 24V DC(LVM-243W-3G, LVM-173W-3G). Remote control function ◦ - This product can be remote controlled simply with a cable connection without any additional peripheral equipment attached to the unit.

  • Page 7: Controls, Indicators And Connections

    Controls, Indicators and Connections LVM-173W-3G : FRONT LVM-173W-3G : REAR...
  • Page 8 Controls, Indicators and Connections LVM-243W-3G : FRONT LVM-243W-3G : REAR...
  • Page 9 Controls, Indicators and Connections LVM-323W/403W/463W/553W-3G : FRONT LVM-323W/403W/463W/553W-3G : REAR...
  • Page 10 - Use [CHROMA/PHASE/SCREEN SEL] button to select a screen and use SOURCE key (Analog, SDI-A or SDI-B) to switch the screen to desired input signal. - LVM-173W-3G model, the input signal lamp for each of the PBP screens turns on. [SCAN] Button/Lamp ◦...
  • Page 11 Composite/S-Video modes : CHROMA -> PHASE. DVI-Analog mode : PHASE (AUTO PHASE). Selects a PBP screen in PBP mode (Screen 1, Screen 2 or Full Screen). [W-FORM] Button/Lamp (LVM-173W-3G) ◦ - Used to activate the WAVEFORM/VECTORSCOPE. - Pressing the button activate features in the order of : WAVEFORM ->...
  • Page 12 - Use UP/DOWN keys to select and proceed through various functions. - See section “Other Functions [2]SCAN button” for more information. [APERTURE] knob (LVM-173W-3G) ◦ - Used to adjust the picture sharpness. - Control value range: 0 ~ 25 - Unavailable in DVI ANALOG Mode.
  • Page 13 Controls, Indicators and Connections REAR [RS422 IN/OUT] (RJ-45) ◦ - Used to control the monitor with protocol provided by TVLogic or to support TSL protocol. [REMOTE] (RJ-45) ◦ - Provides connection to control equipment for external monitor control. - Features can be changed in the REMOTE(1/2) section of OSD menu. [RS232] ◦...
  • Page 14 - Ethernet and USB port for easy firmware updates. ~ AC IN ◦ - 100 ~ 240V AC 50/60Hz DC 12V/24V IN ◦ - 12V/24V DC(LVM-173W-3G) or 24V DC(LVM-243W-3G). DC IN socket 1,2 : GND 3,4 : +12V/+24V <Video input> Video input connection method.

  • Page 15: Menu Organization & Adjustment

    Menu Organization & Adjustment The product may be controlled and set system-wise through OSD displayed on the screen. 1) Menu Organization Below is the organization of the product’s menu. SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE...

  • Page 16: Menu Contents

    Menu Contents [1] PICTURE Below is the description for each function of the PICTURE menu. SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE NTSC SETUP 7.5IRE VGA H POSITION VGA V POSITION SDI A LVM-243W-3G 1080/60i PAGE II >>...
  • Page 17 - Available values are red, green and blue. USER ASPECT HORIZONTAL ◦ - Used to set the horizontal aspect ratio of the screen arbitrarily. * Value range - LVM-173W-3G : 910 ~ 1366 - LVM-243W/323W/403W/463W/553W-3G : 1280 ~ 1920 USER ASPECT VERTICAL ◦...
  • Page 18 Menu Contents [2] VIDEO Below is the description for each function of the VIDEO menu. SDI A LVM-243W-3G 1080/60i DITHERING FILTER FAST MODE FORCE psf FILM MODE DETECTION ENABLE SDI FORMAT SINGLE SDI SAMPLING YCbCr 444 3G FORMAT NORMAL MODE OUTPUT MODE SELECT NORMAL DITHERING...
  • Page 19 Menu Contents 3G FORMAT ◦ - Selects input format for SDI 3G A/B support (NORMAL MODE, A 444 10BIT_YCbCr, A 444, 10BIT_RGB, A 444 12BIT_YCbCr, A 444 12BIT_RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B 444 10/12BIT_ RGB, B 422 12BIT_YCbCr, B 422 10BIT_YCbCr, 60P). - Automatically detects when Payload signal appears in normal mode.
  • Page 20 Menu Contents [3] COLOR Below is the description for each function of the COLOR menu. SDI A LVM-243W-3G 1080/60i COLOR TEMP 6500K GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE COLOR COPY 6500K COLOR TEMP ◦ - This item ontrols color temperature and allows instant access to preset color temperature settings.
  • Page 21 Menu Contents BIAS RED ◦ - This item adjusts black level to control red color. - The value is selectable between MIN (-100) and MAX (+100). - Adjusts red color of dark section. - Only available in CUSTOM 1/2/3 mode. BIAS GREEN ◦...
  • Page 22 Menu Contents [4] DISPLAY Below is the description for each function of the DISPLAY menu. SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II HD DISPLAY MODE 16:9 TIME CODE ENABLE VITC ORBITER CIRCUIT CLOSED CAPTION 608 CAPTION SELECT CC 1 708 SERVICE SELECT SERVICE 1 TELETEXT PAGE...
  • Page 23 Menu Contents 608 CAPTION SELECT ◦ - Controls Closed Caption 608. - CC 1 ~ CC 4 supported. 708 SERVICE SELECT ◦ - Controls Closed Caption 708 service. - SERVICE 1 ~ SERVICE 6 supported. TELETEXT PAGE ◦ - Controls OP47/42 pages. - 801 ~ 8FF supported.
  • Page 24 PIN 4 : PBP CHANNEL PIN 4 : TALLY R PIN 5 : TALLY G PIN 5 : TALLY R PIN 6 : TALLY G PIN 6 : TALLY Y <LVM-173W-3G> <LVM-243W/323W/403W/463W/553W-3G> PIN 7 is POWER ON/OFF use only, PIN 8 is GND. ◦...
  • Page 25 708, 608(LINE 21), 608(ANC), OP47, OP42, TELETEXT PAGE 801, TELETEXT PAGE 888, TELETEXT PAGE 889, DYNAMIC-UMD, COMPOSITE1, COMPOSITE2, COMPOSITE3, S-VIDEO, COMPONENT, RGB, DVI-ANALOG, DVI-DIGITAL, HDMI, OP47, OP42, OP47/42(AUTO), TELETEXT PAGE 801, TELETEXTPAGE 888, TELETEXT 889 <LVM-173W-3G> Menu Settable Values Classification NONE, ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL, PBP...
  • Page 26 Menu Contents MONITOR ID ◦ - Sets the ID of each monitor for the TV Logic control protocol or DYNAMIC UMD using RS-422/485 communication. - Available values are between 0,2,4 ~ 98. - Right screen in PBP mode is automatically set to +1 of the monitor ID.
  • Page 27 Menu Contents TALLY1 COLOR ~ TALLY4 COLOR ◦ - This item sets the color of each TALLY1, TALLY2, TALLY3 and TALLY4 . - Available color settings are Red, Green and Yellow. B0:0 B1:0 ~ B0:1 B0:1 ◦ - The Byte0, Byte1 of TSL Protocol Control Byte sets the color of the input conditions. - Available colors are OFF, WHITE, RED, GREEN, BLUE, YELLOW, CYAN and MAGENTA.
  • Page 28 Menu Contents <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL BYTE DISPLAY DATA (1 BYTE) (1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off) bit 3 : Tally 4 (1=on, 0=off)
  • Page 29 Menu Contents * Tally Type – Default - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1...
  • Page 30 Menu Contents * D-UMD TALLY TPYE – USER COLOR - Color selections between TALLY1 ~ TALLY4. The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE and TALLY1 ~ TALLY4 COLOR. D-UMD TALLY TYPE USER COLOR TALLY1 COLOR TALLY2 COLOR GREEN TALLY3 COLOR...
  • Page 31 Menu Contents UMD BG. TRANS ◦ - This function sets the transparency of the UMD character’s background box. - Available modes are SCALE DOWN, OPAQUE, 50%, 90% and 100%. - SCALE DOWN function reduces images and places on UMD not to overlap with UMD and images. (Only activates when the UMD is overapped with images.) UMD FONT SIZE ◦...
  • Page 32 Menu Contents [6] MARKER Below is the description for each function of the MARKER menu. SDI A LVM-243W-3G 1080/60i SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II PAGE II >> PAGE I MARKER USER MARKER H1 CENTER MARKER USER MARKER H2 SAFETY AREA USER MARKER V1 FIT MARKER...
  • Page 33 Menu Contents MARKER MAT ◦ - This item darkens the area of the outside of MARKER. - The degree of darkness is between OFF(0) and 7. MARKER COLOR ◦ - Controls the color of the MARKER lines. - Available colors are white, gray, black, red, green and blue. MARKER THICKNESS ◦...
  • Page 34 Menu Contents [7] WAVEFORM Below is the description for each function of the WAVEFORM menu. SDI A LVM-243W-3G 1080/60i SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II PAGE II >> PAGE I WAVEFORM/VECTOR RANGE ERROR WAVEFORM INTENSITY Y MAX WAVEFORM TRANS OPAQUE Y MIN...
  • Page 35 Menu Contents WAVEFORM INTENSITY ◦ - Controls the brightness of the WAVEFORM/VECTOR display. - Available values are between 0 ~ 30. The higher the number the brighter the waveform will be. WAVEFORM TRANS ◦ - Controls the transparency level of the WAVEFORM/VECTOR. - Available values are OPAQUE and TRANS.
  • Page 36 Menu Contents RANGE ERROR ◦ - Used to display the values of Y MAX, Y MIN, C MAX, C MIN, Y PICTURE BLINK, and C PICTURE BLINK on the screen. - Selected values in Y MAX, Y MIN, C MAX, C MIN are indicated in WAVEFORM/VECTOR or Y/Cb/Cr. - If Y PICTURE BLINK or C PICTURE BLINK is enabled, the section of image that exceeds the selected values of Y MAX, Y MIN, C MAX and C MIN blinks.
  • Page 37 Menu Contents [8] AUDIO Below is the description for each function of the AUDIO menu. SDI A LVM-243W-3G 1080/60i LEVEL METER SELECT LEVEL METER DISPLAY PAIR LEVEL METER REFERENCE -20dB LEVEL METER DECAY TIME LEVEL METER SIZE SMALL LEVEL METER POSITION HOR.
  • Page 38 Menu Contents LEVEL METER POSITION ◦ - Used to set the location and a direction of AUDIO LEVEL METER. - Available mades are HOR, VER, BOT. * 16 CH(HOR.) : Displays 8 channel on top left and 8 channels on top right of the screen horizontally. * 16 CH(HOR.) : Displays 8 channel on center left and 8 channels on center right of the screen vertically.
  • Page 39 Menu Contents [9] SYSTEM Below is the description for each function of the SYSTEM menu. SDI A LVM-243W-3G 1080/60i SDI A LVM-243W-3G 1080/60i PAGE I >> PAGE II PAGE II >> PAGE III USER CONFIG SET USER1 KEY LED LOCK NUMBER 12345678 F1/DOWN MAPPING...
  • Page 40 KEY LOCK ◦ - This item locks all buttons except power, input select, and menu buttons. * LVM-173W-3G locks the knobs(APERTURE, BRIGHT, CHROMA, CONTRAST, VOLUME) also. INTERNAL PATTERN ◦ - This item generates internal white pattern. The white level select between 0% and 100% (Per 5% increase or decrease).

  • Page 41: Other Functions

    Other Functions [1] ANALOG BUTTON This product is capable of processing all input signals usable in ANALOG mode. ◦ The Analog input settings are as follows: ◦ 1. Press the ANALOG button on the front of the product and activate the menu below : COMPOSITE 1 COMPOSITE 2 COMPOSITE 3...
  • Page 42 Other Functions [2] SCAN BUTTON This product supports various scan modes. ◦ Press [SCAN] button on the front of the monitor to activate different scan modes. ◦ 1. Press [SCAN] button continuously to activate various scan modes: OVER SCAN -> ZERO SCAN -> UNDER SCAN -> 2:1 SCAN -> 1:1 SCAN -> FIT WIDTH -> ZOOM(PBP 16:9mode) 2.
  • Page 43 Other Functions <MID CENTER> <MID LEFT> <TOP LEFT> <TOP MID> <TOP RIGHT> <MID RIGHT> <BOT RIGHT> <BOT MID> <BOT LEFT> <Position change in 1:1 SCAN>...
  • Page 44 Other Functions [3] ASPECT BUTTON 1. Four different aspect modes are available. When input signal is SDI -A/B, Composite 1/2/3 and Input Signal Format is SD : 1) 4:3 mode : Cuts left and right of the original image to fit to 4:3 aspect ratio. 2) 16:9 mode : Stretches the image in “1) 4:3 mode”...
  • Page 45 DVI ANALOG/DIGITAL Support Resolution DVI ANALOG/DIGITAL Support Resolution (LVM-173W-3G) DVI-ANALOG mode supports the following modes : ◦ Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz...

  • Page 46: Dvi Analog/ Dvi Digital / Hdmi Support Resolution

    DVI ANALOG / DVI DIGITAL / HDMI Support Resolution DVI ANALOG/DVI DIGITAL/HDMI SUPPORT RESOLUTION (LVM-243W-3G) DVI-ANALOG mode support resolution: ◦ Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz...
  • Page 47 DVI ANALOG / DVI DIGITAL / HDMI Support Resolution DVI ANALOG/DVI DIGITAL SUPPORT RESOLUTION (LVM-323W/403W/463W/553W-3G) DVI-ANALOG mode support resolution: ◦ Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz...

  • Page 48: Product Specifications

    Product Specifications LVM-173W-3G Size 16.84” Resolution 1366 X 768 (16:9) Pixel Pitch 0.273(H) X 0.273(W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 350 cd/ m (Center) Contrast Ratio...
  • Page 49 Product Specifications LVM-243W-3G Size 24” Resolution 1920 X 1200 (16:10) Pixel Pitch 0.270(H) X 0.270(W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 400 cd/ m (Center) Contrast Ratio 1000 : 1 Display Area 518.4(H) X 324.0(V) mm...
  • Page 50 Product Specifications LVM-323W-3G Size 32” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.36375(H) X 0.36375(W) mm Color Depth 1.06B ( R/G/B 10bit + Dithering) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m (Center) Contrast Ratio 1300 : 1...
  • Page 51 Product Specifications LVM-403W-3G Size 40” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.46125(H) X 0.46125(W) mm Color 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m (Center) Contrast Ratio 4000 : 1 Display Area 885.60 (H) X 498.15(V) mm...
  • Page 52 Product Specifications LVM-463W-3G Size 46” Resolution 920 X 1080 (16:9) Pixel Pitch 0.53023(H) X 0.53025(W) mm Color Depth 16.7M (True 10bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m (Center) Contrast Ratio 5000 : 1 Display Area 1018.08 (H) X 527.67(V) mm...
  • Page 53 Product Specifications LVM-553W-3G Size 55” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.21 (H) X 0.63 (W) mm Color Depth 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 700 cd/ m (Typ.) Contrast Ratio 4000 : 1...

  • Page 54: Optional Accessories

    Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch...
  • Page 56 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층 Mobile.

This manual is also suitable for:

Lvm-243w-3gLvm-323w-3gLvm-403w-3gLvm-463w-3gLvm-553w-3g
