TV Logic LVM-245W Operation Manual

Multi format broadcast lcd monitor multi series
Hide thumbs
Table of Contents

Advertisement

Quick Links

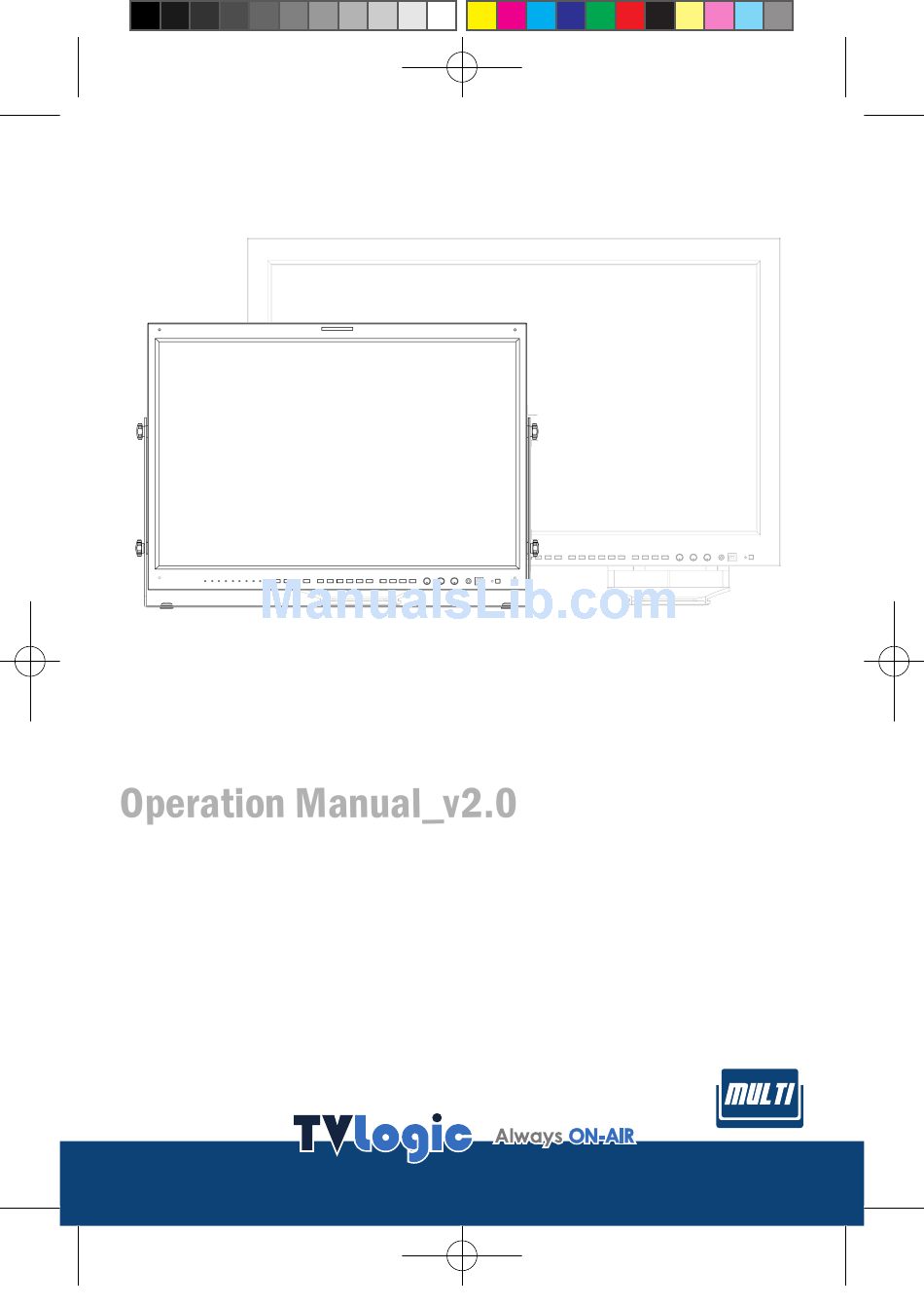

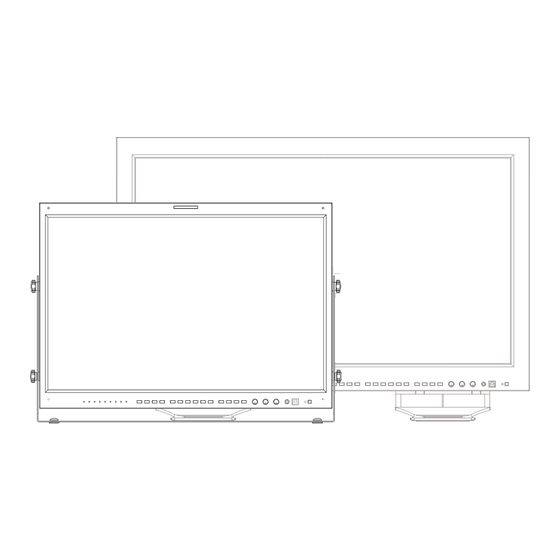

Multi Format Broadcast
LCD Monitor
LVM-245W
LVM-327W
LVM-245W_327W_V2.0_EN.indd 1
2014-04-10 오후 2:01:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVM-245W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV Logic LVM-245W

Summary of Contents for TV Logic LVM-245W

  • Page 1 Multi Format Broadcast LCD Monitor LVM-245W LVM-327W LVM-245W_327W_V2.0_EN.indd 1 2014-04-10 오후 2:01:...
  • Page 2 LVM-245W_327W_V2.0_EN.indd 2 2014-04-10 오후 2:01:...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] DISPLAY [5] GPI [6] MARKER [7] WAVEFORM [8] AUDIO [9] SYSTEM 6. Other Functions 7. DVI Support Resolution 8.

  • Page 4: Caution

    1. Caution Always use set voltage. • If any of the following conditions occur, unplug ● AC 100 ~ 240V the power cord from the AC outlet, and ● request a qualified service person to perform repairs. • All operating instructions must be read and a .
  • Page 5 1. Caution • When mounting the product on a wall or • When relocating the product placed on a cart, ceiling, be sure to install the product it must be moved with the utmost care. according to the method recommended by Sudden stops, excessive force and uneven the manufacturer.

  • Page 6: Main Features

    2. Main Features LVM-245W/327W Monitor contains the following features: Compatible with varied SDI signals RS-422/UMD feature support ● ● - This product is compatible with various SDI - This product supports protocols provided by Signals : 480i, 576i, 720p, 1080i, 1080p, TVLogic or TSL.

  • Page 7: Controls & Functions

    3. Controls & Functions LVM-245W : FRONT APERTURE BRIGHT CONTRAST AUDIO OUT STATUS INDICATOR ANALOG POWER SDI-A POWER INDICATOR SDI-B ENTER DOWN MENU MARKER SCAN LVM-245W : REAR AUDIO IN HDMI RS-232 CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R/S-C DVI-I SDI-IN A SDI-OUT A...
  • Page 8 3. Controls & Functions LVM-327W : FRONT APERTURE BRIGHT CONTRAST AUDIO OUT STATUS INDICATOR APERTURE BRIGHT CONTRAST AUDIO OUT STATUS INDICATOR ANALOG POWER SDI-A POWER INDICATOR SDI-B ENTER DOWN ANALOG POWER MENU SDI-A POWER INDICATOR MARKER SDI-B ENTER SCAN DOWN MENU MARKER LVM-327W : REAR...
  • Page 9 3. Controls & Functions FRONT [STATUS INDICATOR] Lamp [PBP] Button/Lamp ● ● - Used to display the current input mode. - Used to select PBP(Picture-by-Picture) - Input Mode function. VIDEO : COMPOSITE 1/2/3 - Selects the order of operation: mode 1 -> S-VID : S-VIDEO mode 2 ->...
  • Page 10 3. Controls & Functions FRONT [MENU] Button/Lamp [AUDIO OUT] (PHONE JACK) ● ● - Used to activate the OSD menu. - Selects the Left/Right Audio disembedded signal output or HDMI input signal or [DOWN] Button/Lamp external stereo signal is output through the ●...
  • Page 11 3. Controls & Functions REAR [RS422 IN/OUT] (RJ-45) [LAN] ● ● - Used to control the monitor with protocol - Ethernet port for easy firmware updates and provided by TVLogic or to support TSL remote control. protocol. [AUDIO IN] (Phone Jack) ●...

  • Page 12: Menu Tree & Adjustment

    4. Menu Tree & Adjustment [1] Menu Construction [3] Menu Control Sequence 1. Press the [MENU] button to activate the OSD The product may be controlled and set ● menu on the screen. system-wise through the OSD displayed on the screen. 2.
  • Page 13 4. Menu Tree & Adjustment [5] MENU TREE BRIGHT HD DISPLAY MODE CONTRAST TIME CODE ENABLE CHROMA ORBITER CIRCUIT PHASE CLOSED CAPTION APERTURE 608 CAPTION SELECT DISPLAY NTSC SETUP 708 SERVICE SELECT VGA H POSITION TELETEXT PAGE PICTURE VGA V POSITION SCREEN SELECT FOCUS ASSIST LEVEL BORDER COLOR...
  • Page 14 4. Menu Tree & Adjustment [5] MENU TREE MARKER LEVEL METER REFERENCE CENTER MARKER LEVEL METER DECAY TIME SAFETY AREA LEVEL METER SIZE FIT MARKER LEVEL METER POSITION AUDIO MARKER MAT VOLUME MARKER COLOR Em. AUDIO RIGHT MARKER MARKER THICKNESS Em.

  • Page 15: Menu Operations

    5. Menu Operations [1] PICTURE SDI A LVM-327W 1080/60i SDI A LVM-327W 1080/60i PAGE I >> PAGE II PAGE II >> PAGE I BRIGHT FOCUS ASSIST LEVEL CONTRAST FOCUS ASSIST COLOR CHROMA USER ASPECT HORIZONTAL 1920 PHASE USER ASPECT VERTICAL 1080 APERTURE NOISE REDUCTION...

  • Page 16: Video

    5. Menu Operations [2] VIDEO SDI A LVM-327W 1080/60i 3G FORMAT ● - Used to select input format of SDI 3G A/B DITHERING FILTER support(NORMAL MODE, A 444 10BIT_YCbCr, FAST MODE A 444 10BIT_RGB, A 444 12BIT_YCbCr, A FORCE psf 444 12BIT_RGB, A 422 12BIT_YCbCr, B 444 FILM MODE DETECTION ENABLE...

  • Page 17: Color

    5. Menu Operations [3] COLOR SDI A LVM-327W 1080/60i BIAS RED ● - Used to adjust the black level to control RED PAGE I >> PAGE II COLOR TEMP 6500K color. GAIN RED - The value is selectable between Min(-100) GAIN GREEN and MAX(100).
  • Page 18 5. Menu Operations [3] COLOR SDI A LVM-327W 1080/60i PAGE II >> PAGE I BACKLIGHT COLOR SPACE NATIVE COLOR GAMMA CURVE 2.20 BACK LIGHT ● - Used to control the LCD Panel’s brightness. - Available values are from 0 to 100. COLOR SPACE ●...

  • Page 19: Display

    5. Menu Operations [4] DISPLAY SDI A LVM-327W 1080/60i SDI A LVM-327W 1080/60i PAGE I >> PAGE II PAGE II >> PAGE I HD DIPLAY MODE 16:9 SCREEN SELECT ALL SCREEN TIME CODE ENABLE VIYV BORDER COLOR WHITE ORBITER CIRCUIT BORDER THICKNESS CLOSED CAPTION 608 CAPTION SELECT...

  • Page 20: Gpi

    5. Menu Operations [5] GPI SDI A LVM-327W 1080/60i Selectable functions are as follows : ● PAGE I >> PAGE II GPI 1 ANALOG CHNNEL GPI 2 MODE CHANNEL Menu GPI 3 PBP CHANNEL Classifi- Settable Values GPI 4 TALLY R GPI 5 TALLY G cation...
  • Page 21 USER TALLY, USER CHAR and USER BG. MONITOR ID ● * DEFAULT : Existing TV Logic operating - Used to set the ID of each monitor for the system (VRT) TVLogic control protocol or DYNAMIC UMD * USER COLOR : User configuration settings on using RS-422 communication.
  • Page 22 5. Menu Operations [5] GPI <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off)
  • Page 23 5. Menu Operations [5] GPI Tally Type - Default ● - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1...
  • Page 24 5. Menu Operations [5] GPI SDI A LVM-327W 1080/60i UMD BG. TRANS ● -Used to set the transparency of the UMD PAGE III >> PAGE I PASSWORD background. IP ADDRESS 192.168.123. - Available values are SCALE DOWN, OPAQUE, SUBNET MASK 255.255.128.

  • Page 25: Marker

    5. Menu Operations [6] MARKER SDI A LVM-327W 1080/60i FIT MARKER ● - Used to activate the FIT MARKER function. PAGE I >> PAGE II MARKER - With FIT MARKER “ON”, the safety area is CENTER MARKER displayed relative to the marker in use. SAFETY AREA With FIT MARKER “OFF”, the safety area is FIT MARKER...

  • Page 26: Waveform

    5. Menu Operations [6] MARKER [7] WAVEFORM SDI A LVM-327W 1080/60i LVM-327W 1080/60i PAGE II >> PAGE I PAGE I >> PAGE II USER MARKER H1 WAVEFORM/VECTOR USER MARKER H2 WAVEFORM INTENSITY USER MARKER V1 WAVEFORM TRANS OPAQUE USER MARKER V1 WAVEFORM SIZE NORMAL LINE WAVEFORM ENABLE...
  • Page 27 5. Menu Operations [7] WAVEFORM LVM-327W 1080/60i LINE POSITION SELECT ● - In the WAVEFORM/VECTOR, use the [Up]/ PAGE I >> PAGE II WAVEFORM/VECTOR [Down] button to select User’s desired line. WAVEFORM INTENSITY WAVEFORM TRANS OPAQUE LINE POSITION DRAW VECTOR GAIN X 4 ●...
  • Page 28 5. Menu Operations [7] WAVEFORM LVM-327W 1080/60i Y PICTURE BLINK ● - Used to set selections of image that exceeds PAGE II >> PAGE I RANGE EROR Y MAX and Y MIN to blink. Y MAX Y MIN C PICTURE BLINK C MAX ●...

  • Page 29: Audio

    5. Menu Operations [8] AUDIO LEVEL METER POSITION SDI A LVM-327W 1080/60i ● - Used to control the position of the Audio LEVEL METER SELECT LEVEL METER DISPLAY PAIR Level Meters. LEVEL METER REFERENCE -20dB - Available modes are HOR., VER. and BOT.. LEVEL METER DECAY TIME *16 CH(HOR.): Displays each 8 channel audio LEVEL METER SIZE...

  • Page 30: System

    5. Menu Operations [9] SYSTEM OSD POSITION SDI A LVM-327W 1080/60i ● - Controls the OSD position. PAGE I >> PAGE II USER CONFIG SET USER 1 - Available positions are CENTER, Right-Top LOCK NUMBER 12345678 (R-T), Right-Bottom(R-B), Left-Bottom(L-B) LOCK ENABLE -------- and Left-Top(L-T).
  • Page 31 5. Menu Operations [9] SYSTEM SDI A LVM-327W 1080/60i SDI A LVM-327W 1080/60i PAGE II >> PAGE III PAGE III >> PAGE I KEY LED BOARD VERSION 0001 01 0.01 KEY FUNCTION 1 ASPECT MAIN PBP1 PBP2 KEY FUNCTION 2 H/V DELAY BRIG KEY FUNCTION 3...

  • Page 32: Other Functions

    6. Other Functions [1] ANALOG [2] ASPECT This product is capable of processing all 1. Four different aspect modes are available. ● When input signal is SDI -A/B, Composite input signals usable in ANALOG mode. 1/2/3 and Input Signal Format is SD : The ANALOG input settings are as follows: 1) 4:3 mode : Cuts the sides of the original image to fit to 4:3 aspect ratio.
  • Page 33 6. Other Functions [4] SCAN [3] MARKER This product supports various scan 1. Press MARKER button to activate the ● marker. modes. 2. The selected marker type can be displayed Press the [SCAN] button on the front of ● on the screen when the marker function is the monitor to activate different scan selected from the main menu.
  • Page 34 6. Other Functions [4] SCAN - OVER SCAN : Zooms in/out of the image - FIT WIDTH : In SD mode, zooms in to fit to 96% of its original size without width of the original image to the width changing the aspect ratio.

  • Page 35: Dvi Support Resolution

    7. DVI / HMDI Support Resolution DVI ANALOG / DVI DIGITAL / HDMI SUPPORT RESOLUTION DVI-ANALOG mode supports the following modes : ● Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768...

  • Page 36: Product Specifications

    8. Product Specifications LVM-245W Size 24” Resolution 1920 X 1200 (16:10) Pixel Pitch 0.270(H) x 0.270(W) mm Color Depth 10BIT 1,073,741,824 Viewing Angle H: 178degrees / V: 178degrees Luminance of white 250 cd/㎡(Typ.) Contrast Ratio 1000:1 Display Area 518.4(H) x 324.0(V) mm...
  • Page 37 8. Product Specifications LVM-327W Size 31.5” Resolution 1920 X 1080 Pixel Pitch 0.363(H) X 0.363(W) mm Color Depth 10bit, 1,073,741,824 Colors Viewing Angle H: 178degrees / V: 178degrees Luminance of white 500 cd/ m Contrast Ratio 1300 : 1 Display Area 698.40(H) X 392.85(V) mm 1 X DVI-I DVI-I(RGB) IN...

  • Page 38: Optional Accessories

    9. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch 38 Multi Format LCD Monitor LVM-245W_327W_V2.0_EN.indd 38 2014-04-10 오후 2:01:...

  • Page 39: Multi Format Lcd Monitor 39

    MEMO Multi Format LCD Monitor 39 LVM-245W_327W_V2.0_EN.indd 39 2014-04-10 오후 2:01:...
  • Page 40 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층 Mobile.
