Summary of Contents for TV Logic TDM-243W

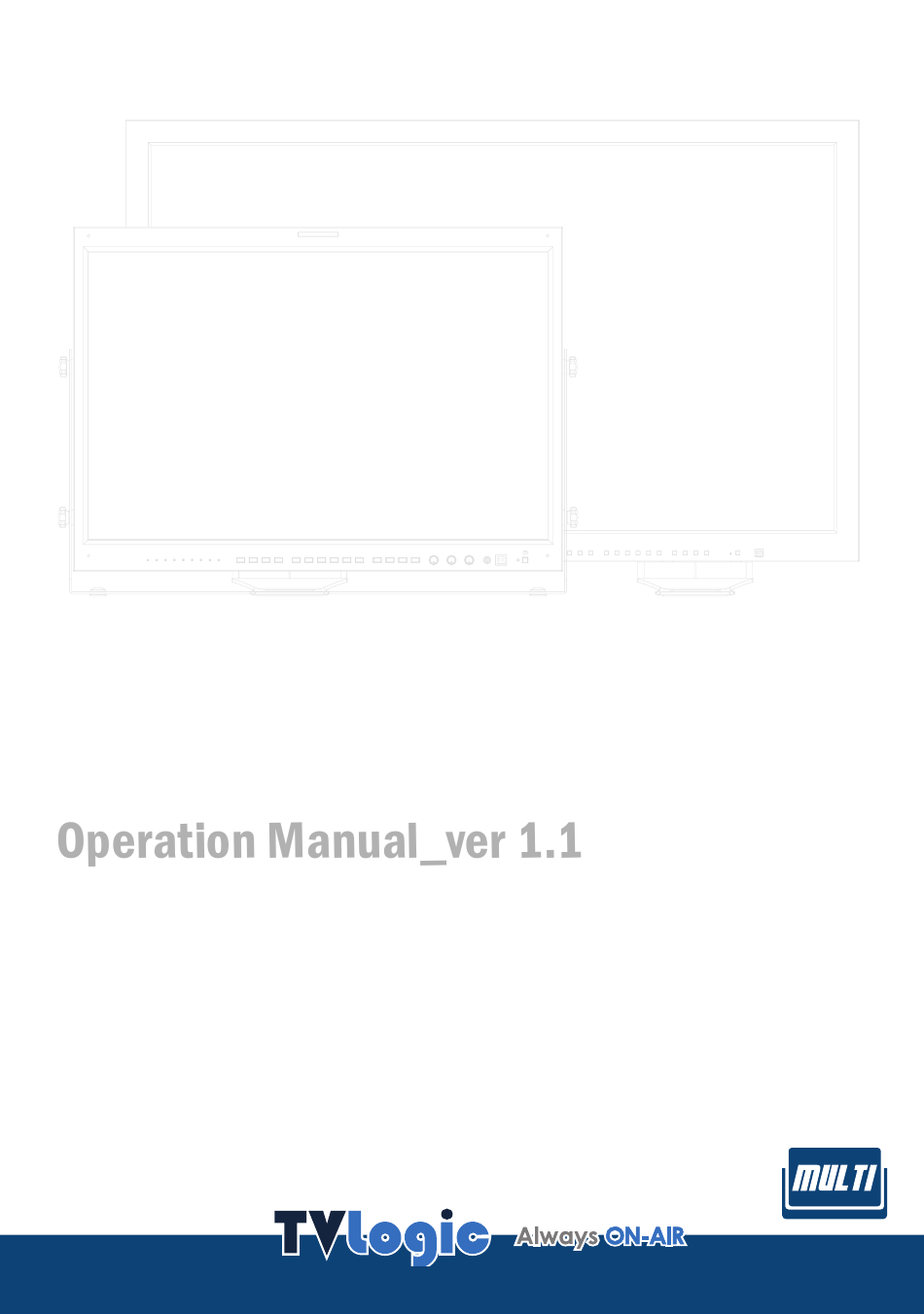

- Page 1 Multi Format 3D Monitors TDM-243W TDM-473W...
-
Page 3: Table Of Contents
Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] Picture [2] VIDEO [3] COLOR [4] Display & 3D [5] GPI [6] MARKER [7] WAVEFORM [8] AUDIO [9] SYSTEM 6. Other Functions 7. -
Page 4: Caution
• If any of the following conditions occurs, unplug - AC 100 ~ 240V the power cord from the DC outlet, and request - DC 24V (TDM-243W) a qualified service person to perform repairs. a. When the power cord or plug is damaged. - Page 5 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.
-
Page 6: Main Features
2. Main Features TDM-243W/473W MONITORS CONTAIN THE FOLLOWING FEATURES AND ADVANTAGES : • Compatible with various SDI signals • Remote control function - The product is compatible with various SDI - Remote is controlled simply with a cable signals -480i, 576i, 1080i, 1080p, 1080psf connection without any additional peripheral equipment attached to the unit. -
Page 7: Controls & Functions
POWER POWER INDICATOR ENTER HDMI POWER POWER INDICATOR DOWN ENTER MENU MARKER DOWN SCAN MENU MARKER SCAN TDM-243W : REAR REMOTE RS-422 IN RS-422 OUT REMOTE RS-232 RS-422 IN RS-422 OUT HDMI-L RS-232 HDMI-R HDMI-L SDI-L IN/OUT HDMI-R SDI-R IN/OUT... - Page 8 3. Controls & Functions TDM-473W : FRONT MENU DOWN MENU DOWN ENTER POWER INDICATOR ENTER POWER POWER INDICATOR POWER SOURCE MARKER SCAN SOURCE MARKER SCAN TDM-473W : REAR RS-422 OUT RS-422 IN RS-422 OUT AUDIO REMOTE RS-422 IN AUDIO REMOTE RS-232 HDMI-L RS-232...
- Page 9 3. Controls & Functions FRONT • [HDMI] Button/Lamp (TDM-243W) - CHECKER BOARD : Left and Right input signals are displayed in a grid pattern on screen - Used to select HDMI input. divided into 16 blocks horizontally and 9 blocks vertically. Used to compared 2 input •...
- Page 10 - Tally lamp that can be toggled in green or red automatically activates when input signal using the REMOTE(RJ-45) port. contains the embedded AFD data. • [APERTURE] Knob (TDM-243W) - Used to adjust the picture sharpness. - The value is selectable between 0 ~ 25. • [BRIGHT] knob (TDM-243W) - Used to adjust the degree of brightness.
- Page 11 - 100 ~ 240V AC 50/60Hz for external monitor control. - Features can be changed in the REMOTE(1/2) section of OSD menu. • DC 24V IN (TDM-243W) - 24V DC • [RS-422 IN/OUT] (RJ-45) - Used to control the monitor with protocol provided by TVLogic or to support TSL protocol.
-
Page 12: Menu Tree & Adjustment
PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE NTSC SETUP 7.5IRE VGA H POSITION VGA V POSITION A. MENU, UP/DOWN, ENTER Button Status. B. Model name(TDM-243W). C. Current input signal. D. Current input signal resolution. 12 Multiformat 3D Monitor... -
Page 13: Menu Operations
5. Menu Operations [1] Picture TDM-243W TDM-243W PAGE I >> PAGE II PAGE II >> PAGE I BRIGHT FOCUS ASSIST LEVEL CONTRAST FOCUS ASSIST COLOR CHROMA PHASE GREEN APERTURE BLUE NTSC SETUP 7.5IRE BACK LIGHT VGA H POSITION NOISE REDUCTION VGA V POSITION •... -
Page 14: Video
5. Menu Operations [2] VIDEO • SDI SAMPLING TDM-243W - This item selects SDI sampling mode in dual DITHERING FILTER link. FAST MODE - Available modes are YCbCr 444, RGB 444, FORCE psf YCbCr 422 P. FILM MODE DETECTION AUTO... -
Page 15: Color
5. Menu Operations [3] COLOR • BIAS BLUE TDM-243W - This item adjusts black level to control COLOR TEMP 6500K GAIN RED blue color. The value is selectable between GAIN GREEN MIN (-100) and MAX (100). GAIN BLUE - Adjusts blue color of dark section. -
Page 16: Display & 3D
5. Menu Operations [4] DISPLAY & 3D TDM-243W TDM-243W TDM-243W TDM-243W PAGE I >> PAGE II PAGE II >> PAGE III HD DIPLAY MODE 16:9 3D INPUT FORMAT DUAL SREAM TIME CODE ENABLE VITC S.STREAM CH. (SDI/HDMI) LEFT ORBITER CIRCUIT S.STREAM FORMAT... -
Page 17: Gpi
5. Menu Operations [4] Display & 3D [5] GPI TDM-243W TDM-243W TDM-243W TDM-243W PAGE III >> PAGE I PAGE I >> PAGE II DISPARITY CH. LEFT GPI 1 HDMI CHNNEL HORIZONTAL POSITION GPI 2 SDI CHANNEL HOROPTER CHECH GPI 3... - Page 18 TALLY 3 COLOR GPI 8 TALLY 4 COLOR - The selectable values are as follows : • MONITOR ID - Sets the ID of each monitor for the TV Logic control protocol or DYNAMIC UMD using RS- Menu 422/485 communication. Classifi- Settable Values - Available values are between 0, 1, 2 ~ 125.
- Page 19 IP ADDRESS 192.168.123. - Configuration values are DEFAULT and USER SUBNET MASK 255.255.128. COLOR. GATEWAY *DEFAULT : Existing TV Logic operating system PORT NO 10262 (VRT). REMOTE CONTROL ETHERNET * USER COLOR : User configuration settings on each TALLY color type.
- Page 20 5. Menu Operations [4] GPI- TALLY 1~4 COLOR ADDITIONAL INFORMATION <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off)
- Page 21 5. Menu Operations * Tally Type - Default - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 * D-UMD TALLY TPYE –...
-
Page 22: Marker
5. Menu Operations [6] MARKER • FIT MARKER TDM-243W - This item activates the FIT MARKER function. PAGE I >> PAGE II MARKER - With FIT MARKER “ON”, the safety area is CENTER MARKER displayed relative to the marker in use. With SAFETY AREA FIT MARKER “OFF”, the safety area is displayed... -
Page 23: Waveform
5. Menu Operations [6] MARKER [7] WAVEFORM TDM-243W TDM-243W PAGE II >> PAGE I PAGE I >> PAGE II USER MARKER H1 WAVEFORM/VECTOR USER MARKER H2 WAVEFORM INTENSITY USER MARKER V1 WAVEFORM TRANS OPAQUE USER MARKER V1 WAVEFORM SIZE NORMAL... - Page 24 5. Menu Operations [7] WAVEFORM • LINE POSITION SELECT TDM-243W - In WAVEFORM / VECTOR SCOPE, use the Up/ PAGE I >> PAGE II WAVEFORM/VECTOR Down button to select User’s desired line. WAVEFORM INTENSITY WAVEFORM TRANS OPAQUE • LINE POSITION DRAW...
- Page 25 5. Menu Operations [7] WAVEFORM • Y PICTURE BLINK TDM-243W - This item sets selections of image that PAGE II >> PAGE I RANGE EROR exceeds Y MAX and Y MIN to blink. Y MAX Y MIN • C PICTURE BLINK...
-
Page 26: Audio
5. Menu Operations [8] AUDIO • LEVEL METER POSITION TDM-243W - This item controls the position of the Audio LEVEL METER SELECT LEVEL METER DISPLAY PAIR Level Meters. LEVEL METER REFERENCE -20dB - Available values are HOR, VER and BOT. -
Page 27: System
5. Menu Operations [9] SYSTEM TDM-243W TDM-243W PAGE I >> PAGE II PAGE II >> PAGE I USER CONFIG SET USER 1 KEY LED LOCK NUMBER 12345678 KEY FUNCTION 1 ASPECT LOCK ENABLE -------- KEY FUNCTION 2 H/V DELAY OSD DISPLAY... - Page 28 5. Menu Operations [9] SYSTEM TDM-243W PAGE II >> PAGE III BOARD VERSION 0001 01 0. 01 MAIN PBP1 PBP2 BRIG CONT KEYPAD VERSION COLOR : CUSTOM1 CUSTOM2 CUSTOM1 MCU VERSION SCAN OVER OVER OVER FPGA VERSION 16 CH 16 CH...
-
Page 29: Other Functions
6. Other functions [1] SCAN MODE • This product supports various scan modes. • Press [SCAN] button on the front of the monitor to activate different scan modes. 1. [Press [SCAN] button continuously to activate various scan modes: OVER SCAN -> ZERO SCAN -> UNDER SCAN -> 2:1 SCAN -> 1:1 SCAN -> FIT WIDTH 2. -
Page 30: Product Specifications
7. Product Specifications TDM-243W Size 24” Resolution 1920 X 1200 (16:10) Pixel Pitch 0.270(H) x 0.270(W) mm Color Depth 1.06Bil. (Dithering + 10bit) Viewing Angle 2D : 178˚ (H/V) 3D : 178˚ (H)/20˚ (V) Luminance of white 400 cd/ m... - Page 31 7. Product Specifications TDM-473W Size 47” Resolution 1920 x 1080 (16:9) Pixel Pitch 0.5415(H) x 0.5415(W) mm Color Depth 1.06Bil. (Dithering + 10bit) Viewing Angle 2D : 178˚ (H/V) 3D : 178˚ (H)/20˚ (V) Luminance of white 500 cd/ m (Center) Contrast Ratio 1300 : 1...
-
Page 32: Optional Accessories
10. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inch 7 inch 15 inch 17 inch 24 inch 32 Multiformat 3D Monitor... - Page 33 Memo Multiformat 3D Monitor 33...
- Page 34 Memo 34 Multiformat 3D Monitor...
- Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END TOWER 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드...
