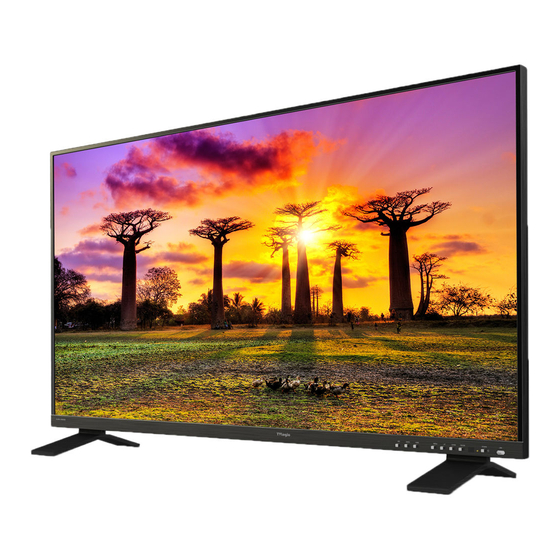

Summary of Contents for TV Logic LUM-550M

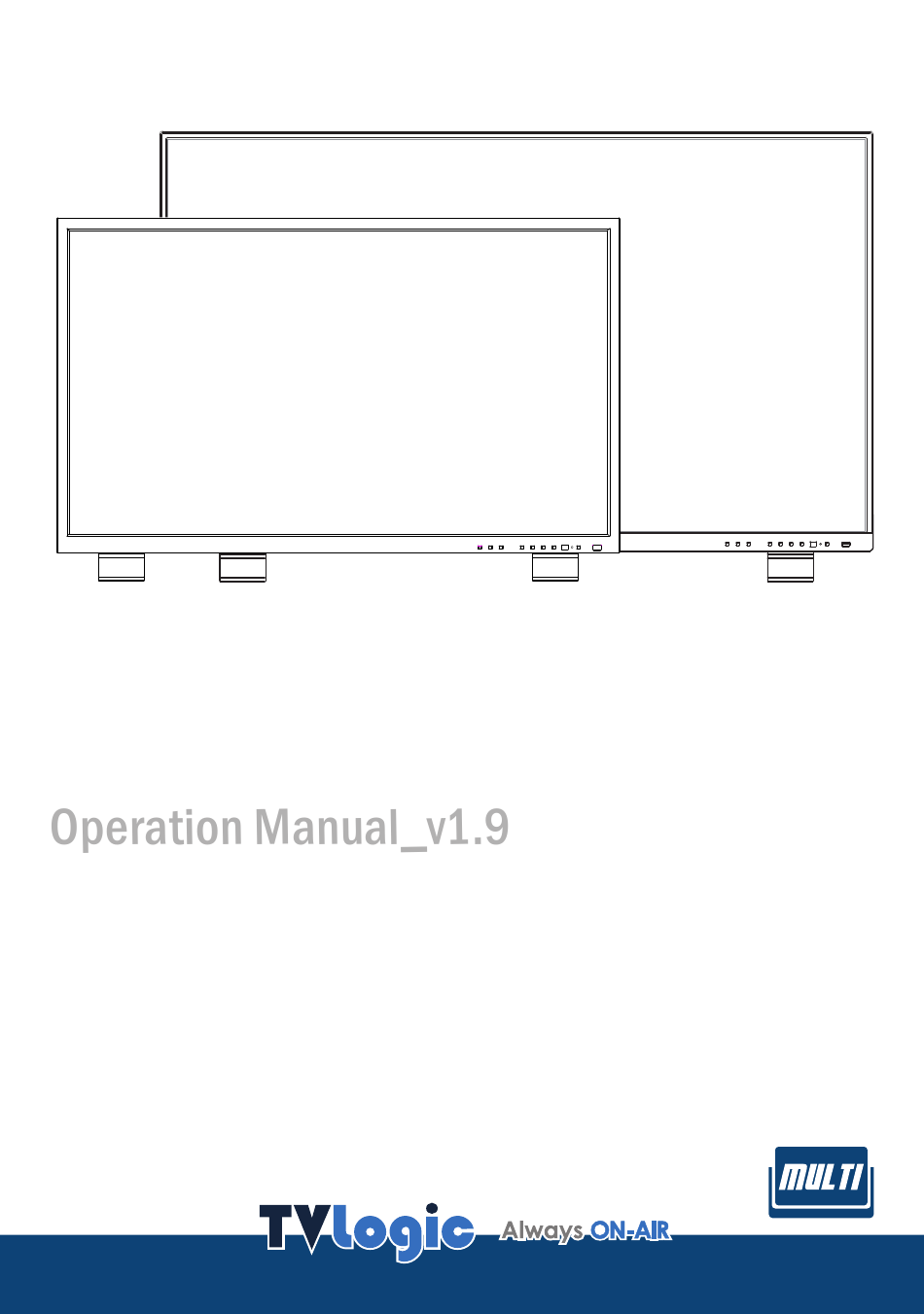

- Page 1 Multi Format MODE HDMI MENU DOWN ENTER POWER 4K LCD Monitor LUM-550M LUM-430M SDI IN SDI IN SDI IN SDI IN 12G-SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE CH 1 CH 2 CH 3 CH 4...
-
Page 3: Table Of Contents
Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] MARKER [4] GPI [5] NETWORK [6] AUDIO [7] SYSTEM 6. Firmware Upgrade 7. Video Support Resolution 8. Product Specifications 4K LCD Monitior 3... -
Page 4: Caution
1. Caution Always use set voltage. • If any of the following conditions occurs, unplug ● AC 100 ~ 240V the power cord from the DC outlet, and request ● a qualified service person to perform repairs. • All operating instructions must be read and understood before the product is operated. - Page 5 1. Caution • When mounting the product be sure to • Sudden stops, excessive force and uneven install the product according to the method floor surface can cause the product to fall from recommended by the manufacturer. the cart. • Unplug the power cord from the DC outlet •...
-
Page 6: Main Features
2. Main Features LUM-550M/430M Monitor contains the following features : Compatible with various SDI signal Auto Color Calibration support ● ● formats - Supports Auto Color Calibration by directly - This product is compatible with various connecting the color probes to the SDI signals - 480i, 576i, 1080i, 1080p, product. -
Page 7: Controls & Functions
3. Controls & Functions LUM-550M : FRONT MODE HDMI MENU DOWN ENTER POWER LUM-550M : REAR LUM-550M_REAR PLATE_V2.1 (2016/07/27) SDI IN SDI IN SDI IN SDI IN 12G-SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE CH 1... - Page 8 3. Controls & Functions LUM-430M : FRONT MODE HDMI MENU DOWN ENTER POWER MODE HDMI MENU DOWN ENTER POWER LUM-430M : REAR SDI IN SDI IN SDI IN SDI IN 12G-SDI OUT HDMI IN AUDIO OUT RS-232 RS-422 IN RS-422 OUT REMOTE SDI IN SDI IN...
- Page 9 3. Controls & Functions FRONT [SDI] Button/Lamp [MENU] Button ● ● - Used to select SDI A/B input signal. - Used to activate the OSD menu. [MODE] Button/Lamp [UP] Button ● ● - Used to select the UD MODE. - Used to move up through the menus - Press the button to move through the during the OSD menu activation.
- Page 10 3. Controls & Functions REAR [SDI INPUT x 4] (BNC) ~ AC IN ● ● - Signal input terminal for HD/SD SDI signal. - 100 ~ 240V AC 50/60Hz - The first and second SDI INPUT terminal supports up to 12G input. <Warning!!>...
-
Page 11: Menu Tree & Adjustment
4. Menu Tree & Adjustment [1] Menu Organization [3] Menu Control Sequence The product may be controlled and set Menu Control sequence follows the order ● system-wise through OSD displayed on below: the screen. - Below is the layout of the product’s menu. 1. - Page 12 4. Menu Tree & Adjustment [4] MENU TREE BRIGHT GPI 1 ~ GPI 8 CONTRAST GROUP ID BACK LIGHT MONITOR ID PICTURE TIMECODE RS-422 BAUD FORCE PSF DHCP 4K MODE IP ADDR TEMP SUBNET MARKER GAIN R GATEWAY GAIN G PORT GAIN B IP APPLY...
-
Page 13: Menu Operations
5. Menu Operations [1] PICTURE PICTURE BRIGHT COLOR CONTRAST MARKER BACK LIGHT TIMECODE NETWORK 4K MODE 2 SAMPL INTL AUDIO SYSTEM BRIGHT ● - Used to set the brightness(=offset) level from -100 to 100. CONTRAST ● - Used to set the contrast(gain) level from -100 to 100. -
Page 14: Video
5. Menu Operations [2] COLOR BIAS R TEMP PICTURE 6500K ● - Used to set Red Bias(or Offset, mainly GAIN R COLOR GAIN G MARKER affects on Black level) from -128 to 127. GAIN B - Adjusts the red color of dark section. NETWORK BIAS R - Only available in CUSTOM 1/2/3 mode. -
Page 15: Marker
5. Menu Operations [3] MARKER PICTURE MARKER COLOR CENTER MARKER MARKER SAFETY AREA FIT MARKER NETWORK MARKER MAT MARKER : 4:3 MARKER : 4:3 AUDIO MARKER COLOR WHITE ● ● SAFETY AREA : 90% SAFETY AREA : 90% SYSTEM THICKNESS ●... -
Page 16: Gpi
5. Menu Operations [4] GPI The selectable functions for PIN 1~ PIN 6 PICTURE PIN 1 NONE ● are as follows: COLOR PIN 2 SDI A MARKER PIN 3 SDI B PIN 4 16:9 MAR Menu NETWORK PIN 5 15:9 MAR Classifi- Settable Values AUDIO... -
Page 17: Network
5. Menu Operations [5] NETWORK [6] AUDIO PICTURE DHCP DHCP PICTURE VOLUME COLOR IP (D) 192.168.101.156 COLOR AUD CH GR1 CH1+CH2 MARKER SUBNET 255.255.255.000 MARKER LVM TYPE GATWAY 192.168.101.001 LVM SIZE NETWORK PORT 10262 NETWORK AUDIO IP APPLY AUDIO SYSTEM SYSTEM DHCP VOLUME... -
Page 18: System
5. Menu Operations [7] SYSTEM NETWORK PICTURE DEFAULT ● - Displays the current network connection COLOR USER CONFIG USER 1 setting. MARKER KEY LED SDI OUT BY PASS NETWORK VERSION S04.F04.H05 MAC ADDR ● AUDIO INPUT NO INPUT - Displays the current network MAC ADDR. SYSTEM NETWORK DHCP 100M... -
Page 19: Firmware Upgrade
6. Firmware Upgrade [1] FIRMWARE UPGRADE The USB(Thumb drive) which contains the ● F/W file is needed for Firmware Upgrade. Select the SW UPGRADE in the SYSTEM ● menu. 1. Connect the USB to the USB Slot on the front of the monitor. 2. -
Page 20: Video Support Resolution
7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (12G SDI) 12G-SDI single link(4k) 3840x2160 (50/59.94/60p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (6G SDI) 6G-SDI single link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit Input Signal Interfaces Signal Format (3G_A SDI) 3G-SDI single link 1920x1080 (50/59.94/60p) - Page 21 7. Video Support Resolution VIDEO SUPPORT RESOLUTION Input Signal Interfaces Signal Format (HD SDI) 1920x1080 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit (50/59.94/60I) YCbCr 4:2:2 10bit HD SDI single link (25/29.97/30psf) YCbCr 4:2:2 10bit 1280x720 YCbCr 4:2:2 10bit (50/59.94/60P) Input Signal Interfaces Signal Format (HD-SDI) HD-SDI Quad link(4k) 3840x2160 (23.98/24/25/29.97/30p) YCbCr 4:2:2 10bit...
-
Page 22: Product Specifications
8. Product Specifications LUM-550M Size 55” Resolution 3840(H) x 2160(V) Pixels, RGBW stripe arrangement Pixel Pitch 0.315(H) x 0.315(W) mm Color Depth 1.07B colors Viewing Angle H : 178 degrees / V : 178 degrees Luminance of white 500 cd/ m (Center 1point ,Typ.) - Page 23 8. Product Specifications LUM-430M Size 43” Resolution 3840 horiz. by 2160 vert. Pixels, RGB stripe arrangement Pixel Pitch 0.2451 mm x 0.2451 mm Color Depth 10bit(D), 1.06 Billon colors Viewing Angle Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)) Luminance of white 350cd/m2 (Center 1point ,Typ.) Contrast Ratio...
- Page 24 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
