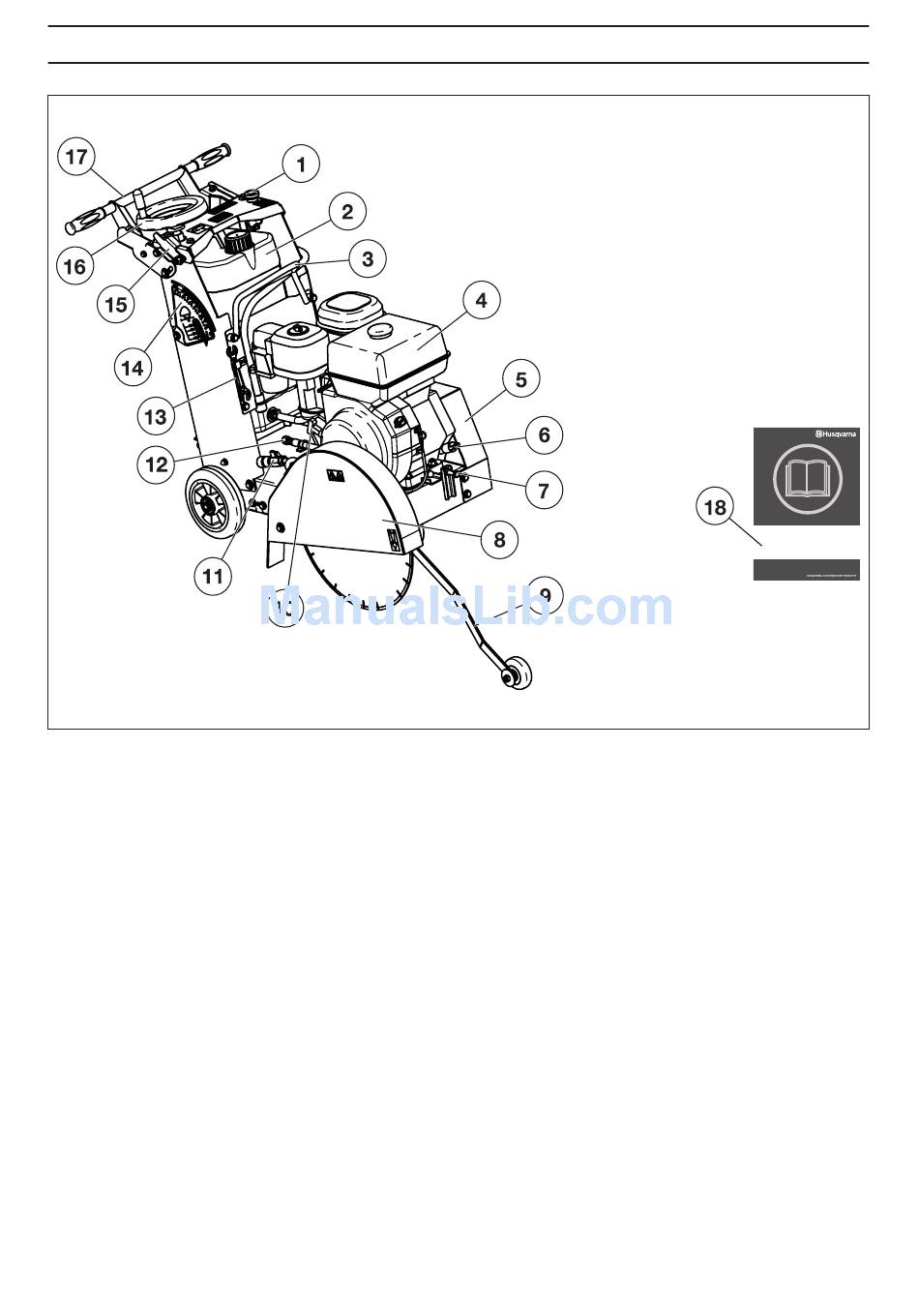

What is what on the machine?

1 Machine stop
2 Water tank
3 Lifting eye
4 Fuel tank
5 Protective cover - drive belt
6 Engine oil fill
7 Tension screw, drive belt
8 Blade guard
9 Front guide

PRESENTATION

10 Starter handle
11 Water tap
12 Draining, engine oil
13 Service spanner
14 Cutting depth indicator
15 Locking lever, cutting depth
16 Feeding wheel, cutting depth
17 Handle
18 Operator's manual
