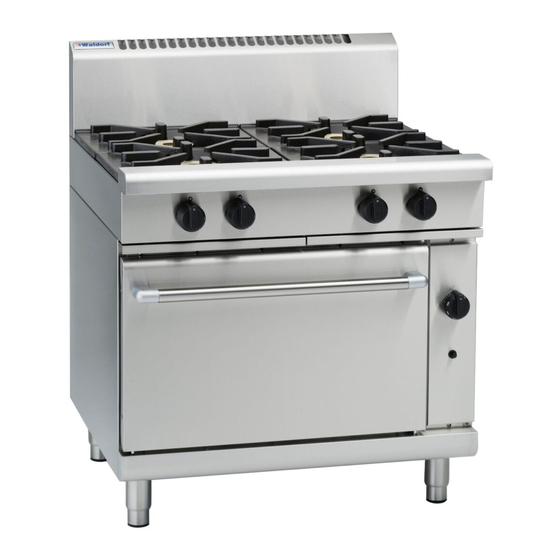

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Static Oven Series RN8910G RNL8910G RNB8910G RNLB8910G Date Purchased...
- Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315...
-
Page 3: Table Of Contents
Contents List Waldorf Gas Range Static Oven RN(L)(B)8910G Gas Range Static Oven - 4 Burner, 900mm Wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................6 Installation ....................7... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS RANGE STATIC OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8910G-[2] Gas Static Oven + 4 Open Burners. NOTE: [1]: - Model Options; - Standard Models. - Low Back Models. - Bold Front. - Low Back and Bold Front. [2] - Open Burner Options; - With Flame Failure Protection. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia: Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner - Oven 30 MJ/hr 30 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 0.95 kPa 2.6 kPa Gas Connection... - Page 7 Specifications - All Other Markets: Natural Gas Town Gas (**) Input Rate (N.H.G.C.) 28MJ/hr 28MJ/hr - each Open Burner - Oven 30 MJ/hr 30 MJ/hr Supply Pressure 1.13 - 3.40kPa 0.75 - 1.50kPa Burner Operating Pressure (*) 0.95kPa 0.63 Pa Gas Connection See ‘Gas Connection’...
-
Page 8: Dimensions
Dimensions RN(L)8910G... -
Page 9: Installation
Waldorf Gas Range Static Oven is designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 10: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN QUALIFIED PERSON. Waldorf Ranges do not require an electrical connection, as they function totally on the gas supply only. It is essential that gas supply is correct for appliance to be installed and that adequate supply pressure and volume are available. -
Page 11: Commissioning
Installation Regulator connections are " BSP female. Connection to appliance is " BSP male. (Refer to ‘Specifications’ section for gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so appliance is level and at correct height. -
Page 12: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- ... -
Page 13: Open Burners
Operation Open Burners ('F' - Flame Failure Option) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not expelled. -
Page 14: Lighting The Oven Pilot Burner
Operation Lighting the Oven Pilot Burner Pilot Burner viewing holes ! IMPORTANT DO NOT USE aluminium foil or trays directly on cast iron sole plate(s). NEVER block or cover openings on each side of sole plate(s). This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by way of a thermo- electric system for main burner. -
Page 15: Oven 'Shut Down
Operation Control Knob in Oven ‘Shut-Down’ ’Off’ Position NOTE: DO NOT attempt to rotate Thermostat Control Knob anti-clockwise back to ‘O’ Off position as Knob and Gas Valve will be damaged. partially depress To turn 'Off' oven completely, thermostat control knob whilst turning clockwise to 'O' Off position, pilot burner will extinguish. -
Page 16: Cleaning And Maintenance
Ensure that any detergent or cleaning material has been completely removed after each cleaning. To keep your Cooktop clean and operating at peak efficiency, follow the procedures shown overleaf:- RN8910G - Cooktop Only, shown for reference Spill Tray Pot Stand... -
Page 17: Open Burner Cleaning
Cleaning and Maintenance Open Burner Cleaning Oven Interior Cleaning 1. Remove pot stands, burner caps, burner bowls 1. Do not use wire brushes, steel wool or other abrasive materials to clean oven interior. and pot stand supports from top of cooktop. Wash with hot soapy water, using a soft 2. -
Page 18: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 19: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... -
Page 20: Gas Specifications
Gas Conversion and Specifications Static Oven Pilot Burner Carry out the following:- Piezo Igniter Remove lower lintel at front of oven. Thermocouple Open oven door and remove sole plate(s). Remove main burner. Main Burner Remove thermocouple and piezo igniter from mounting bracket. -
Page 21: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated - NAT Gas / LPG / Butane Only. for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet NOTE, Pin rotated pressure is fixed ex-factory and for LPG is NOT to be adjusted. -
Page 22: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia: Natural Gas LP Gas (Propane) Ø 2.45mm Ø 1.50mm Main Burner Injectors Open Burner 0.30 0.20 Pilot Burner ('PF' Option Only) Ø 2.60mm Ø 1.60mm Main Burner 0.35 0.23 Pilot Burner Oven Ø... - Page 23 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas (**) Main Burner Ø 2.45mm Ø 4.50mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.60 Main Burner Ø 2.6mm Ø 5.0mm Pilot Burner 0.35 0.60 Oven Low Fire Ø...
-
Page 24: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 25 Replacement Parts List Oven 228767 Oven Burner. 018691K Oven Pilot Burner Kit. 018743 Thermocouple Spacer. 032260 Oven Burner Injector (Nat Gas) Ø 2.60mm. 032160 Oven Burner Injector (LPG) Ø 1.60mm. 032145 Oven Burner Injector (Butane) Ø 1.45mm. 032500 Oven Burner Injector (Town Gas) Ø...
