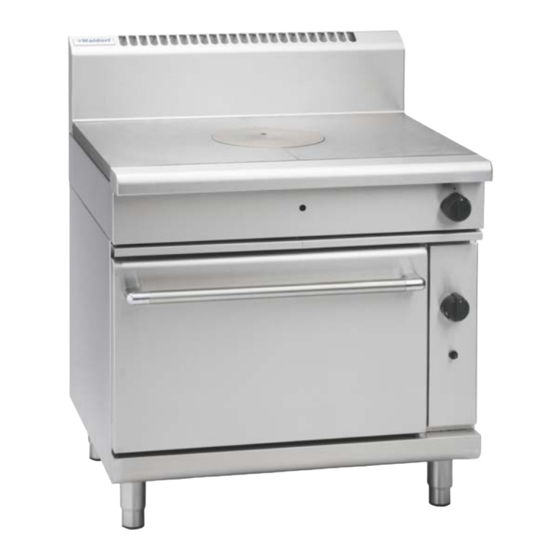

Waldorf RN8110G Installation And Operation Manual
Gas target top range static oven
Hide thumbs
Also See for RN8110G:
- Installation and operation manual (25 pages) ,
- Installation and operation manual (28 pages)
Related Manuals for Waldorf RN8110G
Summary of Contents for Waldorf RN8110G
- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Target Top Range Static Oven RN8110G RNL8110G Date Purchased...
- Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281...
-
Page 3: Table Of Contents
Contents Waldorf Gas Target Top Range Static Oven RN(L)8110G Gas Target Top Range Static Oven . Introduction ....................2 Specifications .................... 3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................5 Installation ....................6... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF Gas Target Top Range Static Oven, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specifications
Specifications Model Numbers Covered in this Specification RN[1]8110G Gas Target Top Range Static Oven. NOTE: [1]: - Back Options; - Standard Models. - Low Back Models. General A commercial heavy duty, general purpose fully modular, gas fired Target Top Range Static Oven, having a high output, two stage double-ring iron cast burner offering accurate temperature control and infinitely variable heat with the heat radiating out from the centre of the Target Top. - Page 6 Specifications Gas Connection Gas supply connection point is located 130mm from right hand side, 32mm from rear and 655mm from floor and is reached from beneath appliance. (Refer to ‘Dimensions’ section). Connection is ¾" BSP male thread.
-
Page 7: Dimensions
Dimensions RN(L)8110G... -
Page 8: Installation
Waldorf Gas Target Top Range Static Oven are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 9: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Waldorf Target Top Ranges Static Ovens do not require an electrical connection, as they function totally on gas supply only. It is essential that gas supply is correct for appliance to be installed and that adequate supply pressure and volume are available. -
Page 10: Gas Connection
Installation NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and LPG as shown in ‘Gas Conversion Section’ in this manual. Ensure regulator is converted to correct gas type that appliance will operate on. Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it is NOT to be adjusted. -
Page 11: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 12: Lighting Pilot Burner - (Target Top)
Operation Lighting the Pilot Burner - (Target Top) Remove centre casting with casting removal tool. Depress control knob and rotate anti-clockwise to ‘PILOT’ position. With control knob depressed, manually light pilot burner located in front of main burner. Hold in control knob for approximately 10 to 15 seconds, then release. Pilot burner should remain alight. -
Page 13: Lighting Oven Pilot Burner
Operation Lighting Oven Pilot Burner Pilot Burner viewing holes ! IMPORTANT DO NOT USE aluminium foil or trays directly on cast iron sole plate(s). NEVER block or cover openings on each side of sole plate(s). This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by way of a thermo- electric system for the main burner. -
Page 14: Oven 'Shut Down
Operation Control Knob in Oven ‘Shut-Down’ ’Off’ Position NOTE: DO NOT attempt to rotate Thermostat Control Knob anti-clockwise back to ‘O’ Off position as Knob and Gas Valve will be damaged. partially depress To turn oven 'Off' completely, thermostat control knob whilst turning clockwise to 'O' Off position, pilot burner will extinguish. -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the Target Top Range Static Oven regularly. A clean appliance looks better, will last longer and will perform better. -
Page 16: Periodic Maintenance
Cleaning and Maintenance c. DO NOT use water on castings while they are still hot as cracking may occur. Should it be necessary to clean castings, allow castings to cool and then remove for cleaning. Clean using a soft cloth moistened with a mild detergent and hot water solution and a scrubbing brush. Dry thoroughly with a dry cloth. -
Page 17: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your appliance. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 18: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure Appliance is isolated from gas and electrical supplies before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... -
Page 19: Gas Specifications
Gas Conversion and Specifications Pilot Burner Disconnect gas supply tube from base of pilot burner. Pilot Burner Main Burner Injectors Remove pilot burner and thermo couple retaining plate. Remove pilot burner from mounting bracket. Remove injector and spring from pilot burner and replace with correct size injector as shown in ‘Gas Specifications Tables’... -
Page 20: Gas Specifications
Gas Conversion and Specifications Static Oven Main Burner Carry out the following:- Remove lower lintel at front of oven. Thermocouple Pilot Burner Open oven door and remove sole plate(s). Remove main burner. Disconnect pilot supply tube from pilot burner to access pilot injector. -
Page 21: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Non CE Only (Australia / New Zealand): Nat. Gas LP Gas (Propane) Main Burner Injector (Inner Ring) Ø 1.70 mm Ø 1.10 mm Main Burner Injector (Outer Ring) Ø 2.60 mm Ø 1.55 mm Pilot Burner Injector 0.35 0.25... -
Page 22: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 23 Oven Side Rack LH. 227893 Oven Side Rack RH. 227896 Oven Rack. Gas Conversion Kits Gas Type to Convert to: Model Nat. Gas (G20) LPG (Propane) (G31) RN8110G 231976 231975 Accessories 228921 Rear Roller Kit. 228800 Ranges 900 mm Plinth Kit.
