Waldorf RN8410G Installation And Operation Manual
Gas range static oven 800 series
Hide thumbs
Also See for RN8410G:
- Installation and operation manual (31 pages) ,
- Installation and operation manual (27 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Waldorf RN8410G
Summary of Contents for Waldorf RN8410G

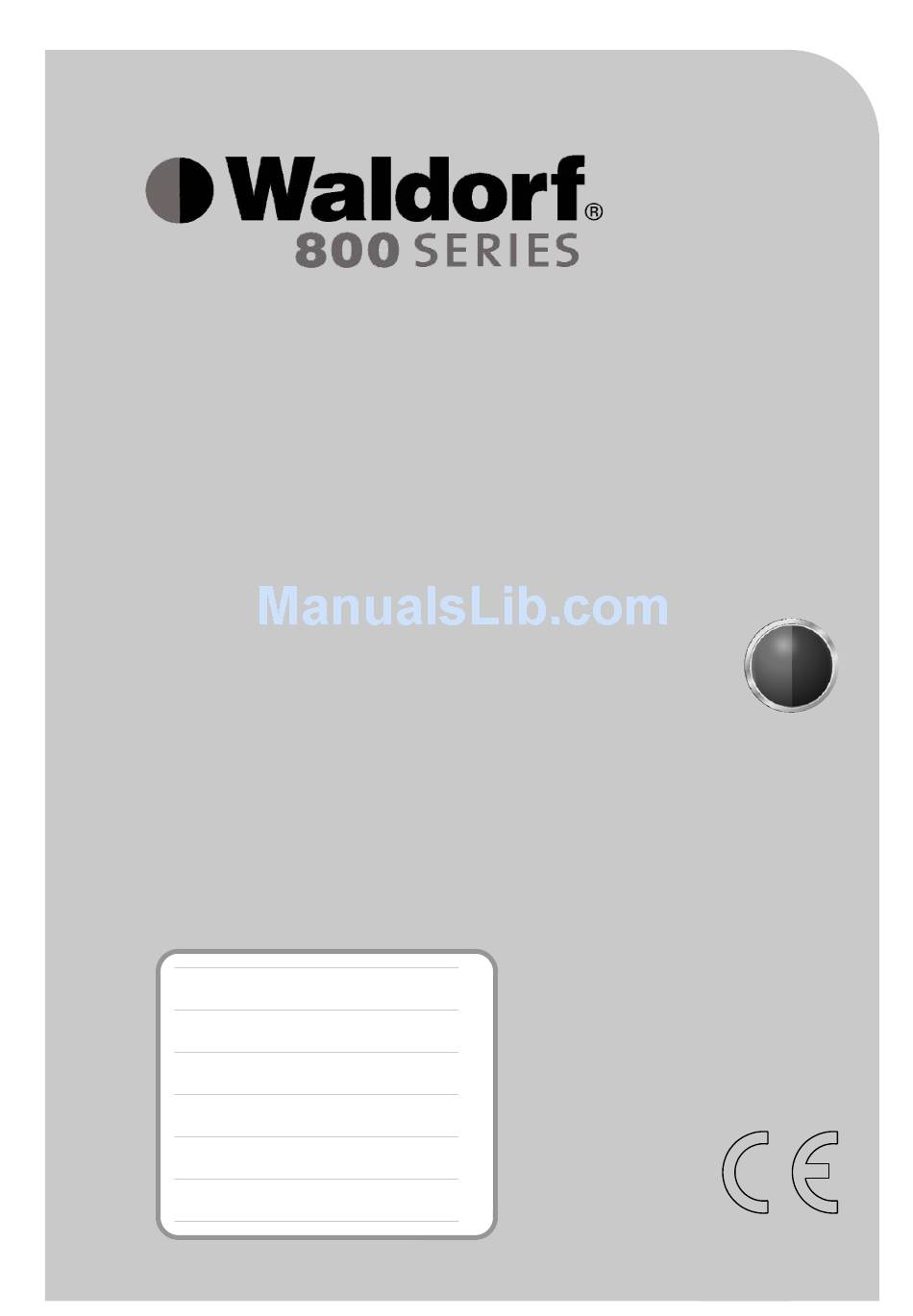

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Static Oven RN8410G RNB8410G RNL8410G RNLB8410G RN8820G RNB8820G...
- Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315...
-
Page 3: Table Of Contents
Contents Waldorf Gas Range Static Oven RN(L)(B)8410G Gas Range Static Oven - 600mm. RN(L)(B)8820G Gas Range Double Static Oven - 1200mm. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................6 Installation .................... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS RANGE STATIC OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification

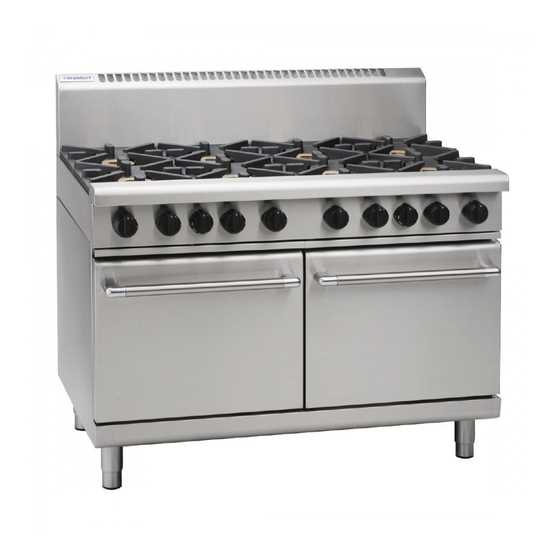

Specifications Model Numbers Covered in this Specification RN[1]8410G [2] Gas Range Static Oven + 4 Open Burners. RN[1]8413G [2] Gas Range Static Oven + 2 Open Burners + 300mm Griddle. RN[1]8416G [2] Gas Range Static Oven + 600mm Griddle. RN[1]8820G [2] Gas Range Double Static Oven + 8 Open Burners. RN[1]8823G [2] Gas Range Double Static Oven + 6 Open Burners + 300mm Griddle. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner - each 300 mm Griddle Section 21 MJ/hr 21 MJ/hr - Oven 24 MJ/hr 24 MJ/hr Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) - Page 7 Specifications - All Other Markets Natural Gas Town Gas (**) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner - each 300mm Griddle Section 21 MJ/hr 21 MJ/hr - Oven 24 MJ/hr 24 MJ/hr 1.13 - 3.40 kPa 0.75 - 1.50 kPa Supply Pressure Burner Operating Pressure (*)
-
Page 8: Dimensions
Dimensions RN(L)8410G Gas Cooktop Options RN(L)8413G RN(L)8410G RN(L)8416G... - Page 9 Dimensions RN(L)8820G Gas Cooktop Options RN(L)8820G RN(L)8823G RN(L)8826G RN(L)8829G...
-
Page 10: Installation
Waldorf Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 11: Clearances
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Waldorf Ranges do not require an electrical connection, as they function totally on gas supply only. It is essential that gas supply is correct for appliance being installed and that adequate supply pressure and volume are available. -
Page 12: Commissioning
Installation NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and LPG as shown in ‘Gas Conversion Section’ in this manual. Ensure regulator is converted to correct gas type that appliance will operate on. Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it is NOT to be adjusted. -
Page 13: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 14: Open Burners
Operation Open Burners ('F' - Flame Failure Option) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not expelled. - Page 15 Operation Griddle Lighting the Griddle a. Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position. b. Hold gas control knob depressed, press piezo ignition button to ignite pilot burner. Repeat Items 1 to 2 until pilot is lit. c. Release gas control knob approximately 10-20 seconds after lighting pilot. d.
-
Page 16: Oven Pilot Ignition
Operation Oven Caution Be aware that when opening the oven door, hot air and cooking vapours will be released from the hot oven. Oven Pilot Ignition ! IMPORTANT DO NOT USE aluminium foil or trays directly on cast iron sole plate(s). NEVER block or cover openings on each side of sole plate(s). -
Page 17: Cleaning And Maintenance
Cleaning and Maintenance Before Commencing Cleaning Caution Always turn off the gas / electrical supply before cleaning the appliance. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. NOTE: ... -
Page 18: Open Burner Cleaning
Cleaning and Maintenance Open Burner Cleaning Griddle Plate Cleaning 1. Remove pot stands, burner caps, burner bowls It is recommended that a flat blade scraper is used to clean the griddle surface, these are not supplied and pot stand supports from top of cooktop. Wash with hot soapy water, using a soft with griddle but may be purchased separately. -
Page 19: Oven Interior Cleaning
Cleaning and Maintenance Oven Interior Cleaning 1. Do not use wire brushes, steel wool or other abrasive materials to clean oven interior. 2. Clean oven regularly with a good quality domestic oven cleaner. 3. Weekly - Remove and clean any built up of grease etc. -
Page 20: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 21: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... - Page 22 Gas Conversion and Specifications Piezo Igniter Griddle Pilot Supply Tube Carry out the following:- Remove griddle plate section and heat shield. Remove main burner. Disconnect piezo igniter from mounting bracket. (For access purposes). Pilot Burner Disconnect pilot supply tube from pilot burner to access pilot injector.
-
Page 23: Gas Specifications
Gas Conversion and Specifications Remove pilot and main injectors and replace with correct size injectors as shown in ‘Gas Specifications Tables’ at end of this section. Refit the following:- Re-connect pilot supply tube to pilot burner. Refit main burner and sole plate(s). ... -
Page 24: Specifications
Specifications Gas Type Identification Label On completion of gas conversion, replace gas type identification label located at:- - Rear of appliance, above gas connection. - Beside the rating plate. Commissioning Before leaving the installation; Check all gas connections for leakage using soapy water or other gas detecting equipment. Warning O NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES Carry out a ‘Commissioning’... -
Page 25: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia: Natural Gas LP Gas (Propane) Main Burner Injectors Ø 2.45mm Ø 1.50mm Open Burners Pilot Burner ('PF' Option Only) 0.30 0.20 Main Burner Ø 2.10mm Ø 1.30mm Griddle Pilot Burner 0.35 0.23 Main Burner Ø... - Page 26 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas (**) Main Burner Injectors Ø 2.45mm Ø 4.50mm Open Burner Pilot Burner ('PF' Models only) 0.30 0.60 Main Burner Ø 2.10mm Ø 3.40mm Griddle Pilot Burner 0.35 0.60 Burner Aeration Setting Fully open Fully open...
-
Page 27: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 28 Knob Oven - (130 - 270°C). 228704 Door Spring Kit (Includes 2 Springs). General 227015 Pot Stand. 228882 Spill Tray 600mm (RN8410G / RN8820G Series). 227850 Adjustable Leg - 150mm. 229674 Rear Roller Assy. Gas Regulators Gas Regulators Gas Type Description Part No.
