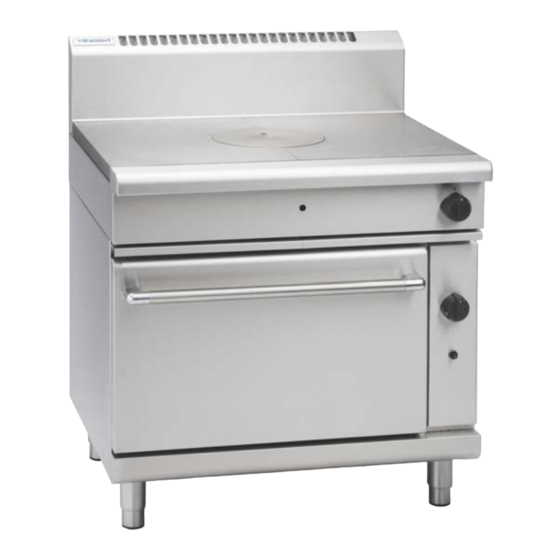

Waldorf RN8110G Installation And Operation Manual
Target top static oven/range
Hide thumbs
Also See for RN8110G:
- Installation and operation manual (24 pages) ,
- Installation and operation manual (28 pages)
Related Manuals for Waldorf RN8110G
Summary of Contents for Waldorf RN8110G
- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Target Top Static Oven/Range RN8110G Date Purchased Serial Number Dealer Service Provider For use in GB &...
- Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal 67 Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
-
Page 3: Table Of Contents
Contents Waldorf Gas Target Top Static Oven Range RN8110G Gas Target Top Static Oven Range. Introduction ....................2 Specifications .................... 3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................5 Installation ....................6 Installation Requirements... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF Target Top Gas Static Oven Range, , and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specifications
Specifications Model Numbers Covered in this Specification RN8110G Gas Target Top Static Oven Range. General A commercial heavy duty, general purpose fully modular, gas fired Target Top Static Oven Range, having a high output, two stage double-ring iron cast burner offering accurate temperature control and infinitely variable heat with the heat radiating out from the centre of the Target Top. - Page 6 Specifications Gas Connection Gas supply connection point is located 130mm from the right hand side, 35mm from the rear and 655mm from the floor and is reached from beneath the appliance. (Refer to the ‘Dimensions’ section). Connection is ¾" BSP male thread.
-
Page 7: Dimensions
Dimensions RN8110G... -
Page 8: Installation
Waldorf Target Top Static Oven Ranges are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 9: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Waldorf Target Top Oven Ranges do not require an electrical connection, as they function totally on the gas supply only. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available. - Page 10 Installation NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the appliance is level and at the correct height. Connect the gas supply to the appliance.
-
Page 11: Operation
Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 12: Lighting The Pilot Burner - (Target Top)
Operation Lighting the Pilot Burner - (Target Top) Remove centre casting with the casting removal tool. Depress the control knob and rotate anti-clockwise to the ‘PILOT’ position. With the control knob depressed, manually light the pilot burner located in front of the main burner. Hold in the control knob for approximately 10 to 15 seconds, then release. -
Page 13: Lighting The Pilot Burner - (Oven)
Operation Lighting the Pilot Burner - (Oven) This oven is fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for the main burner. Flame Failure Protection will shut off the gas supply This is an to the burner in the event that the pilot burner goes out, so that un-burnt gas is not expelled. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn 'Off' the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the Target Top regularly. A clean appliance looks better, will last longer and will perform better. -
Page 15: Oven Interior
Cleaning and Maintenance c. DO NOT use water on the castings while they are still hot as cracking may occur. Should it be necessary to clean the castings, allow the castings to cool and then remove for cleaning. Clean using a soft cloth moistened with a mild detergent and hot water solution and a scrubbing brush. -
Page 16: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your appliance. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 17: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the Unit is isolated from the gas supply before commencing servicing. NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. •... - Page 18 Gas Conversion and Specifications Target Top - Pilot Burner Main Burner Pilot Burner To remove the pilot burner, disconnect the gas Injectors supply tube from the base of the pilot burner. Remove the bolt securing the retaining plate holding the pilot burner and thermo couple to the mounting bracket.
- Page 19 Gas Conversion and Specifications Oven Injector: With the gas supply turned off at the main supply, Shown with door removed for ease of viewing unscrew and remove the 6 screws securing the lower lintel to the front of the oven. Open the oven door and remove the vitreous enamelled tray from inside the oven.
-
Page 20: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 21 Ensure that the gas supply is turned ‘OFF’... -
Page 21: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Non-UK Only Nat. Gas LP Gas (Propane) Main Burner Injector (Inner Ring) Ø 1.70 mm Ø 1.10 mm Main Burner Injector (Outer Ring) Ø 2.60 mm Ø 1.55 mm Pilot Burner Injector 0.35 0.25 Target Top Burner Aeration Screw X (Inner) -
Page 22: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 23 Oven Side Rack LH. 227893 Oven Side Rack RH. 227896 Oven Rack. Gas Conversion Kits Gas Type to Convert to: Model Nat. Gas (G20) LPG (Propane) (G31) RN8110G 231976 231975 Accessories 228921 Rear Roller Kit. 228800 Ranges 900 mm Plinth Kit.
