Waldorf RN8410G Installation And Operation Manual

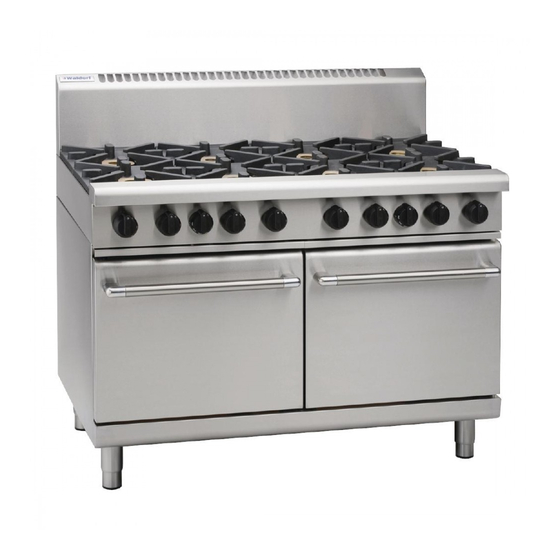

Gas range static oven 800 series
Hide thumbs
Also See for RN8410G:
- Installation and operation manual (29 pages) ,
- Installation and operation manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Waldorf RN8410G
Summary of Contents for Waldorf RN8410G
- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Static Oven RN8410G RNL8410G RN8820G RNL8820G Date Purchased...
- Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
-
Page 3: Table Of Contents
Contents Waldorf Gas Static Oven Range RN(L)8410G Gas Range Static Oven - 600 mm. RN(L)8820G Gas Range Double Static Oven - 1200 mm. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions .................... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS RANGE STATIC OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8410G [2] Gas Range Static Oven + 4 Open Burners. RN[1]8413G [2] Gas Range Static Oven + 2 Open Burners + 300 mm Griddle. RN[1]8416G [2] Gas Range Static Oven + 600 mm Griddle. RN[1]8820G [2] Gas Range Double Static Oven + 8 Open Burners. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Non CE Only (Australia / New Zealand): Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner (26,538 Btu/hr) (26,538 Btu/hr) 21 MJ/hr 21 MJ/hr - each 300 mm Griddle Section (19,900 Btu/hr) (19,900 Btu/hr) 24 MJ/hr... -
Page 7: Dimensions
Dimensions RN(L)8410G Gas Cooktop Options RN(L)8413G RN(L)8410G RN(L)8416G... - Page 8 Dimensions RN(L)8820G Gas Cooktop Options RN(L)8820G RN(L)8823G RN(L)8826G RN(L)8829G...
-
Page 9: Installation
Waldorf Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 10: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Waldorf Ranges do not require an electrical connection, as they function totally on the gas supply only. It is essential that the gas supply is correct for the appliance to be installed and that adequate supply pressure and volume are available. -
Page 11: Gas Connection
Installation NOTE: The gas pressure regulator provided with this appliance is convertible between Natural Gas and LPG as per the ‘Gas Conversion Section’ in this manual. Ensure the regulator is converted to the correct gas type that the appliance will operate on. The regulator outlet pressure is fixed ex-factory for the gas type that the regulator is converted to and it is NOT to be adjusted. -
Page 12: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 13: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150 mm to Ø 420 mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. -
Page 14: Griddles
Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. Flame Failure Protection will shut off the gas supply to that burner in the event that the pilot for that burner goes out, so that un-burnt gas is This is an important safety feature which is slowly becoming law throughout the not expelled. -
Page 15: Oven Pilot Ignition
Operation Oven Pilot Ignition DO NOT USE aluminium foil or trays directly on the cast iron sole plate(s). ! IMPORTANT NEVER block or cover the openings on each side of the sole plate(s). Pilot Burner Open the oven door. Depress the thermostat control viewing holes knob and rotate anti-clockwise to the ‘PILOT’... -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on the surface or between the trivets, griddle plates will hinder the transfer of heat from the cooking surface to the food. -
Page 17: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease / spill trays should be checked and emptied frequently to prevent overflow and spillage. Remove the grease drawer while still warm so that the grease is in a liquid state. Empty any grease from the drawer and wash thoroughly in the same manner as any cooking utensil. - Page 18 Cleaning and Maintenance Trivets and Burners Burner Cap a. Remove the trivets from the top of the appliance, taking note that the trivets are manufactured with a lip on one edge, the lip must always be fitted to the outer edge (front and back) of the range.
-
Page 19: Periodic Maintenance
Cleaning and Maintenance Notice Lip on NOTE: It is imperative that the trivet supports are correctly Trivet Edge re-fitted to the unit to ensure that the trivets locate correctly and sit flush and level. NOTE that the trivet support front end side rail profiles are different at either side (Refer to Fig 6) and only one of the side rails seat into the cut-out in the range, whereas the rear end of the trivet support side rail profiles are the... -
Page 20: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 21: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the appliance is isolated from the gas supply before commencing servicing. Burner NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. •... -
Page 22: Gas Specifications
Gas Conversion and Specifications Refit all the trivet supports to the top of the appliance. Note ‘Turned Up’ lip on Pot Stand the orientation of the trivet support when re-fitting. The trivet support front end side rail profiles are different from the rear end side rail profiles. - Page 23 Gas Conversion and Specifications Pilot Injectors a. Unscrew and remove the Pilot Injector Plug from the fitting Pilot Injector at the end of the pilot injector tube using a 11 mm A/F Housing spanner. (see Fig 23). b. Using a flat bladed screwdriver, unscrew and remove the pilot injector from the pilot injector housing.
-
Page 24: Gas Specifications
Gas Conversion and Specifications Griddle Pilot Burner a. With the gas supply turned off at the main supply, Gas Control remove the griddle plate section by lifting it straight off Heat Shield the cook top. b. Remove the gas control heat shield from around the griddle burner, this is just a push in fit. -
Page 25: Gas Specifications
Gas Conversion and Specifications Oven Shown with door removed Main Injector: for ease of viewing a. With the gas supply turned off at the main supply, unscrew and remove the 6 screws securing the lower lintel to the front of the oven. (See Fig 31). b. -
Page 26: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG NOTE, Pin rotated for LPG Fig 33 NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. -
Page 27: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Non CE Only (Australia / New Zealand): Nat. Gas LP Gas (Propane) Ø 2.45 mm Ø 1.50 mm Main Burner Injectors Open Burners 0.30 0.20 Pilot Burner ('PF' Option Only) Ø 2.10 mm Ø... -
Page 28: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 29 228704 Door Spring Kit (Includes 2 Springs). General 227015 Pot Stand / Trivet. 228882 Spill Tray 600 mm (RN8410G / RN8820G Series). 227850 Adjustable Leg (150 mm). 229674 Rear Roller Assy. Gas Conversion Kits Gas Type to Convert to Models...
