Summary of Contents for Waldorf RN8110GC
-
Page 1: Convection Oven

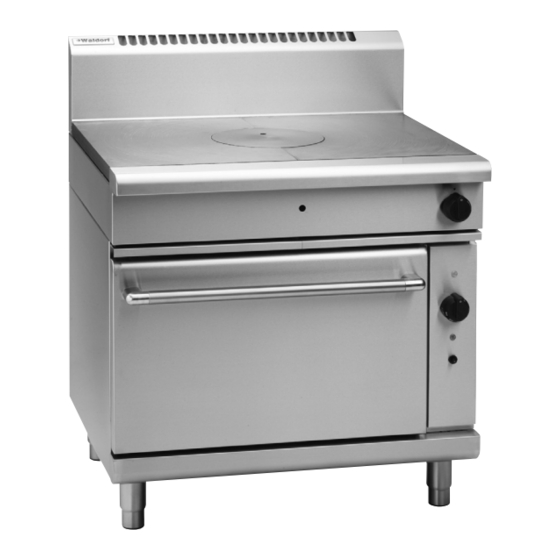

I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Target Top Range Convection Oven RN8110GC RNB8110GC RNL8110GC RNLB8110GC... - Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315...
-
Page 3: Table Of Contents
Contents Waldorf Gas Target Top Range Convection Oven RN(L)(B)8110GC Gas Target Top Range Convection Oven . Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Electrical Supply Requirements Dimensions ....................6 Installation .................... -
Page 4: Introduction
Introduction Introduction We are confident that you will be delighted with your WALDORF Target Top Range / Convection Oven and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8110GC Gas Target Top Range Convection Oven. NOTE: [1]: - Model Options; - Standard. - Low Back. - Bold Front. - Low Back and Bold Front. General A commercial heavy duty, general purpose fully modular, gas fired Target Top Range / Convection Oven, having a high output, two stage double-ring cast iron burner offering accurate temperature control and infinitely variable heat with the heat radiating out from the centre of the Target Top. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia: Natural Gas LP Gas (Propane) Target Top Oven Target Top Oven Input Rate (N.H.G.C.) 45 MJ/hr 30 MJ/hr 45 MJ/hr 30 MJ/hr Gas Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Burner Operating Pressure (*) 1.0 kPa 2.60 kPa Gas Connection... -
Page 7: Gas Connection
Specifications - All Other Markets: Natural Gas Town Gas (**) Target Top Oven Target Top Oven Input Rate (N.H.G.C.) 45 MJ/hr 30 MJ/hr 45 MJ/hr 30 MJ/hr Gas Supply Pressure 1.13 - 3.40 kPa 0.75 - 1.50 kPa Burner Operating Pressure (*) 0.95 kPa 0.63 kPa Gas Connection... -
Page 8: Dimensions
Dimensions RN(L)8110GC... -
Page 9: Installation
Waldorf Target Top Range Convection Ovens are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 10: Clearances
Installation Clearances Combustible Surface Non Combustible Surface Left / Right Hand Side 50mm Rear 50mm NOTE: Only non-combustible materials can be used in close proximity to this appliance. Assembly NOTE: All Models are delivered completely assembled. No further assembly is required. Refer to the information below for installation instructions. -
Page 11: Electrical Connection
Installation Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that appliance is level and at correct height. Connect gas supply to appliance. A suitable joining compound which resists breakdown action of LPG must be used on every gas line connection, unless compression fittings are used. Check gas operating pressure is as shown in ‘Specifications’... -
Page 12: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. -
Page 13: Lighting Pilot Burner (Target Top)
Operation Lighting Pilot Burner (Target Top) Remove centre casting using the casting removal tool. Depress control knob and rotate anti-clockwise to ‘PILOT’ position. With control knob depressed, manually light pilot burner located in front of main burner. Hold in control knob for approximately 10 to 15 seconds, then release. Pilot burner should remain alight. -
Page 14: Oven - Main Burner / Thermostat
Operation Oven Pilot Ignition This oven is fitted with a pilot as a standard option and flame failure protection, which is incorporated by way of a thermo-electric system for the main burner. Flame failure protection will shut off gas supply to This is an important burner in the event that pilot burner goes out, so that un-burnt gas is not expelled. -
Page 15: Oven 'Shut Down
Operation Oven ‘Shut-Down’ To ‘Shut Down’ oven, turn oven thermostat to ‘0’ position, oven main burners will go out. Turn gas control valve to 'OFF' position and pilot burner will go out. (To relight pilot burner, refer to ‘Oven Pilot Ignition’ above). Turn ‘OFF’... -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn ‘Off’ gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the Target Top Range / Convection Oven regularly. A clean appliance looks better, will last longer and will perform better. -
Page 17: Oven Interior
Cleaning and Maintenance b. Before use, clean any food residue and spillage from channels around centre casting and main plates. c. DO NOT use water on castings while they are still hot as cracking may occur. Should it be necessary to clean castings, allow castings to cool and then remove for cleaning. Clean using a soft cloth moistened with a mild detergent and hot water solution and a scrubbing brush. -
Page 18: Fault Finding
Fault Finding This section provides an easy reference guide to more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your appliance. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 19: Wiring Schematic
Wiring Schematic Wiring Schematic RN8110GC... -
Page 20: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure Appliance is isolated from gas and electrical supplies before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... -
Page 21: Gas Specifications
Gas Conversion and Specifications Pilot Burner Disconnect gas supply tube from base of pilot burner. Pilot Burner Main Burner Injectors Remove pilot burner and thermo couple retaining plate. Remove pilot burner from mounting bracket. Remove injector and spring from pilot burner and replace with correct size injector as shown in ‘Gas Specifications Tables’... -
Page 22: Gas Specifications
Gas Conversion and Specifications Convection Oven Thermocouple Piezo Igniter Carry out the following:- Remove lower lintel at front of oven. Pilot Burner Open oven door and remove sole plate(s). Main Burner Loosen clamp bracket and remove main burner. -
Page 23: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated - NAT Gas / LPG / Butane Only. for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet NOTE, Pin rotated pressure is fixed ex-factory and for LPG is NOT to be adjusted. -
Page 24: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia Nat. Gas LP Gas (Propane) Ø 1.70mm Ø 1.10mm Main Burner Injector (Inner Ring) Ø 2.60mm Ø 1.55mm Main Burner Injector (Outer Ring) 0.35 0.25 Pilot Burner Injector Target Top 25mm 25mm Burner Aeration Screw X (Inner) 28mm 28mm... - Page 25 Gas Conversion and Specifications - UK Only: Category: 2H3P. Flue Type: Natural Gas (G20) Propane (G31) Ø 1.70mm Ø 1.10mm Main Burner Injector (Inner Ring) Ø 2.60mm Ø 1.55mm Main Burner Injector (Outer Ring) 0.35 0.25 Pilot Burner Injector Target Top 25mm 20mm Burner Aeration Screw X (Inner)
- Page 26 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas (**) Main Burner Injector (Inner Ring) Ø 1.70mm Ø 4.20mm Main Burner Injector (Outer Ring) Ø 2.60mm Ø 6.30mm Pilot Injector 0.35 0.70 Target Top Burner Aeration Screw X (Inner) 25mm 20mm Burner Aeration Screw Y (Outer)
-
Page 27: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 28 Replacement Parts List General 227012 Centre Casting. 227013 Half Plate Casting. 014997 Casting Removal Tool. 227892 Oven Side Rack LH. 227893 Oven Side Rack RH. 023068 Side Rack Screw. 232350 Baffle. 227896 Oven Rack. 228883 Spill Tray 450mm. 227850 Adjustable leg - 150mm. Regulator Gas Regulators Gas Type...
