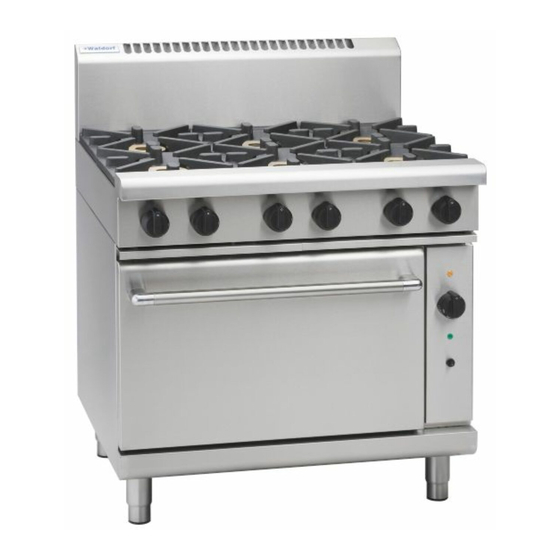

800 series gas range convection oven
Hide thumbs
Also See for RNL8510GC:
- Installation and operation manual (32 pages) ,
- Installation and operation manual (32 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Waldorf RNL8510GC
Summary of Contents for Waldorf RNL8510GC
-
Page 1: Convection Oven
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Range Convection Oven RN8510GC RNL8510GC RN8610GC RNL8610GC RN8810GC RNL8810GC... - Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
-
Page 3: Table Of Contents
Contents Waldorf Gas Convection Oven Range RN(L)8510GC Gas Range Convection Oven - 750 mm wide. RN(L)8610GC Gas Range Convection Oven - 900 mm wide. RN(L)8810GC Gas Range Convection Oven - 1200 mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF Gas Range Convection Oven, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8510GC [2] Gas Range Convection Oven + 4 Open Burners. RN[1]8513GC [2] Gas Range Convection Oven + 2 Open Burners + 300 mm Griddle. RN[1]8610GC [2] Gas Range Convection Oven + 6 Open Burners. RN[1]8613GC [2] Gas Range Convection Oven + 4 Open Burners + 300 mm Griddle. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Non CE Only (Australia / New Zealand): Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner (26,540 Btu/hr) (26,540 Btu/hr) - each 300 mm Griddle Section 21 MJ/hr 21 MJ/hr (19,900 Btu/hr) (19,900 Btu/hr) -
Page 7: Dimensions
Dimensions RN(L)8510GC Cooktop Options RN(L)8510GC RN(L)8513GC... - Page 8 Dimensions RN(L)8610GC Cooktop Options RN(L)8610GC RN(L)8613GC RN(L)8616GC RN(L)8619GC...
- Page 9 Dimensions RN(L)8810GC Cooktop Options RN(L)8810GC RN(L)8813GC RN(L)8816GC RN(L)8819GC...
-
Page 10: Installation
Waldorf Gas Range Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 11: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250 mm (*) 0 mm Rear 100 mm 0 mm * Side clearances can be 50 mm when the adjacent surface is at least 100 mm below the cooking surface. -
Page 12: Electrical Connection
Installation The regulator connections are " BSP female. The connection to the appliance is " BSP male. (Refer to the “Specifications” section for the gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the appliance is level and at the correct height. -
Page 13: Operation
Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 14: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150 mm to Ø 420 mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. -
Page 15: Oven Pilot Ignition
Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. Flame Failure Protection will shut off the gas supply to that burner in the event that the pilot for that burner goes out, so that un-burnt gas This is an important safety feature which is slowly becoming law throughout is not expelled. -
Page 16: Oven - Main Burner / Thermostat
Operation Oven - Main Burner / Thermostat Ensure that the oven door is closed. Turn ‘ON’ electrical power at the mains supply, the (green) power indicator light will illuminate on the oven control panel. With the pilot burner alight, depress and rotate the oven gas control knob to the 'Main Flame' position. -
Page 17: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the gas and electrical supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on the surface or between the trivets, griddle plates will hinder the transfer of heat from the cooking surface to the food. -
Page 18: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease tray(s) should be checked and emptied frequently to prevent overflow and spillage. Remove the grease tray(s) while still warm so that the grease is in a liquid state. Empty any grease from the trays and wash thoroughly in the same manner as any cooking utensil. Clean the control panel with a damp cloth lightly moistened with a solution of mild detergent and water. - Page 19 Cleaning and Maintenance Burner e. Clean with hot water, a mild detergent solution and a scrubbing brush. Dry all components thoroughly with a dry cloth. f. The griddle should be switched on briefly to ensure that the griddle plate becomes dry. A thin smear of cooking oil should be spread over the grates and griddle plate in order to form a protective film.
-
Page 20: Oven Interior
Cleaning and Maintenance Re-Fitting the Components to the Range a. Refit the trivet supports to the range, ensuring that the trivet supports are correctly fitted. NOTE: It is imperative that the trivet supports are correctly re-fitted to the appliance to ensure that the trivets locate correctly and sit flush and level. -
Page 21: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 22: Wiring Schematic
Wiring Schematic RN8510GC / RN8610GC / RN8810GC GREEN BLUE BLACK BROWN GREEN BLUE BLACK BROWN... -
Page 23: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the appliance is isolated from the electrical and gas supply before commencing servicing. Burner NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. - Page 24 Gas Conversion and Specifications Refit all the trivet supports to the top of the appliance. Note ‘Turned Up’ lip on Pot Stand the orientation of the trivet support when re-fitting. The trivet support front end side rail profiles are different from the rear end side rail profiles.
- Page 25 Gas Conversion and Specifications Pilot Injectors a. Unscrew and remove the Pilot Injector Plug from the fitting Pilot Injector at the end of the pilot injector tube using a 11 mm A/F Housing spanner. (See Fig 23). b. Using a flat bladed screwdriver, unscrew and remove the pilot injector from the pilot injector housing.
- Page 26 Gas Conversion and Specifications Gas Griddle Gas Control Heat Shield Pilot Burner a. With the gas supply turned off at the main supply, remove the griddle plate section by lifting it straight off the Cooktop. b. Remove the gas control heat shield from around the Burner Securing griddle burner, this is just a push in fit.
- Page 27 Gas Conversion and Specifications Oven Sole Plate Pilot Burner Inspection Covers Main Injector a. With the gas supply turned off at the main supply, unscrew and remove the 6 screws securing the lower lintel to the front of the oven. b.
-
Page 28: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 37 Ensure that the gas and electrical supply are turned off. -
Page 29: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Non CE Only (Australia / New Zealand): Natural Gas LP Gas (Propane) Main Burner Injectors Ø 2.45 mm Ø 1.50 mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.20 Main Burner Ø 2.10 mm Ø... -
Page 30: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 31 Replacement Parts List Oven 232233 Knob Thermostat (80-300°C). 227933 Oven Burner. 018691K Oven Pilot Burner Kit. 020253 Oven Thermocouple (1200 mm). 018743 Thermocouple Spacer. 032260 Oven Burner Injector (Nat Gas) 2.60 mm. 032160 Oven Burner Injector (LPG) 1.60 mm. 026488 Pilot Injector (Nat.
- Page 32 Replacement Parts List Gas Conversion Kits Gas Type to Convert to Models Australia / New Zealand Only UK Only Nat. Gas (G20) LPG (Propane) (G31) Nat. Gas RN8510GC 231885 231884 231909 231908 RN8610GC 231889 231888 231911 231910 RN8810GC 231893 231892 231913 231912 RN8510GC...
