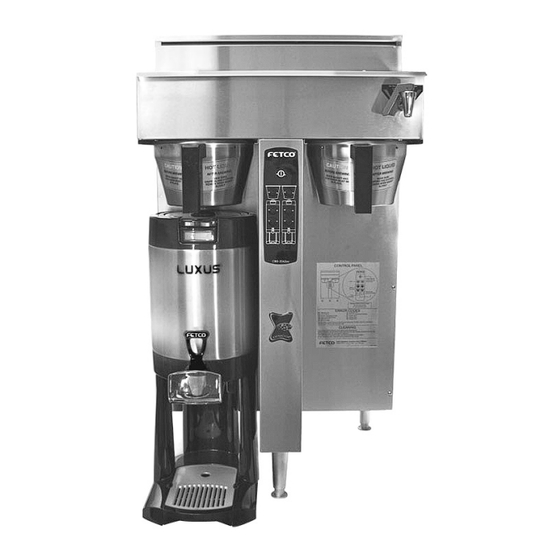

CBS-2031ee
NOTICE TO INSTALLER: Please leave this book with the machine.
Contact Information ........................................................2
Description & Features ...................................................2
Specifications..................................................................2
Requirements..............................................................2
Weights and Capacities ..............................................2
Dimensions & Utility Connections...................................4
Installation.......................................................................6
Operating Instructions ....................................................8
FETCO®, LUXUS®, EXTRACTOR® and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company.
© 2008 Food Equipment Technologies Company
User's Guide
Models:
CBS-2031ee CBS-2032ee
CBS-2041ee CBS-2042ee
CBS-2032ee
Table of Contents
CBS-2041ee
Programming ..................................................................9
Batch Settings .............................................................9
Temperature Settings ...............................................10
Advanced Settings and Diagnostics .........................10
Error Codes ..................................................................12
Service and Support .....................................................13
Cleaning & Maintenance ..............................................13
Parts .............................................................................14
Part # P100
CBS-2042ee
January 23, 2008
Advertisement
Table of Contents
Related Manuals for Fetco CBS-2031ee
Summary of Contents for Fetco CBS-2031ee
-
Page 1: Table Of Contents
Cleaning & Maintenance ..........13 Installation...............6 Parts ................14 Operating Instructions ............8 FETCO®, LUXUS®, EXTRACTOR® and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company. © 2008 Food Equipment Technologies Company Part # P100 January 23, 2008... -
Page 2: Contact Information
Water Requirements: Electrical: See electrical configuration chart. CBS-2031ee: 20-75 psig, ½ gpm CBS-2032ee: 20-75 psig, 1 gpm Coffee Filters: 13” X 5 ” FETCO Product # F002 CBS-2041ee: 20-75 psig, 1 gpm CBS-2042ee: 20-75 psig, 1 ½ gpm Weights and Capacities... -
Page 3: Electrical Configuration And Brewing Efficiency
Electrical Configuration and Brewing Efficiency USA & Canada CBS-2031ee 3.0 liters per batch Electrical Heater Voltage Maximum Batches per Hour* (max 11) Config. Code Configuration (AC) Phase Wires Amp draw Cold Water Hot Water E31015E 1 X 2.3 KW single 2 + ground 19.7... -
Page 4: Dimensions & Utility Connections
Dimensions & Utility Connections CBS-2031ee DWG 201141-000 CBS-2032ee DWG 201142-000... - Page 5 CBS-2041ee DWG 201143-000 CBS-2042ee DWG 201144-000...
-
Page 6: Installation
3. The CBS-2031ee and CBS-2041ee models are factory equipped with a 120 V cord and plug. The CBS- 2032ee and 2042ee have only a terminal block for connecting the incoming power wires. Consult local codes to... - Page 7 4. A fused disconnect switch or circuit breaker on the incoming power line must be conveniently located near the brewer, and its location and markings known to the operators. Warning: To prevent 5. The body of the brewer must be grounded to a suitable building ground. electrical shock, this A ground lug is provided in the brewer next to the power terminal block.
-
Page 8: Operating Instructions
Operating Instructions Control Panel Functions Only switches that are active are illuminated. Switches that are inactive or disabled are invisible. Power Switch Turns brewer on and off. To turn on, press and hold briefly until display reads S t b. Display ”FILL”... -
Page 9: Programming
Batch 1 & 3 cannot Disabled Batch 2 & 4 = OFF be disabled. To change setting to Brew Volume: liters or gallons, see CBS-2031ee/2032ee 0.94 – 4.72 0.01 2.49 liters # 59 in Advanced CBS-2041ee/2042ee 0.25 – 1.25 0.01 1.0 gallons... -
Page 10: Temperature Settings
180°F - 208°F Brewer Model 31 – 41 Must be set for the correct model number of the Number brewer: 31 for CBS-2031ee, 32 for CBS-2032ee, 32 - 42 41 for CBS-2041ee, 42 for CBS-2042ee. Reload Defaults 0 - 1 Changes all settings to default factory settings. - Page 11 Default Comment Left Brew Valve Flow Rate Right Brew Valve Flow Rate CBS-2031ee/2032ee 0.35 – 2.24 1.48 Use this to compensate for minor discrepancies in If #59 is LTR actual volume versus programmed volume. Set lower to increase volume, higher to decrease volume.
-
Page 12: Error Codes
Error Codes How to Clear Error Code Description Possible Cause Corrective Action Codes Internal Error Control board failure. Clear error. Press and hold the System had to reload Re-program the brewer to Power switch for 3 default settings. the desired specifications. If seconds. -
Page 13: Service And Support
Phone: (800) 338-2699 or (847) 719-3000 Email: techsupport@fetco.com Utilize only qualified beverage equipment service technicians for service. A Service Company Directory may be found on our web site, http://www.fetco.com. Cleaning & Maintenance Daily: Wipe the area above the brew baskets to remove coffee residue. -
Page 14: Parts
Parts Figure 1 – CBS-2031ee Main Assembly DWG 101269-B... - Page 15 86007 CLAMP, HOSE, .593"-.656" DIA RANGE 83076 WASHER,#8 SCREW SIZE, CUSHION AND SEALING 73029 LEG, THERMOPLASTIC, 2.50"(63mm) 104094 ASSEMBLY, TANK CBS-2031ee, O-RING FITTINGS (SEE FIG. 2) 22125 INSULATION TANK FRONT CBS-2031ee 22063 INSULATION TANK BACK CBS-2031e 45097 OVERLAY, CBS-2031ee 41016...
- Page 16 Figure 2 – CBS-2031ee Tank Assembly, Part # 104094 DWG 104094-A ITEM # PART # DESCRIPTION 004088 WELDMENT TANK CBS-2031ee, O-RING FITTINGS 03297 SINK, HEAT FOR 40A TRIAC 59008 TRIAC 40A, 600V 13139 FITTING 3/8" HOSE ID WATER INLET/DRAIN 24099...
- Page 17 Figure 3 – CBS-2032ee Main Assembly DWG 101270-B...
- Page 18 ITEM # PART # DESCRIPTION 001086 WELDMENT, CBS-2032ee 104095 ASSEMBLY, TANK CBS-2032ee, O-RING FITTINGS (SEE FIG. 4) 22126 INSULATION TANK FRONT CBS-2032ee 22042 INSULATION TANK BACK CBS-2032e 24101 O'RING, 3.739" ID X 0.070" CS, 70 DURO, BUNA "N", FDA 102357 ASSEMBLY, HOUSING SPRAY W/VALVE 120 VAC, CSD Ø...
- Page 19 Figure 4 – CBS-2032ee Tank Assembly, Part # 104095 DWG 104095-A ITEM # PART # DESCRIPTION 004089 WELDMENT TANK CBS-2032ee, O-RING FITTINGS 03297 SINK, HEAT FOR 40A TRIAC 59008 TRIAC 40A, 600V 13139 FITTING 3/8" HOSE ID WATER INLET/DRAIN 24099 O-RING, 1/2 X 11/16, 3/32 WIDTH 13134 NUT FOR 3/8 HOSE ID FITTING...
- Page 20 Figure 5 – CBS-2041ee Main Assembly DWG 101272-B...
- Page 21 WASHER,#8 SCREW SIZE, CUSHION AND SEALING 52090 TERMINAL BLOCK, 3 POLE, W/ MARKING STRIP 65002 CONNECTOR, COPPER LUG 45099 OVERLAY, CBS-2041EE 402094 HARNESS, LOW AMP, CBS-2031ee/41ee 402095 HARNESS, HIGH AMP, CBS-2031ee/41ee 54022 PROBE, TEMPERATURE 8" LONG, 50k K029 WATER LEVEL PROBE REPLACEMENT, CBS-2040'S/50'S 83026...
- Page 22 Figure 6 – CBS-2041ee Tank Assembly, Part # 104097 DWG 104097-A ITEM # PART # DESCRIPTION 004091 WELDMENT TANK CBS-2041ee, O-RING FITTINGS 03297 SINK, HEAT FOR 40A TRIAC 59008 TRIAC 40A, 600V 13139 FITTING 3/8" HOSE ID WATER INLET/DRAIN 24099 O-RING, 1/2 X 11/16, 3/32 WIDTH 13134 NUT FOR 3/8 HOSE ID FITTING...
- Page 23 Figure 7 – CBS-2042ee Main Assembly DWG 101271-B...
- Page 24 ITEM # PART # DESCRIPTION 001085 WELDMENT CBS-2042ee 104096 ASSEMBLY TANK, CBS-2042ee (SEE FIG. 8) 83026 WASHER, INTERNAL TOOTH LOCK, #8 SCREW SIZE 84002 NUT, HEX, #8-32 MACHINE SCREW 22127 INSULATION, TANK FRONT, CBS-2042ee, 22067 INSULATION, TANK BACK CBS-2042e 24101 O'RING, 3.739"...
- Page 25 Figure 8 – CBS-2042ee Tank Assembly, Part # 104096 DWG 104096-A ITEM # PART # DESCRIPTION 004090 WELDMENT TANK CBS-2042ee, O-RING FITTINGS 03297 SINK, HEAT FOR 40A TRIAC 59008 TRIAC 40A, 600V 13139 FITTING 3/8" HOSE ID WATER INLET/DRAIN 24099 O-RING, 1/2 X 11/16, 3/32 WIDTH 13134 NUT FOR 3/8 HOSE ID FITTING...
- Page 26 Figure 9 – Brew Basket Assembly, 13” X 5”, Part # 101266 ITEM PART # DESCRIPTION 09021 WIRE INSERT, 13 X 5 82118 HANDLE SCREW 23074 BREW BASKET HANDLE, BLACK 46011 WARNING LABEL F002 PAPER FILTERS, 13” X 5” SHOWN 500 PER CASE COLOR BREW BASKET HANDLES PART # DESCRIPTION...
- Page 27 Figure 10 – ASSEMBLY, HOUSING SPRAY W/VALVE 120 VAC, CSD Ø 3.6", Part # 102357 ITEM PART # DESCRIPTION 102378 ASSEMBLY, HOUSING SPRAY, W/MAGNETS, CSD, DIA 3.6” 24075 O RING, .801 ID X 1/16 CROSS SEC 102214 ASSEMBLY, DISPENSE VALVE, RPE, 120V/60Hz 82104 SCREW, PAN HD #7 x 3/4 LG, SHEET METAL...
