Hot Water Dispenser
Contact Information ........................................................2
Specifications..................................................................2
Dimensions & Utility Connections...................................2
Installation.......................................................................3
Operating Instructions ....................................................4
© 2008 FETCO
eu
Table of Contents
FETCO®, and Driven To Pioneer Innovation™ are trademarks or trade names of FETCO

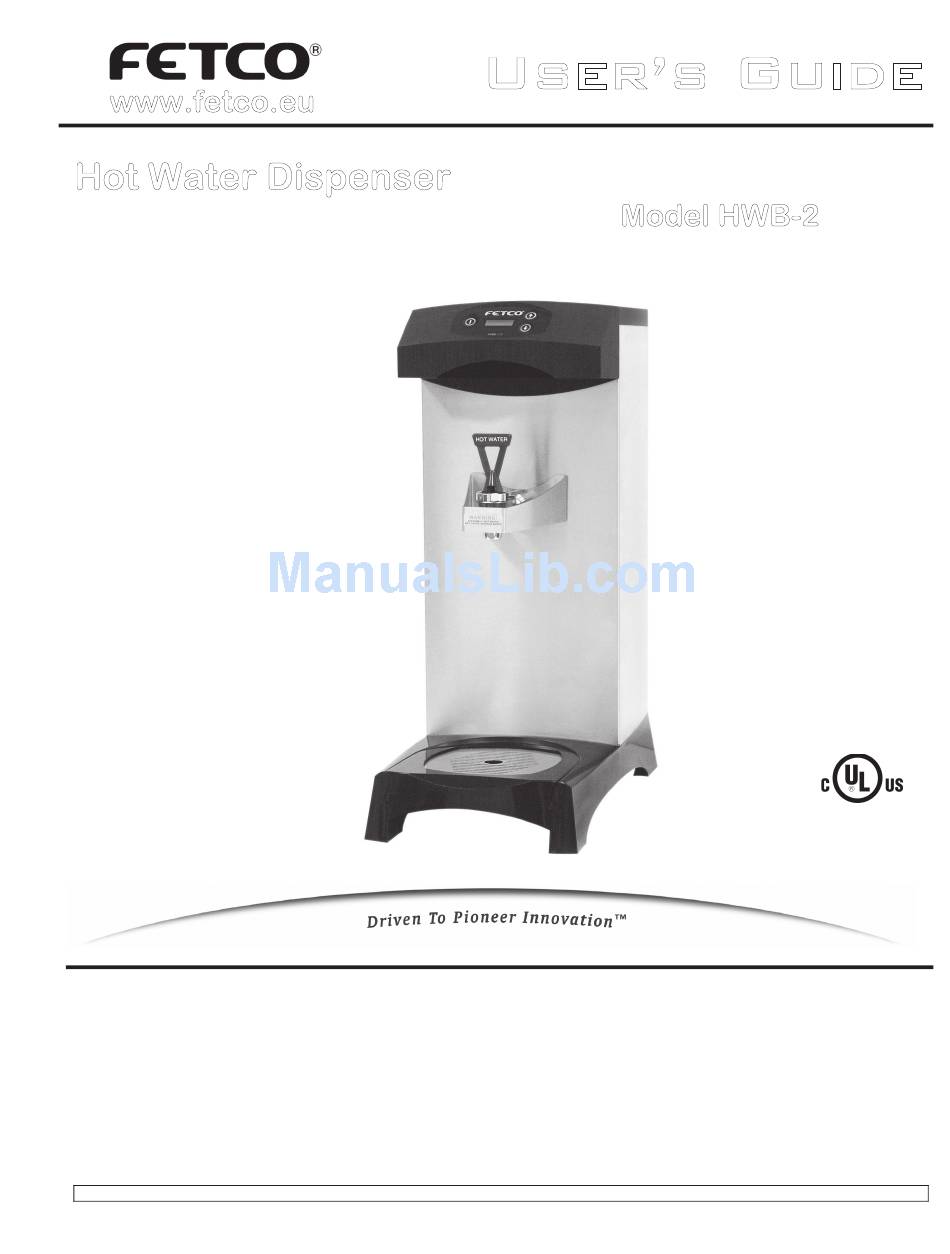

User's Guide
Model HWB-2
Programming ..................................................................5
Error Codes ....................................................................6
Wiring Diagram...............................................................7
Parts ...............................................................................8
Part # P106
October 27, 2008
Advertisement
Table of Contents
Related Manuals for Fetco HWB-2
Summary of Contents for Fetco HWB-2
-
Page 1: Table Of Contents
Programming ..............5 Specifications..............2 Error Codes ..............6 Dimensions & Utility Connections........2 Wiring Diagram...............7 Installation...............3 Parts ................8 Operating Instructions ............4 FETCO®, and Driven To Pioneer Innovation™ are trademarks or trade names of FETCO © 2008 FETCO Part # P106 October 27, 2008... -
Page 2: Contact Information
Contact Information FETCO Inc. Sp. z o.o. Service & Support: ul. Adamowicza 8 Hours: 8:00 AM - 4:00 PM Central, Monday - Friday 05-530 Góra Kalwaria Phone: +48 22 727 47 87 Poland Fax: +48 22 727 47 87 Website: www.fetco.eu Email: service@fetco.eu... -
Page 3: Installation
The installation must comply with applicable federal, state, and local codes having jurisdiction at your location. Utilize only qualified beverage equipment service technicians for installation. A Service Company Directory may be found on our website, http://www.fetco.com. Setup Warning: Legs are to be 1. -
Page 4: Operating Instructions
Operating Instructions Controls Main Power Switch Controls all power to the unit. Located on the back of the unit. Control Panel On/Off Switch Affects only control panel. Does not disconnect main power. Flashing = OFF Lit = On UP and DOWN Switches Used only during programming. -
Page 5: Programming
Programming • To enter Programming mode, first turn the main power switch OFF. • Press and hold the UP button while turning the main power switch ON. • Release the UP button as soon as the software version is displayed. Example: VER 0.7B (actual version may vary) -
Page 6: Error Codes
Error Codes How to Clear Error Code Description Possible Cause Corrective Action Codes Shorted temperature Turn main power Probe failure. Replace probe. probe. switch off and on. Bad probe connection, Check all connections and or probe failure, faulty possible failing parts Turn main power Open temperature probe. -
Page 7: Wiring Diagram
Wiring Diagram... -
Page 8: Parts
Parts Figure 1 – HWB-2 – Main Assembly... - Page 9 P004176 WELDMENT, BODY HWB-2 P104212 ASSEMBLY FRONT HWB-2 23186 COVER, UNIVERSAL TOP CBS-2021 23255 TRAY, DRIPPING, HWB-2 03462 PLATE, DRIP TRAY, HWB-2 102351 ASSEMBLY, VENT P106035 ASSEMBLY TANK HWB-2, 120V 86032 BUSHING, SNAP, 1" MOUNTING HOLE DIA 83095 WASHER M4-51532...
- Page 10 Figure 2 – HWB-2 – Tank Assembly, Part # 106035 ITEM # PART # DESCRIPTION P006045 WELDMENT TANK, HWB-2 24002 O-RING, TANK COVER 102013 ASSEMBLY, TANK COVER 83092 WASHER, OD 0.875 ID 0.562, GAUGE 22, STAINLESS STEEL 25098 FITTING, COMPRESSION MALE CONNECTOR...
