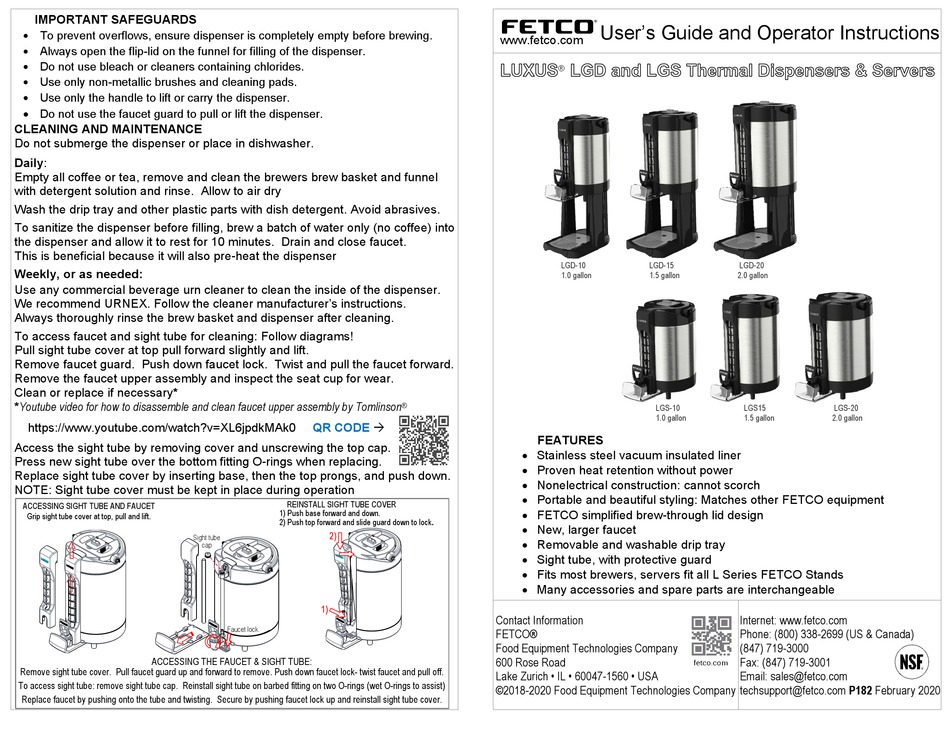

Fetco LUXUS LGD-10 Users Manual And Operator Instructions

IMPORTANT SAFEGUARDS
• To prevent overflows, ensure dispenser is completely empty before brewing.
• Always open the flip-lid on the funnel for filling of the dispenser.
• Do not use bleach or cleaners containing chlorides.
• Use only non-metallic brushes and cleaning pads.
• Use only the handle to lift or carry the dispenser.
• Do not use the faucet guard to pull or lift the dispenser .
CLEANING AND MAINTENANCE
Do not submerge the dispenser or place in dishwasher.
Daily:
Empty all coffee or tea, remove and clean the brewers brew basket and funnel
with detergent solution and rinse. Allow to air dry
Wash the drip tray and other plastic parts with dish detergent. Avoid abrasives.
To sanitize the dispenser before filling, brew a batch of water only (no coffee) into
the dispenser and allow it to rest for 10 minutes. Drain and close faucet.
This is beneficial because it will also pre-heat the dispenser
Weekly, or as needed:
Use any commercial beverage urn cleaner to clean the inside of the dispenser.
We recommend URNEX. Follow the cleaner manufacturer's instructions.
Always thoroughly rinse the brew basket and dispenser after cleaning.
To access faucet and sight tube for cleaning: Follow diagrams!
Pull sight tube cover at top pull forward slightly and lift.
Remove faucet guard. Push down faucet lock. Twist and pull the faucet forward.
Remove the faucet upper assembly and inspect the seat cup for wear.
Clean or replace if necessary*
*Youtube video for how to disassemble and clean faucet upper assembly by Tomlinson
https://www.youtube.com/watch?v=XL6jpdkMAk0
Access the sight tube by removing cover and unscrewing the top cap.
Press new sight tube over the bottom fitting O-rings when replacing.
Replace sight tube cover by inserting base, then the top prongs, and push down.
NOTE: Sight tube cover must be kept in place during operation
ACCESSING SIGHT TUBE AND FAUCET
.
Grip sight tube cover at top, pull and lift
Sight tube
ACCESSING THE FAUCET & SIGHT TUBE:
Remove sight tube cover. Pull faucet guard up and forward to remove. Push down faucet lock- twist faucet and pull off.
To access sight tube: remove sight tube cap. Reinstall sight tube on barbed fitting on two O-rings (wet O-rings to assist)
Replace faucet by pushing onto the tube and twisting. Secure by pushing faucet lock up and reinstall sight tube cover.
QR CODE

REINSTALL SIGHT TUBE COVER
1) Push base forward and down.
2) Push top forward and slide guard down to lock.
2)
cap
1)
Faucet lock.
www.fetco.com
®
LGD-10
1.0 gallon
®
FEATURES
• Stainless steel vacuum insulated liner
• Proven heat retention without power
• Nonelectrical construction: cannot scorch
• Portable and beautiful styling: Matches other FETCO equipment
• FETCO simplified brew-through lid design
• New, larger faucet
• Removable and washable drip tray
• Sight tube, with protective guard
• Fits most brewers, servers fit all L Series FETCO Stands
• Many accessories and spare parts are interchangeable
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
©2018-2020 Food Equipment Technologies Company
User's Guide and Operator Instructions
LGD-15 LGD-20
1.5 gallon 2.0 gallon
LGS-10 LGS15
1.0 gallon 1.5 gallon
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
fetco.com
Email: sales@fetco.com
techsupport@fetco.com P182 February 2020
LGS-20
2.0 gallon
