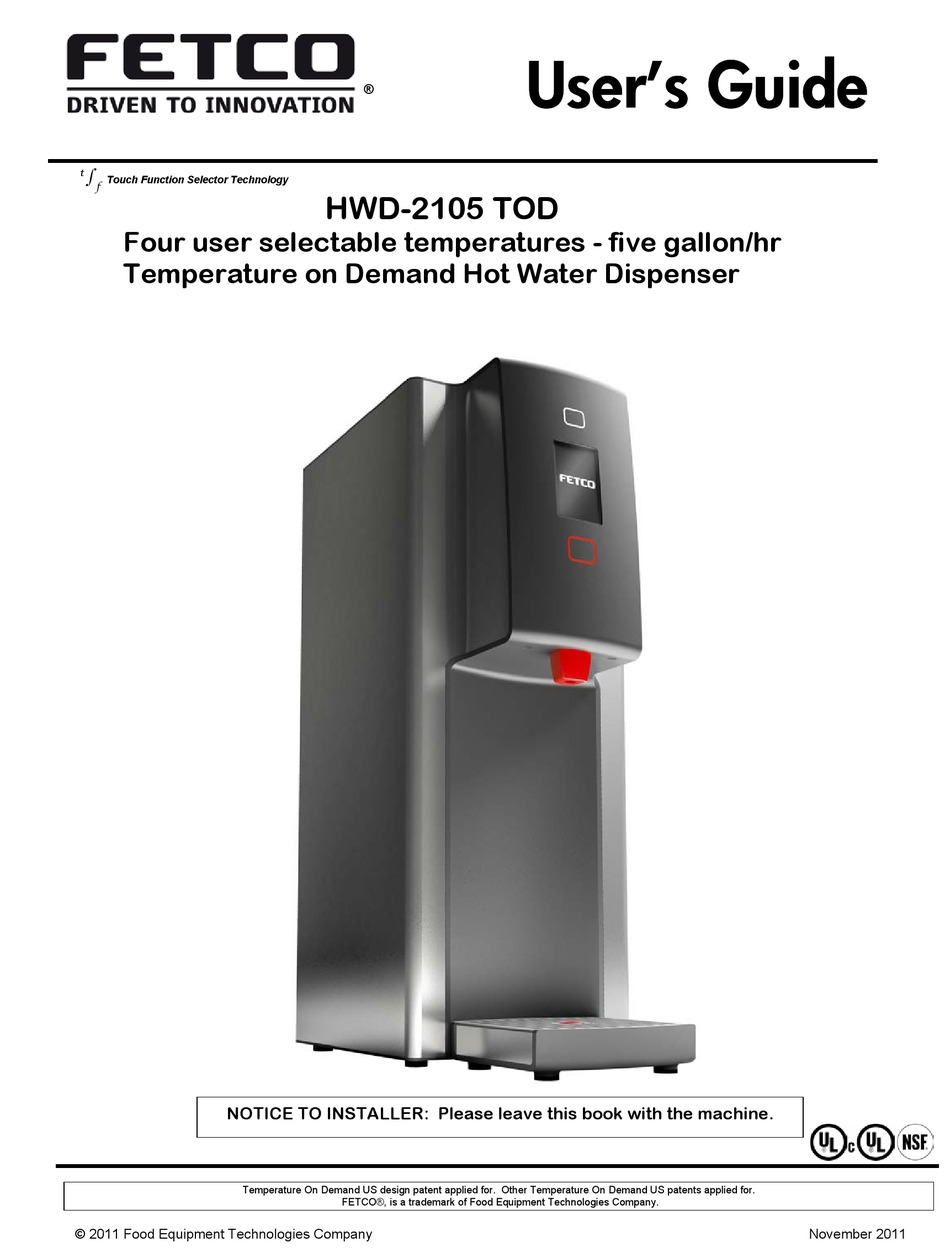

User's Guide
®
∫
t
Touch Function Selector Technology
f
HWD-2105 TOD
Four user selectable temperatures - five gallon/hr
Temperature on Demand Hot Water Dispenser
NOTICE TO INSTALLER: Please leave this book with the machine.
Temperature On Demand US design patent applied for. Other Temperature On Demand US patents applied for.
FETCO®, is a trademark of Food Equipment Technologies Company.
© 2011 Food Equipment Technologies Company
November 2011
Advertisement
Table of Contents
Related Manuals for Fetco HWD-2105 TOD
Summary of Contents for Fetco HWD-2105 TOD
- Page 1 NOTICE TO INSTALLER: Please leave this book with the machine. Temperature On Demand US design patent applied for. Other Temperature On Demand US patents applied for. FETCO®, is a trademark of Food Equipment Technologies Company. © 2011 Food Equipment Technologies Company...
-
Page 2: Contact Information
HWD-2105 TOD NEW TECHNOLOGICAL FEATURES ∫ The FETCO hot water dispenser uses new Touch Function Selector Technology to operate the hot water dispenser. ∫ Touch Function Selector buttons (above and below display screen) alternately dim and brighten when selection is not active. - Page 3 The installation must comply with applicable federal, state, and local codes having jurisdiction at your location. Utilize only qualified beverage equipment service technicians for installation. A Service Company Directory may be found on our website, http://www.fetco.com. Warning: Legs are to be adjusted only to level the unit.
- Page 4 2. Plug the unit into the appropriate electrical outlet. 3. Turn on the unit’s main power switch (located on the back). Screen one-the FETCO Home Screen will display. 4. Within 6 seconds, the water tank will begin filling until tank probe senses water Screen two, the “FILLING”...
- Page 5 Operating Principles The dispense valve assembly mixes very hot tank water with cooler water to deliver precision temperature water at selected temperatures. When hot water is drawn from the faucet, the fill valve pulses on and off every few seconds to replenish the tank. By controlling the flow of incoming water, the amount of cold water entering the tank is synchronized with the rate at which the water can be heated.
- Page 6 Control and Operational Screens The FETCO® Temperature on Demand Hot Water Dispenser uses a digital display screen and two illuminated touch pads to control the selection and actuation of on-off functions. The two upper and lower pads are lighted when ready, and may alternately brighten and dim.
- Page 7 Touch lower (red) pad-tapping with finger repeatedly to scroll through the screens and active outputs. Setting as displayed is saved when exit is selected. Default settings for FETCO® HWD-2105 Temperature on Demand Hot Water Dispenser Chart to correct for boiling point for altitude in tank water temperature.
- Page 9 1109.00030.00 SERVICE PARTS, TANK, HWD-2105 PARTS LIST FOR HWD-2105 With TOD Hot Water Tank Drawing 1104.00018.00 ITEM# PART# DESCRIPTION 1107.00008.00 HEATER ASSEMBLY, IMMERSION 2100W/120VAC 1107.00014.00 HEATER ASSEMBLY, IMMERSION 1440W/120VAC 1107.00015.00 HEATER ASSEMBLY, IMMERSION 3200W/200-230VAC EXPORT 1059.00001.00 TRIAC 40A, 600V 1053.00004.00 THERMOSTAT, SINGLE SHOT, 25A 1024.00007.00 O-RING, DASH #344, TANK COVER...
- Page 11 PARTS LIST FOR HWD-2105 With TOD Service Parts Drawing 1109.00025.00 ITEM NO PART NO DESCRIPTION 1023.00131.00 TOP COVER HWD-2105 1023.00136.00 LEG HWD-2100 1023.00147.00 PLUG, TANK SERVICE DRAIN for 18GA AND UP BODY 1024.00040.00 CARD PLUG, HWD-2100 1025.00029.00 FITTING, 1/4" X 1/4" TUBE TO HOSE STEM CONNECTOR 1025.00032.00 FITTING, 1/4"...
