User's Guide

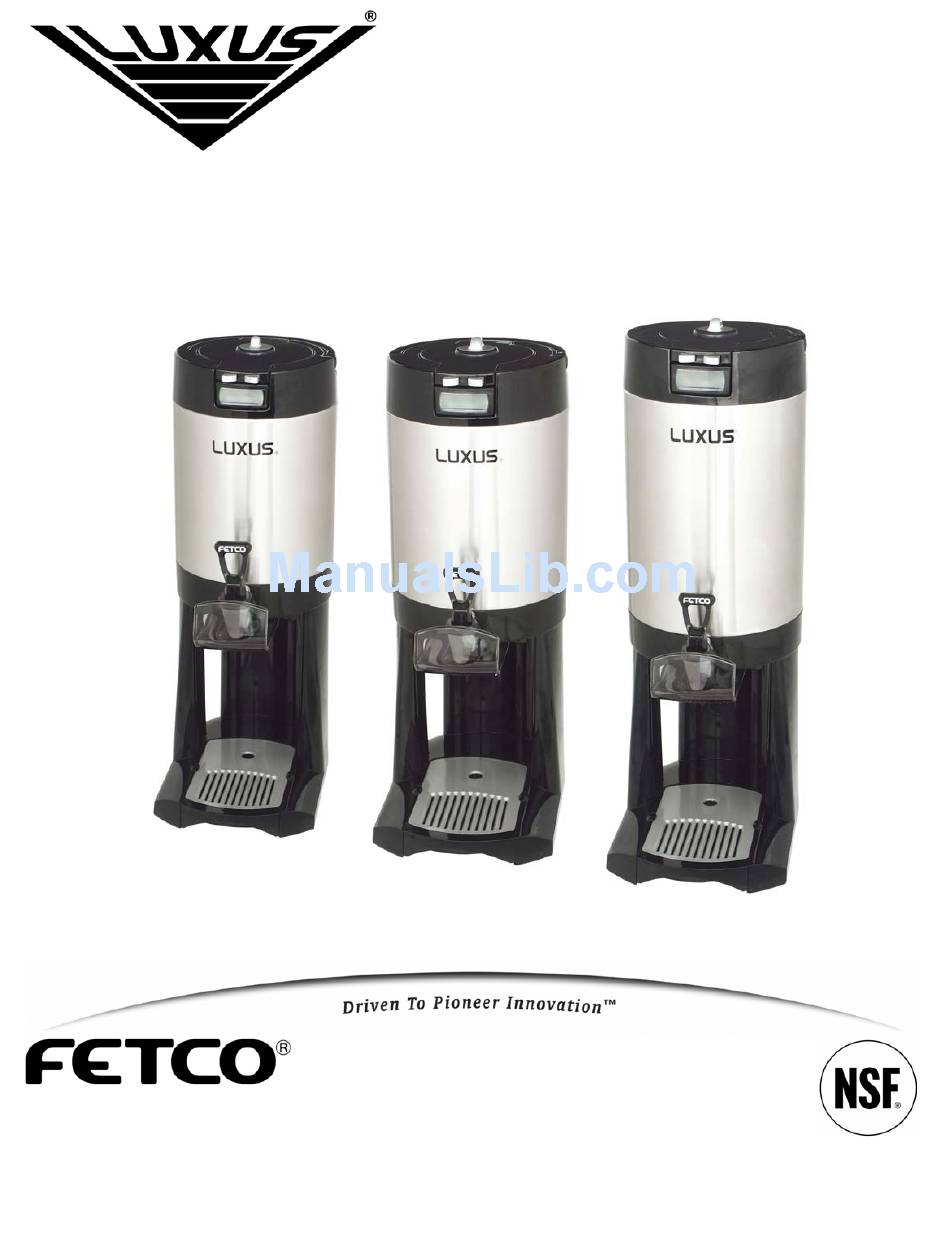

L3D Series
Thermal Dispensers
L3D-10
L3D-15
1 gallon
L3D-20
1.5 gallon
2 gallon
© 2009 Food Equipment Technologies Company
FETCO®, LUXUS®, Driven To Pioneer Innovation™,
Freshness Time™, and Volume Indicator™ are trademarks
or trade names of Food Equipment Technologies Company.
Part # P015
REV. 001
July 2011
Advertisement
Related Manuals for Fetco Luxus L3D-10
Summary of Contents for Fetco Luxus L3D-10
- Page 1 1 gallon L3D-20 1.5 gallon 2 gallon © 2009 Food Equipment Technologies Company FETCO®, LUXUS®, Driven To Pioneer Innovation™, Freshness Time™, and Volume Indicator™ are trademarks or trade names of Food Equipment Technologies Company. Part # P015 REV. 001 July 2011...
-
Page 2: Important Safeguards
Do not use the faucet guard to pull or lift the dispenser. Do not submerge the brew funnel. CLEANING AND MAINTENANCE Detailed instructions are available on our web site, www.fetco.com. Daily: Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and a sponge or towel. - Page 3 20% level. completely emptied, when funnel is New display for all funnels is: removed, or when enough liquid is L3D-10 “Vee”-plus- 4 bars. added to increase the volume by at L3D-15 “Vee”-plus- 4 bars. least one level. L3D-20 “Vee”-plus- 4 bars.
- Page 4 OPENING THE DISPENSER Squeeze tabs together and lift. OPENING AND CLOSING THE COVER PLUG Closed position for serving Open position for brewing REMOVING THE BREW FUNNEL Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and a sponge or towel.
-
Page 5: Removing The Drip Tray
REMOVING THE DRIP TRAY latch release Press and hold down latch release while sliding drip tray out. REMOVING THE FAUCET GUARD Unscrew knob 4 turns and slide faucet guard out. knob REMOVING THE FAUCET Press faucet release latch up. - Page 6 Rotate faucet 180° and pull it out. Unscrew faucet upper assembly to clean or replace seat cup. Reverse procedure to re-install faucet. Press release latch down to lock faucet in place.
- Page 7 Replacement Parts...
- Page 8 1000.00015.00 1000.00016.00 1000.00016.00 20 Anti-slip Foot 1025.00016.00 1025.00015.00 1025.00015.00 To order parts: Fax to Customer Service - 847-719-3001 Email - parts@fetco.com. 600 Rose Rd. Lake Zurich, IL 60047-0429 USA Check prices at www.fetco.com. Phone: (800) 338-2699 or (847) 719-3000 e-mail: sales@fetco.com...
