Installation
www.fetco.com

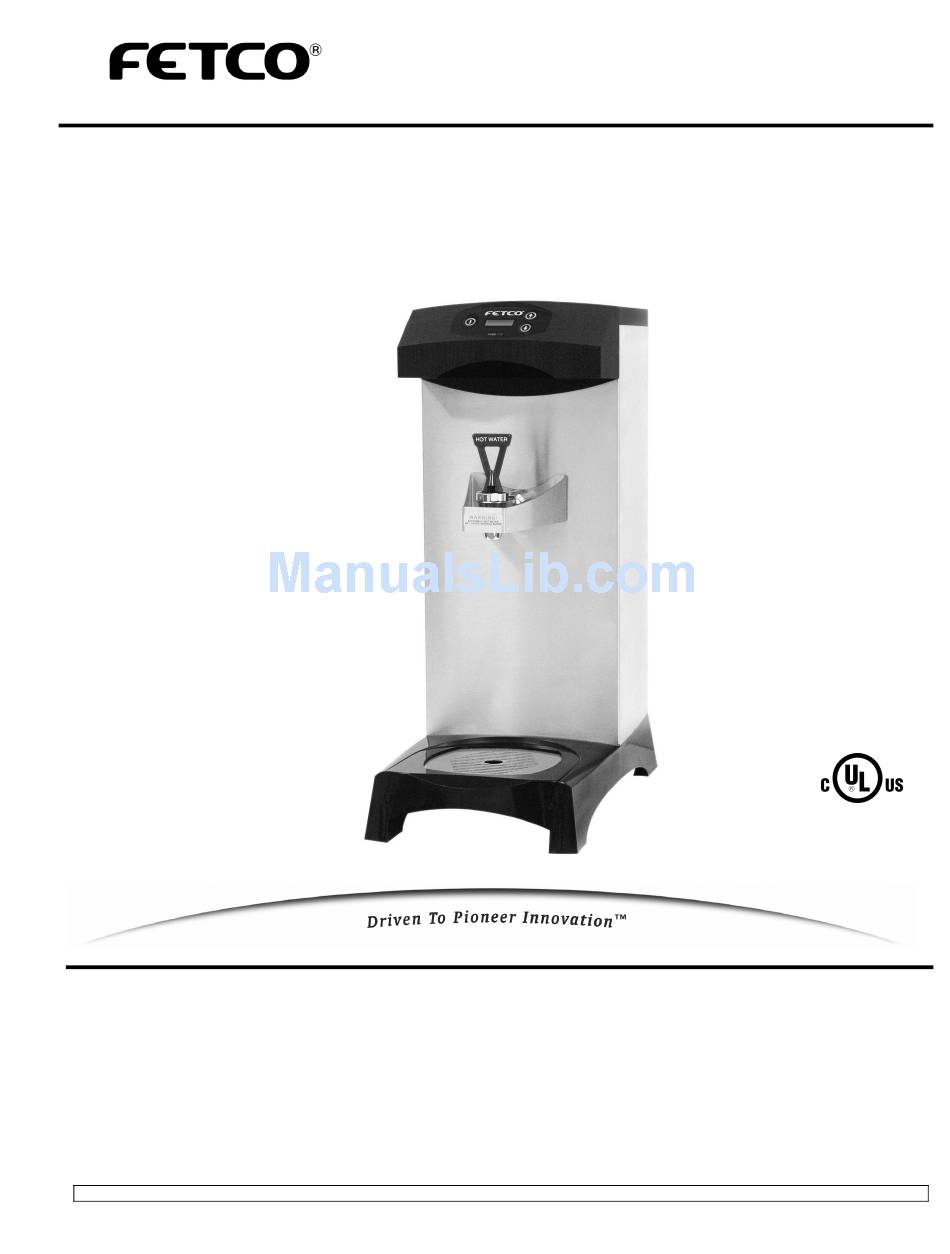

Hot Water Dispenser
Contact Information ........................................................2
Specifications..................................................................2
Dimensions & Utility Connections...................................2
Installation.......................................................................3
Operating Instructions ....................................................4
FETCO®, and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company.
© 2009 Food Equipment Technologies Company
User's Guide
Table of Contents
Programming ..................................................................5
Error Codes ....................................................................6
Wiring Diagram...............................................................7
Parts ...............................................................................8
Model HWB-2
Part # P108
REV. 000
Advertisement
Table of Contents
Related Manuals for Fetco HWB-2
Summary of Contents for Fetco HWB-2
-
Page 1: Table Of Contents
Error Codes ..............6 Dimensions & Utility Connections........2 Wiring Diagram...............7 Installation...............3 Parts ................8 Operating Instructions ............4 FETCO®, and Driven To Pioneer Innovation™ are trademarks or trade names of Food Equipment Technologies Company. © 2009 Food Equipment Technologies Company Part # P108 REV. 000... -
Page 2: Contact Information
Hours: 7:00 AM - 6:00 PM Central, Monday - Friday 600 Rose Road Phone: (800) 338-2699 (US & Canada) Lake Zurich • IL • 60047-0429 • USA (847) 719-3000 Fax: (847) 719-3001 Email: techsupport@fetco.com Website: www.fetco.com Specifications Water Requirements: Weights and Capacity Pressure: 20-75 psig Weight: 16.8 lbs. -
Page 3: Installation
The installation must comply with applicable federal, state, and local codes having jurisdiction at your location. Utilize only qualified beverage equipment service technicians for installation. A Service Company Directory may be found on our website, http://www.fetco.com. Setup Warning: Legs are to be 1. -
Page 4: Operating Instructions
Operating Instructions Controls Main Power Switch Controls all power to the unit. Located on the back of the unit. Control Panel On/Off Switch Affects only control panel. Does not disconnect main power. Flashing = OFF Lit = On UP and DOWN Switches Used only during programming. -
Page 5: Programming
Programming • To enter Programming mode, first turn the main power switch OFF. • Press and hold the UP button while turning the main power switch ON. • Release the UP button as soon as the software version is displayed. Example: VER 0.7B (actual version may vary) -
Page 6: Error Codes
Error Codes How to Clear Error Code Description Possible Cause Corrective Action Codes Shorted temperature Turn main power Probe failure. Replace probe. probe. switch off and on. Bad probe connection, Check all connections and or probe failure, faulty possible failing parts Turn main power Open temperature probe. -
Page 7: Wiring Diagram
Wiring Diagram... -
Page 8: Parts
Parts Figure 1 – HWB-2 – Main Assembly ITEM # PART # DESCRIPTION 1057.00002.00 VALVE, COLD WATER INLET, 120VAC 1102.00013.00 ADAPTER ASSEMBLY, 3/4" BSP x 1/4" NPT 1082.00010.00 SCREW, M4x10 ZINC PLATED PAN PHILLIPS MACHINE 1086.00004.00 BUSHING, SNAP. 1" MOUNTING HOLE 1104.00005.00... - Page 9 FAUCET ASSEMBLY, HOT WATER, HWB-2 1023.00007.00 TOP, UNIVERSAL 1071.00007.00 UPPER FAUCET ASSEMBLY, RED HANDLE, HWB-2 1071.00008.00 SEAT CUP, FAUCET HWB-2 Figure 2 – HWB-2 – Front Assembly, Part # 1102.00016.00 ITEM # PART # DESCRIPTION 1108.00002.00 PC BOARD, ASSEMBLY, HWB-2 1081.00002.00...
- Page 10 Figure 3 – HWB-2 – Tank Assembly, Part # 1104.00005.00 ITEM # PART # DESCRIPTION 1114.00012.00 TANK WELDMENT STUDS, HWB-2 1024.00007.00 O-RING, DASH #344, TANK COVER 1102.00007.00 TANK COVER ASSEMBLY 1083.00006.00 WASHER, .875"OD X .562"ID, FLAT 1025.00001.00 FITTING, COMPRESSION MALE CONNECTOR 1112.00008.00...
