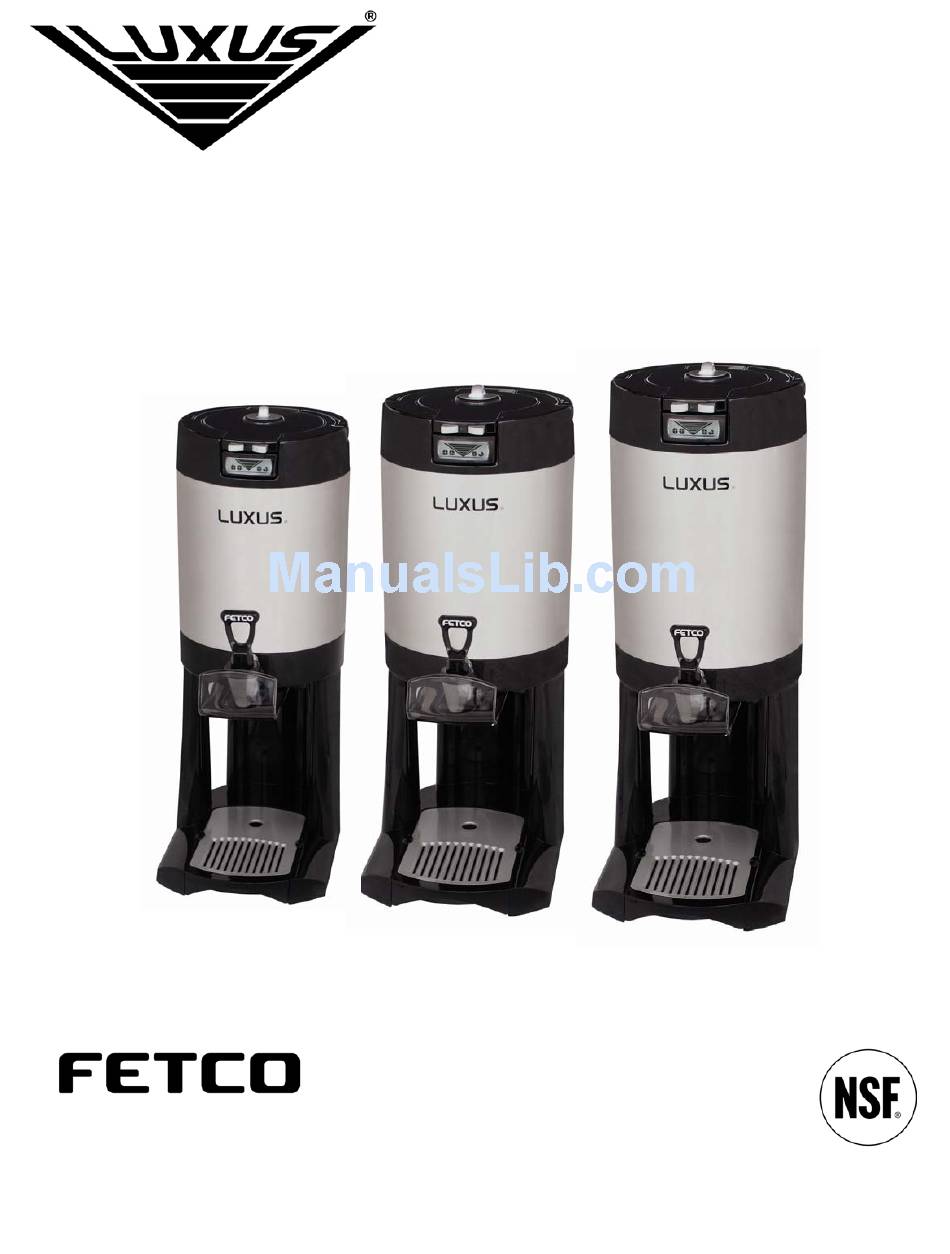

User's Guide

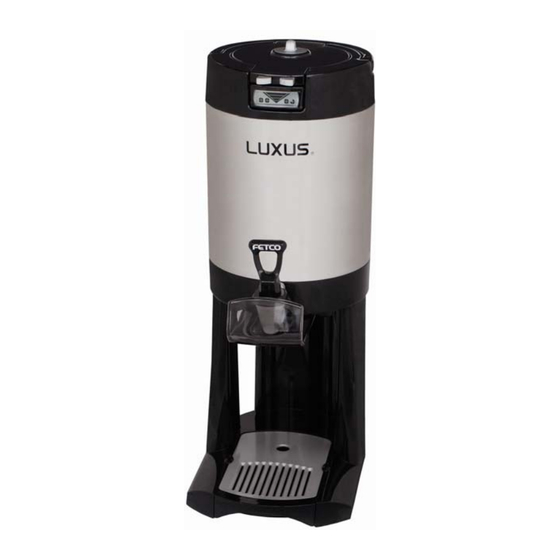

L3D/L3S Series
Thermal Dispensers
Revised vacuum dispenser user guide
L3D-10
L3D-15
L3D-20
1 gallon
1.5 gallon
2 gallon
®
© 2012 Food Equipment Technologies Company
FETCO®, LUXUS®, Driven To Innovation™,
Freshness Time™, and Volume Indicator™ are trademarks
or trade names of Food Equipment Technologies Company.
Part # P015
REV. 004
May 2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the L3D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fetco L3D Series

Summary of Contents for Fetco L3D Series

  • Page 1 1 gallon 1.5 gallon 2 gallon ® © 2012 Food Equipment Technologies Company FETCO®, LUXUS®, Driven To Innovation™, Freshness Time™, and Volume Indicator™ are trademarks or trade names of Food Equipment Technologies Company. Part # P015 REV. 004 May 2012...

  • Page 2: Important Safeguards

    Do not use the faucet guard to pull or lift the dispenser. Do not submerge the brew funnel CLEANING AND MAINTENANCE Detailed instructions are available on our web site, www.fetco.com. Daily: Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and a sponge or towel.
  • Page 3 BREW FUNNEL DISPLAY = Each segment = 15 minutes. = 1 hour. NEW CONFIGURATION 5-2011 Each bar equals: = Maximum time has 20% of the L3D dispenser elapsed. (4 hrs.) - “Vee” section is the 1 bar & Time is reset when dispenser is does indicate 20% level.
  • Page 4 OPENING THE DISPENSER LID 1) Squeeze the two tabs together 2) Lift lid upwards OPENING AND CLOSING THE COVER PLUG Closed position for serving Open position for brewing REMOVING THE BREW FUNNEL Important Notice: To maintain proper operation of the funnel display, clean the funnel stem daily under running water with detergent and a sponge or towel.

  • Page 5: Removing The Drip Tray

    REMOVING THE DRIP TRAY 1) Press and hold down latch release 2) Slide out drip tray. 3) Separate tray from cover to clean REMOVING THE FAUCET GUARD 1) Unscrew knob 4 turns 2) Slide faucet guard out 1) (knob) REMOVING THE FAUCET 1) Press faucet release latch up.
  • Page 6 REMOVING THE FAUCET-Continued 2) Rotate faucet 180° 3) Pull out. (Replace gasket if removed) 4) Unscrew faucet upper assembly to clean or replace seat cup. TO REINSTALL: 5) Press release latch down to lock faucet in place.
  • Page 7 Replacement Parts...
  • Page 8 20 ANTI-SLIP FOOT 1025.00016.00 1025.00015.00 1025.00015.00 To order parts: ® Fax to Customer Service - 847-719-3001 600 Rose Rd. Lake Zurich, IL 60047-0429 USA Email - parts@fetco.com. Check prices at www.fetco.com. Phone: (800) 338-2699 or (847) 719-3000 May, 2012 e-mail: sales@fetco.com...

This manual is also suitable for:

L3s seriesL3d-10L3d-15L3d-20
