Installation; Gate Operator Position - Maximum Controls MAX MEGATRON 2500 Installation And Owner's Manual

Read and understand this entire manual before installation. Check with the local building department prior to installing this gate
operator to comply with local building code requirements. The gate must be installed in a location so that enough clearance is
supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates
should not open into public access areas.

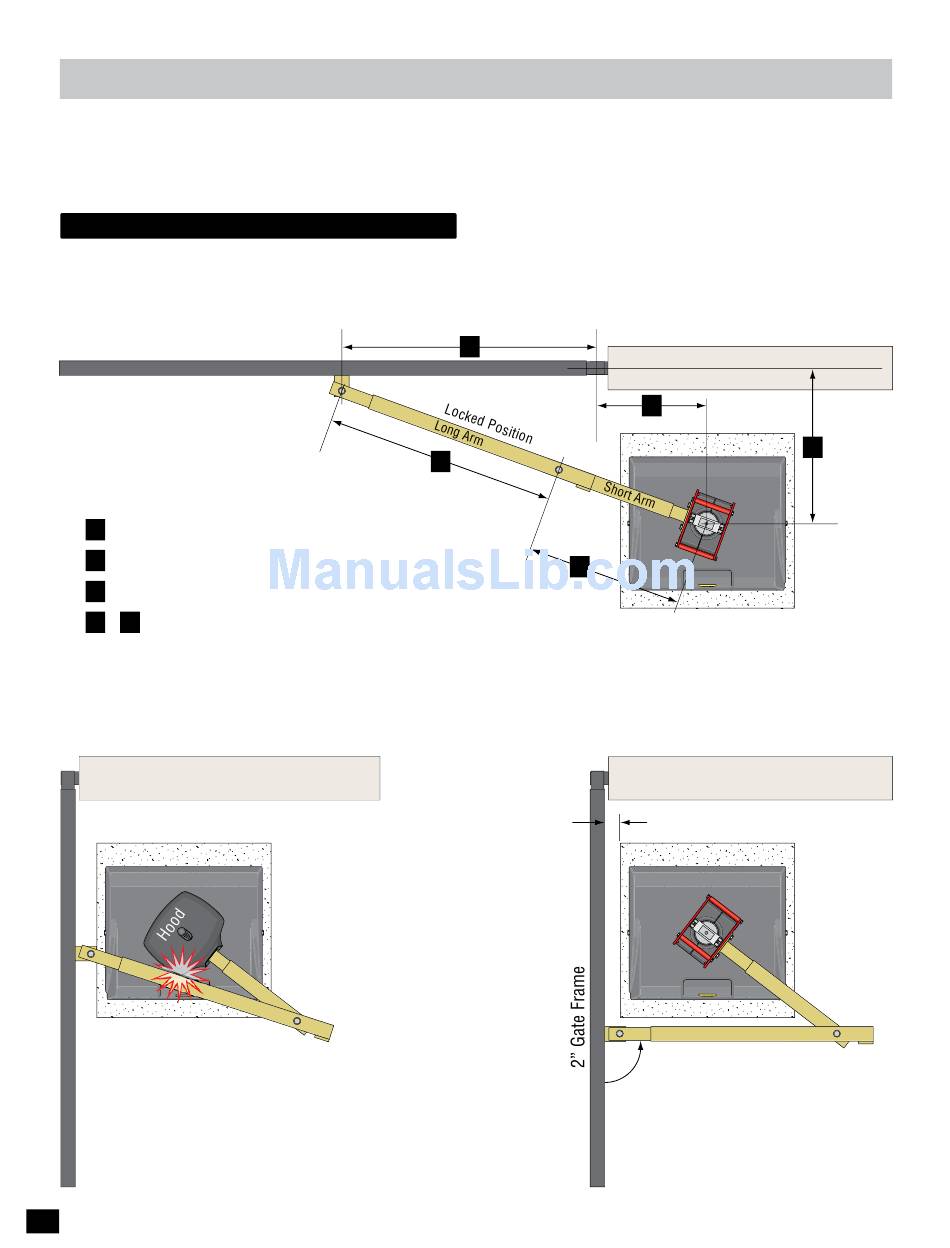

Gate Operator position

The gate must be properly installed and work freely in both directions prior to installation of the gate operator.
Gate Bracket Pivot Point
Measurement Guidelines
A
Should be at least 1/4 the gate length.
B
15" minimum for open gate clearance (2" thick gate).
C
Distance "A" minus 8 inches (A - 8 = C).
D E
& Arm should be 90° from gate when OPEN
and in the straight "locked" position when CLOSED.
DO NOT allow arm to touch
hood in gate's OPEN position.
TOO MUCH STRESS is put on
the arm in this position during
gate operation.
6

installation

Closed Position
A
D
Longer
than "E"
Open Position
Hinge Pivot Point
B
Arm
15" Min
Pivot
Point
E
Shorter
than "D"
Concrete Pad
2" Min
Preferred arm position is 90°
from open gate. See page 10
for arm position options and
connection to gate.
Illustrations not to scale
C
Operator
Pivot
Point
24" x 24"
Outside Property
Inside Property
