8
INSTALLATION AND CONNECTIONS

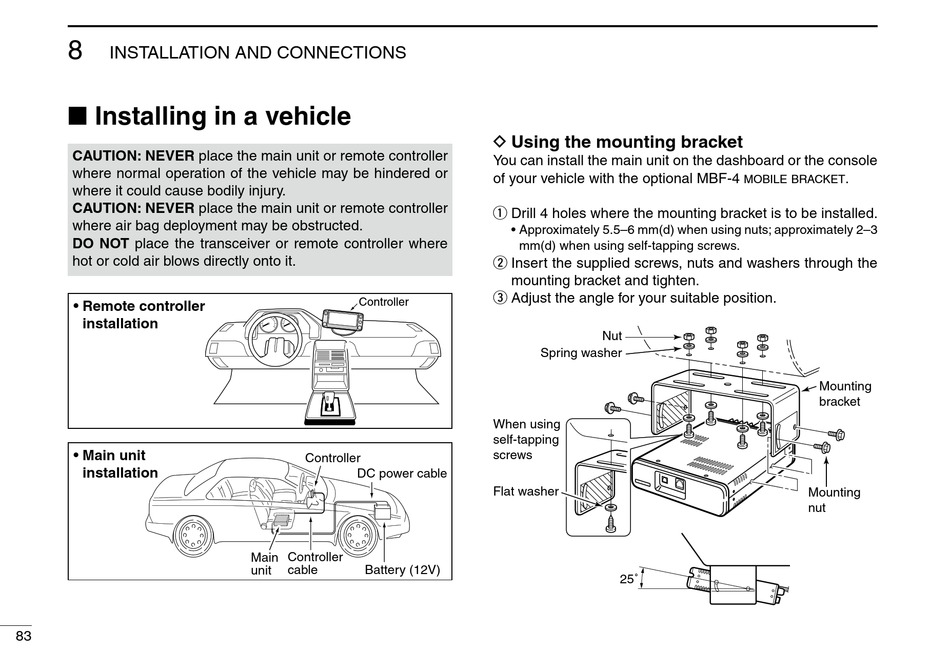

■ Installing in a vehicle

CAUTION: NEVER place the main unit or remote controller
where normal operation of the vehicle may be hindered or
where it could cause bodily injury.
CAUTION: NEVER place the main unit or remote controller
where air bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where
hot or cold air blows directly onto it.
• Remote controller
installation
• Main unit
installation
83
Controller
Controller
DC power cable
Main Controller
unit cable Battery (12V)
D Using the mounting bracket
You can install the main unit on the dashboard or the console
of your vehicle with the optional MBF-4
Drill 4 holes where the mounting bracket is to be installed.
q
• Approximately 5.5–6 mm(d) when using nuts; approximately 2–3
mm(d) when using self-tapping screws.
Insert the supplied screws, nuts and washers through the
w
mounting bracket and tighten.
Adjust the angle for your suitable position.
e
Nut
Spring washer
When using
self-tapping
screws
Flat washer
25˚
.
mobile bracket
Mounting
bracket
Mounting
nut
