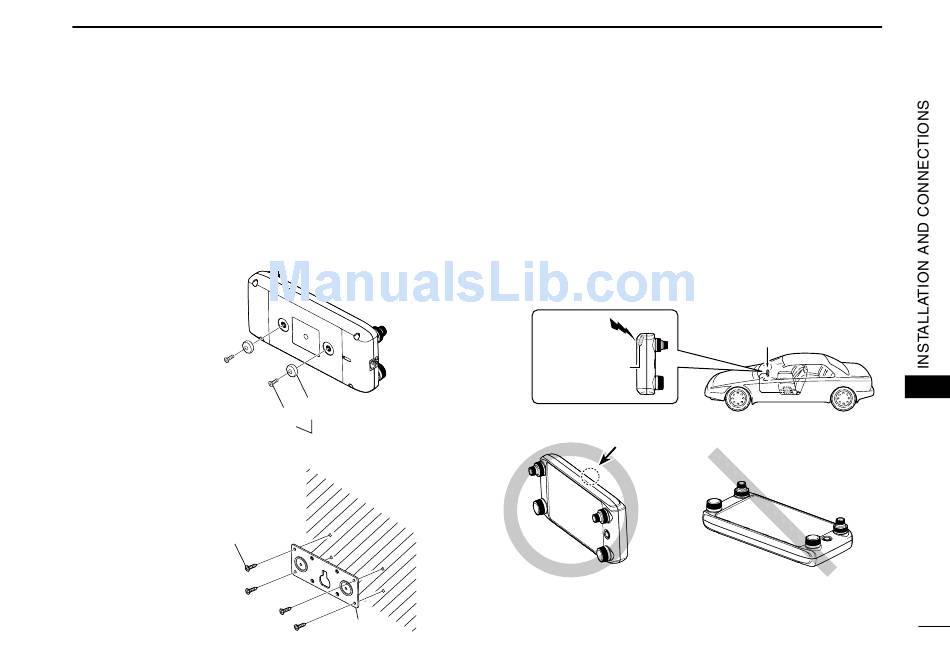

D When installing to a flat surface
You can install the controller on a flat surface with the optional
MBA-2*
1
controller bracket
When attaching the bracket onto a wall, use a self-tapping
screw*
2
(3 mm(d)).
*
1
MBA-2 may be supplied, depending on the transceiver's version.
*
2
Purchase separately
Attach the magnet to the
Controller bracket
When attaching the bracket
onto a wall
Screw (3 mm(d))
Purchase separately
.
Magnet
Screw
Supplied with the MBA-2
MBA-2
INSTALLATION AND CONNECTIONS
D

About GPS antenna

The GPS antenna is located at the top back of the controller.
If the controller's rear panel is covered with any object that in-
terrupts the GPS signals from the satellites, the GPS receiver
will not calculate its position.
Therefore, when you are using the GPS feature, be sure the
controller is positioned so the antenna has a clear view to
receive signals from the satellites.
GPS antenna
GPS antenna
8
Controller
8
82
