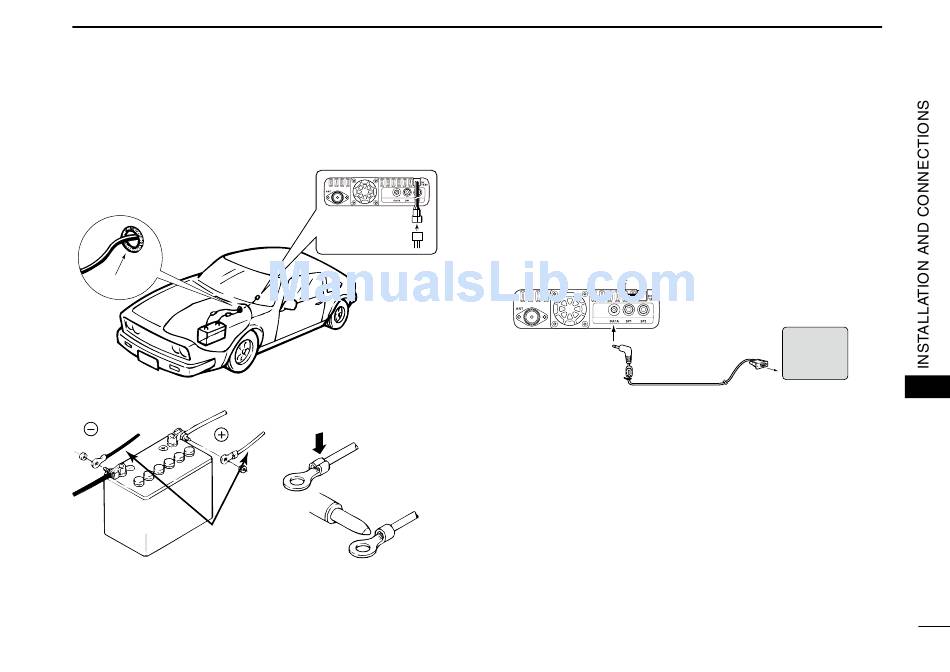

CONNECTING A VEHICLE BATTERY
Grommet
black
red
12 V
battery
Supplied
DC power cable
NOTE:
Use terminals for
the cable connections.
Crimp
Solder
INSTALLATION AND CONNECTIONS
External GPS receiver
■
connection
When "External GPS" is set to the "GPS Select" item, con-
nect an NMEA format compatible external GPS receiver to
the [DATA] jack using the OPC-1529R as shown below.
See page 64 for setting of the "GPS Select" item.
To the [DATA]
jack
OPC-1529R
8
To the
GPS
RS-232C Port
Receiver
RS-232C (DB-9 female)
8
86
