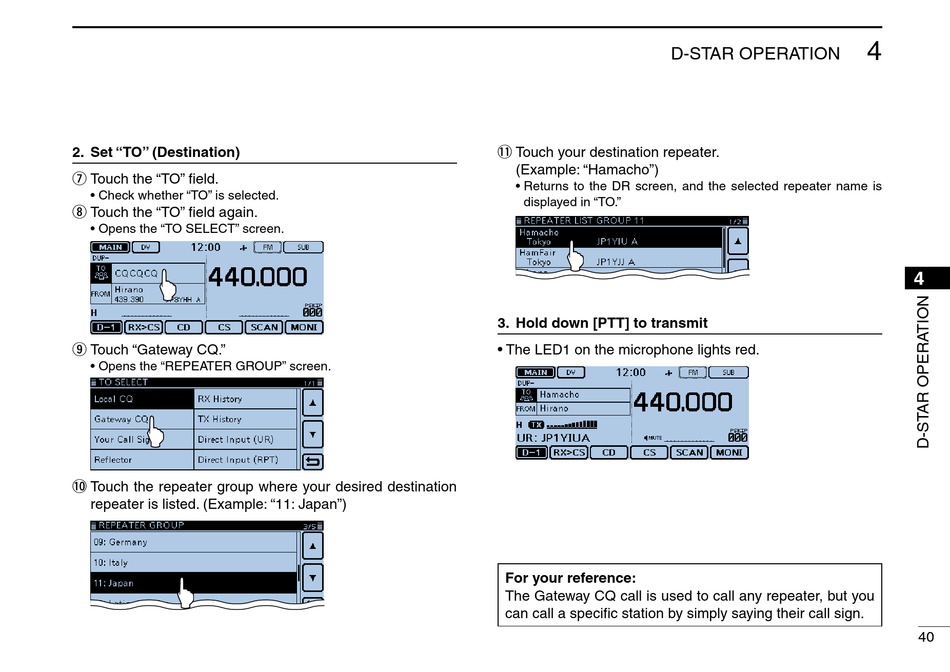

Icom ID-5100E Basic Manual page 53

2. Set "TO" (Destination)
Touch the "TO" field.
u
• Check whether "TO" is selected.
Touch the "TO" field again.
i
• Opens the "TO SELECT" screen.
Touch "Gateway CQ."
o
• Opens the "REPEATER GROUP" screen.
!0 Touch the repeater group where your desired destination
repeater is listed. (Example: "11: Japan")
D-STAR OPERATION
!1 Touch your destination repeater.
(Example: "Hamacho")
• Returns to the DR screen, and the selected repeater name is
displayed in "TO."
3. Hold down [PTT] to transmit
• The LED1 on the microphone lights red.
For your reference:
The Gateway CQ call is used to call any repeater, but you
can call a specific station by simply saying their call sign.
4
4
40
