Installation Manual

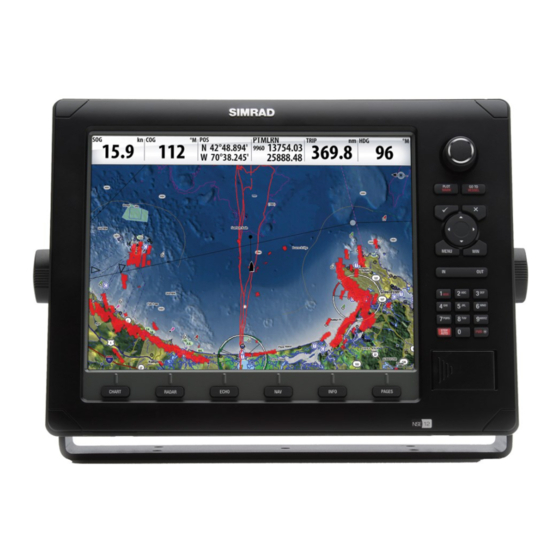

Simrad NSE8 and NSE12
Multi-function Displays
English
www.simrad-yachting.com
A brand by Navico - Leader in Marine Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSE8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simrad NSE8

Summary of Contents for Simrad NSE8

  • Page 1 Installation Manual Simrad NSE8 and NSE12 Multi-function Displays English www.simrad-yachting.com A brand by Navico - Leader in Marine Electronics...
  • Page 3 Warranty The warranty card is supplied as a separate document. It is shipped with the product registration card. In case of any queries, refer to the brand web site of your display or system. www.simrad-yachting.com...

  • Page 4: Declaration Of Conformity

    Declaration of Conformity Hereby, Navico Holding AS declares that this NSE8, NSE12 is in com- pliance with the essential requirements and other relevant provi- sions of Directive 1999/5/EC. Navico Holding AS vakuuttaa täten että NSE8, NSE12 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koske- vien direktiivin muiden ehtojen mukainen.

  • Page 5: Table Of Contents

    Contents Introduction ...................6 About this manual .................. 6 Conventions ..................6 Important safety and warning information ..........6 Check the parts ..................7 Overview ....................8 Installing the display ................10 Mounting location ................. 10 Panel mount ..................11 Bracket Mount ..................12 System architecture ................
  • Page 6 Data setup ..................45 SimNet / NMEA2000 setup ..............45 Source selection (Auto select) ............. 45 Source selection (Manual) ..............45 Group Source Selection (SIMRAD) ..............45 Group Source Selection (NONE) ............... 46 Source selection advanced ................46 Damping ..................48 Device List ..................
  • Page 7 Screen capture ..................55 File transfer ..................55 Drawings ....................56 NSE8 Dimensions ................. 56 NSE12 Dimensions ................57 Spare parts ................... 59 NSE Spare parts .................. 59 Compatible BSM-1 Transducers ............60 SimNet accessories ................60 Ethernet cables (yellow) ..............61 Ethernet cables (RJ45) ...............

  • Page 8: Introduction

    Introduction About this manual This manual is a reference guide for installing the Simrad NSE8 and NSE12 Multi Function Display. The information in this manual at the time of printing is correct to the best of our knowledge. Navico can not be liable for any inaccuracies or missing information.

  • Page 9: Check The Parts

    8.4 “ Display unit 000-00132-001 PN location specifi c NSE12 NSE12 Bezel 12 “ Display unit 000-00133-001 PN location specifi c NSE8 Dust cover NSE8 Gasket 000-00134-001 NSE12 Dust cover NSE12 Gasket 000-00135-001 NSE8 Mounting bracket NSE8, NSE12 Bracket knobs...

  • Page 10: Overview

    Overview PLOT GO TO MARK VESSEL MENU PQRS WXYZ STBY AUTO CHART RADAR ECHO INFO PAGES Description Direct Access Keys (DAK). Provide direct access to a page. Repeated presses of each DAK cycles through several different pages that relate to the DAK PLOT/MARK key.
  • Page 11 Description Power. For power input 12 or 24 V DC input (see power page 23), Power con- trol (see Power Control page 23) and external alarm (see External Alarm page 26). Video In. Supplied cable provides two composite video inputs (see Video In page 34) and one RS422 port (NMEA0183 TX, RX) see NMEA0183 Wiring page 33 SimNet.

  • Page 12: Installing The Display

    Installing the display Mounting location Choose the mounting locations carefully before you drill or cut. The display should be mounted so that the operator can easily use the controls and clearly see the display screen. Be sure to leave a direct path for all of the cables. The display screen is high- contrast and anti-reflective, and is viewable in direct sunlight, but for best results install the display out of direct sunlight.

  • Page 13: Panel Mount

    Panel mount 5 mm (0.20”) CLEARANCE HOLE TO SUIT M4 MACHINE SCREW OR DRILL PILOT HOLE TO SUIT SELF TAPPING SCREW CUTOUT 265 mm (10.40”) Check dimensions before cutting PRODUCT OUTLINE NSE-8 25 mm (1.00”) 265 mm (10.40”) 285 mm (11.20) Attach the fl...

  • Page 14: Bracket Mount

    Bracket Mount An alternative to flush mounting the NSE8 or NSE12 is to bracket mount the unit. This method has the advantage that the display can easily be removed when not in use. The display may be tilted for best possible viewing angle when bracket mounted.
  • Page 15 Drill a pilot hole for the fi ve screws Secure 5 the bracket to the surface and an optional hole large enough for the cables to emerge from. Connect the cables. Attach the bezel. Firmly clip the front bezel in place. Slide the display into the mounting bracket and secure in place with the bracket knobs.

  • Page 16: System Architecture

    A NSE display can connect to other devices in the system by Ethernet, SimNet / NMEA2000 or NMEA0183. A system can have: between one and six displays, The displays can be any mix of NSE8 and NSE12 • one radar only •...

  • Page 17: Data Bridging

    Data Bridging Supported NMEA0183 sentences entering the system are bridged (converted) to • SimNet/NMEA2000 and distributed on the SimNet backbone for all other displays to Certain SimNet /NMEA2000 PGNs (messages/sentences) are bridged across to • NMEA0183 to be available as an output from any NSE display Ethernet to SimNet.

  • Page 18: Video Out

    From NSE12 Yellow NSE8 Power cable Blue Simrad DI10 or DI15 display’s NSE Display Note: NSE8 only connects to DI10 NSE12 only connects to DI15 Ext. Alarm Power Control MO19 From NSE12 or NSE8 MO19 or third party DVI Monitor...
  • Page 19 NSE12 NSE8 Optional Simrad DI10 or DI15 Video 1 Video 1 accessory display’s Note: NSE8 only connects to DI10 NSE12 only connects to DI15 Video In / Data Video In / Data NMEA 0183 NMEA 0183 MO19 RX + Green...
  • Page 20 RX + RX - 18 | System architecture...
  • Page 21 System architecture | 19...
  • Page 22 RX + RX - 20 | System architecture...
  • Page 23 System architecture | 21...

  • Page 24: Wiring The Nse

    Wiring the NSE Wiring guidelines Most installation problems are caused by shortcuts taken with system cables. When wiring the NSE, follow the guidelines below. Don’t do this Do this Don’t make sharp bends in the cables Do make drip and service loops Don’t run cables in a way that allows water Do tie-wrap all cables to keep them secure to fl...

  • Page 25: Power

    Power The NSE8 and NSE12 displays can be powered by either 12 V or 24 V DC. Displays are protected against reverse polarity, under voltage and over voltage. The supplied power cable has a four core cable used for:- power into the system (Red and Black wires) •...

  • Page 26: No Power Control

    Black Black Red (FUSE) Red (FUSE) Yellow Yellow Blue Blue No Connect 12 - 24 V DC 12 - 24 V DC No Power Control Auto Power on Display will turn on and off when the Display will turn on when power is applied power button on the front of the unit is to the display.
  • Page 27 Power control table Slave Master Can turn on by own PWR button YES * Can turn off by own PWR button YES * Can turn on other devices Can be turned on or off by another device Can turn off entire system if started by an igni- tion switch Can have more than one on a system * If Power control wire is not connected.

  • Page 28: External Alarm

    External alarm An external alarm can be connected to one or more displays on the network. The external alarm can be a small peizo buzzer connected directly or a horn siren connected via a relay. Alarms are configured globally in the system i.e they can be configured on one display and seen, heard and acknowledged from all displays.

  • Page 29: Simnet

    4800 baud. The advanced SimNet Plug & Play (P&P) function provides flexibility and automatic interface setup to Simrad products. Previous models of Simrad products that are not SimNet compatible and non-Simrad products also benefit from this P&P setup function.

  • Page 30: Planning And Installing A Simnet Backbone

    Certain Simrad products have two SimNet connectors, which can be made to be part • of the backbone. This daisy chaining cannot be part of a NMEA2000 backbone Menu Menu NMEA2000 devices can be connected to the SimNet Network providing they: •...
  • Page 31 12 V DC SimNet drop cable SimNet power SimNet terminator A slightly larger system below. Power is connected at one end using terminated power cable. A second terminator is required at the end of the backbone. SimNet drop cable SimNet backbone SimNet power SimNet terminator Menu...
  • Page 32 For a large systems or sailboats with a mast head wind sensor and long mast cable, it is recommended to use a SimNet noise filter (24006934). On sail boats the filter should be inserted at the mast junction. On larger systems without a mast head unit, the filter should be inserted centrally along the backbone.

  • Page 33: Ethernet

    Ethernet The NSE system uses an Ethernet network to interconnect high bandwidth devices such as other NSE displays, radar and echo sounder. Each NSE display has three network ports with 5 pin connectors. Ethernet network cables have orange connectors that are retained by a bayonet type locking collar.

  • Page 34: Dual And Multi Station

    Dual and Multi Station If there is more than one display it is recommended to use a network expansion port Network Expansion Port NETWORK POWER Broadband Radar™ Broadband Sounder™ Alternatively you can connect two or more NSE displays without an network expansion port.

  • Page 35: Nmea0183 Wiring

    (yellow) page 60. 60 for part numbers. NMEA0183 wiring To exchange NME0183 data, the NSE8 and NSE12 display units have a NMEA0183 communication port. The port uses RS422 protocol and can be configured in the software for different baud rates. NMEA sentences can be turned on or off. See Serial Port Setup, page 49...

  • Page 36: Video In

    Video In Connect up to two composite video cameras to each display unit using the supplied Video / Data cable. This connects to the VIDEO IN port on the rear of the display. Video inputs are only displayed locally and are not distributed to other displays. Only one video input can be viewed at a time.

  • Page 37: Video Out

    The NSE display has a DVI-I Video connector. Connect a second display to replicate what is on the screen of the NSE display. A DI10 display can only interface to NSE8 and DI15 only to NSE12 due to fixed resolutions.

  • Page 38: Connecting Br24 Radar

    Connecting BR24 Radar SimNet Network Power Scanner cable White RX+ Brown RX- AT10HD NMEA083 to SimNet Converter Heading Only NMEA0183 10 Hz Heading (e.g Gyro, Sat Compass) Alternative: NMEA0183 heading Description NSE Display. BR24 BroadBand™ Radar system for NSE. Includes parts C,D and E. Scanner cable.

  • Page 39: Connecting Hd Radar

    Connecting HD Radar 2 kW 12 V DC ONLY 4 kW & 6 kW 12 or 24 V DC 10 kW & 25 kW 24 V DC ONLY Scanner Ethernet AT10HD AA010070 RX+ White RX- Brown AT10HD cable(cut off plug) RX- White RX+ Black/White NMEA0183 10 Hz Heading...

  • Page 40: Connecting Bsm1 Broadband Echosounder

    Connecting BSM1 Broadband Echosounder Description NSE display BSM-1 Broadband Echosounder module Ethernet cable yellow 5 pin see Ethernet cables yellow on page 60 for more cable length options. Cable can be connected directly to NSE or via a Network Expansion Port see Ethernet page 32 12 or 24 V DC Transducer: See compatible transducer list on page 59 Transducer Connector...

  • Page 41: Commission The System

    Commission the system Turning on the system for the fi rst time Before starting the system for the first time, check the following; Check radar is physically clear to rotate • Leave a HD pulse radar in standby for 30 minutes before transmitting for the first •...

  • Page 42: Commissioning Checklist

    Set up of SimNet groups for parameters such as dimming and alarms Set up SimNet source selection groups as needed or leave as default. Default is all parameters are set to SIMRAD group Any custom setup of devices such as renaming sources. Source select ad- vanced Calibrate any dock side devices e.g SimNet depth offset...

  • Page 43: System Settings Menu

    System settings menu To access the system settings menu press MENU Language Language used on menus and dialog boxes Step 1 Step 2 Step 3 Notes The display will need to be restarted for change to take effect PLOT PLOT GOTO GOTO PLOT...

  • Page 44: Echosounder Setup

    Echosounder setup Depth offset Is a value that can be entered to make the depth on the Echo page represent either depth below the transducer or depth below the surface. A) Depth below Keel value: Is the distance from transducer to the keel: Enter a negative value.

  • Page 45: Water Speed Averaging

    Water speed averaging Averages water speed by measuring your speed at a selected interval of time. Water speed intervals range from one to thirty seconds. If you select five seconds, your water speed will be recorded every five seconds, then averaged. Calibration range: 1-30 seconds.

  • Page 46: Radar Transmit, Standby Or Off

    Radar Transmit, Standby or off Press Radar func- tion button to dis- MENU play the radar Press Menu to bring up radar options To make radar ad- justments. select item to • PLOT GOTO MENU MARK VESSEL adjust Setting value is dis- Adjust the setting To confi...

  • Page 47: Data Setup

    For example you can select to change the position source globally on all displays that are in a source selection group. There is only one source selection group available and this is group is called Simrad. Commission the system | 45...

  • Page 48: Group Source Selection (None)

    The example below shows the available options for position sources, and that the GS15 GPS is used by all displays with group selection set to Simrad. If you selected the GS10 all displays in the Simrad group would use the GS10 GPS.

  • Page 49: Simnet Groups

    PLOT GOTO from. PLOT GOTO MARK VESSEL MARK VESSEL Select OK Choose the Default is Simrad when fi nished SimNet Group Select the SimNet Group to be applied to the category Commission the system | 47...

  • Page 50: Damping

    Damping Controls how quickly instruments respond to changes in values from sensors. Damping can be used for heading, wind, boat speed and depth instruments. Increasing the damping applies more averaging or smoothing of the data update rate on the instrument or display. Damping settings are applied to SimNet displays and Instruments belonging to particular damping SimNet Groups.

  • Page 51: Serial Port Setup

    Serial port setup Configure the serial port to match the NMEA0183 device that it is connected to. Baud Rate (common for input and output) Step 1 Step 2 Step 3 PLOT GOTO MARK VESSEL PLOT GOTO Select OK MARK VESSEL Select Baud Rate NMEA 0183 output...

  • Page 52: Fuel

    Fuel If the vessel has an NMEA2000 interface to its engines and fuel tanks the NSE can display the following fuel consumption information: Fuel used since last fill • Fuel used on current trip • Fuel used during the season •...

  • Page 53: Diagnostics

    Diagnostics NMEA2000 Diagnostics Bus State: Indicates if SimNet backbone is operating: Check power: Check termination RX Overfl ows / Overruns greater than 0 could indicate the software is very busy and unable to keep up with incoming messages. RX / TX Errors: CAN interface error counters. Count up when there are errors on the CAN bus, and down when things are Ok.

  • Page 54: Check Gps Signal

    Check GPS signal Press direct access key PAGES >3 System backup A backup of all the NSE settings such as page layouts, custom instruments can be made at any time, and either stored on the NSE or transferred to a USB key or SD Card Name the backup using the alphanumeric key Press direct access key PAGES >...

  • Page 55: Software Upgrades

    Software upgrades Software upgrades can be performed on the following types of devices from any NSE display. NSE displays • SimNet devices • Ethernet devices • The same procedure is used to upgrade software on all types of devices. Upgrade files for different types of devices have different file extensions.

  • Page 56: Additional Nse Display Upgrade Steps

    Example below shows upgrading a SimNet IS20 Combi instrument but is the same for NSE displays Menu Item Step 1 Step 2 Step 3 Copy upgrade fi les Press function Select Memory card Press Menu on to a USB Stick button PAGES Press 9 or navigate to...

  • Page 57: Screen Capture

    Screen capture It is possible to capture a snap shot of the current screen Step 1 Step 2 Create desired screen to capture Enable screen capture Step 3 PQRS WXYZ STBY AUTO Short press on PWR button to capture screen shot File transfer Step 1 Step 2...

  • Page 58: Drawings

    Drawings NSE8 Dimensions 221.0 mm (8.70”) 212.0 mm (8.35”) 56 | Drawings...

  • Page 59: Nse12 Dimensions

    NSE12 Dimensions 273.0 mm (10.75”) 266.0 mm (10.47”) Drawings | 57...
  • Page 60 Spare parts NSE Spare parts Part Number Description 000-00132-001 NSE8 Bezel with decal 000-00133-001 NSE12 Bezel with decal 000-00134-001 NSE8 Dust cover 000-00135-001 NSE12 Dust cover 000-00136-001 NSE8 Mounting bracket 000-00137-001 NSE12 Mounting bracket 000-00138-001 Mounting bracket knobs & washers (pair L/R)

  • Page 61: Spare Parts | 59

    Compatible BSM-1 Transducers Part Number Description 000-0136-02 Airmar P319, plastic, low profi le, thru hull 50/200 KHz, depth/temp, 7 pin blue connector 000-0136-03 Airmar P79, plastic, In-Hull 50/200 KHz, depth only, 7 pin blue connector 000-0136-04 Airmar B60, bronze, low profi le, thru hull, 50/200 KHz, depth/ temp, 12°...

  • Page 62: Ethernet Cables (Yellow)

    44172278 SimNet termination In-Line joiner 24005902 2 m (6.6 ft) SimNet power w/termination 24005910 2 m (6.6 ft) SimNet power w/o termination 24005936 AT10 Universal NMEA0183 converter 24005944 AT15 Active T-connector, IS15 24005928 SimNet cable protection cap 24005729 SimNet to Micro–C (male) cable that connects a SimNet product to a NMEA2000 network 24006199 SimNet to Micro-C (female) cable that connects a NMEA2000...
  • Page 63 Unavailable, Autopilot Alarms Radar Characteristics Radar compatibility Broadband: Simrad BR24 Simrad HD Digital Series 2 kW to 25 kW Display Modes Head-up, Course-up*, North-up*, Relative Motion (*Heading input required) Echo Trails Intervals: 15 sec, 30 sec, 1 min, 3 min, Continuous. Clear Trails VRM/EBL 2: User confi...

  • Page 64: 62 | Specifi Cations

    Supported baud rates 4,800, 9,600, 19,200, 38,400 Note. Port will transmit and re- ceive at the set baud rate Ethernet 10/100 base Ethernet, three ports Max number of dis- 6 in any combination NSE8 or NSE12 plays External connectors x 1 USB and x 1 SD...
  • Page 65 NMEA 2000 PGN List NMEA 2000 PGN Receive 59392 ISO Acknowledgement 130310 Environmental Parameters 59904 ISO Request 130311 Environmental Parameters 60928 ISO Address Claim 130312 Temperature 60928 ISO Address Claim 130313 Humidity 126208 ISO Command Group Function 130314 Actual Pressure 126992 System Time 130576...

  • Page 66: Nmea 2000 Pgn List

    NMEA2000 PGN Transmit 126208 ISO Command Group Function 126992 System Time 126996 Product Info 127237 Heading/Track Control 127250 Vessel Heading 127258 Magnetic Variation 128259 Speed, Water referenced 128267 Water Depth 128275 DistanceLog 129025 Position, Rapid Update 129026 COG & SOG, Rapid Update 129029 GNSS Position Data 129283...
  • Page 67 Specifi cations | 65...

This manual is also suitable for:
