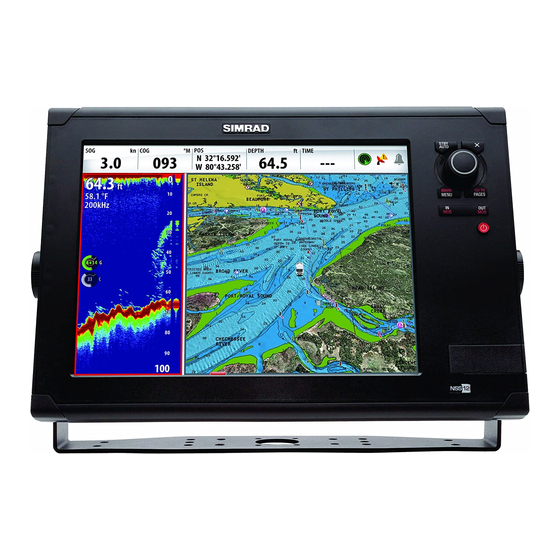

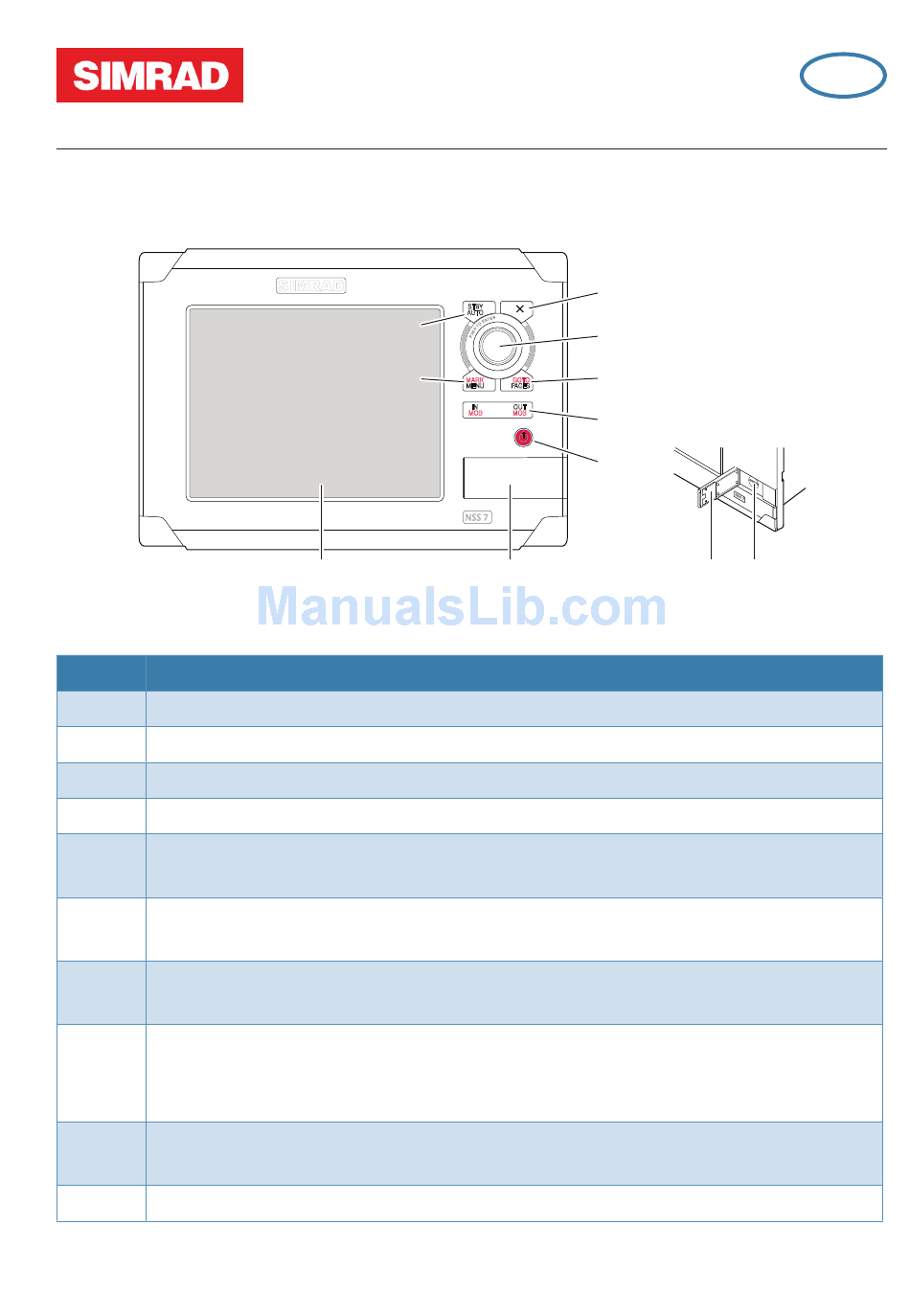

Overview
No.
Description
1
Touch screen
2
Chart card reader door
3
Micro-SD Card reader
4
STBY Auto key. Used for Autopilot operation
5
MARK / MENU key. A short press activates active panel's menu. A long press
places a mark at vessel's position
6
X key. Used to close dialogs, to return to previous menu level and to remove
the cursor from the screen on chart, radar and echosounder panels
7
Rotary knob. Used for zooming chart and for maneuvering in menus. Press
Rotary knob to enter selection
8
GOTO / PAGES key. A short press displays the Pages (Home) panel. Repeated
short presses toggles between Pages, Tools and Settings panels.
A long press displays the GoTo menu
9
IN / OUT key. Zoom key for chart, radar and echosounder panels. A simultane-
ous press on both key ends will position a MOB at vessel's position
10
Power key. Used for turning the unit ON/OFF and for brightness adjustment
Part no 988-10101-001, section 1 of 5
NSS
QuickStart Guide
SIMRAD
4
5
1
6
STBY
AUTO
7
8
MARK
GOTO
MENU
PAGES
9
IN
OUT
MOB
MOB
10
NSS 7
2
EN
2 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simrad NSS Series
Summary of Contents for Simrad NSS Series
-
Page 1: Quickstart Guide
QuickStart Guide Overview SIMRAD STBY AUTO MARK GOTO MENU PAGES NSS 7 Description Touch screen Chart card reader door Micro-SD Card reader STBY Auto key. Used for Autopilot operation MARK / MENU key. A short press activates active panel’s menu. A long press places a mark at vessel’s position... -
Page 2: The Power Button
The power button • Press and hold: Turn unit on/off Display dialog for light • Single press: adjustment and standby mode Toggle preset brightness • Repeated presses: levels Displaying the menu • Press button MARK MENU • Tap screen area •... -
Page 3: Selecting Pages
The NSS Control pages Pages (Home) Tools Settings GOTO PAGES Selecting pages GOTO PAGES ¼ NOTE: Select active panel on a multi-panel page by tapping selected panel. Using charts Zoom Pan, any direction 20 nm NSS | QuickStart Guide - EN... -
Page 4: Placing Waypoints
Placing waypoints At vessel position At cursor position MARK MENU Creating routes Displaying radar overlay on chart pages Navigating ¼ NOTE: This prompt will appear only with optional Simrad autopilot integration. GOTO PAGES NSS | QuickStart Guide - EN... -
Page 5: Using The Echosounder
Using the Echosounder Adjusting sounder image Select Auto/Manual Adjust Auto - Manual Using the radar Turning radar transmitting On/Off Adjusting radar image Select Select preset Adjust “Auto” - Manual “Hrbr” - “Ofsh” NSS | QuickStart Guide - EN... -
Page 6: Using The Autopilot
Using the Autopilot Activating the Autopilot STBY AUTO Returning to Standby mode and manual steering STBY/AUTO A short press on the key switches the system to Standby mode. STBY AUTO Turning the Pilot pop-up ON/OFF STBY AUTO ¼ NOTE: The Pilot pop-up must be ON to operate the autopilot. Selecting autopilot mode from Pilot pop-up window MARK MENU... -
Page 7: Changing Course In Auto Mode
Changing course in Auto mode Heading change 1° heading adjust The Autopilot panel Sailing with autopilot ¼ NOTE: Only available when Sail is selected during comissioning. Maintaining a fixed wind angle Adjust the boat heading until wind is according to selected wind angle, then: MARK MENU Tacking... - Page 8 The StructureScan™ panel ¼ NOTE: Only available when StructureScan is detected on the network. Left water Right water column column Selecting views Surface Adjusting color intensity Select Adjust NSS | QuickStart Guide - EN...
