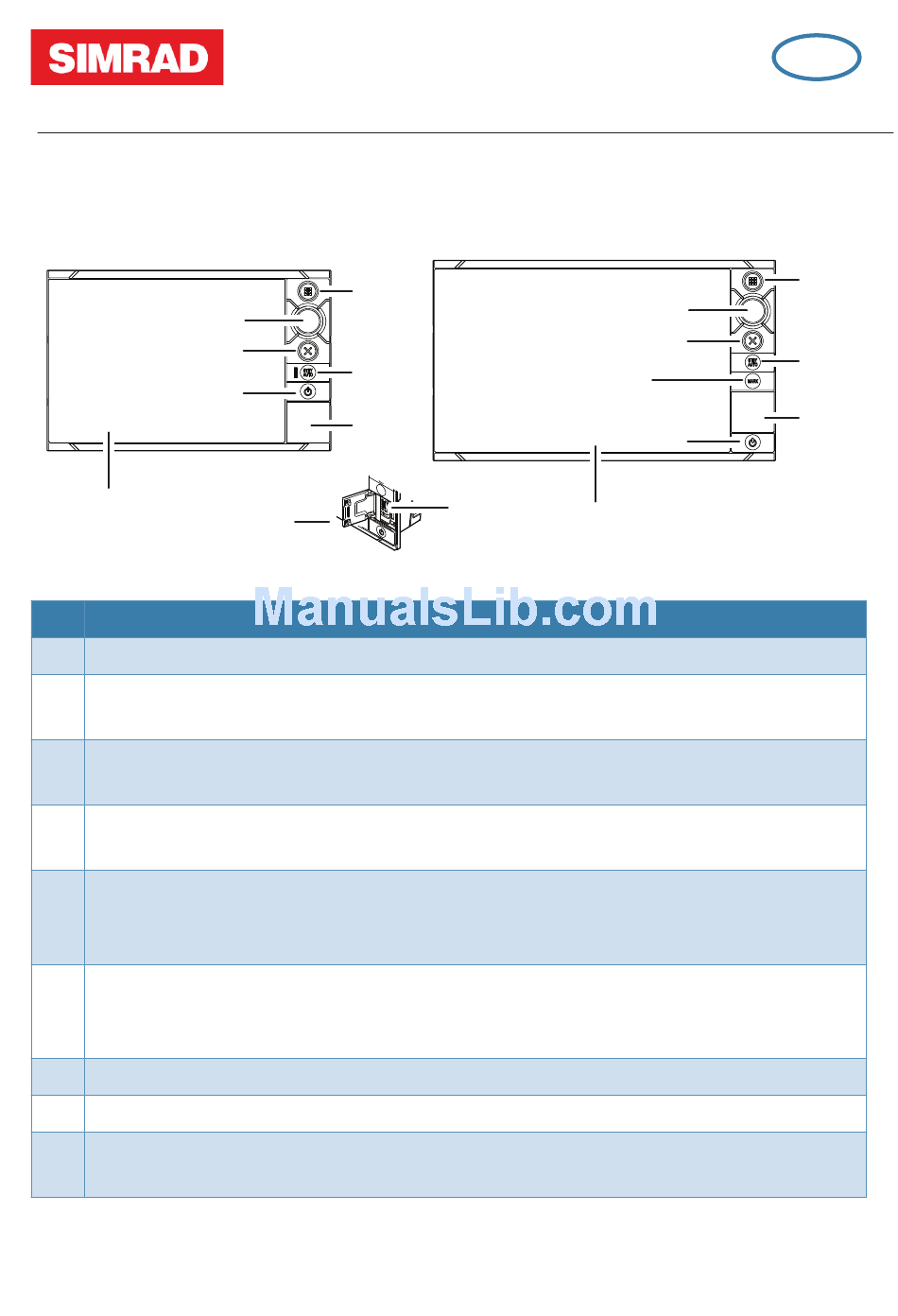

Font panel
7" units
1
No. Description
1
Touch screen
2
Rotary knob. Rotate to scroll through menu items, then press to confirm a
selection. Rotate to adjust a value and to zoom a zoomable panel.
3
X key. Press once to exit a dialog, to return to previous menu level and to remove
the cursor from the panel.
4
Power key. Press once to display the System control dialog. Repeat short presses
to cycle the backlight brightness. Press and hold to turn the unit ON/OFF.
5
Home key. Press once to display the Home page. Repeat short presses to cycle
the favorite buttons. Press and hold to display all favorite buttons as an overlay
on active page. Repeat short presses to cycle the favorite buttons.
6
STBY / AUTO key. With the autopilot in any automatic mode: Press to set the
autopilot to Standby mode. With the autopilot in Standby mode: Press to display
the autopilot mode selection pop-up.
7
Card reader door
8
Micro-SD Card readers
9
MARK key. Press to instantly save a waypoint at the vessel's position. Press and
hold to display the Plot menu used for saving new waypoints, routes and tracks.
¼ Note:
MARK
The
NSS evo2
QuickStart Guide
5
2
3
6
4
7
M A R
K
7
key is not available on 7" units.

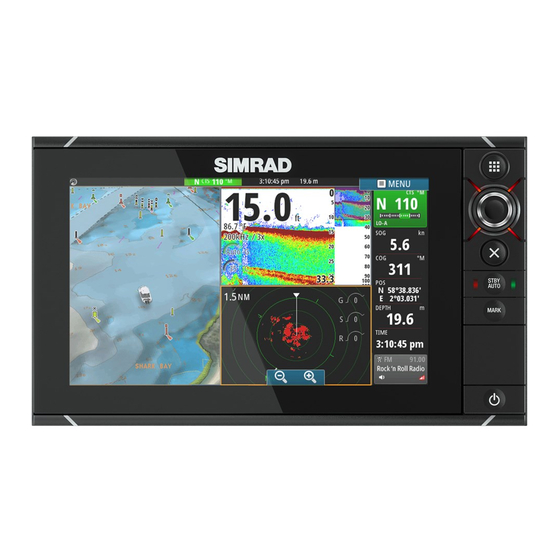

9", 12", 16" units
8
1
EN
2
3
9
MARK
4
5
6
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simrad NSS evo2
Summary of Contents for Simrad NSS evo2
-
Page 1: Quickstart Guide
NSS evo2 QuickStart Guide Font panel 7” units 9”, 12”, 16” units MARK M A R No. Description Touch screen Rotary knob. Rotate to scroll through menu items, then press to confirm a selection. Rotate to adjust a value and to zoom a zoomable panel. - Page 2 The System Control dialog Used for quick access to system settings. Activate the dialog by: • Power pressing the key, or by • swiping from the top of the screen ¼ Note: The content of the System Control dialog depends on connected equipment and active panel.
- Page 3 Application pages Activate an application page by: • tapping the application button (full page panel), by • tapping a favorites button, or by • pressing and holding an application button to select a predefined split page. Status panel Application panel Instrument bar Adjust panel size You can adjust the panel sizes in a split page.
- Page 4 Edit a favorite page Enter the Favorites edit mode by: • tapping the Edit icon, or by • pressing and holding a favorite button Edit favorite page Delete favorite page Add new favorite page Edit an existing favorite page or configure a new page by dragging panel icons into or out from the preview area.
- Page 5 Charts • Zoom the chart by using spread or pinch gestures, by using the zoom buttons (A), or by Rotary turning the knob. • Move the view in any direction by panning the chart. • Display information about a chart item by tapping the item.
- Page 6 Echosounder • Zoom the image by tapping the zoom Rotary buttons (A) or by turning the knob. • View echosounder history by panning the image. • Adjust gain and color from the slide bar, displayed by tapping the gain or color icon (B), or by pressing the Rotary knob.
- Page 7 Autopilot You can activate the autopilot from any panel. STBY/AUTO Press the key or the Autopilot tile in the Instrument bar Select the autopilot mode in the Autopilot pop-up Autopilot is passive. Used when manually steering at the Standby helm Rotary Manual steering.
- Page 8 Activate the Audio overlay by tapping the tile in the Instrument bar. Positioning a MOB mark Save a Man Over Board (MOB) mark at vessel position by tapping the button on the Home page. For more details, see the *988-10628-001* NSS evo2 Operator manual.
