Summary of Contents for Simrad NSE8

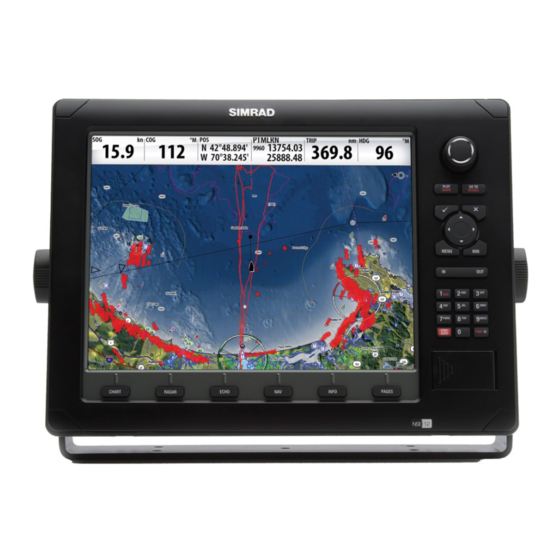

  • Page 1 Operation Manual Simrad NSE8 and NSE12 Multi-function Displays English www.simrad-yachting.com A brand by Navico - Leader in Marine Electronics...
  • Page 2 E.U. and E.E.A. For more information refer to the separate NSE8/NSE12 Installation manual. About this manual This manual is a reference guide for operating the Simrad NSE8 and NSE12 systems. It assumes that all equipment is installed and configured, and that the system is ready to use.
  • Page 3 References to keys on the operator panel are written in boldface, e.g. WIN key. The software This manual is written for Simrad NSE Release to Market 3 (RTM3). Please check web site for details on release version. MENU The About dialog above is an example only and may not match the sw installed on your unit! The manual will be continuously updated to match new sw releases.

  • Page 4: Table Of Contents

    Contents Overview ..................7 Front panel ..................7 The NSE screen structure ..............8 Communicating with the NSE unit ............9 Basic operation ................11 Turning the unit on/off ..............11 Positioning a Man Over Board mark ........... 11 Adjusting the backlight..............12 Operating the menu system ..............
  • Page 5 Waypoints, routes & tracks ............27 Waypoints ..................27 Tracks.................... 28 Routes ................... 29 The waypoints, route and tracks page ..........30 Using the radar ................31 The radar panel ................31 Setting up the radar image ............... 32 Using the cursor on the radar panel ........... 33 Optimizing the radar image...............
  • Page 6 Using the autopilot ............... 59 Autopilot indication on NSE panels ............. 59 Safe operation with the autopilot ............59 The autopilot panel ................60 Autopilot mode overview ..............61 Selecting autopilot modes ..............61 Using the autopilot in Standby mode ..........62 Follow-up steering (FU) ..............
  • Page 7 The utilities pages ................ 85 Vessels ..................85 Alarms ................... 86 Satellites ..................86 Find ....................86 Waypoints/routes/tracks ..............86 Trip Log ..................87 Sun/moon ..................87 Tides ..................... 87 Files ....................87 Customizing your system .............. 89 Page setup ..................89 Adjusting panel size .................

  • Page 8: Overview

    1 Overview Front panel PLOT GO TO MARK VESSEL MENU PQRS WXYZ STBY AUTO CHART RADAR ECHO INFO PAGES Description Direct Access Keys (DAK). Provide direct access to a page. Repeated presses of each DAK cycles through several different pages that relate to the DAK PLOT/MARK key.

  • Page 9: The Nse Screen Structure

    The NSE screen structure Pages and page groups The NSE screen is comprised of page groups, accessed by pressing one of the Direct Access Keys (DAK). CHART RADAR ECHO INFO PAGES Chart Radar Echosounder Navigation Info Utilities Each page group (except the Utilities pages) may include 5 pages. The first page in a page group will always be a full screen panel.

  • Page 10: Communicating With The Nse Unit

    In addition to these panels the following applications can be connected and displayed on other panels: Application Description AIS information as overlay on chart and radar panels Weather Weather graphics and data as overlay on chart panel. Sirius Weather application is available in North America only. Audio Satellite radio functions as a panel along the bottom of a page.
  • Page 11 Dialogs Dialogs are used for entering user input or for presenting information to the user. A dialog may be presented in full-screen, or as a popup dialog in the centre of the screen. Depending on type of information or entry, different keys are used to confirm, cancel and close the dialog.

  • Page 12: Basic Operation

    2 Basic operation Turning the unit on/off POWER ON STAND BY POWER OFF If you turn the unit ON when no external equipment is connected you will be asked to run in simulator mode. When you turn ON the system after the first-time initialization, the system will start with the same page and with settings that were activated when the system was turned OFF.

  • Page 13: Adjusting The Backlight

    Adjusting the backlight The backlight for LCD and keys can be adjusted at any time independent of what is on the screen. MENU A night mode is included and optimized for low light conditions. Details on the chart may be less visible when the Night mode is selected! Operating the menu system Selecting menu item and conirming selection You operate a menu by using the rotary knob to select menu item, and then pressing the...

  • Page 14: Using The Cursor

    Using the cursor The cursor is by default not shown on any panel. When you use one of the arrow keys on a Chart, Radar or Echosounder panel the cursor will become visible. The cursor information window will show position coordinates at the cursor position, and range and bearing to the vessel.

  • Page 15: Working With Pages And Panels

    Working with pages and panels Selecting pages You access a page group by pressing the corresponding DAK (Direct Access Key). CHART RADAR ECHO INFO PAGES Active DAK is indicated with a red symbol right above the key. When you press a DAK for the first time, the default page for that group is displayed.

  • Page 16: Op40 Remote Controller

    OP40 Remote controller NSE 3.0 software version includes OP40 support, enabling you to operate many of the NSE functions with the OP40 Controller. DISPLAY PLOT GO TO MARK VESSEL CHART RADAR PQRS WXYZ ECHO STBY STBY INFO PAGES MENU AUTO AUTO Description MOB (Man Overboard).

  • Page 17: Selecting Which Processor To Control

    Selecting which processor to control Before an OP40 can be used it must be configured and assigned to the processor. Refer to the separate NSE Installation manual for more information. The following color codes are used on the OP40’s DISPLAY LED; Color/Status Description Processor is OFF...

  • Page 18: Using The Simulator

    3 Using the simulator Simulator mode MENU The simulation feature main data sources, so you can see how the unit works without being connected to echosounder, radar, GPS etc. You can use the simulator to help you become familiar with your unit before using it out on the water.
  • Page 19 Blank page 18 | Simulator...

  • Page 20: Charts

    AIS targets and weather information. Simrad NSE comes preloaded with regional cartography. US Versions include InsightHD Cartography for the entire US with Shaded Relief. Europe and Rest Of World Versions include Navionics Coastal Cartography.

  • Page 21: Extension Lines

    Extension lines The vessel’s extension lines can be activated to show course over ground (COG), heading or both. The length of the line can be set to fixed length or to indicate the distance that MENU the vessel will travel at the current speed in selected time period. Selecting Infinite length will project a continuous extension line.

  • Page 22: Chart Scale

    Measuring distance The cursor can be used to measure the distance between your vessel and a position or between 2 points on the chart panel. MENU Use the following process to measure a distance. Start the Measure function Move the cursor towards the second measuring point A line will be drawn from the vessel center to the cursor position, and the distance will be...

  • Page 23: Positioning The Chart On The Panel

    Positioning the chart on the panel Selecting chart center When the cursor is active on the panel, the chart will be centered around the cursor position (cursor mode). Pressing X key will remove the cursor, and the chart center will be positioned at the vessel (vessel mode).

  • Page 24: Chart Categories

    Radar and weather functions are described in separate sections in this manual. Chart data The NSE system can use Insight and Navionics chart databases. MENU The Navionics chart includes options that not are available in the Simrad database. Navionics options are described in the following sections. Using charts | 23...

  • Page 25: Chart Options In Navionics Chart Database

    Chart options in Navionics chart database Chart view MENU The Navionics chart database provides you with 2D and 3D view options. 2D presents chart information in a basic mapping mode. 3D provides a three dimensional graphical view of land and sea contours.

  • Page 26: Photo Overlay

    Photo overlay This option enables you to view satellite photo images of an area as an overlay on the chart. The availability of such photos is limited to certain regions. You can view photo overlays in either 2D or 3D modes. The Photo overlay function is disabled as you zoom out beyond a certain level.
  • Page 27 Optional settings for Navionics charts MENU Annotation Determines what area information— such as names of locations and notes of areas—is available on display. Presentation type Provides marine charting information such as symbols, colors of the navigation chart and wording for either International or US presentation types. Chart details Provides you with different levels of geographical layer information.

  • Page 28: Waypoints, Routes & Tracks

    5 Waypoints, routes & tracks Waypoints A waypoint is a mark positioned on a chart, on a radar image or on an echosounder image. Each waypoint has an exact position with latitude and longitude coordinates. A waypoint positioned on an echosounder image, will in addition to position information, have a depth value.

  • Page 29: Tracks

    Editing waypoints A waypoint can be edited in the Waypoint dialog. You can also move the waypoint manually by using the cursor; MENU Select the waypoint by resting the cursor over it Press the MENU key and select the move option Use the arrow keys to move the cursor to a new position Conirm the new position by pressing the rotary knob or the tick key The moving waypoint mode is indicated on top of the panel.

  • Page 30: Routes

    Routes A route consists of a series of waypoints entered in the order that you want to navigate them. When you rest the cursor over a route, it will turn blue and the route name will be displayed. Creating new routes by using the cursor You can create a new route on the Chart panel as follows: Press the PLOT key and select the new route option PLOT...

  • Page 31: The Waypoints, Route And Tracks Page

    The waypoints, route and tracks page The Utilities pages includes a Waypoints, Routes and Tracks page. This gives access to advanced edit functions and settings for all these items available on your system. There are several ways to access the library. A couple of them are illustrated below. You move between the tabs in the library by using the left/right arrow keys.

  • Page 32: Using The Radar

    6 Using the radar The radar panel can be set up as a full screen view or combined with other panels. The radar image can also be displayed as an overlay to existing 2D chart views and 3D for Navionics. Refer to the Chart section. The radar panel NORTh ROTARY...

  • Page 33: Setting Up The Radar Image

    Operational modes The radar’s operational modes are controlled from the NSE. The following modes are available: MENU The power to the radar scanner is turned off Standby The power to the radar scanner is on, but the radar is not transmitting. Transmit The scanner is on and transmitting signals to detect surrounding targets.

  • Page 34: Using The Cursor On The Radar Panel

    Setting the radar orientation Heading up MENU Rotates the radar image to display the current heading directly up on the radar image. North up Rotates the radar image with the north direction upwards. Course up Rotates the radar image to display the current navigation course directly up.
  • Page 35 Dual Radar With dual radar capability in NSE it is possible for two radar sources to be displayed simultaneously. Connect either two Broadband Radars or two Pulse Radars and see both radar images at the same time. Interference while using Broadband Radar™ on most ranges will be seen when a pulse radar and a Broadband Radar™...

  • Page 36: Optimizing The Radar Image

    Optimizing the radar image You may be able to improve the radar image by adjusting the radar sensitivity, and by filtering the signals from effect of random echoes from sea and weather conditions. The parameters are adjusted by using the rotary knob. You select between the control images by pressing the rotary knob.

  • Page 37: Setting A Guard Zone Around Your Vessel

    Setting a guard zone around your vessel A guard zone is a region (either circular or a sector) that you can define on the radar image. You can also define if an alarm is activated when a radar target enters or exits MENU the zone.

  • Page 38: Other Vessels On The Radar Image

    Other vessels on the radar image If MARPA radar(s) or AIS devices are connected to the NSE system, any targets detected by these devices will be displayed as an overlay on the chart and on the radar image. You MENU can also see messages and position for DSC transmitting devices within range.
  • Page 39 EBl/vRM The electronic bearing line (EBL) is a line from the center of the vessel. The line’s bearing remains constant as the vessel moves. The variable range marker (VRM) is a user- MENU controlled range ring that surrounds the vessel. The EBL/VRM function is used to measure distance and bearing from the vessel’s position to a target.

  • Page 40: Other Vessels On Chart And Radar Image

    7 Other vessels on chart and radar image If MARPA radar(s) or AIS devices are connected to the NSE system, any targets detected by these devises can be displayed as an overlay on the chart. You can also see messages and position for DSC transmitting devices within range.

  • Page 41: How To Display Other Vessels

    how to display other vessels MENU Selects which targets to display. Sets the length of the extension line for your vessel and for other vessels. The length of the extension line indicates the distance the vessel will move in the selected time period.

  • Page 42: Target Alarm Settings

    Target alarm settings You can define several alarms to alert you if a target comes within predefined range limits, or if a previously identified target is lost. MENU The following alarms can be set: Alarm ID Description comes within the predeined guard zone. Dangerous vessel Controls whether an alarm shall be activated when a vessel displayed and if the siren will sound.

  • Page 43: Viewing Information About Targets

    viewing information about targets When you select a vessel on the chart the symbol will change to Selected target symbol, and the vessel name will be displayed. You can display detailed information for a selected target by pressing the rotary knob or the MENU key.

  • Page 44: Using The Echosounder

    8 Using the echosounder The Echosounder function provides a view of the water and bottom beneath your vessel, allowing you to detect fish and examine the structure of the sea floor. The echosounder image The echosounder displays the water column moving from right to left on the panel. You can select between single panel view and several split views as described later in this chapter.

  • Page 45: Setting Up The Sounder Display

    Setting up the sounder display The echosounder panel can be setup as a single view, or with split view where the left and the right side presents different images. MENU Split screen options Zoom The Zoom mode presents a magnified view of the sounder image on the left side of the panel.
  • Page 46 Setting the echosounder range The range setting determines the depth shown on the display. MENU Auto If you select Auto, the system will automatically display the whole range from the water surface to the bottom. Auto range will automatically be turned off once you adjust the range manually. Manually changing the range You can increase or decrease the range by pressing the zoom keys.

  • Page 47: Using Colors

    Selecting the ping speed The Ping Speed controls the rate the transducer uses to send echosounder waves into the water. A higher ping speed will yield the best results when you are moving across the water at a high rate of speed or fishing from a dock. The reverberation of too much ping speed can cause interference on the screen.

  • Page 48: Optimizing The Echosounder Image

    viewing sounder history Whenever the cursor is shown on a sounder panel, the red scroll bar is also shown. The scroll bar shows the image you are currently viewing in relation to the total echosounder image history stored. When the scroll bar is on the far right side it indicates that you are viewing the latest soundings.

  • Page 49: Recording The Echosounder Data

    Adjusting the Gain and Color gain settings Gain and Color are adjustable by using the rotary knob. You select between Gain and Color by pressing the rotary knob. The active control will expand and display it’s name in full. You can then adjust the value by turning the knob. If you press and hold the rotary knob when Gain is selected, you switch between Auto and Manual gain option.
  • Page 50 When the echosounder image is being recorded, there will be a flashing red symbol and a logging message will appear periodically at the bottom of the screen. The sounder recording is stopped by repressing the MENU key. viewing the recorded sounder data The recorded sounder images are stored internally in the NSE unit, and can be reviewed when selected.
  • Page 51 The log file is displayed as a paused image, and you get access to the replay and echo options by pressing the MENU key. You exit the replay mode by pressing the X key. NMEA2000 Depth If you do not have a compatible echosounder connected to your NSE, the echo page will still display a clearly colored depth contour based on depth data received from either a NMEA0183 or NMEA2000 depth sensor.

  • Page 52: Structurescan

    9 StructureScan™ StructureScan™ is an optional hardware module that uses high frequency to provide a High resolution image of the seabed StructureScan™ provides a 150 m (480 ft) wide coverage in high detail with SideScan, while the DownScan™ provides picture perfect images of structure and fish directly below your boat, down to 90 m (300 ft).
  • Page 53 The DownScan image RANGE SCAlE UPPER DEPTh RANGE TEMPERATURE FREqUENCY ZOOM COlOR INDICATOR SEA BED lOWER RANGE The SideScan image WATER DEPTh DEPTh RANGE TEMPERATURE SCAlE FREqUENCY ZOOM COlOR INDICATOR lEFT WATER RIGhT WATER COlUMN COlUMN SURFACE 52 | StructureScan...

  • Page 54: Changing The Structurescan Image

    Changing the StructureScan image Zooming MENU You can select different zooming levels on the StructureScan image. By default the zoom level is set to Off. SElECTED ZOOM lEvEl The range The range setting determines the water depth that is visible on the screen Auto Auto mode will automatically set the range depending on the depth of water.

  • Page 55: Pausing Structurescan

    Pausing StructureScan You can pause the StructureScan, allowing you to examine the structures and other images in more depth and detail. MENU This function is useful when you need to position a waypoint exactly on the Structurescan image, and if you are using the cursor to measure a distance between 2 elements on the image.

  • Page 56: The Structurescan Image Setup

    The StructureScan image setup The image palettes MENU Several display palettes with varying degrees of color and brightness are available. Noise rejection Signal interference from bilge pumps, engine vibration and air bubbles can clutter the StructureScan image. The noise rejection option filters the signal interference and reduces the on-screen clutter.
  • Page 57 When the StructureScan image is being recorded, there will be a flashing red symbol and a logging message will appear periodically at the bottom of the screen. The graphics below shows that both conventional echo-sounder and StructureScan data are being logged. RECORDING SYMBOl lOGGING...

  • Page 58: Structurescan Overlay

    The log file is displayed as a paused image, and you get access to the replay menu by pressing the MENU key. If more than one channel was recorded in the selected echo file, you can select which channel and StructureScan image to display. You exit the replay mode by pressing the X key.
  • Page 59 Blank page 58 | StructureScan...

  • Page 60: Using The Autopilot

    10 Using the autopilot If an AC12 or AC42 autopilot computer is connected to the NSE system, autopilot functionality will appear in the NSE page system. The Autopilot feature is designed to maintain an accurate course in various sea conditions with minimal helm movements. As the autopilot steers so accurately, it will save fuel and get you to your destination faster, especially when navigating to a waypoint or following a route.

  • Page 61: The Autopilot Panel

    locking an NSE unit If several NSE units or AP24/AP28 control units are included in the system, a non-active NSE unit can be locked to prevent MENU unauthorised operation of the autopilot. When the unit is locked this is indicated with a lock symbol and with text in the pop up.

  • Page 62: Autopilot Mode Overview

    Autopilot mode overview The autopilot has several steering modes. Number of modes and features within the mode depend on boat type and available input as shown below. BOAT TYPE MODE FEATURE DESCRIPTION REqUIRED INPUT MOTOR SAIl Passive mode used when steering the boat at the helm Controls the rudder Power steering...

  • Page 63: Using The Autopilot In Standby Mode

    Using the autopilot in Standby mode The autopilot must be in STBY mode when you steer the boat at the helm. You can switch the autopilot to STBY mode from any operation by a short press on the STBY/AUTO key. Power steering (NFU) If you press the arrow keys when the autopilot is in STBY mode, the system will switch to NFU (Non-Follow-Up).
  • Page 64 Initiating a turn The illustration below shows how you start the spiral turn steering from the Autopilot menu. You select the turn direction and start the turn by using the left or right arrow keys or the rotary knob. MENU Stopping the turn You can at any time during a turn press the AUTO/STBD key to return to standby mode and manual steering.
  • Page 65 Spiral-turn Spiral-turn makes the boat turn in a spiral with a decreasing or increasing radius. This feature may be used for circling fish or when searching an object on the seabed. If the Change radius is set to zero, the boat will turn in a circle. Negative values indicate decreasing radius while positive values indicate increasing radius.
  • Page 66 Lazy S-turn In the lazy-s turn the boat will yaw around the main course. You set the selected course change before the turn is started. During the turn you can alter the course change and the turn radius. The main course can be changed by turning the rotary knob.

  • Page 67: Nodrift Mode

    Depth gain This parameter determines the ratio between commanded rudder and the deviation from the selected depth contour. The higher depth gain value the more rudder is applied. If the value is too small it will take a long time to compensate for drifting off the set depth contour, and the autopilot will fail to keep the boat on the selected depth.
  • Page 68 When the Navigation mode is initiated, the pilot will automatically keep the vessel on the leg. When your vessel reaches the arrival circle for a waypoint, the pilot will give an audible warning and display an alert screen with the new course information. If the required course change to the next waypoint is less than the Navigation change limit, the autopilot will automatically change the course.

  • Page 69: Sailing With The Autopilot

    Sailing with the autopilot Several sailing parameter should be defined before entering Wind or WindNav mode. These parameters are described in the separate Autopilot installation section. Wind vane steering The WIND mode is only available if the system has been set up for sailboat in the Autopilot Installation menu.
  • Page 70 Tacking in Auto mode Tacking in AUTO mode is different from tacking in WIND mode. In AUTO mode the tack angle is fixed and as defined by the user. Refer to the sailing setup description in the separate Autopilot Installation section.

  • Page 71: Wind Steering And Navigation

    Wind steering and navigation In Wind Nav the autopilot steers the boat given both wind data and track data from a GPS/chart plotter. In Wind Nav mode the autopilot calculate the initial course change needed to navigate towards the active waypoint, but the pilot will also utilize the current wind direction in the calculation.

  • Page 72: Using The Nse In An Ap24/Ap28 System

    Sailboats When sailing in WIND mode, the parameter set is determined by the speed of the boat and the direction of the wind as illustrated below. So if you lose too much speed e.g. when tacking, the parameters will change to HI to gain sufficient rudder response. This should be observed when setting the transition speed on sailboats.
  • Page 73 Using the Autopilot in a EvC System When the NSE is connected to an EVC system via the SG05, you can take manual control of the steering irrespective of the autopilot mode. The mode indicator on the pilot pop-up will be replaced by a dash to indicate EVC override.

  • Page 74: Navigating

    11 Navigating The navigation function included in the NSE allows you to navigate towards the cursor position, a position defined by latitude and longitude values, a waypoint or along a predefined route. For information about positioning waypoints and creating routes, refer the Waypoints, Tracks and Routes section.

  • Page 75: Navigation Parameters

    Navigation parameters Navigation method MENU Different methods are available for calculating the distance and bearing between any two points on a chart. The great-circle route is the shortest path between two points. However, if you are to travel along such a route, it would be difficult to steer manually as the heading would constantly be changing (except in the case of due north, south, or along the equator).

  • Page 76: Navigation Panels

    Navigation panels The Steer and Position panels can be used to display information when you are navigating. The Steer panel DATA FIElDS USE lEFT/ RIGhT ARROW TO TOGGlE COURSE vESSEl OFF COURSE lINE SYMBOl lIMIT Data ields The Steer panel offers the following information: Distance to destination Bearing to waypoint Speed over ground...
  • Page 77 Position panel Data ields Position in lat. and lon. Time and date Speed over ground Course over ground 76 | Navigating...

  • Page 78: The Instrument Panel

    12 The instrument panel The instrument panel consists of multiple gauges — analog, digital and bar — that can be customized to display selected data. The instrument panel displays data on dashboards, and you can define up to ten dashboards within the instrument panel. MENU Switching between dashboards You switch between a panel’s dashboards by using the left and right arrow keys or by...
  • Page 79 Info Panel Time Plots The INFO page group includes a conigurable set of screens representing live data from the vessel. INFO The system can present data history in different plots, and data selection can be defined by the user. The plots can be set up as single panel layouts, or combined in one panel as shown below.

  • Page 80: Audio

    13 Audio When connected to a Navico Weather Module MKII, you can subscribe and include Sirius audio and Sirius Marine Weather Service on your NSE system. Sirius audio and weather service covers inland US waters and coastal areas into the Atlantic and Pacific oceans, Gulf of Mexico and the Caribbean Sea.
  • Page 81 The radio channels list The channels list displays all available Sirius channels, whether or not you have a subscription for the channel. MENU Adding channels to favorites list You can create of list of your favorite channels from within the channels list. When a favorite list is available, you page through this list when you use arrow keys;...

  • Page 82: Weather

    14 Weather The Sirius weather option can be displayed as overlay to your chart panel. When activated, weather options become available in the Chart menu. MENU COlORED BAR * PRECIPITATION * FORECAST WIND BARBS * * Optional weather image items You turn the optional weather graphics on/off individually.

  • Page 83: Weather Forecast

    Color codes The system uses shades of color on the weather image to indicate sea surface temperature (SST), and also for indicating wave height. By adjusting these limits you can select how the system uses the color scheme to separate between warm/cool water and minimum/maximum wave height.

  • Page 84: Bep Czone

    15 BEP CZone The NSE system intergrate with BEP’s CZone system used for controlling and monitoring a distributed power system on your vessel. A separate manual will be provided with your CZone system. Refer to this documentation and to the NSE Installation manual for how to install and configure the CZone system. The BEP CZone panel When the CZone system is connected and configured, the CZone icon will be available on the Pages panel.

  • Page 85: Czone System Overview Options

    CZone system overview options Enables you to monitor all on board parameters including tank levels displayed in graphical, percentage and volume remaining formats. Shows control options and monitoring information. Displays visual and audible alarms that can be set for high and low levels. The BEP CZone info panel When the CZone is installed and configured, an additional CZone dashboard will be added to the Instrument panels.

  • Page 86: The Utilities

    16 The utilities pages The utilities pages includes options and tools that are not specific to any panel. These pages act different to the chart, radar, echo etc. They are always full screen, and you cannot use them in a split page with any other panels. A utility page will open on top of your previous page.

  • Page 87: Alarms

    Alarms Active alarms List of active alarms. Alarm history List of all alarms with time stamp. Alarm settings List of all available alarm options in the system, with current settings. Satellites Status page for active satellites. Find Search function for several chart items. By pressing the MENU key you get access to available options for the selected item.

  • Page 88: Trip Log

    Trip log Trip 1 / Trip 2 option for all data ields. Displays voyage and engine information, with reset Today date. All data ields will be automatically reset when the Displays voyage and engine information for current date changes. Sun/moon Displays sunrise, sunset, moonrise and moonset for a position based on entered date and the position’s latitude/longitude...
  • Page 89 Blank page 88 | Utilities pages...

  • Page 90: Customizing Your System

    17 Customizing your system Page setup Your NSE system includes a set of predefined pages for each page group accessed by the Direct Access Key (DAK). The list of available pages is displayed when you press the DAK for the active page. Each page group can have up to 5 pages, organized as single panels or as a combination of panels.
  • Page 91 RADAR MENU MENU 90 | Customizing your system...

  • Page 92: Adjusting Panel Size

    Adjusting panel size You can adjust the size of the panels in a multi panel’s page by pressing the page group’s DAK. The illustration below shows how you change the size of a 3-panels Chart page. CHART MENU INFO Setting the appearance of the instrument bar Data sources connected to the system can be viewed in an instrument bar on top of your screen.

  • Page 93: Changing System Settings

    Changing system settings The system settings menu provides access to advanced settings for your NSE unit and determines the way your NSE unit displays various MENU user interface information on the display. Selecting language When you select your desired language; all panels, menus and dialogs will change accordingly.

  • Page 94: The Alarm System

    18 The alarm system The NSE system will continuously check for dangerous situations and system faults while the system is running. When an alarm situation occurs, an alarm message will pop up on the screen. If you have enabled the siren, the alarm message will be followed by an audible alarm. The alarm is recorded in the alarm listing so that you can see the details and take the appropriate corrective action.

  • Page 95: Customizing The Alarm Settings

    Customizing the alarm settings The alarms can be setup in Settings tab in the Alarms page. This page also includes information about active alarms and alarm history. MENU The Alarms page can also be activated from the Utilities pages. MENU The alarms are described in the chapter describing the corresponding feature.

  • Page 96: Using Video

    19 Using video The video function allows you to connect optional cameras to your NSE system. The video images will not be shared with other NSE units via the network! The video panel The video panel is accessed via the INFO key. INFO The video panel can also be set up in one of the other page groups accessed by the DAK keys.

  • Page 97: Optimizing The Video Image

    Optimizing the video image You can optimize the video display by adjusting the video image settings. Default for all settings: 50%. Selecting video standard NSE supports NTSC and PAL video. The two channels are set up individually. Check the local video standard or the standard of your cameras. 96 | Video...

  • Page 98: Maintenance

    Simple maintenance procedures Cleaning the display unit Clean the housing and the front glass of the NSE8/12 unit with a damp cloth and mild detergent. Checking the keys Make sure that no keys are stuck in the down position. However, if one is stuck, wiggle the key to free it back to normal.
  • Page 99 MENU 98 | Maintenance...

  • Page 100: Menu Overview

    21 Menu overview Settings menus System Fuel Tracks Chart Alarms Units Echo MENU Network Radar Vessels Navigation Simulator Menu overview | 99...

  • Page 101: Context Menus

    Context menus Goto menu Chart PLOT GO TO MARK VESSEL MENU Radar Echo Info Plot menu PLOT GO TO MARK VESSEL 100 | Menu overview...

  • Page 102: Index

    22 Index Symbols Chart context menu 21 Chart data 23 3D 24 Chart database 24 3D Zooming 24 Chart detail 22 Chart details 26 Chart details level 23 AC12 59 Full 23 AC42 59 Look Ahead 22 Adjustable depth 50 Low 22 AIS 85 Medium...
  • Page 103 Guard zone 36 Gybe 69 DAK 14, 91 Gybing 69 Dangerous situations 93 Dashboard 77, 84 Customize 77 Customizing 77 Heading data 33 Editing options 77 Heading up 22 Gauges 77 Heading up orientation 33 Data ields 87 Layout 77 Data source 17, 77 Data sources 91 Info 8...
  • Page 104 Navigation course 33 Radar screen 33 Navionics 24, 26 Radar signals 35 Fish’n Chip 25 Radar threshold 35 Night mode 12 Radio channels 80 NMEA2000 Depth 50 Rain clutter 35 Noise rejection 48 Range limit 41 North up 22 Range rings 37 NSE 96 Range settings 39 NSE system 89...
  • Page 105 Square-turn 64 Vessels 37, 85 Message listing 85 STC curve 34 Status listing 85 Steer 8 Vessels on the chart 39, 40 Steering Video 8 Control 70 Camera 95 Follow-up 62 Mirror image 95 Navigating with the NSE 66 NTSC 96 NoDrift 66 PAL 96 Power 62...
