DMX OPERATOR 384

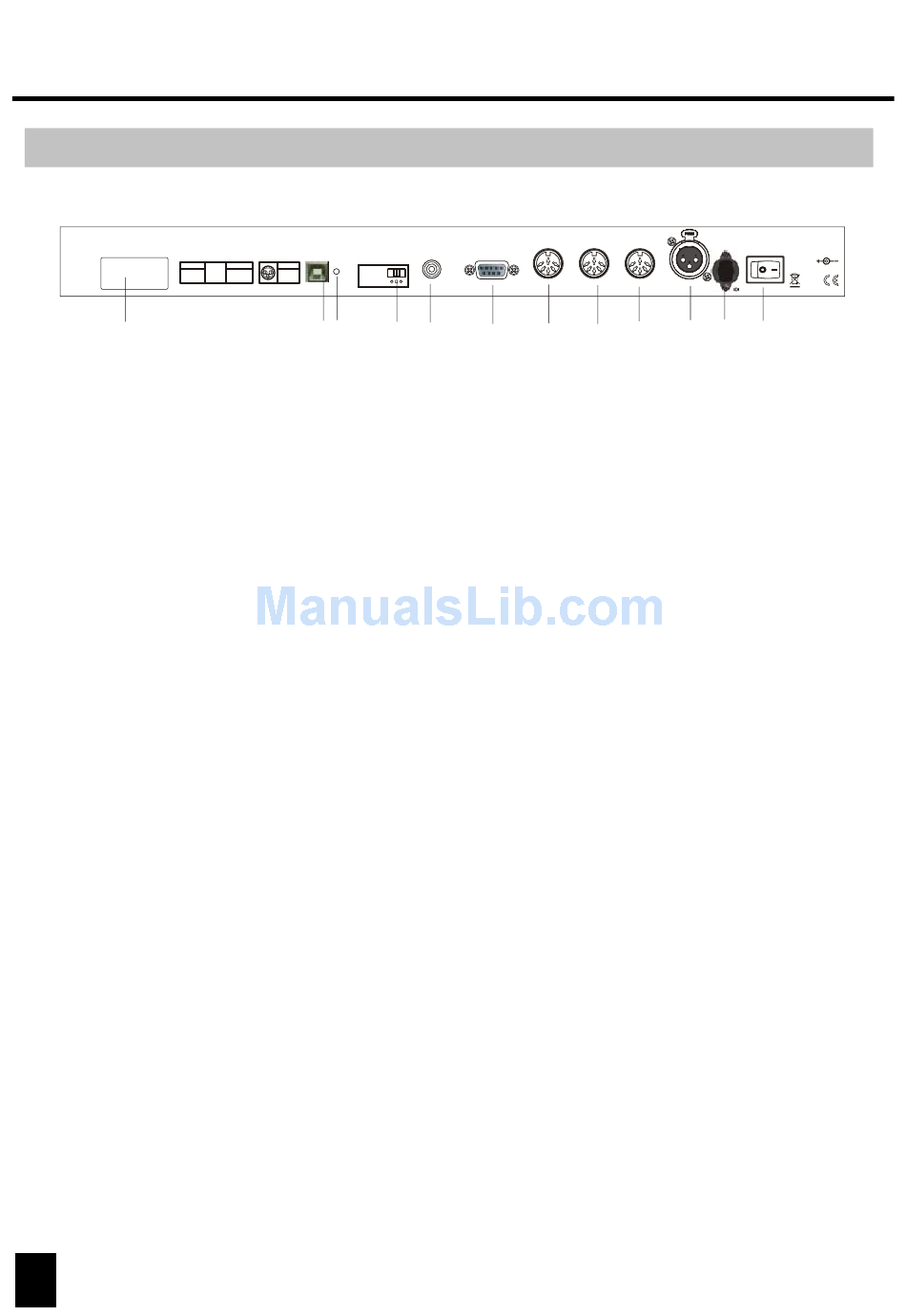

Rear Panel Overview

Serial Number:
Midi In
Midi In
1=NC; 2=NC 1=NC; 2=NC
3=NC; 4=V+ 3=NC; 4=V+ 1=NC; 2=NC
5=Signal 5=Signal 3=NC; 4=V+
5=Signal
1
1. Label:
lists model, serial number and production date.
2. Audio input:
to connect line level input for audio trigger (0.1V-1Vp-p).
3. DB-9 connector:
to connect optional external chase step controller.
4. MIDI IN:
to receive MIDI information from a midi sequencer or compatible device.
5. Fog machine connector:
to connect a compatible fog machine.
6. 3 Pin Female XLR:
DMX output. Connect to first device in line.
7. DC INPUT:
connects the included power supply to this input. (DC 9V~15V, 500mA Min).
8. Power switch:
used to switch the units power on and off.
9. USB Interface:
outputs the MIDI signal via USB interface when connected to MIDI controller.
10. LED Lamp:
indicates the working state of USB interface.
11. Switch:
switches the function of DMX controller or MIDI controller. The change will work
after re-startup.
12. MIDI Out Socket:
output the MIDI signal when connected to the MIDI controller.
6
Midi Out DMX Out
Midi
3 1 Midi Out
1=NC; 2=GND 1=NC; 2=GND
1 = Ground 1 = Ground
3 1
5 4 3=NC; 4=V+ 3=NC; 4=V+ 1=NC; 2=GND
2 = Data - 2 = Data -
2
DMX
5 4 5=Signal 5=Signal 3=NC; 4=V+ 3 = Data + 3 = Data +
2
5=Signal
USB
9 10
Audio
DB-9
Midi In
Line Input 0.1V-1Vp-p
EXT Step Control
11 2 3 4
Midi Out FOG Machine DMX Out DC In
12 5 6 7
DC input:
9V-12VDC, 500mA Min DC input:
9V-12VDC, 500mA Min
RoHS
Power
Made in P.R.C.
Made in PRC
8
