Summary of Contents for ADJ 32 HEX PANEL IP

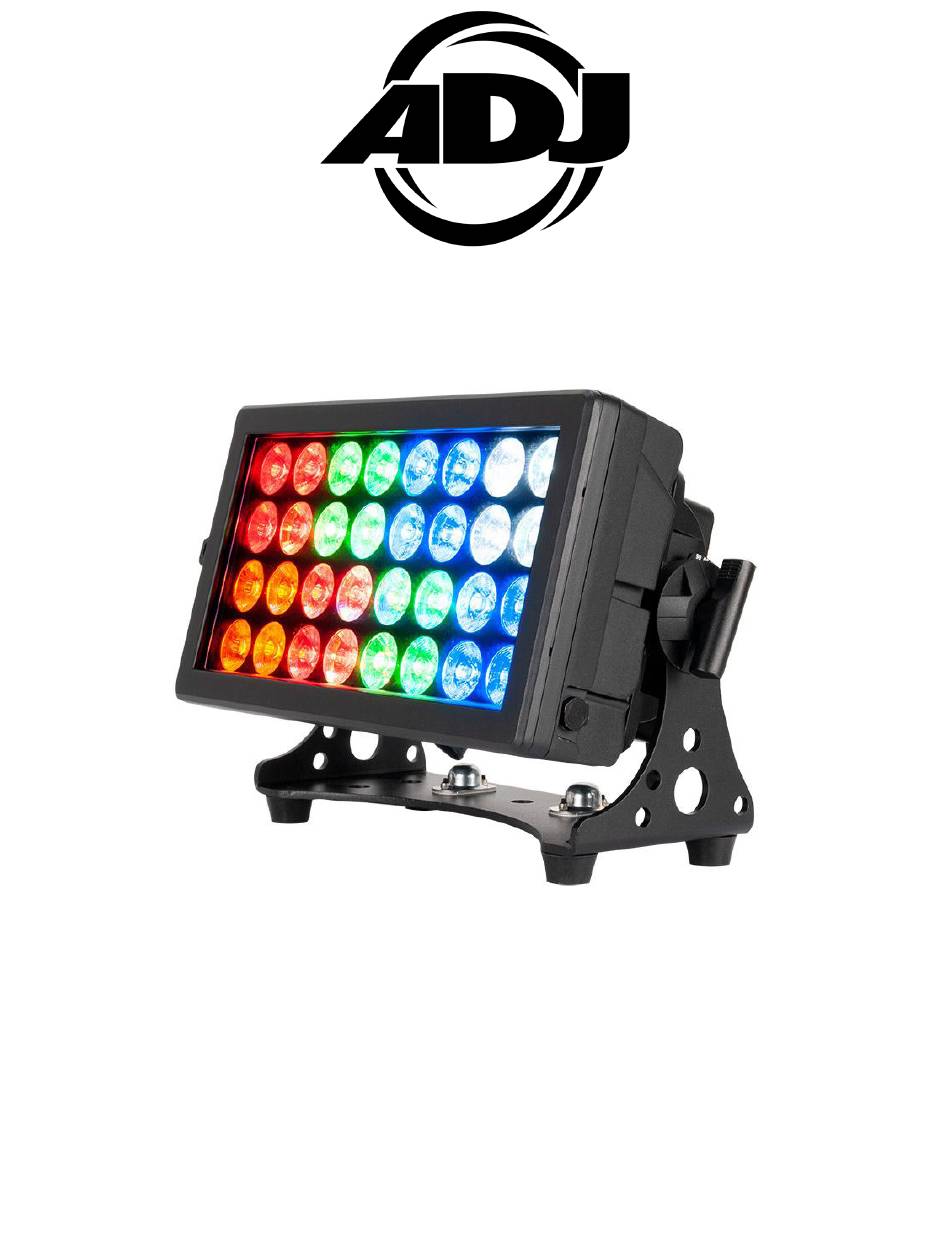

  • Page 1 32 HEX PANEL IP User Manual...
  • Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines IP Notice Overview Installation Connections Accessory Installation Remote Device Management (RDM) System Menu DMX Setup DMX Traits Color Macros Chart Primary-Secondary Configuration | Pixel Zones Dimmer Curve Chart Dimensional Drawings Multiple Unit Power Linking | Trouble Shooting | Cleaning...

  • Page 4: Introduction

    I N T R O D U C T I O N Introduction: The 32 Hex Panel IP/32 Hex Panel IP Pearl is a DMX intelligent, IP rated LED wash fixture that can be used in a stand alone mode or connected in a Primary/Secondary configuration. This fixture has five operating modes: RGBWA + UV dimmer mode, Static Color mode, Auto Run mode, Color Macro mode, and DMX control.

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N The 32 Hex Panel IP/32 Hex Panel IP Pearl carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 7: Safety Guidelines

    S A F E T Y P R E C A U T I O N S FOR YOUR OWN PERSONAL SAFETY, PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE ATTEMPTING INSTALLATION OR OPERATION OF THIS UNIT! • There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer’s warranty.
  • Page 8 S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT FROM THE UV LED. WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV LED.

  • Page 9: Ip Notice

    I P N O T I C E An IP rated lighting fixture is designed for installation in outdoor environments, and use a special en- closure that effectively protects against the entry of external foreign objects, such as dust and water. The Ingress Protection (IP) rating system is commonly expressed as “IP”...

  • Page 10: Overview

    O V E R V I E W LCD Screen Mode Button Up Button Down Button Enter Button Safety Cable Safety Cable Attachment Point Attachment Point Gore Valve IP65 Locking Power Connector Out IP65 Locking Power Connector In IP65 Locking 5-Pin XLR Connector Out IP65 Locking 5-Pin XLR Connector In...

  • Page 11: Installation

    OPTIONAL OMEGA BRACKET (Not Included) The 32 Hex Panel IP is fully operational in three different mounting positions: hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).

  • Page 12: Connections

    C O N N E C T I O N S ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT. TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIX- TURE, ALL CONNECTION RUBBER CAPS MUST BE SEALED WHEN NOT IN USE.

  • Page 13: Accessory Installation

    LED array cover. (Note: Not required when using Barn- doors) Barn Doors LED Array Cover 32 Hex Panel IP 2. Place the Barndoor attachment over the front of the unit. Align and insert the 4 barndoor thumb- screws into the matching holes located on each side of unit (2 on each side).

  • Page 14: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 15: System Menu

    S Y S T E M M E N U The fixture features an easy to navigate system menu control panel display where all necessary set- tings and adjustments can be made (see illustration below). During normal operation, pressing the MENU button once will access the fixture’s main menu.
  • Page 16 S Y S T E M M E N U MENU SUBMENU OPTIONS / VALUES DESCRIPTION Update Wait DISPLAY MENU Vx.xx 001 - 509 SET ADDR DMX addressing CH06 CH08 CH10 CH11 USER MODE DMX channel mode CH16 CH48 CH57 CH96 Standard Stage...
  • Page 17 S Y S T E M M E N U MENU SUBMENU OPTIONS / VALUES DESCRIPTION Fahren / Celsius Temp Temperature display units 000 - 255 Green 000 - 255 Blue 000 - 255 Settings White Bal White balance setting White 000 - 255 Amber...
  • Page 18 S Y S T E M M E N U MENU SUBMENU OPTIONS / VALUES DESCRIPTION Dimmer 000 - 255 All Red 000 - 255 All Green 000 - 255 All Blue 000 - 255 All White 000 - 255 All Amber 000 - 255 All UV...
  • Page 19 2. Use the UP or DOWN buttons to find your desired DMX address, and press ENTER. DMX Channel Modes: Use this function to select your desired DMX channel mode. The 32 Hex Panel IP/32 Hex Panel IP Pearl has 7 DMX channel modes: 6/10/11/16/48/57/96.
  • Page 20 S Y S T E M M E N U Static Color Mode, Color Change Mode, and Color Fade Mode: 1. Press the MODE button to access the main menu. Press the UP or DOWN buttons to scroll to “Menu Function” and press ENTER. Press the UP or DOWN buttons until ONE of the following running modes is displayed: •...
  • Page 21 S Y S T E M M E N U Unit Temperature: Switch the temperature setting between celsius or fahrenheit. 1. Press the MODE button to access the main menu. Press the UP or DOWN buttons until “Menu Function” is displayed and press ENTER. 2.
  • Page 22 S Y S T E M M E N U Temperature Information: 1. Press the MODE button to access the main menu. Press the UP or DOWN buttons until “Menu Info” is displayed and press ENTER. 2. Press the UP or DOWN buttons until “Temp Info” is displayed and press ENTER. 3.
  • Page 23 IP Pearl can be controlled via DMX-512 protocol. The DMX address is set on the back panel of the 32 Hex Panel IP/32 Hex Panel IP Pearl, and the unit and DMX controller require a standard 5-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).

  • Page 24: Dmx Setup

    D M X S E T U P All fixtures should be given a DMX starting address when using a DMX controller, to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel num- ber from which the fixture starts to “listen”...

  • Page 25: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 11CH 16CH 48CH 57CH 96CH Red (All LEDs), 0-100% 000 - 255 000 - 255 Green (All LEDs), 0-100% Blue (All LEDs), 0-100% 000 - 255 White (All LEDs), 0-100% 000 - 255 Amber (All LEDs), 0-100% 000 - 255...
  • Page 26 D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 11CH 16CH 48CH 57CH 96CH UV Fine Zone 3, 0-100% 000 - 255 Red Zone 4, 0-100% 000 - 255 Red Fine Zone 4, 0-100% 000 - 255 Green Zone 4, 0-100% 000 - 255 000 - 255...
  • Page 27 D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 11CH 16CH 48CH 57CH 96CH Green Fine Zone 7, 0-100% 000 - 255 000 - 255 Blue Zone 7, 0-100% Blue Fine Zone 7, 0-100% 000 - 255 White Zone 7, 0-100% 000 - 255 White Fine Zone 7, 0-100%...
  • Page 28 D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 11CH 16CH 48CH 57CH 96CH Auto Programs (continued) 111 - 126 Flow 3 127 - 143 Flow 4 144 - 160 Flow 5 161 - 176 Flow 6 177 - 193 Flow 7 194 - 210...

  • Page 29: Color Macros Chart

    C O L O R M A C R O S C H A R T COLOR INTENSITY COLOR VALUES GREEN BLUE WHITE AMBER Color1 001 - 004 Color2 005 - 008 Color3 009 - 012 Color4 013 - 016 Color5 017 - 020 Color6...
  • Page 30 C O L O R M A C R O S C H A R T COLOR INTENSITY COLOR VALUES GREEN BLUE WHITE AMBER Color38 149 - 152 Color39 153 - 156 Color40 157 - 160 Color41 161 - 164 Color42 165 - 168 Color43...

  • Page 31: Primary-Secondary Configuration | Pixel Zones

    P R I M A R Y- S E C O N D A R Y C O N F I G U R AT I O N This function will allows units to be linked together to run in a Primary-Secondary set-up, where one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 32: Dimmer Curve Chart

    D I M M E R C U R V E C H A R T DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)

  • Page 33: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S FIXTURE ONLY 6.5” / 165.5mm 6.1” / 155.5mm 14” / 354mm 12.9” / 329mm...
  • Page 34 D I M E N S I O N A L D R AW I N G S FIXTURE WITH BARNDOORS INSTALLED 15.56” / 395.3mm 1.86” / 47.3mm...

  • Page 35: Multiple Unit Power Linking | Trouble Shooting | Cleaning

    M U LT I P L E U N I T P O W E R L I N K I N G This feature allows fixtures to be linked together using the power cable input and output sockets. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES, AS THE POWER CONSUMP- TION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIX- TURE! CHECK SILK SCREEN FOR MAX AMPS.

  • Page 36: Specifications

    S P E C I F I C AT I O N S Model: 32 Hex Panel IP / 32 Hex Panel IP Pearl Voltage: 100V - 240V / 50-60 Hz LEDs: 32 x 12W 6-in-1 Hex LEDs IP Rating:...
  • Page 37 This page intentionally left blank.
