Summary of Contents for CYP CLUX-2

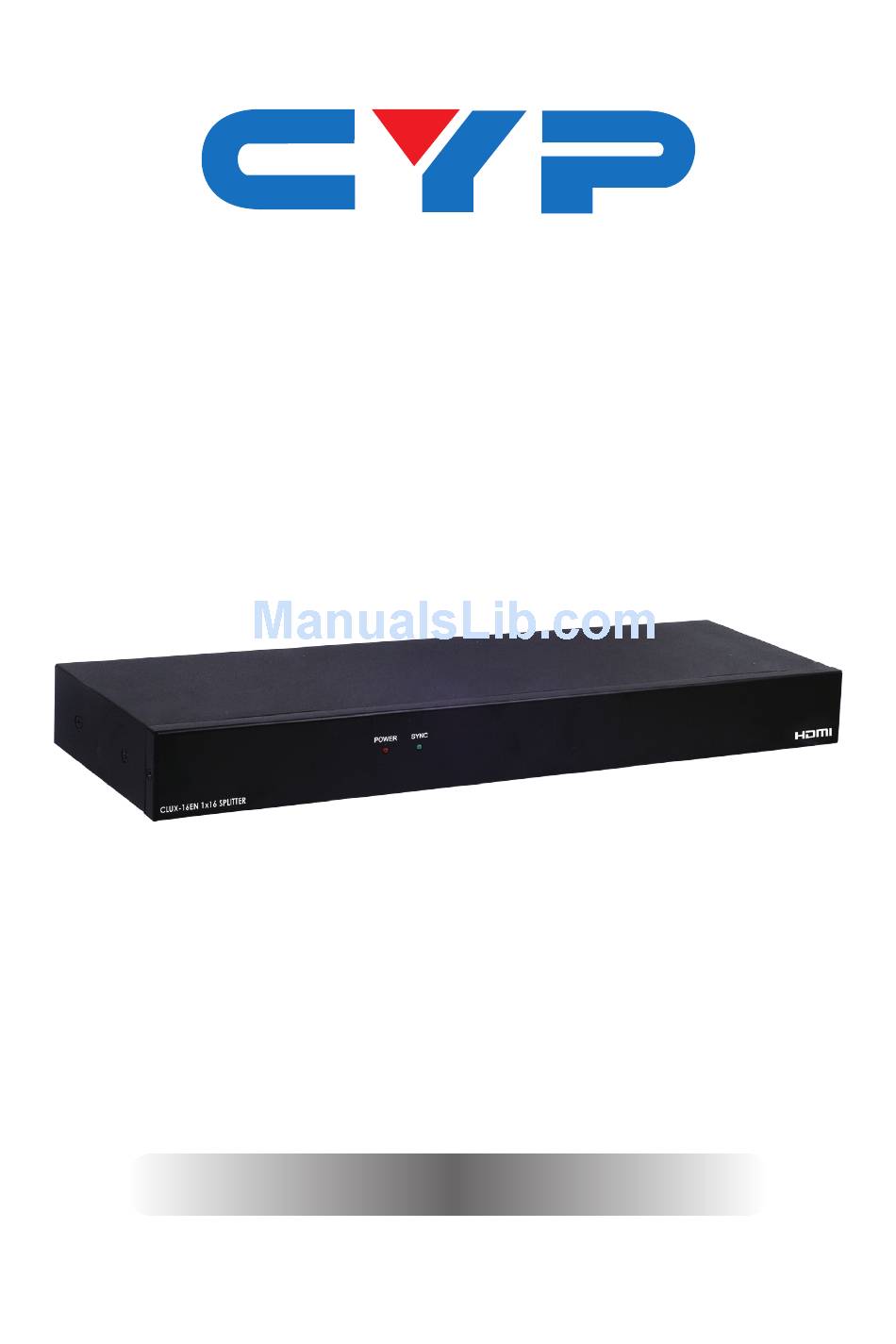

- Page 1 CLUX-2/4/8/16EN HDMI 1 by 2 /1 by 4/ 1 by 8/ 1 by 16 Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection and Installation ....4 8.
-
Page 6: Introduction
1. INTRODUCTION The HDMI splitter series which sends a Hi-Def A/V source to up to 2/4/8/16 HDTV displays simultaneously without any quality or resolution loss. It support, 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. 2. -
Page 7: Operation Controls And Functions

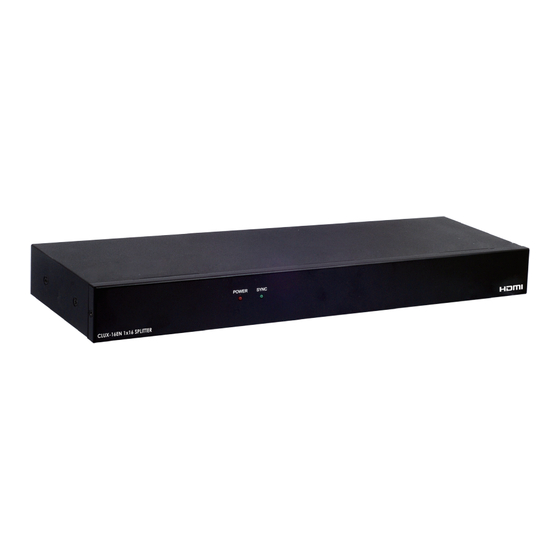

6. OPERATION CONTROLS AND FUNCTIONS The following sections describe the hardware components of the unit. 6.1 Front Panel POWER SYNC CLUX-16EN 1x16 SPLITTER POWER LED The power LED will illuminate when power on. SYNC LED The LED will illuminate when the HDMI source signal is connected to the input port. -
Page 8: Rear Panel
6.2 Rear Panel INPUT OUTPUT DC 5V EDID SERVICE 1 2 3 EDID STD/TV Default factory setting is TV, leave as it is if the display is properly. Switch to STD to use build-in EDID if the display has problems. When the EDID control switch in TV selection, the unit will detect the first HDMI output source’s EDID and record in the unit. -
Page 9: Connection And Installation
7. CONNECTION AND INSTALLATION Blu-ray or PS3 Player HDMI INPUT OUTPUT DC 5V EDID SERVICE HDMI 3D TV/Display... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Port 1x HDMI (Female type) 1xUSB (Service only) Output Port 2 /4/8/16 x HDMI (Female type) Output Resolution 480i ~1080p 50/60, 1080p24/50/60, VGA~WUXGA ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions (mm) 103 mm(W) x 155 mm(D) x 25 mm(H)/2EN 141 mm(W) x 99 mm(D) x 93 mm(H)/4EN... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUX16EN...
