PART iDENTiFiCATiON CHART

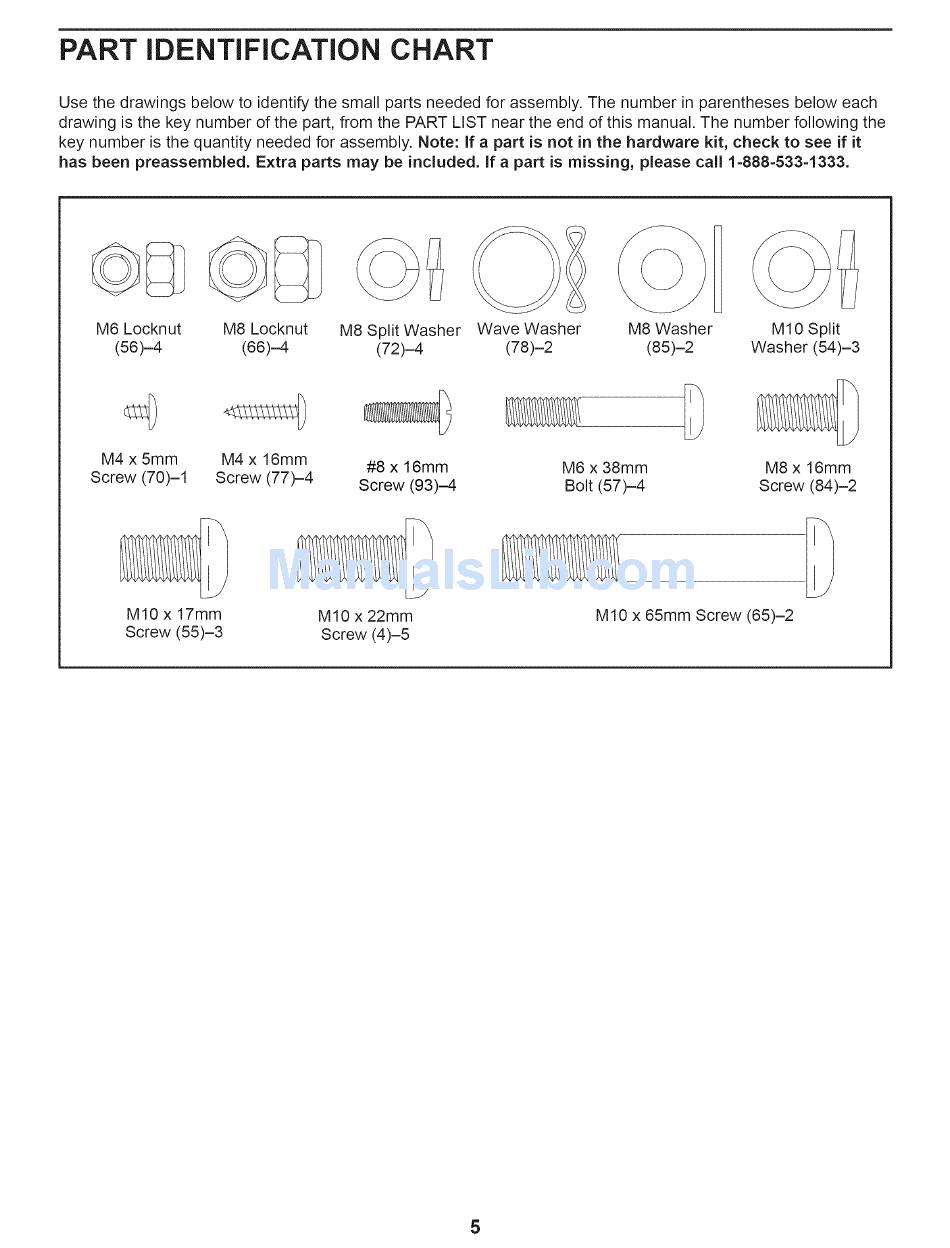

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included. If a part is missing, please call 1-888-533-1333.
M6 Locknut
(56)-4
M8 Locknut
(66)-4
M8 Split Washer
(72)-4
M4 x 5mm
Screw (70)-1
M10 x 17mm
Screw
(55)-3
M4 x 16mm
Screw (77)-4
#8 x 16mm
Screw (93)-4
M10 x 22mm
Screw (4)-5
Wave Washer
(78)-2
]
M8 Washer
(85)-2
M6 x 38mm
Bolt (57)-4
MI0 Split
Washer (54)-3
M8 x 16mm
Screw (84)-2
\
M10 x 65mm Screw (65)-2
