PART IDENTIFICATION CHART

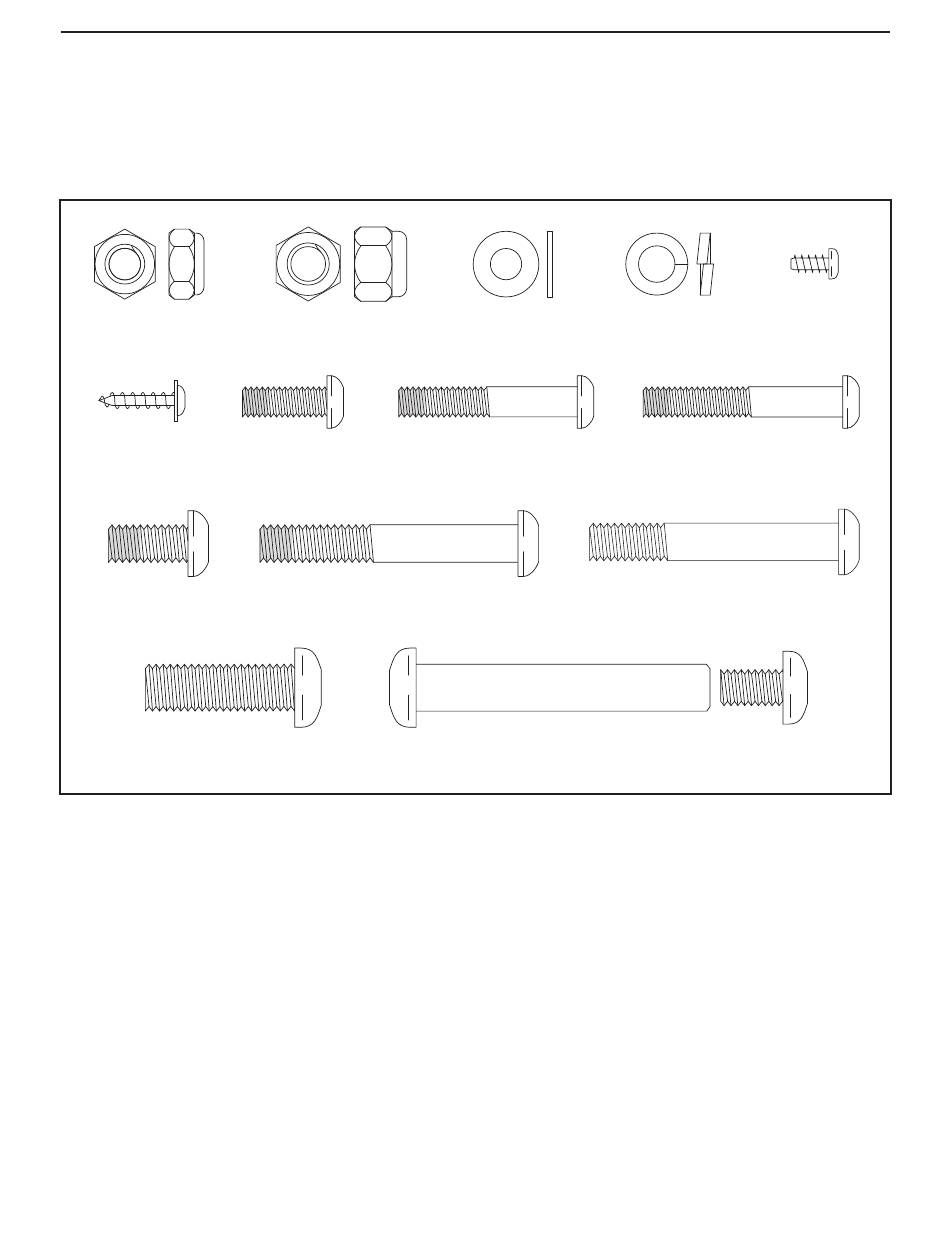

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 Jam
Locknut (89)–2
M4 x 16mm
M6 x 18mm Patch
Flange
Screw (80)–4
M8 x 16mm Patch
Screw (54)–6
M10 x 32mm
Button Bolt (78)–2
M10 Locknut
(87)–2
Screw (77)–2
M8 x 55mm Patch
Screw (52)–4
M6 Washer
(44)–4
M6 x 38mm Patch
Screw (81)–4
M10 x 63mm Bolt Set (62)–1
5
M4 x 8mm
M8 Split
Screw (92)–1
Washer (55)–10
M6 x 42mm Patch
Screw (51)–2
M8 x 53mm Button
Bolt (72)–2
