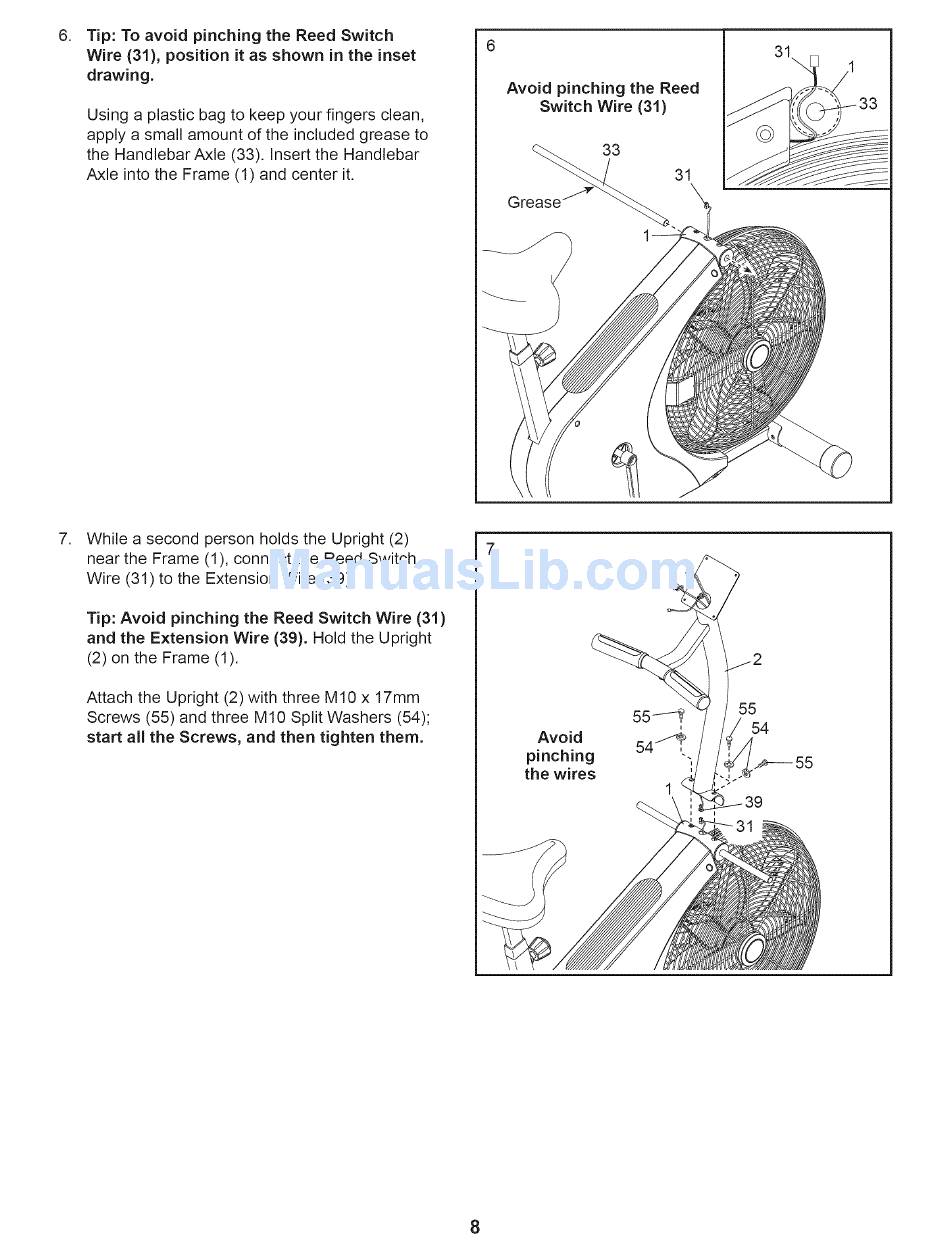

6. 6
Tip: To avoid pinching the Reed Switch
Wire (31), position it as shown in the inset
drawing.
Using a plastic bag to keep your fingers clean,
apply a small amount of the included grease to
the Handlebar Axle (33). Insert the Handlebar
Axle into the Frame (1) and center it.
Avoid pinching the Reed
Switch Wire (31)
Grease
33
31
31
,
While a second person holds the Upright (2)
near the Frame (1), connect the Reed Switch
Wire (31) to the Extension Wire (39).
Tip: Avoid pinching the Reed Switch Wire (31)
and the Extension Wire (39). Hold the Upright
(2) on the Frame (1).
Attach the Upright (2) with three MI0 x 17mm
Screws (55) and three MI0 Split Washers (54);
start all the Screws, and then tighten them.
Avoid
pinching
the wires
55
54
