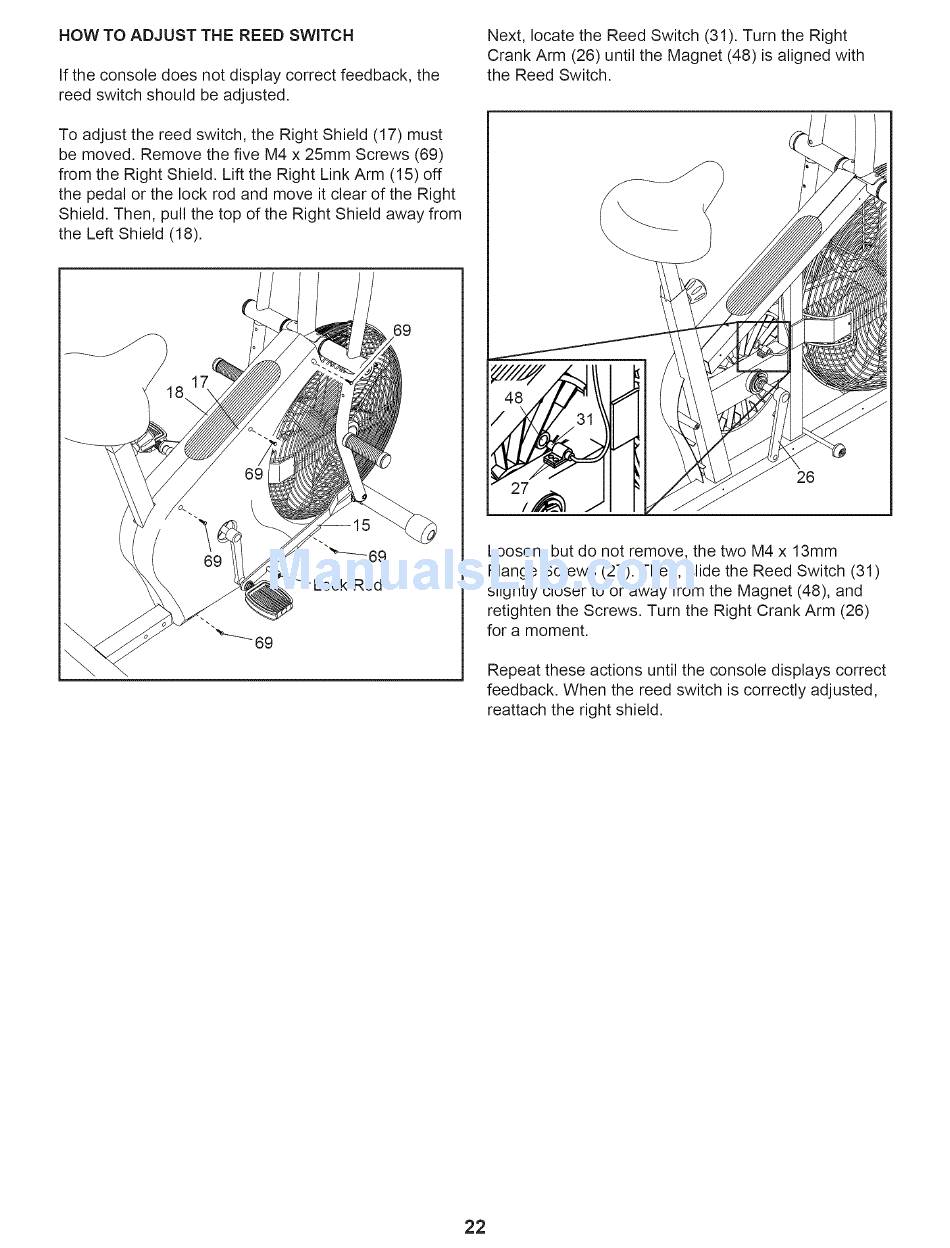

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, the Right Shield (17) must
be moved. Remove the five M4 x 25mm Screws (69)
from the Right Shield. Lift the Right Link Arm (15) off
the pedal or the lock rod and move it clear of the Right
Shield. Then, pull the top of the Right Shield away from
the Left Shield (18).
69
Next, locate the Reed Switch (31). Turn the Right
Crank Arm (26) until the Magnet (48) is aligned with
the Reed Switch.
26
Loosen, but do not remove, the two M4 x 13mm
Flange Screws (27). Then, slide the Reed Switch (31)
slightly closer to or away from the Magnet (48), and
retighten the Screws. Turn the Right Crank Arm (26)
for a moment.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the right shield.
