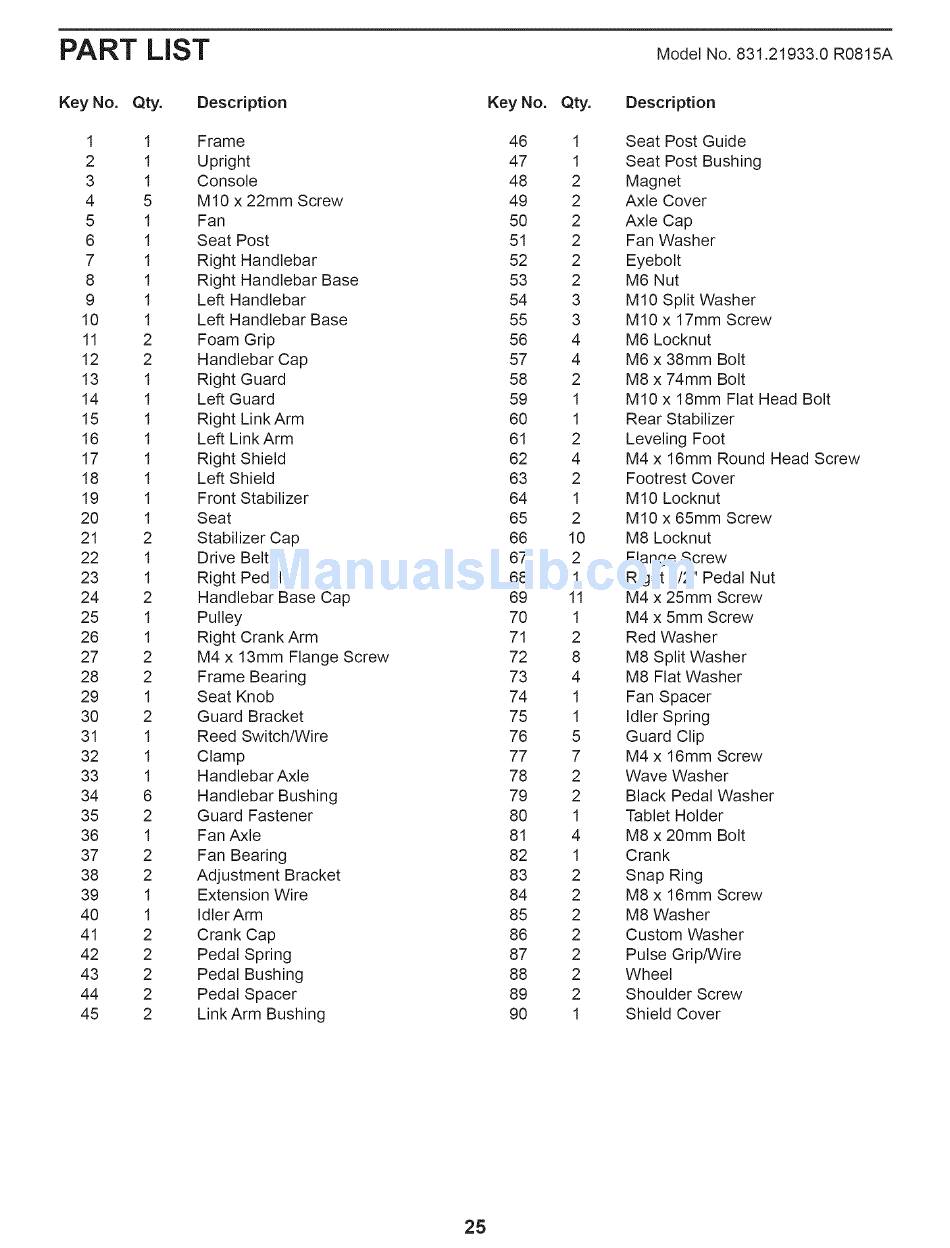

PART LIST
Model No. 831,21933,0 R0815A
Key No. Qty.
1 1
2 1
3 1
4 5
5 1
6 1
7 1
8 1
9 1
10 1
11 2
12 2
13 1
14 1
15 1
18 1
17 1
18 1
19 1
2O 1
21 2
22 1
23 1
24 2
25 1
28 1
27 2
28 2
29 1
3O 2
31 1
32 1
33 1
34 8
35 2
36 1
37 2
38 2
39 1
4O 1
41 2
42 2
43 2
44 2
45 2
Description
Frame
Upright
Console
MI0 x 22mm Screw
Fan
Seat Post
Right Handlebar
Right Handlebar Base
Left Handlebar
Left Handlebar Base
Foam Grip
Handlebar Cap
Right Guard
Left Guard
Right Link Arm
Left Link Arm
Right Shield
Left Shield
Front Stabilizer
Seat
Stabilizer Cap
Drive Belt
Right Pedal
Handlebar Base Cap
Pulley
Right Crank Arm
M4 x 13mm Flange Screw
Frame Bearing
Seat Knob
Guard Bracket
Reed Switch/Wire
Clamp
Handlebar Axle
Handlebar Bushing
Guard Fastener
Fan Axle
Fan Bearing
Adjustment Bracket
Extension Wire
Idler Arm
Crank Cap
Pedal Spring
Pedal Bushing
Pedal Spacer
Link Arm Bushing
Key No.
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
7O
71
72
73
74
75
76
77
78
79
8O
81
82
83
84
85
86
87
88
89
90
Qty.
1
1
2
2
2
2
2
2
3
3
4
4
2
1
1
2
4
2
1
2
10
2
1
11
1
2
8
4
1
1
5
7
2
2
1
4
1
2
2
2
2
2
2
2
1
Description
Seat Post Guide
Seat Post Bushing
Magnet
Axle Cover
Axle Cap
Fan Washer
Eyebolt
M6 Nut
MI0 Split Washer
MI0 x 17mm Screw
M6 Locknut
M6 x 38mm Bolt
M8 x 74mm Bolt
MI0 x 18mm Flat Head Bolt
Rear Stabilizer
Leveling Foot
M4 x 16mm Round Head Screw
Footrest Cover
MI0 Locknut
MI0 x 65mm Screw
M8 Locknut
Flange Screw
Right 1/2" Pedal Nut
M4 x 25mm Screw
M4 x 5mm Screw
Red Washer
M8 Split Washer
M8 Flat Washer
Fan Spacer
Idler Spring
Guard Clip
M4 x 16mm Screw
Wave Washer
Black Pedal Washer
Tablet Holder
M8 x 20mm Bolt
Crank
Snap Ring
M8 x 16mm Screw
M8 Washer
Custom Washer
Pulse Grip/Wire
Wheel
Shoulder Screw
Shield Cover
25
