Appendix A. Explorer 16 Development Board Schematics

A.1 INTRODUCTION
This section provides detailed technical information on the Explorer 16 Development
Board with the PIC32MX PIM.
A.2 DEVELOPMENT BOARD BLOCK DIAGRAM WITH PIC32MX

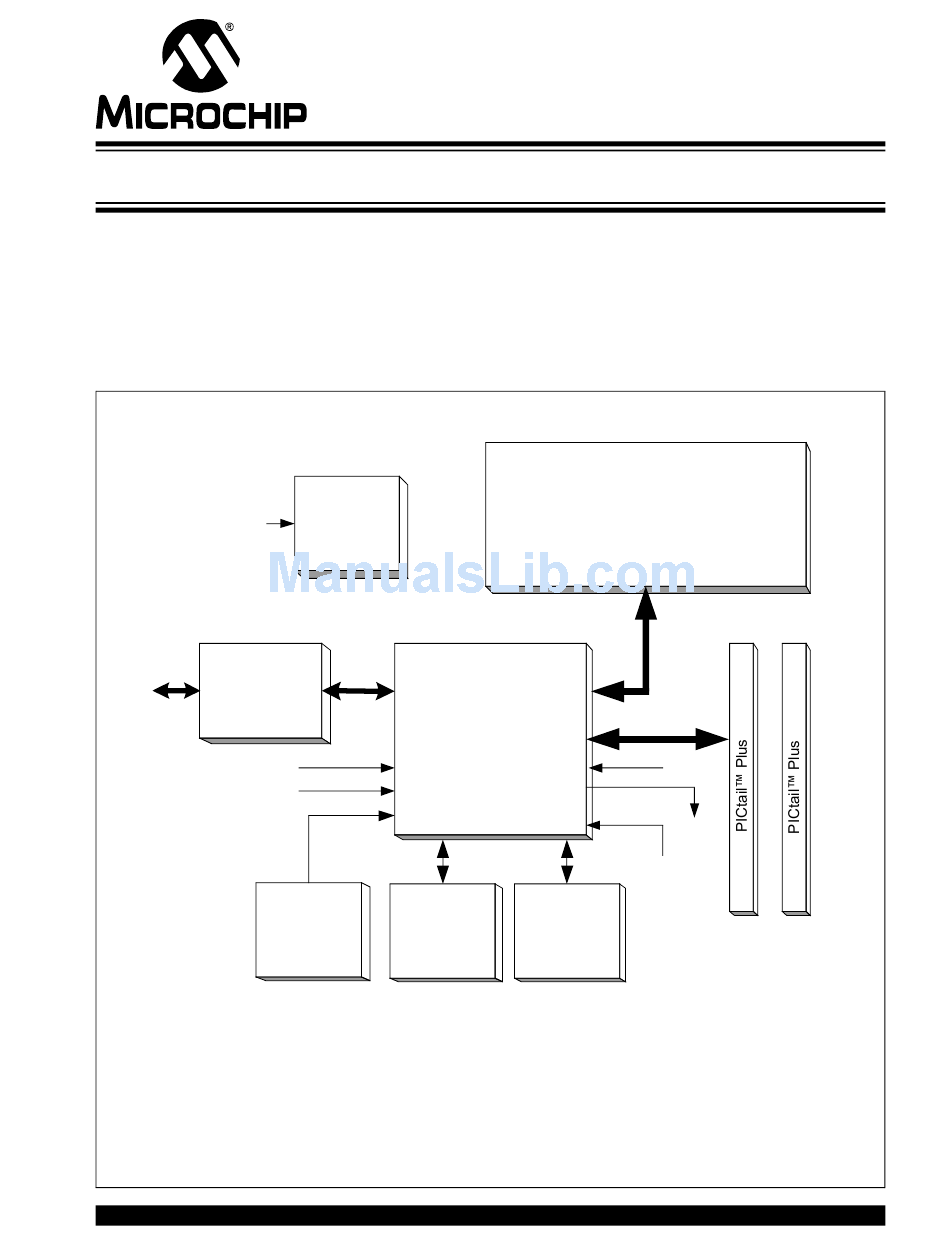

FIGURE A-1: HIGH-LEVEL BLOCK DIAGRAM OF THE EXPLORER 16 DEVELOPMENT BOARD
9-15 VDC
USB
PIC18LF4550
ICD/ICSP
JTAG
Temperature
* Hardware support only. Firmware support for SPI, JTAG, and ICSP™ via USB is not available at this time.
Note: LEDs are multiplexed with the JTAG pin. If JTAG is used for debugging, the LEDs may not function
properly.
© 2008 Microchip Technology Inc.
EXPLORER 16 DEVELOPMENT BOARD
USER'S GUIDE ADDENDUM FOR PIC32MX
+3.3V and
+5V Supply
SPI*
ICSP*
JTAG*
PIC32MX360F512L
RS-232
Sensor
Transceiver
16x2 LCD Display
POT
LEDs
Switches
SPI
EEPROM
Modular Expansion
Connector
DS61147A-page 15
