Explorer 16 Development Board User's Guide Addendum for PIC32MX

1.9

PROGRAMMING THE DEVICE

1.9.1

From the menu bar, click Debugger >Select Tool >REAL ICE.

If prompted for the firmware update, click Ok to update. Make sure that the MPLAB

REAL ICE in-circuit emulator is connected to the PC and to the Explorer 16 Board.

1.9.2

Perform the following steps to program the device:

1. Click the "Program" icon (Figure 1-7) in the MPLAB REAL ICE in-circuit emulator

window to program the device.

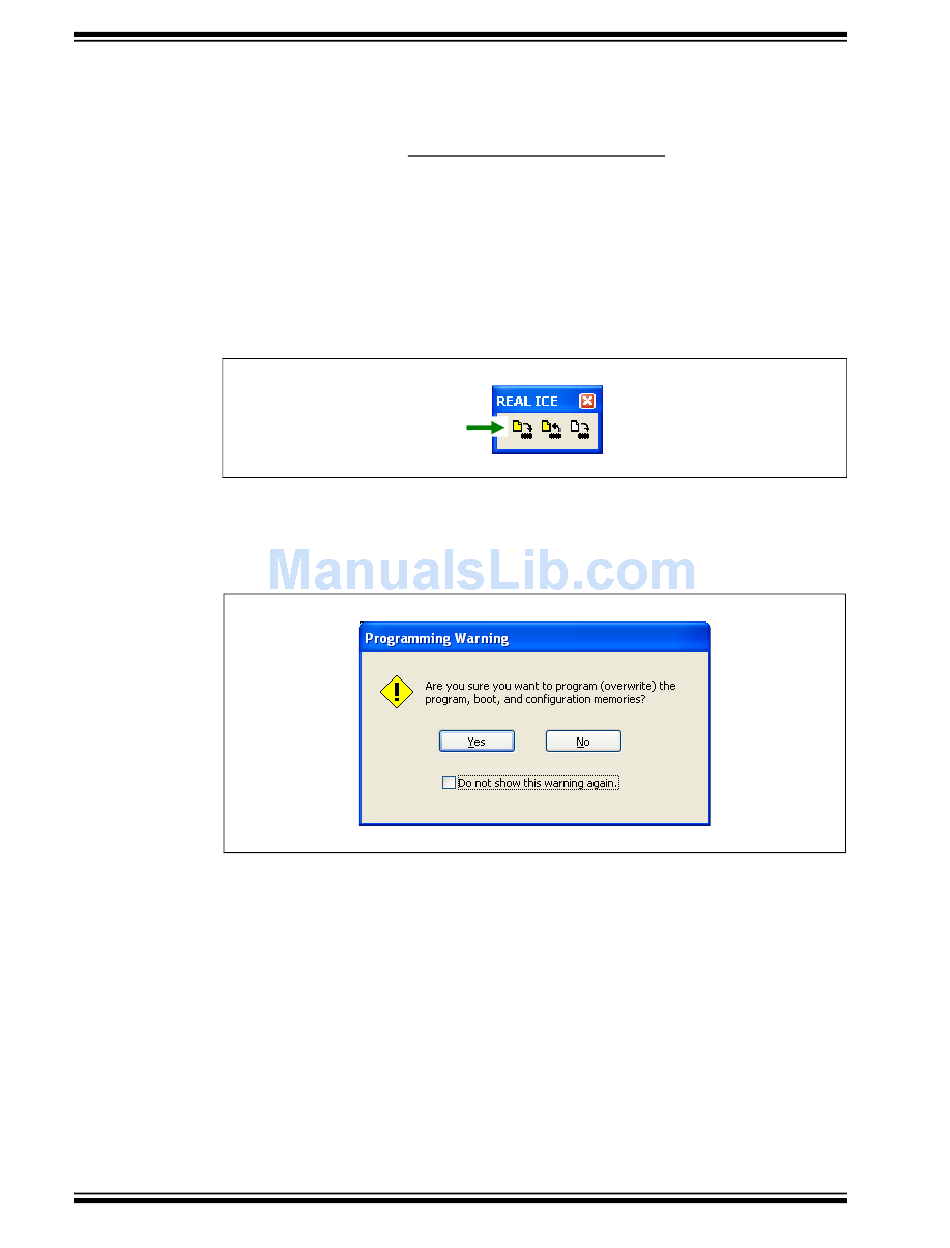

FIGURE 1-7:

A Programming Warning window (Figure 1-8) is displayed to warn you about

overwriting the memory.

2. Click Yes.

FIGURE 1-8:

Monitor the Output window (Figure 1-9) for progress as the device is programmed. A

verification will notify you that the programming and verification is complete.

DS61147A-page 8

Select the Tool

Program the Device

PROGRAM ICON IN MPLAB

PROGRAMMING WARNING WINDOW

REAL ICE™ WINDOW
