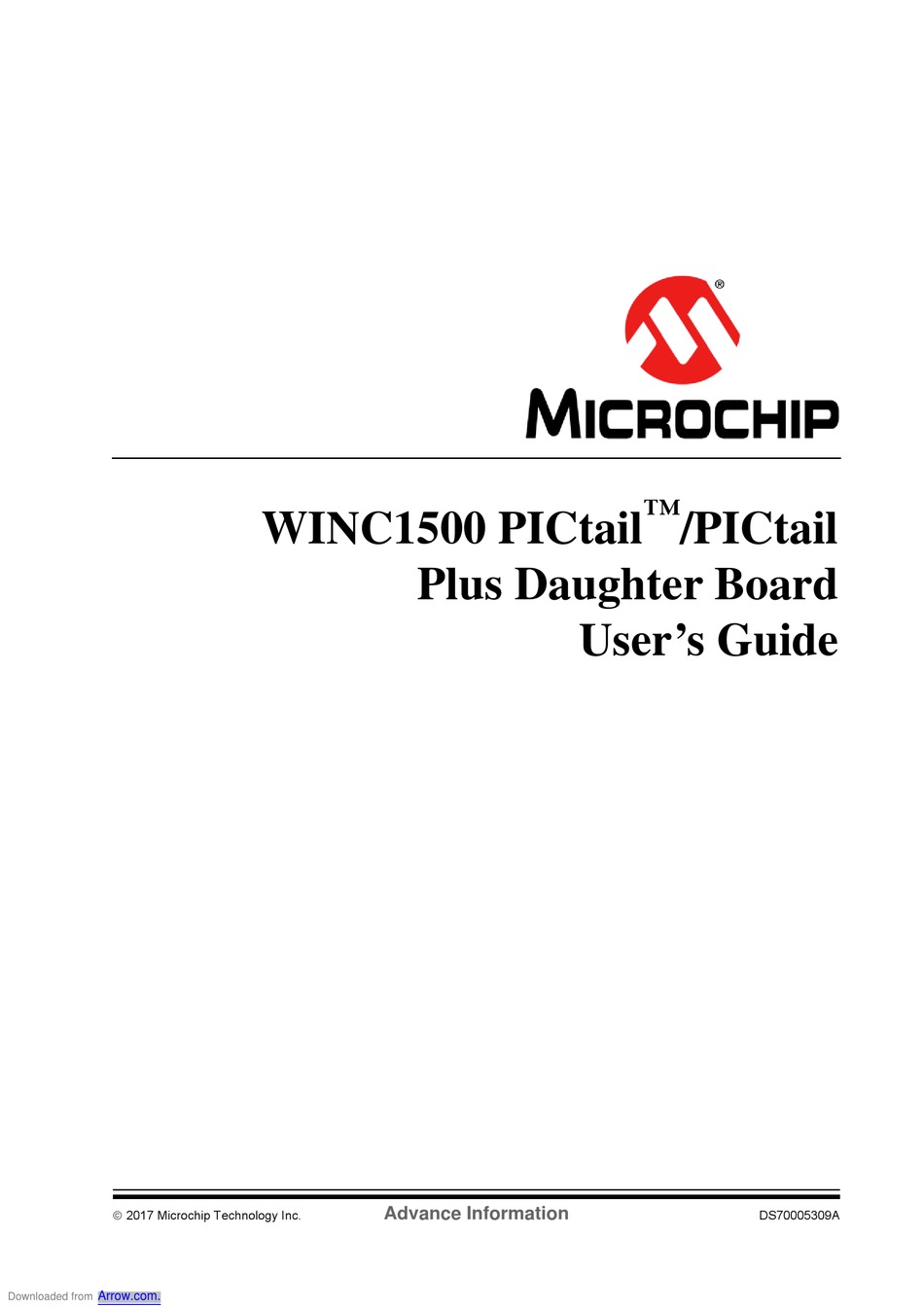

- Page 1 ™ WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide Advance Information 2017 Microchip Technology Inc. DS70005309A Arrow.com. Downloaded from...
- Page 2 Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design Germany II GmbH & Co. KG, a subsidiary of Microchip Technology and manufacture of development systems is ISO 9001:2000 certified. Inc., in other countries.
- Page 3 For information regarding the exclusive, limited warranties applicable to Microchip products, please see Microchip’s standard terms and conditions of sale, which are printed on our sales documentation and available at www.microchip.com. Signed for and on behalf of Microchip Technology Inc. at Chandler, Arizona, USA. Advance information ...
- Page 4 WINC1500 PICtail™/PICtail Plus Daughter Board User’s Guide NOTES: Advance information 2017 Microchip Technology Inc. DS70005309A-page 4 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 5: Table Of Contents
3.2 Plugging into Explorer 16 Development Board ..........20 3.3 Plugging into Explorer 16/32 Development Board ........21 A.1 Reference Schematics ................. 23 B.1 WINC1500 PICtail/PICtail Plus Daughter Board Bill Of Materials ....27 Advance Information 2017 Microchip Technology Inc. - Page 6 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide NOTES: Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 6 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 7 ™ This document describes how to use the WINC1500 PICtail /PICtail Plus Daughter Board (also referred as WINC1500 daughter board or daughter board). This user’s guide is composed of the following chapters: • provides an overview of the WINC1500 PICtail/PICtail Chapter 1.
- Page 8 This is a caution note. or figure, it is located at the Note 1: This is a note used in a bottom of the table or figure. table. Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 8 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 9 Preface RECOMMENDED READING This user’s guide describes how to use the WINC1500 PICtail/PICtail Plus Daughter Board. The following Microchip document is available and recommended as supple- mental reference resources. • WINC1500-MR210PB IEEE 802.11 b/g/n IoT Module Data Sheet (DS70005304) • WINC1500B IEEE 802.11 b/g/n Network Controller SoC Data Sheet •...
- Page 10 (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document. Technical support is available through the web site at: http://support.microchip.com. Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 10 Arrow.com. Arrow.com. Arrow.com.
- Page 11 Preface DOCUMENT REVISION HISTORY Revision A (May 2017) This is the initial released version of this document. Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 11 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...
- Page 12 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide NOTES: Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 12 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 13: Chapter 1. Introduction

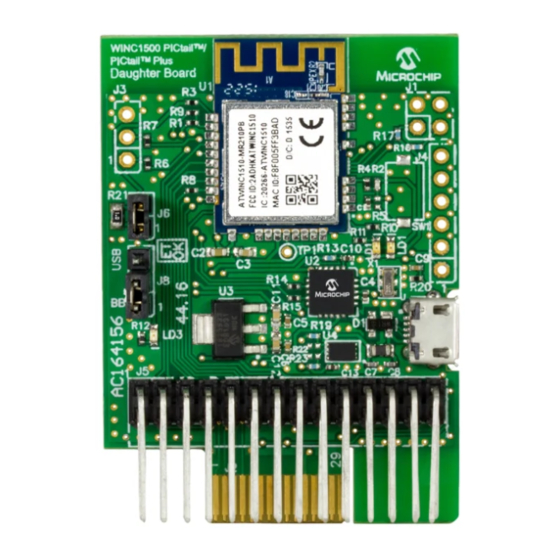

CAUTION Power to the WINC1500 PICtail/PICtail Plus Daughter Board must be in the range of 3.0V to 3.6V. Ensure that the daughter board is plugged into a development/demonstration board that meets the voltage requirement; otherwise, damage to the WINC1500 board may occur. - Page 14 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide Figure 1-1 illustrates the top view of the WINC1500 PICtail/PICtail Plus Daughter Board with the following components: 1. ATWINC1510-MR210PB module (U1) 2. MCP2200 (U2) 3. ATECC508A Crypto IC (U4) 4. I C debug header (J1) 5.
-
Page 15: Chapter 2. Hardware
This chapter describes the hardware features of the WINC1500 PICtail/PICtail Plus Daughter Board. HEADERS AND CONNECTORS This section provides the details of each component on the WINC1500 PICtail/PICtail Plus Daughter Board. For the location of these components, see Figure 1-1. - Page 16 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide 2.1.3 C Debug Header (J1) The WINC1500 PICtail/PICtail Plus Daughter Board has an UART debug header which connects the I C debug interface to the ATWINC1510-MR210PB module. This header is not populated.
-
Page 17: Peripherals
2.1.6 Power Source Selection Connector (J8) The jumper header J8, on the WINC1500 PICtail/PICtail Plus Daughter Board, is used to select power source for the daughter board. The daughter board can be powered either from the power supply of the base board or from the external USB supply. - Page 18 /PICtail Plus Daughter Board User’s Guide 2.2.3 Power LED (LD3) A power indication LED on the WINC1500 PICtail/PICtail Plus Daughter Board. This LED will be ON when the daughter board is provided with an adequate power supply. 2.2.4 Crypto Device - ATECC508A (U4) The WINC1500 PICtail/PICtail Plus Daughter Board contains a ATECC508A Crypto authentication device.
-
Page 19: Chapter 3. Getting Started
3.3 “Plugging into Explorer 16/32 Development Board” PLUGGING INTO PIC18 EXPLORER BOARD The WINC1500 PICtail/PICtail Plus Daughter Board can be plugged into the PICtail connector (J3) of the PIC18 Explorer Board. Ensure that the pin1 is aligned to RE2 as... -
Page 20: Plugging Into Explorer 16 Development Board
The WINC1500 daughter board with 30-pin card edge connector can be plugged into the top (pin 1-30) of the PICtail Plus connector. This will connect the WINC1500 module to the SPI Port 1 on the PIC microcontroller that is plugged into the PIM socket. If the daughter board is plugged into the mid-section of the PICtail Plus connector, this will connect to SPI Port 2 on the PIC microcontroller. -
Page 21: Plugging Into Explorer 16/32 Development Board
WINC1500 DAUGHTER BOARD PLUGGED INTO EXPLORER 16 DEVELOPMENT BOARD PLUGGING INTO EXPLORER 16/32 DEVELOPMENT BOARD The WINC1500 PICtail/PICtail Plus Daughter Board can be plugged into the Explorer 16/32 Development Board, as illustrated in Figure 3-3. This setup requires the PICtail Plus expansion board to be plugged into the Explorer 16/32 development board. - Page 22 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide NOTES: Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 22 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 23: Reference Schematics
WINC1500 PICTAIL /PICTAIL PLUS DAUGHTER BOARD USER’S GUIDE Appendix A. Schematics REFERENCE SCHEMATICS FIGURE A-1: WINC1500 PICTAIL/PICTAIL PLUS SCHEMATICS Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 23 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. - Page 24 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide Advance Information 2017 Microchip Technology Inc. DS70005309A-page 24 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 25 Schematics FIGURE A-3: WINC1500 PICTAIL/PICTAIL PLUS DAUGHTER BOARD SILK SCREEN (TOP VIEW) Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 25 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 26 WINC1500 PICtail /PICtail Plus Daughter Board User’s Guide NOTES: Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 27: Winc1500 Pictail/Pictail Plus Daughter Board Bill Of Materials
WINC1500 PICTAIL /PICTAIL PLUS DAUGHTER BOARD USER’S GUIDE Appendix B. Bill of Materials WINC1500 PICTAIL/PICTAIL PLUS DAUGHTER BOARD BILL OF MATERIALS TABLE B-1: BILL OF MATERIALS Reference Description Manufacturer Part Number Quantity C1, C4, C10, CAP CER 0.1 μF 10V 10% X5R... - Page 28 SOT-223-3 RES TKF 330R 5% 1/10W SMD Panasonic Electronic ERJ-2GEJ331X 0402 Components SWITCH TACT SPST 32V 50mA C&K Components KSR231GLFS KSR231GLFS SMD Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 28 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 29 NOTES: Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 29 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
- Page 30 Tel: 408-436-4270 Tel: 46-8-5090-4654 Fax: 86-29-8833-7256 Fax: 66-2-694-1350 Canada - Toronto UK - Wokingham Tel: 905-695-1980 Tel: 44-118-921-5800 Fax: 905-695-2078 Fax: 44-118-921-5820 Advance Information 2017 Microchip Technology Inc. DS70005309A-Page 30 11/07/16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
