Single-Port 802.3at Gigabit PoE Midspan User Guide

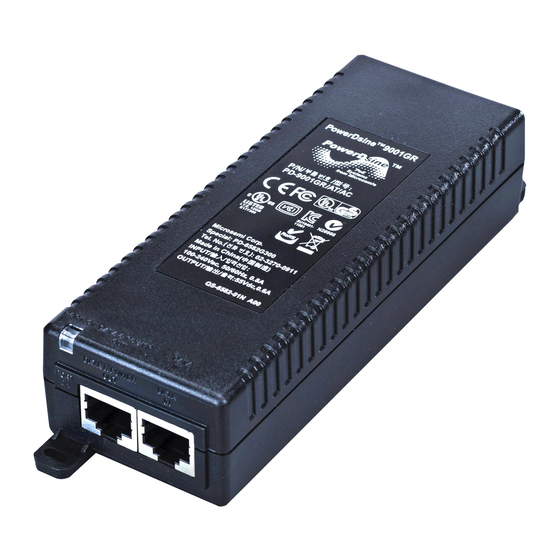

PD-9001GR
Introduction
The PD-9001GR Power over Ethernet (PoE) single-port Midspan offers a compact and cost-effective power
solution for IP phones, WLAN access points, network cameras, and other IP terminal installations.
Features
The PD-9001GR Midspan offers the following important features:
• Supports up to 10/100/1000 Mbps Pass Through Data Rates
• Can be Powered Through Universal AC Input
• Standards Compliant: IEEE
802.3at
®
User Guide
©
2023 Microchip Technology Inc. and its subsidiaries
DS50003584A -
1
Advertisement
Table of Contents
Related Manuals for Microchip Technology PD-9001GR
Summary of Contents for Microchip Technology PD-9001GR
-
Page 1: Introduction
Single-Port 802.3at Gigabit PoE Midspan User Guide PD-9001GR Introduction The PD-9001GR Power over Ethernet (PoE) single-port Midspan offers a compact and cost-effective power solution for IP phones, WLAN access points, network cameras, and other IP terminal installations. Features The PD-9001GR Midspan offers the following important features: •... -
Page 2: Table Of Contents
The Microchip Website............................... 13 Product Change Notification Service........................13 Customer Support...............................13 Microchip Devices Code Protection Feature......................13 Legal Notice..................................13 Trademarks.................................. 14 Quality Management System.............................15 Worldwide Sales and Service............................. 16 User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 3: Standards And Safety Guidelines
Warnings Read the below listed warnings before using the Midspan unit: • Connect the PD-9001GR only to the IP device with which it was bought. Using the PD-9001GR with other IP devices can cause damage to the IP device. User Guide DS50003584A - ©... - Page 4 • Follow basic electricity safety measures whenever connecting the PD-9001GR to its power source. • A voltage mismatch can cause equipment damage and may pose a fire hazard. If the voltage indicated on the label is different from the power outlet voltage, do not connect the PD-9001GR to that power outlet.
-
Page 5: Installation
Preliminary Steps Perform the following before you begin the installation: • Apply AC power to the PD-9001GR, using an operational AC cable with an appropriate ground connection. • Connect an output Ethernet cable to the DATA & POWER OUT port. - Page 6 PD-9001GR Installation Figure 2-1. Connecting the PD-9001GR Port Connectivity Indication Terminal Ethernet Cat . 5 Cable User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries...
-
Page 7: Indicators
Table 2-1. Port Indicator LED Port LED Color Indicated Behavior Yellow ON Power is ON (power is active) Green ON A remote terminal is connected Green Blinking Overload state or short-circuit User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 8: Specifications
Input (DATA IN): Ethernet 10/100/1000BASE-T RJ45 female socket Output (DATA & POWER OUT): Ethernet 10/100/1000BASE-T, RJ45 female socket with DC voltage on wire pairs, 4–5 (+) plus 55 V and 7–8 (−) User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 9: Troubleshooting
Ensure that the input Ethernet cable is connected to the DATA IN port. Verify that the PD is connected to the DATA & POWER port. Reconnect the same PD to a different PD-9001GR. If it works, there is probably a faulty port or RJ45 connection. -
Page 10: Technical Support
Technical Support Technical Support If you encounter problems while installing or using this product: • Visit the Microchip website at: www.microchip.com/support • Contact the following number: USA/Canada: +1-877-480-2323 User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 11: Recycling And Disposal
• If you purchased a replacement product, return your old product (including all components) back to the retailer. The retailer must accept it as required by the national WEEE legislation. User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 12: Revision History
The revision history describes the changes that were implemented in the document. The changes are listed by revision, starting with the most current publication. Table 7-1. Revision History Revision Date Description 10/2023 Initial Revision User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 13: Microchip Information
Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries... -
Page 14: Trademarks
The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 15: Quality Management System
PD-9001GR All other trademarks mentioned herein are property of their respective companies. 2023, Microchip Technology Incorporated and its subsidiaries. All Rights Reserved. © ISBN: 978-1-6683-3244-3 Quality Management System For information regarding Microchip’s Quality Management Systems, please visit www.microchip.com/quality. User Guide DS50003584A - ©... -
Page 16: Worldwide Sales And Service
Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS50003584A - © 2023 Microchip Technology Inc. and its subsidiaries...
