Page 1: Elliptical Trainer

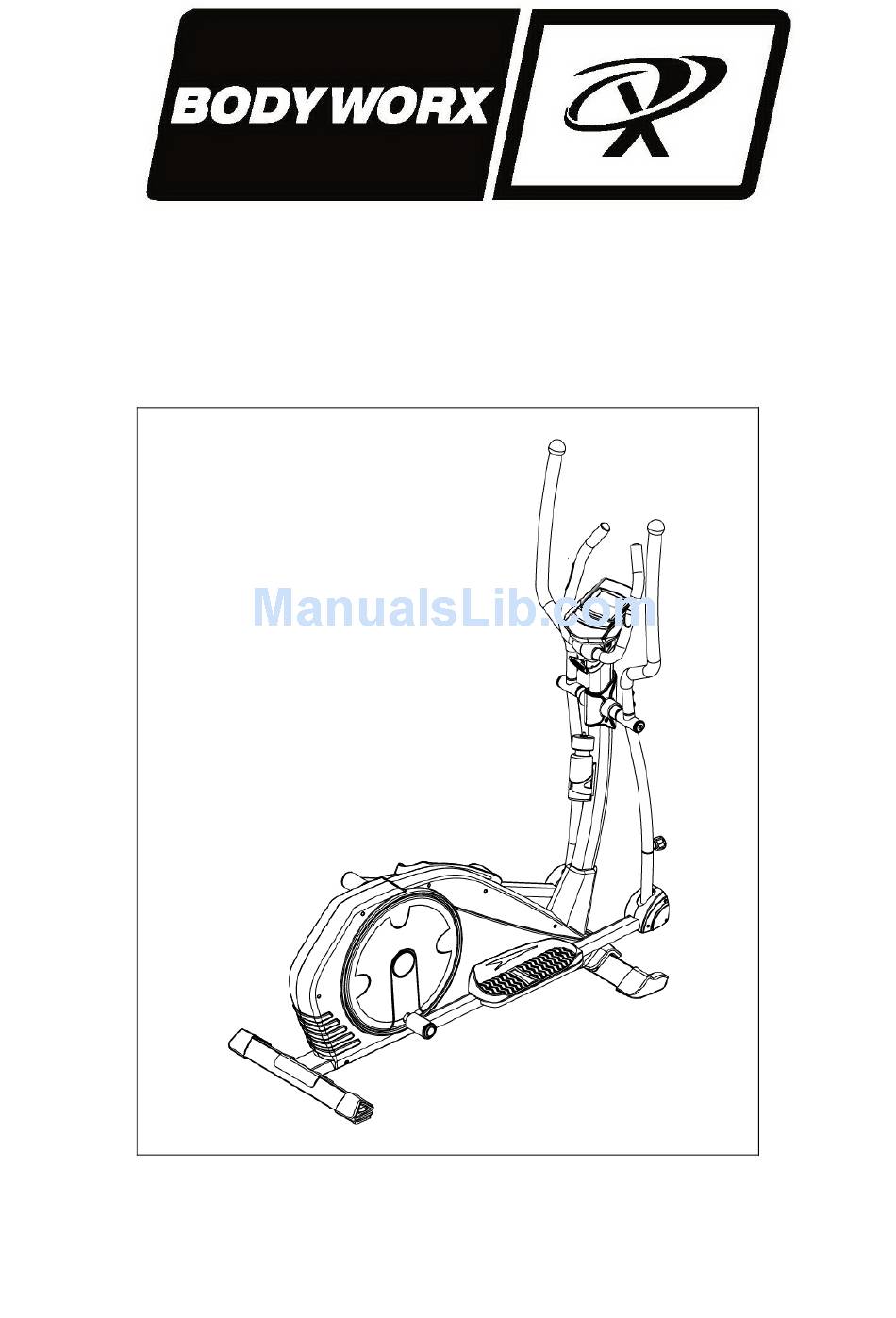

Elliptical Trainer Model No . EX900 OWNER’S MANUAL... -
Page 2: Safety Instructions
Safety Instructions • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. - Page 3 rming 15 sec conds for each 0 seconds 0 seconds 5 seconds 0 seconds 0 seconds 0 seconds 25 seco onds for ea ach leg 0 seconds 0 seconds 5 seco onds x 3 t times 0 seconds 20 seco onds for ea ach leg 5 times...
-
Page 4: Assembly Instruction
Assembly Instruction STEP 1. - Page 5 Assembly Instruction STEP 2.
- Page 6 Assembly Instruction STEP 3.
- Page 7 Assembly Instruction STEP 4.
- Page 8 Assembly Instruction STEP 5.
- Page 9 Assembly Instruction STEP 6.
- Page 10 Assembly Instruction STEP 7.
- Page 11 Assembly Instruction STEP 8.
-
Page 12: Console Instructions
Console Instructions TZ-6195 Power Up When turned on, the display with emit beep sound as all LCD displays light up. The text window will display “U1” and enter the normal mode at the same time. Note: When there is no signal or data input for 256 seconds, the Console will enter sleep mode. Pedaling the machine or key selection will wake-up the Console. -
Page 13: Program Operation
Setting Workout Parameters Press the UP or DOWN button to select the user, press MODE button to confirm user of selection, entering the training mode at the same time. Press the MODE button to select the training mode, and press the ENTER button to confirm model of selection, entering the setting data at the same time. - Page 14 PROGRAM -- preset program There are 12 preset programs & one Body Fat program can be chosen, each preset program is with 32 loading ( 32 levels). Use the MODE and UP/DOWN key can select the one preset program , and press the ENTER button to select TIME , DIST, CAL, THR to preset, when select this value, this data will flash and press the UP or DOWN button can adjust.
- Page 15 Note: If the pulse value is less than your preset THR, the Console will increase 10 watts per 30 seconds; if the pulse value is higher than your preset THR, it will decrease 10 watts per 20 seconds. User just can choose one of Training data of TIME or DIST or CAL to be preset. The Console will alarm with a beep sound and stop the workout automatically when the present value counts down to zero during training.
-
Page 16: Exploded Drawing
Exploded drawing... -
Page 17: Part List
Part List Part# Description Quantity Console Screw for console Upper console cable Plastic cover L Plastic cover R Screw M5x12mm Self-tapping screw M4x15mm Upper handlebar foam Upper handlebar L Upper handlebar R Allen bolt M8x20mm Spring washerΦ8 Curved washerΦ8x19x1.5T Anti-loose Allen bolt M8x20mm Screw cap Bushing Φ19x38 Lower handlebar... - Page 18 Part# Description Quantity Bearing 2203RS Knob M6 Flat washer Φ6x16x2T Spring washerΦ6 Foot support bar (L) Foot support bar (R) Tension cable Belt adjustment set 2 sets Nut M10 x1.25 (CP) End cap for the round cover Self-tapping screw M4.5 x25 Chain cover (L) Chain cover (R) Plastic rod...
- Page 19 Part# Description Quantity Motor Screw for motor M5 x15 End cap for foot support bar Front end cap (L) Front end cap (R) Front stabilizer Allen bolt M8 x57 Drilling screw M5 x15 Flat washerΦ8x19x1.5T Lower console cable Screw M5 x15 Connecting tube Bushing Φ25x100 Quick release pin M16...
- Page 20 Model No: # EX900 To register your warranty, please go to www.gpisports.com.au Distributed Exclusively by : GPI Sports & Fitness 275 Wellington Road Mulgrave, VIC, 3170 Australia.
