Summary of Contents for Bodyworx E400

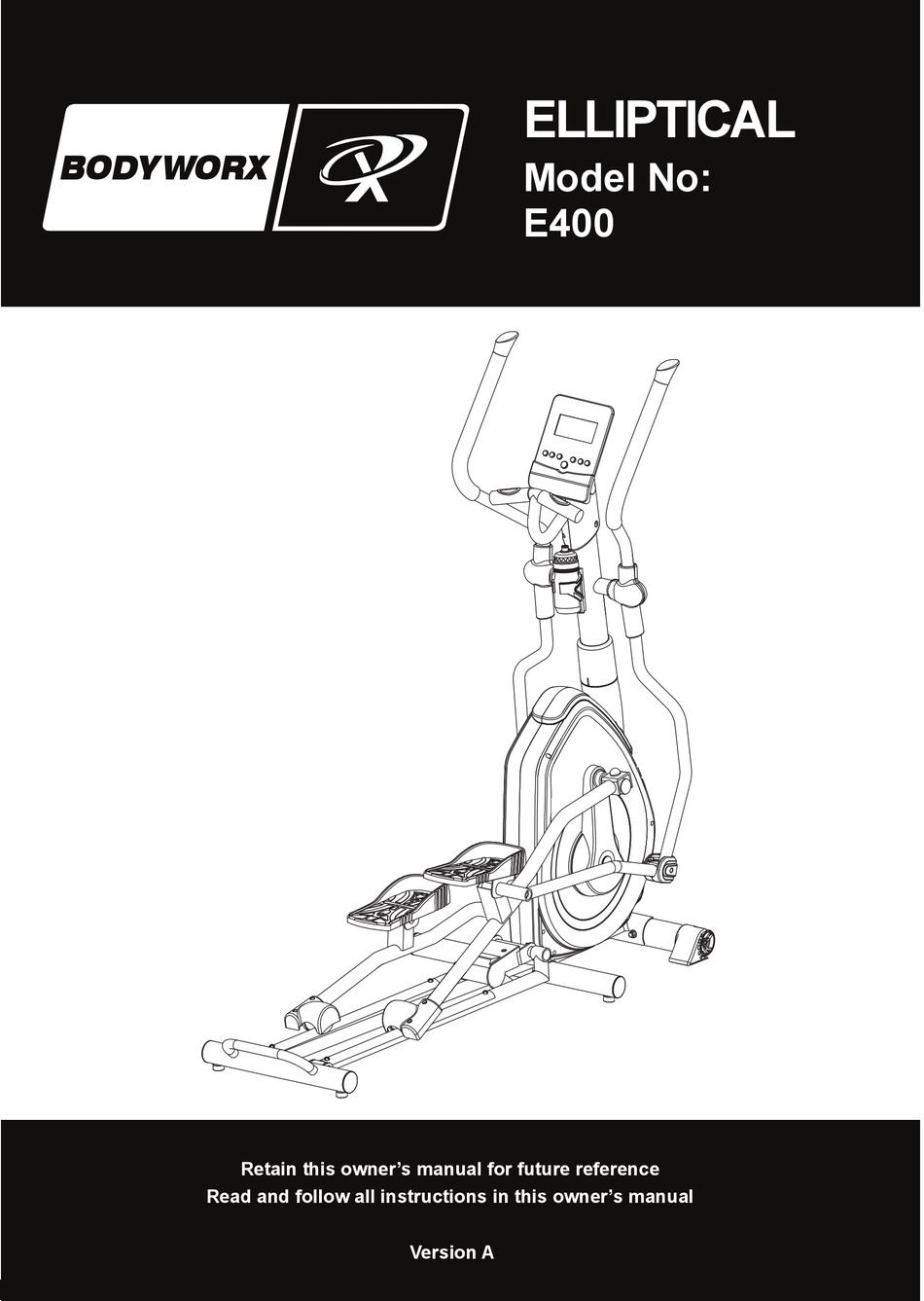

- Page 1 ELLIPTICAL BODYWORX BODY WORX Model No: E400 Retain this owner’s manual for future reference Read and follow all instructions in this owner’s manual Version A...
-
Page 2: Warranty Registration Form
GPI Sports & Fitness Warranty Registration Form Congratulations on purchasing your product, we at GPI believe that our product range is of the highest quality and represents great value for money. We back our product range up with our industry leading warranty. Please see below for the step by step instructions on how to register your product warranty online. -
Page 3: Safety Instructions
Safety Instructions • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. -
Page 4: Exploded Drawing
Exploded drawing:... -
Page 5: Checking List
Checking list:... -
Page 6: Part List
Part list: Part No. Description Part No. Description Flat washer D25*D8.5*2T Left cover for universal joint Allen bolt M8x1.25x20L Right cover for universal joint Square neck bolt M8*1.25*80L Taper washer D14*D8.5*4T Supporting tube for right pedal Right cover for wheel Supporting tube left... -
Page 7: Assembly Drawing
Part No. Description Part No. Description Crank axle Flat washer D28xD6.5x2.0T Belt Flat washer D18*D8.5*1.2T Screw ST4*1.41*15L Allen spanner Computer Spanner Handle pulse Assembly drawing: Step 1 1) Assemble the Lock sheet（27）and Adjustable round wheel（28）to the rear stabilizer(19). 2) Assemble the rear stabilizer (19) to the frame (1) by the Allen bolt (9), square neck bolt (9B), the curved washer (6), the spring washer (7) and the domed nut (20). - Page 8 Step 2 1) Assemble the supporting tube for pedal (11L&11R) to the rolling axle by the screw cap (116), Nylon nut (114), Flat washer(115)and the plastic flat washer (41) shown as fig.2-1. 2) Assemble the pedal (21) to the supporting tube for pedal (11L&11R) by the bolt (73) shown as fig.2-2. ) 3 Using the cable for wheel (122) to let the wheel (38) tied onto t he sliding beam from rear stabilizer (19) shown as fig.2-3.
- Page 9 Step 3 1) Assemble the handlebar post cover (49) to the handlebar post (10). 2) Connect the upper computer cable (29) and the lower computer cable (30) shown as fig.3-1. 3) Assemble the handlebar post (10) to the main frame (1) by the curved washer (6), the spring washer (7), and the Allen bolt (9).
- Page 10 Step 4 1) Assemble the movable handlebar (52L&52R) to handlebar post (10)by the flat washer (8), the waved washer (60) and the bolt (40) shown as fig. 4-1 and 4-2. 2) Assemble the Handlebar (81) to handlebar post(10) by Allen bolt(9),spring washer(7) and curved washer(6) shown as fig. 4-3.
- Page 11 Step 5 1) Assemble the right supporting tube for movable handlebar (12R) to the right bracket for pedal (32R) by the waved washer (59), the flat washer (8) ,the plastic washer (41) and the bolt (40).Then assemble the cover for universal joint (74A&74B) to the right bracket for pedal (32R) by the screw (63) and the bolt (100) shown as fig.5-1.
- Page 12 Step 6 1) Assemble the bottle holder (112) to the handlebar post (10) by bolt (111). Insert the bottle (113) into the bottle holder. 2) Assemble the cover (16A&16B) for left handlebar to the movable handlebar (52L) by the screw (46) shown as fig. 6-1. 3) Assemble the cover(17A&17B) for right handlebar to the movable handlebar (52R) by the screw (46) shown as fig.
- Page 13 Step 7 1) Connect the upper computer cable (29) and the handle pulse cable (68) to the computer (64) shown as fig7-1. 2) Assemble the computer (64) to the handlebar post (10) by bolt (111) shown as fig 7-2. 3) Assemble the left computer bracket (67L) and the right computer bracket (67R) to the handlebar post (10) by the screw (63) and the screw (104).
- Page 14 INCLINE FUNCTION OPERATION INCLINE---UP...
- Page 16 INCLINE---DOWN...
-
Page 18: Operation Procedure
Computer Operation Instructions SM-2780-31 BUTTON FUNCTION: MODE/ENTER : In stop mode, the mode is to confirm all exercise data setting, and enter into program. RESET : In stop mode, press the button back to main menu. START/STOP : To start or stop exercise. RECOVERY : To test hear rate recovery status. -
Page 19: User Program
Drawing A Drawing B Drawing C Drawing D 3. In main menu, first exercise program MANUAL will flash, user may press UP and DOWN button to select MANUAL PROGRAM (12 profiles) (drawing E)PROGRAMUSER PROGRAM HRCWATT. Drawing E Drawing F 4. Quick Start and Manual : Before exercise in Manual mode, user my set up TIME, DISTANCE, CALORIES and PULSE target. - Page 20 Brick area display total 8 rolls and every profile are composing of 20 rolls. While exercise, profile display shall rolling for every rolls until user finish exercise for it selected profile. Alpha-numeric display user’s selected program name (Manual→Program→User→ HRC→WATT) to remind user he/she is under which workout program. NOTE: 1.
- Page 21 BODYWORX BODYWORX Model No: E400 To register your warranty, please go to www.gpisports.com.au...
