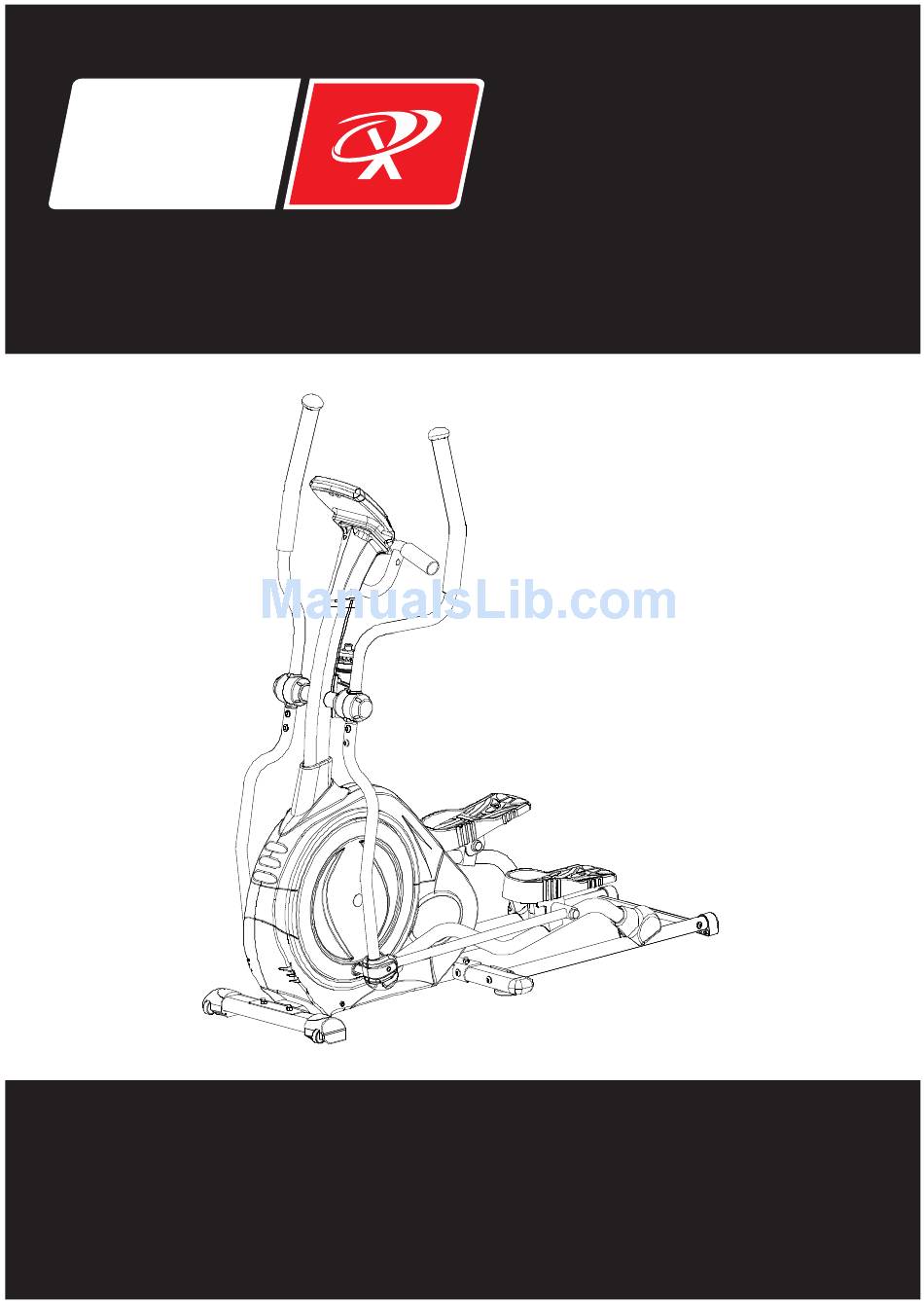

  • Page 1 Front Drive Elliptical BODY WORX BODY WORX Model No: E750 Retain this owner’s manual for future reference Read and follow all instructions in this owner’s manual Version A...

  • Page 2: Safety Instructions

    Safety Instructions • To ensure the best safety of the exerciser, regularly check on damage and worn parts. suitable, non-slip mat under the exerciser. • If you pass on this exerciser to another person or if you allow • The general rush is that exercisers and training devices another person to use it, make sure that that person is familiar are not toys.

  • Page 3: Exploded Drawing

    Exploded drawing:...

  • Page 4: Checking List

    Checking list: 12R&L 67&68 52R&L 11R&L 23R&L 74A&B R&L 93R&L M8*1.25*15L D22*D8.5*1.5T D15.4*D8.2*2T M8*1.25*20L D16*D8.5*1.2T M8*1.25*55L M8*1.25*60L M10*1.5*10T M8*15L M8*1.25*20L M6*1*15L M5*15L M8*1.25*20L M6*1.0*5T D24*D10*0.4T D11.5*D8*3.5T...

  • Page 5: Part List

    Part list: Part No. Description Q’ty Part No. Description Q’ty Main frame Foam (HDR) D30*3T*500L Front stabilizer Foam (HDR) D30*4T*125L Sliding beam Mushroom cap D1 1/4”*45L Oval cap Spring D3.5*D18*52L Left foot cap Bolt M6*1.0*15L Right foot cap C-ring S-15 (1T) Curved washer D22*D8.5*1.5T Waved washer D21*D16.2*0.3T Spring washer D15.4*D8.2*2T...

  • Page 6: Assembly Drawing

    Assembly drawing: Step 1 D22*D8.5*1.5T M8*1.25*20L D15.4*D8.2*2T 1) Assemble the sliding beam (3) to the rear stabilizer (19) by the Allen bolt (9A), the Allen bolt (9B), the curved washer (6), the spring washer (7) and the flat washer (8). 2) Assemble the connecting tube (18) to the sliding beam (3) by the Allen bolt (9C), the curved washer (6) and the spring washer (7).
  • Page 7 Step 2 M8*1.25*15L D15.4*D8.2*2T M8*1.25*15L D15.4*D8.2*2T 1) Assemble the handlebar post cover (49) to the handlebar post (10) shown as fig. A. 2) Connect the upper computer cable (29) and the lower computer cable (30) shown as fig. B. 3) Assemble the handlebar post (10) to the main frame (1) by the curved washer (6), the spring washer (7), the flat washer (8) and the Allen bolt (9).
  • Page 8 Step 3 M8*1.25*20L Assemble the upper cover (left) (23L), the waved washer (75), the movable handlebar (52L&52R), the flat washer (60) and the bolt (40) to the axle in turn.
  • Page 9 Step 4 1) Assemble the supporting tube for pedal (11L&11R) to the rolling axle (31) by the Nylon nut (17), the flat washer (14) and the plastic flat washer (41) shown as fig. 4-1. 2) Assemble the upper axle cover (74A) and the lower axle cover (74B) to the supporting tube for pedal (11L&11R) by the screw (63) shown as fig.
  • Page 10 Step 5 M8*1.25*20L 1) Assemble the supporting tube for movable handlebar (12L&12R) to the bracket for pedal (32L&32R) by the waved washer (84), the flat washer (60) ,the plastic washer (41) and the bolt (40) shown as fig. 5-1. 2) Assemble the cover for universal joint (104L&104R) to the bracket for pedal (32L&32R) by the screw (63) and the screw (107).
  • Page 11 Step 6 ST4*15L 1) Connect the upper computer cable (29) and the handle pulse cable (65) to the computer (64). 2) Assemble the computer (64) to the handlebar post (10) by screws that attach to the computer. 3) Assemble the supporting tube for movable handlebar (12L&12R) to the movable handlebar (52L&52R) by the curved washer (6), the spring washer (7) and the Allen bolt (9B) shown as fig.
  • Page 12 tep 7 ST4*15L M5*15L 1) Assemble the left computer bracket (68) and the right computer bracket (67) to the handlebar post (10) by the screw (63) and the screw (107). ) Assemble the adaptor (78) and turn on the computer. Assemble th e bottle holder (106) to the handlebar post (10) by bolt (105).

  • Page 13: Button Functions

    STRUCTION MANUAL OF SM7690-71 【BUTTON FUNCTIONS】 To make upward adjustment to each function data or increase training resistance. DOWN To make downward adjustment to each function data or decrease training resistance. MODE To confirm all setting. STAR/STOP To start or stop workout. RESET To reset current setting and have the monitor switch to initial training mode for selection.
  • Page 14 In the setting mode (Figure 10), press ▲ or ▼ key to adjust M (Manual), P (Program), ♥ (HRC), W (Watt), and U (User) sequentially in circulation order. Figure 10 Press ▲ or ▼ key allows user to have MANUAL (Figure 10) → PROGRAM (Figure 11) → HRC (Figure 12) → WATT (Figure 13) →...

  • Page 15: Program Setting

    PROGRAM SETTING: Press ▲ or ▼ key to select one of the 12 PROGRAMS like PROGRAM P01, P02, P03, P04... P12. Corresponding raphics will show flashing texts (Figure 21) on LCD. Figure 21 When a PROGRAM is chosen, the value will be shown in flashing text in the LEVEL column and ready for th adjustment to be determined.
  • Page 16 (9) W hen WATT (Figure 34) is selected, the WATT value will be shown in flashing text waiting to be adjusted. Defaul 120 will be shown on LCD (Figure 35) User can press ▲ or ▼ to set WATT value. Press the MODE button for confirmation.
