Vertical LDP-9030D Quick Manual

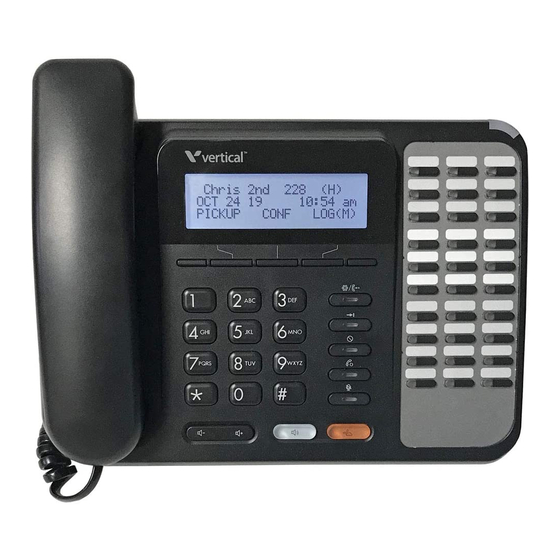

LDP-9030D Digital Telephone Description

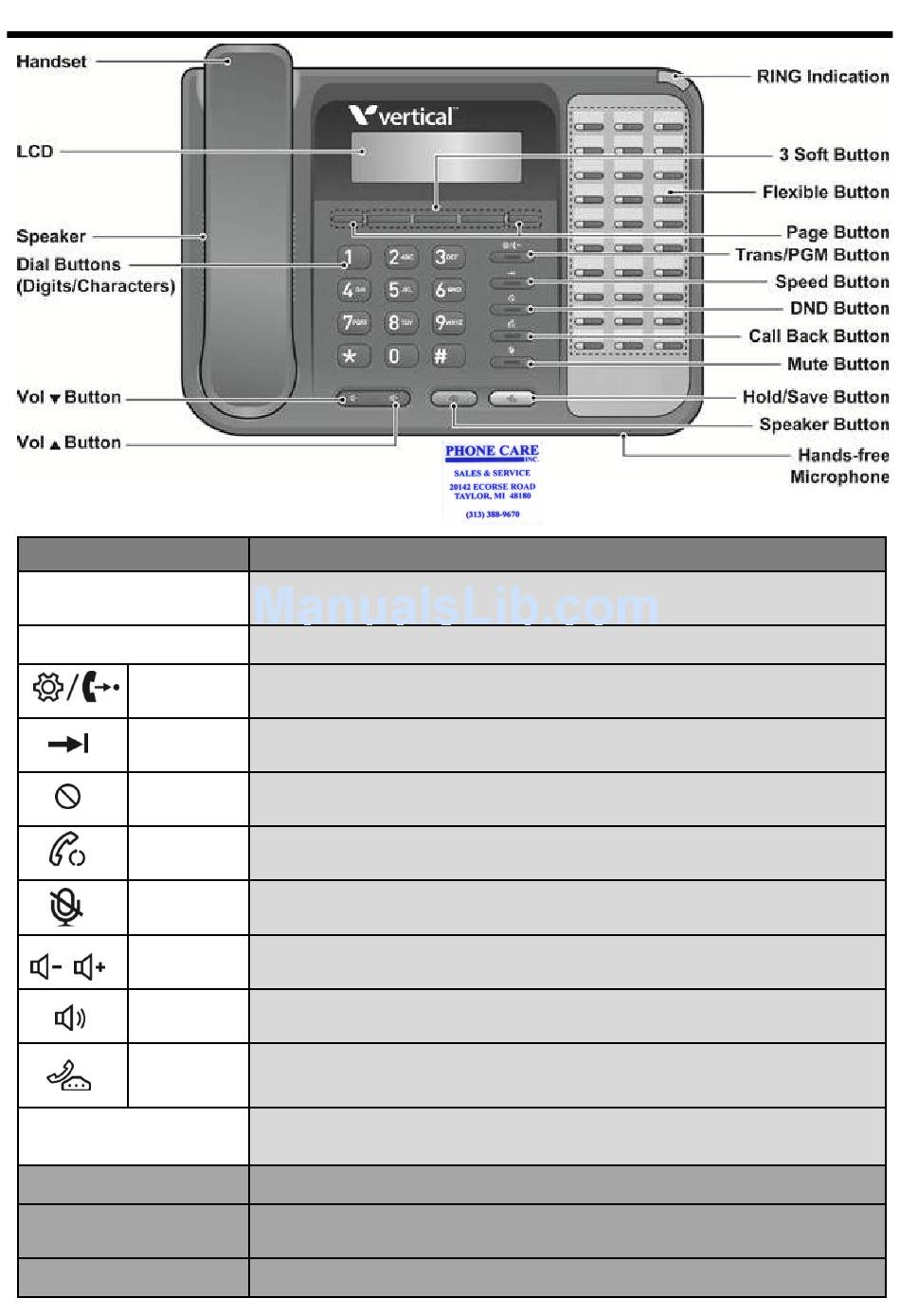

Fixed Feature button definition
Button
3 Soft
Page
Trans/PGM
Speed
DND
Call Back
Mute
Volume
Speaker
Hold/Save
Flexible
Visual Ringing LED
LCD Display
Hands-free Microphone
Used in conjunction with fixed and flexible features, and the function changes in
relation to call progress, as indicated on the LCD display.
Used to change more additional functions on the LCD display .
This button is used to initiate a call transfer (TRS) or to enter programming
mode (PGM).
Used to access speed dialing, speed programming, save number redial, and
last number redial.
The DND (Do Not Disturb) feature blocks all incoming calls. When DND is
active, the red LED in this button is illuminated.
A station can initiate a call back request to a busy station. Once that station
becomes idle, the initiating station is signaled.
Toggle outgoing audio; red LED illuminates.
The volume button adjusts the audio levels for ringing, handset and
speakerphone functions.
Speaker toggles the speakerphone state, and the red LED is illuminated when
the speakerphone is active.
This button is used to put a call on hold or save information when programming.
Some flexible buttons are pre-programmed in the system for line appearances,
loop functions etc. The remaining flexible buttons can be user-programmed.
Illuminates when the phone is ringing.
Displays information about telephone status, dialing directories,and test
message information.
Microphone is used for hands-free speakerphone function.
Description
Quick Guide
