UG-161

INSTALLING THE FRAC-N PLL SOFTWARE

Use the following steps to install the SDP drivers and the
Analog Devices Frac-N PLL software.
1. Install the Frac-N PLL software by double-clicking
ADI_PLL_Frac-N_Setup.msi.
If you are using Windows XP, follow the instructions in
the Windows XP Int-N PLL Software Installation Guide
section (see Figure 17 to Figure 21).
If you are using Windows Vista or Windows 7, follow the
instructions in the Windows Vista and Windows 7 Frac-N
PLL Software Installation Guide section (see Figure 22 to
Figure 26).
Note that the software requires Microsoft Windows
Installer and Microsoft .NET Framework 3.5 (or higher).
The installer connects to the Internet and downloads
Microsoft .NET Framework automatically. Alternatively,
before running ADI_PLL_Frac-N_Setup.msi, both the
installer and .NET Framework can be installed from the
CD provided in the evaluation board kit.
2. Connect the SDP board (black) to a PC using the supplied
USB cable.
If you are using Windows XP, follow the steps in the Windows
XP SDP-S Board Driver Installation Guide section (see
Figure 27 to Figure 30).
If you are using Windows Vista or Windows 7, the drivers
install automatically.

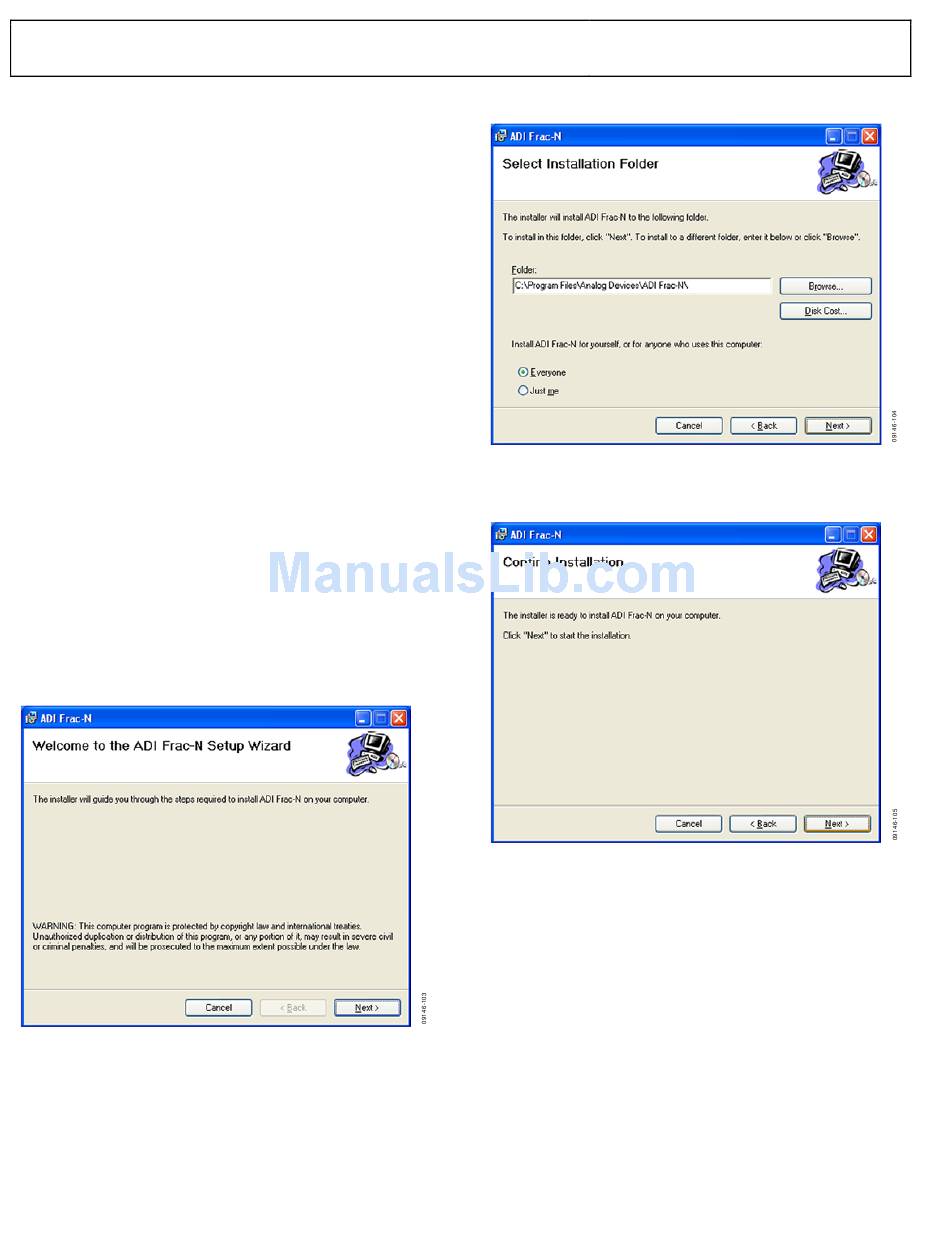

Windows XP Frac-N PLL Software Installation Guide
1. Click Next.
Figure 17. Windows XP Frac-N PLL Software Installation, Setup Wizard
2. Choose an installation directory and click Next.
Figure 18. Windows XP Frac-N PLL Software Installation,
3. Click Next.
Figure 19. Windows XP Frac-N PLL Software Installation,
Rev. A | Page 10 of 28
EV-ADF411XSD1Z User Guide
Select Installation Folder
Confirm Installation
