Summary of Contents for ORiNG TGAR-1062-M12-3G
-
Page 2: Contact Information
Please refer to the Technical Specifications section for more details. WARRANTY ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. -
Page 3: Table Of Contents
Networking Setting ................... 31 Wireless Setting – Advanced Setting................. 31 Wireless Setting – MAC Filter ................... 33 NAT Setting - Virtual Server ..................34 NAT Setting – DMZ ....................35 NAT Setting – UPnP ....................35 ORing Industrial Networking Corp. - Page 4 Event Warning ......................50 E-mail ........................52 DIDO ........................54 5.2.4 System Status ....................55 System Info ......................55 System Log ......................55 Traffic Statistics ......................55 Wireless Link List...................... 56 Technical Specifications ................57 Compliance .................... 62 ORing Industrial Networking Corp.
-
Page 5: Getting Started
LAN ports in M12 connectors and EN50155 compliance, the ORing TGAR-1062/2062/1662 series are IEEE802.11 a/b/g/n routers capable of providing a fast and effective way to communicate with the Internet over wired or wireless LANs. Consisting of 3G and 4G... -
Page 6: Hardware Features
Dimensions: 125.6mm (W) x 65mm (D) x 196.1mm (H) (4.94 x 2.55 x 7.72 inch) Operating temperature: -25 to 70°C Storage temperature: -40 to 85°C Operating humidity: 5% to 95%, non-condensing Wall mounting enabled ORing Industrial Networking Corp. -

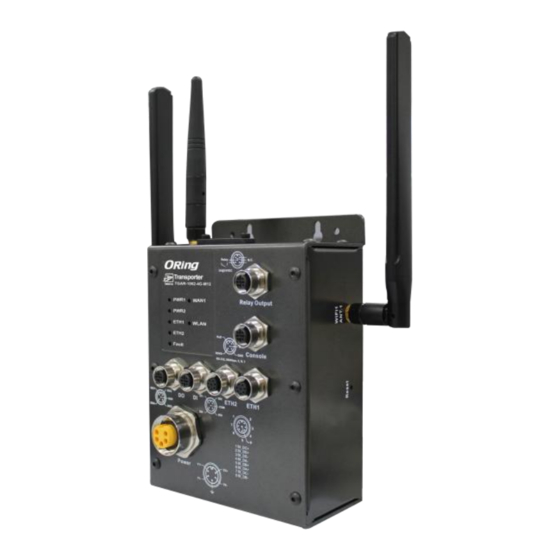

Page 7: Front Panel
1 x relay output to carry capacity of 1A at 24VDC connector M23 power connector with redundant Dual power inputs for 12~48 VDC power inputs DIDO with M12 connector (D-coding) 4 x digital input / 4 x digital output TGAR-1062 Series ORing Industrial Networking Corp. - Page 8 TGAR-1062/2062/1662 Series User Manual TGAR-2062 Series TGAR-1662 Series ORing Industrial Networking Corp.
-
Page 9: Front Panel Leds
Port is linked WLAN is activated WLAN 1 (2) Green Blinking Transmitting data WAN1 (2) Green Modem is connected Fault Error occurs (power fails or port disconnected) 2.2 Side Panel 1. Antenna connector 2. Reset button ORing Industrial Networking Corp. -
Page 10: Top Panel
Once the power indicator starts to flash, release the button. The device will then reboot and return to factory defaults. 2.2 Top Panel On the top panel sits a SIM card slot and a cellular antenna connector, as show as below. TGAR-1062/1662 Series TGAR-2062 Series ORing Industrial Networking Corp. -
Page 11: Bottom Panel
TGAR-1062/2062/1662 Series User Manual 2.3 Bottom Panel TGAR-2062 Series ORing Industrial Networking Corp. -
Page 12: Hardware Installation
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. 3.1 Wall Mounting Installation TGAR-1062 Series Wall-mount Kit Measurement ORing Industrial Networking Corp. - Page 13 TGAR-1062/2062/1662 Series User Manual TGAR-2062 Series Wall-mount Kit Measurement ORing Industrial Networking Corp.
- Page 14 Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the top and bottom of the unit and fasten the screw to the wall with a screwdriver. Step 3: Slide the router downwards and tighten the four screws for added stability. ORing Industrial Networking Corp.
-
Page 15: Wiring
The router uses a M12 A-coded 5-pin male connector on the front panel for relay output. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay. The relay contacts will detect user-configured events and form an open circuit when an event is triggered. ORing Industrial Networking Corp. -
Page 16: Redundant Power Inputs
The rule of thumb is that wiring sharing similar electrical characteristics can be bundled together 7. You should separate input wiring from output wiring 8. It is advised to label the wiring to all devices in the system ORing Industrial Networking Corp. -
Page 17: Cables And Antenna
UTP 100 m (328 ft) RJ45 100Base-T(X) Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ45 1000Base-T(X) 5e,6 UTP 100 m (328 ft) RJ45 Definition BI_DC+ BI_DD+ BI_DD- BI_DA- BI_DB+ BI_DA+ BI_DC- BI_DB- 4.2 Console Port Pin Definition ORing Industrial Networking Corp. -
Page 18: Di/Do
TGAR-1062/2062/1662 Series User Manual 4.3 DI/DO 4.4 Wireless Antenna The series uses 2.4GHz/5GHz antennas with reversed SMA connectors. You can also use external RF cables and antennas with the connectors. ORing Industrial Networking Corp. -
Page 19: Cellular Antenna
TGAR-1062/2062/1662 Series User Manual 4.5 Cellular Antenna The series are packed with one or two 3G and 4G antennas. External RF cables and antennas can also be used with the connector. 3G Cellular Antenna 4G LTE Antenna ORing Industrial Networking Corp. -
Page 20: Management
A login window will pop up where you can enter the default login name admin and password admin. For security reasons, we strongly recommend you to change the password. Click on System Tools > Login Setting after logging in to change the password. ORing Industrial Networking Corp. -
Page 21: Configuration
Shows the current firmware version Uptime Shows the elapsed time since the AP router is started Wan IP Shows WAN IP address 5.2.1 Basic Setting This section will guide you through the general settings for the router. ORing Industrial Networking Corp. -
Page 22: Wan
Specifies a DNS server address manually. You can enter two DNS server addresses as the primary and secondary options. addresses Use Modem/3G as Enable this option if you want to use Modem/3G as a backup backup connection connection when main connection is lost. ORing Industrial Networking Corp. - Page 23 Specify the IP & DNS Enter a static IP and DNS address required by other ISPs provided by ISP Auto: connect automatically when the router boots up Connection Mode Connect on Demand: disconnect the PPP session if the router ORing Industrial Networking Corp.
- Page 24 Enter a PIN code if you want to perform PIN check Auto Connect Check to start connections when the router boots up Reconnect on Failure Check to allow for reconnection when links fail UIM Status Shows the status of SIM card ORing Industrial Networking Corp.
- Page 25 Select this option if you want to assign an IP address to the WAN address port manually. You should set IP Address, Subnet Mask, and Default Gateway according to IP rules. Obtain DNS server Obtains a DNS server address from a DHCP server. If you have ORing Industrial Networking Corp.
-
Page 26: Lan
LAN. You can enable or disable LLDP protocol. DHCP DHCP is a network protocol designed to allow devices connected to a network to communicate with each other using an IP address. The connection works in a ORing Industrial Networking Corp. - Page 27 Label Description DHCP Mode Available options include Built-in DHCP Server and DHCP Forwarder. Built-in DHCP Server will enable the router to automatically assign an IP address to a computer on the LAN. ORing Industrial Networking Corp.
-
Page 28: Wireless Ap
You can set the device to work in AP mode. This is the most common mode for all wireless APs. In this mode, the AP will act as a central connection point which other wireless clients can connect to. ORing Industrial Networking Corp. - Page 29 You can choose the security type for your WLAN connection from the following options: None: no encryption Security options WEP: WEP (Wired Equivalent Privacy) is a wireless security protocol for WLAN. WEP will encrypt data transmitted on the WLAN. ORing Industrial Networking Corp.
- Page 30 A-F to represent values ten to fifteen. Default Key Index Select one of the keys to be the active key Key 1 to 4 You can input up to four encryption keys. ORing Industrial Networking Corp.
- Page 31 Label Description Available values include WPAPSK, WPA2PSK, WPAPSK/WPA2PSK mix. WPAPSK and WPA2PSK will Auth Mode encrypt the link without additional RADIUS server, only an access point and client station that supports WPA-PSK is ORing Industrial Networking Corp.
- Page 32 Enter the IP address of the RADIUS server Radius Port Enter the RADIUS port (default is 1812) Shared Secret Enter the RADIUS password or key RADIUS (Remote Authentication Dial-In User Service) is a widely deployed protocol that ORing Industrial Networking Corp.
-
Page 33: Client Mode
The principle of the Radius server is shown in the following pictures: Client Mode In this mode, the router functions as a wireless client to connect your wired devices to a wireless network. This mode provides no access point services but supports 802.1X. ORing Industrial Networking Corp. -
Page 34: Ddns
In this page, you can set the date & time of the device. A correct date and time will help the system log events. You can set up a NTP (Network Time Protocol) client to synchronize date & time with a NTP server on the Internet. ORing Industrial Networking Corp. -
Page 35: Networking Setting
This page allows you to set up wireless configuration. Label Description Radio Button Enables or disables wireless function Beacon Interval A beacon is a packet sent by a wireless access point to synchronize wireless devices. The beacon interval value indicates ORing Industrial Networking Corp. - Page 36 However, if any wireless device does not support short preamble, then it will not be able to communicate with your network. If you are not sure whether your radio supports the short RF preamble, you must disable this feature. ORing Industrial Networking Corp.
-
Page 37: Wireless Setting - Mac Filter
This page allows you to set up MAC filters to allow or deny wireless clients to connect to the router. You can manually add a MAC address or select a MAC address from the Associated Clients list currently associated with the router. ORing Industrial Networking Corp. -
Page 38: Nat Setting - Virtual Server
A-Z. A null value is allowed. Public IP Enter a public IP allowed to access the virtual service. If not specified, choose All. Public Port The port number to be used to access the virtual service on the ORing Industrial Networking Corp. -
Page 39: Nat Setting - Dmz
NAT Setting – UPnP The UPnP (Universal Plug and Play) feature allows Internet devices to access local host resources or devices as needed. UPnP-enabled devices can be automatically discovered by the UPnP service application on the LAN. ORing Industrial Networking Corp. -
Page 40: Firewall Setting - Ip Filter
LAN and the Internet and within your LAN. This control is implemented via IP filter rules which are defined to block attempts by certain computers on your LAN to access certain types of data or Internet locations. You can also block incoming access to computers on your LAN. ORing Industrial Networking Corp. -
Page 41: Firewall Setting - Mac Filter
Enter the MAC address to be filtered Enable Now Click Yes to enable the entry after adding it IP filter list Shows the information of all MAC filters. Click Edit to edit the entry or Del to delete the entry. ORing Industrial Networking Corp. -
Page 42: Vpn Setting - Open Vpn
Openvpn used by IGAR-2062+-3G/4G which is version 2.0.9. Connection to Open VPN Server When you enable Open VPN Client, you need two routers to create site-to-site VPN connections. The server IP and client IP address should be within the same network domain. ORing Industrial Networking Corp. - Page 43 TGAR-1062/2062/1662 Series User Manual Open VPN Server and Client Connection ORing Industrial Networking Corp.
-
Page 44: Vpn Setting - Pptp Vpn
For more information, please visit openvpn website. Vpn Setting – PPTP VPN PPTP (Point to Point Tunneling Protocol) VPN allows PCs connected to the router through WAN ports to act as PCs in the same LAN. ORing Industrial Networking Corp. - Page 45 After setting up a new connection, you can make configurations in the following page. Label Description PPTP Server Enables or disables PPTP VPN server Server IP Enter the server IP address. The default value is the IP address of the connected LAN port. ORing Industrial Networking Corp.
-
Page 46: Vpn Setting - Pptp Client
Enter the username and password pairs in the form of user * pass *. Multiple username and password pairs are allowed. Vpn Setting – PPTP Client If a router wants to link to the routers in different networks, you should enable PPTP client in the following page. ORing Industrial Networking Corp. -
Page 47: Vrrp
All routers in the virtual router group share the same VRID and VRIP. The master router provides primary routing and the backup routers monitor the status of the master router and become active if the master router fails. ORing Industrial Networking Corp. - Page 48 VRID but provides the backup path if the Master router becomes unavailable. An IP address associated with the VRID from which other Virtual Router IP hosts can obtain network service. The VRIP is managed by the VRRP instances belonging to a VRID. ORing Industrial Networking Corp.
-
Page 49: Routing Protocol - Routing Setting
When RIPv1 & v2 is Disabled, the router will operate in static routing mode, which means routers forward packets using either route information from route table entries that you manually configure or the route information that is calculated using dynamic routing algorithms. ORing Industrial Networking Corp. - Page 50 BGP; however, the IGAR-2062 only supports RIP (Routing Information Protocol). Do not choose Disable in the RIPv1 & v2 list if you want to enable Dynamic Routing. After clicking Apply, more information will be displayed in Current Routing Table. ORing Industrial Networking Corp.
- Page 51 Choose Disable to disable dynamic routing or other options to configure the interfaces for dynamic routing Telnet Setting This option is only available when dynamic routing is enabled. It allows you to make detailed configurations via simple comments. Routing Topography ORing Industrial Networking Corp.
-
Page 52: System Tools
Choose HTTPS if you want a secure connection. Port Choose a web management page port number. For HTTP, default port is 80. For HTTPS, default port is 443. Router Restart This page allows you to configure restart settings for the router. ORing Industrial Networking Corp. -
Page 53: Firmware Upgrade
ORing launches new firmware constantly to enhance router performance and functions. To upgrade firmware, download new firmware from ORing’s website to your PC and install it via Web upgrade. Make sure the firmware file matches the model of your router. It will take several minutes to upload and update the firmware. -
Page 54: Miscellaneous
Internet or if the WAN connection is OK. Enter a domain name or IP address in the destination box and click Ping to test. Event Warning When an error occurs, the router will notify you through system log, e-mail, SNMP, and relay. ORing Industrial Networking Corp. - Page 55 Enter the IP address of a remote server if you want the logs to be stored remotely. Leave it blank will disable remote syslog. Syslog Server Port Specifies the port to be logged remotely. Default port is 514. ORing Industrial Networking Corp.
-
Page 56: E-Mail
Enter a backup host to be used when the primary host is unavailable. Server Port Specifies the port where MTA can be contacted via SMTP server E-mail Address 1-4 Enter the mail address that will receive notifications ORing Industrial Networking Corp. - Page 57 TGAR-1062/2062/1662 Series User Manual SNMP ORing Industrial Networking Corp.
-
Page 58: Dido
Enter the IP address of the SNMP server which will send out traps Server 1-4 generated by the AP. Community Community is a password to establish trust between managers and agents. Normally, public is used for read-write community. SysLocation Specifies sysLocation string SysContact Specifies sysContact string Relay DIDO ORing Industrial Networking Corp. -
Page 59: System Status
Refresh to renew the page or Clear Logs to clear all or certain log entries. Traffic Statistics This page displays network traffic statistics for packets both received and transmitted through Ethernet ports and wireless connections. ORing Industrial Networking Corp. -
Page 60: Wireless Link List
TGAR-1062/2062/1662 Series User Manual Wireless Link List This page displays the Mac address of all wireless clients connected. ORing Industrial Networking Corp. -
Page 61: Technical Specifications
EDGE / WCDMA / HSDPA WCDMA / HSDPA / HSUPA HSDPA / HSUPA / HSUPA /HSPA+ /LTE / HSUPA /HSPA+ /LTE Antenna Connector 1 x RP-SMA Female 1 x SMA Female 2 x RP-SMA Female 2 x SMA Female ORing Industrial Networking Corp. - Page 62 -25 to 70 C (-13 to 158 Operating Humidity 5% to 95% Non-condensing Regulatory approvals FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2) EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 ORing Industrial Networking Corp.
- Page 63 Cooling EN60068-2-1 Dry Heat EN60068-2-2 Safety EN60950-1 Warranty 5 years ORing WLAN Access Point TGAR-1662-M12-3G TGAR-1662-M12-4G Model Physical Ports 10/100/1000Base-T(X) Ports in M12 Auto MDI/MDIX (8-pin A-coding) DIDO port in M12 (5-pin A-coding) 2 (DI x 4 and DO x 4)
- Page 64 Regulatory approvals FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2) EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Shock IEC60068-2-27, EN61373 Free Fall IEC60068-2-32 Vibration IEC60068-2-6, EN61373 Rail Traffic EN50155 Cooling EN60068-2-1 ORing Industrial Networking Corp.
- Page 65 TGAR-1062/2062/1662 Series User Manual Dry Heat EN60068-2-2 Safety EN60950-1 Warranty 5 years ORing Industrial Networking Corp.
-
Page 66: Compliance
“Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. ORing Industrial Networking Corp. - Page 67 Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF établies pour un incontrôlés environnement. L'antenne (s) utilisée pour ce transmetteur ne doit pas être co-localisés ou fonctionner en conjonction avec toute autre antenne ou transmetteur. ORing Industrial Networking Corp.
