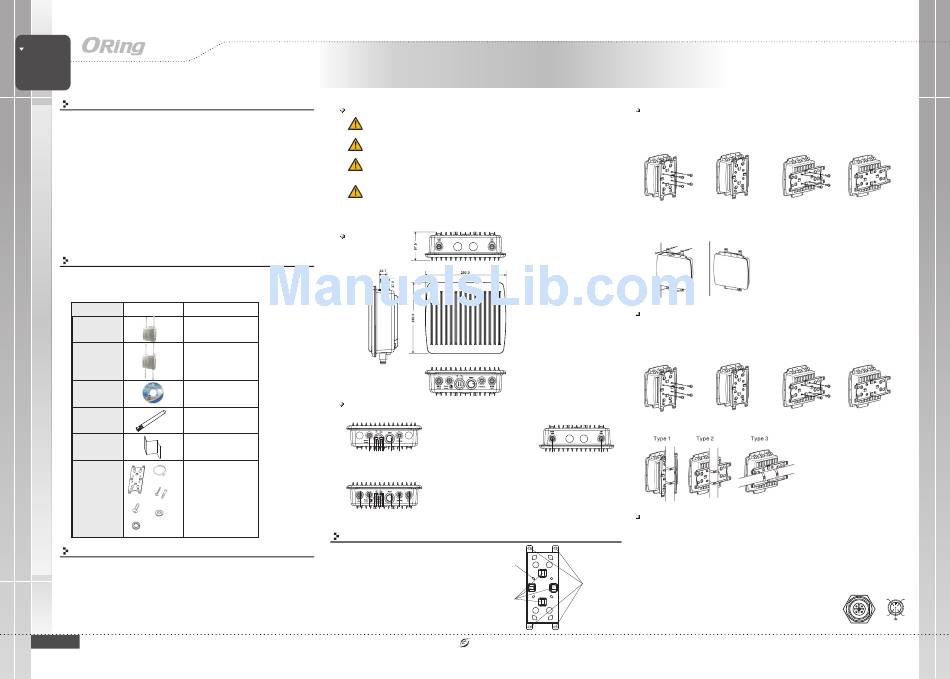

ORiNG TGAP-W6610+-M12 Quick Installation Manual

PoE
IP -67
EN50155
Q I
Wireless
uick nstallation
ACCESS POINT

Introduction

The TGAP-W610+-/W6610+-M12 are reliable outdoor WLAN access points
with one (TGAP-W610+) or dual (TGAP-W6610+)
modules alongside one Gigabit LAN port in M12 connector. With EN50155
compliance and M12 connectors to ensure tight and robust connections,
the devices guarantee reliable operation against vibration and shock, and
are ideal for rolling stock applications. The devices have an IP-67
waterproof housing to protect them from damage in harsh weather when
installed outdoors. Featuring two or four N-Type connectors that can house
any N-Type antennas for extended communications distances, the devices
are ideal for the toughest industrial environments. In addition, the LAN port of
the devices is PoE-enabled, allowing the device to be powered over the
existing network cable. The APs can be configured to operate in
AP/Client/Bridge/AP-Client modes and support MAC filters for security
control. Configurations and management can be done via a Window utility or
Web interface on LAN or WLAN networks.

Package Contents

The TGAP-W610+/6610+-M12 are shipped with the following items. If any
of these items is missing or damaged, please contact your customer service
representative for assistance.
Contents Pictures
TGAP-W610+-M12
TGAP-W6610+-M12
CD
2.4GHz/5GHz 2 (TGAP-W610+-M12) or
Antenna
4 (TGAP-W6610+-M12)
QIG
Stainless tie
back straps x2
Mounting
Installation
Wall mount x1
Wood Screw x4
Package
Wood/ Gyprock Plug x4
M6x12 Screw x4
Washer x4
Spring Washer x4

Preparation

Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Q I G
TGAP-W610+/6610+-M12 Series
TGAP-W610+/6610+-M12 Series
G
uide
Safety & Warnings
When installed outdoors, make sure the connectors on the panel are facing
down to prevent water intrusion.
802.11 a/b/g/n wireless
Do not remove the water-proof casing, and do not touch or move the
device when the antennas are transmitting or receiving signals.
When installing the device, make sure to keep the radiating at a minimum
distance of 20 cm (7.9 inches) from all persons to minimize the potential for
human contact during normal operation.
Do not operate the device near unshielded blasting caps or in an otherwise
explosive environment unless the device has been modified for such use by
qualified personnel.
Dimension
Number
1
1
1

Panel Layouts

Bottom Panel
1
1 2 34 5 67
TGAP-W610+-M12
1
V1+ V2+
V1- V2-
10 1 2 34 5 67
TGAP-W6610+-M12
Installation
The device can be fixed to a pole or the wall
using the supplied mounting plate. Make
sure the connectors on the bottom panel are
facing down when installing to prevent water
intrusion.
1907-2-29-TGAPW-1.0
V1+ V2+
V1- V2-
Top Panel
1. Power connector
2. LED for PWR1 status
3. LED for PWR2 status
8 9
1
4. LED for PoE status
5. LED for WLAN2 connection
1. Antenna connector
6. LED for WLAN1 connection for WiFi (WiFi1)
7. LED for LAN port connection
8. Reset button
9. LAN port
10. Connector for WiFi2 antenna
8 9 10
Screw holes for
attaching the
plate to the
unit
Strap slots for
pole mounting
PRINTED ON RECYCLED PAPER
EN50155 Industrial IP-67 PoE
Outdoor Access Point
Wall-mount
Follow the steps below to install the device to the wall.
Step 1: Attach the mounting plate to the back of the device using four screws. The plate can
be attached vertically or horizontally to the device depending on the space available.
Vertical
Step 2: Hold the device upright against the wall.
Step 3: Insert four screws through the holes at the top and bottom of the plate and fasten the
screws to the wall.
Pole-mount
You can mount the device to a pole using the adjustable steel band straps included in the kit. Follow
the steps below:
Step 1: Attach the mounting plate to the back of the device using four screws. The plate can be
attached vertically or horizontally to the device based on the space available.
Vertical
Step 2: Thread the two supplied metal mounting straps through the large slots on the
mounting plate and then put the straps around the pole.
1

Wiring

For pin assignments of power, console and relay output ports, please refer to the following tables.

Grounding

Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Wall-mount

POWER PORT PINOUTS

screw holes
The device supports two sets of power supplies and uses the M12 5-pin
female connector on the front panel for the dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.
Version 1.0
Horizontal
Horizontal
V1+ V2+
V1- V2-
Quick Installation Guide
